Nixie IN-12 board

by diycrap.
Top
Bottom

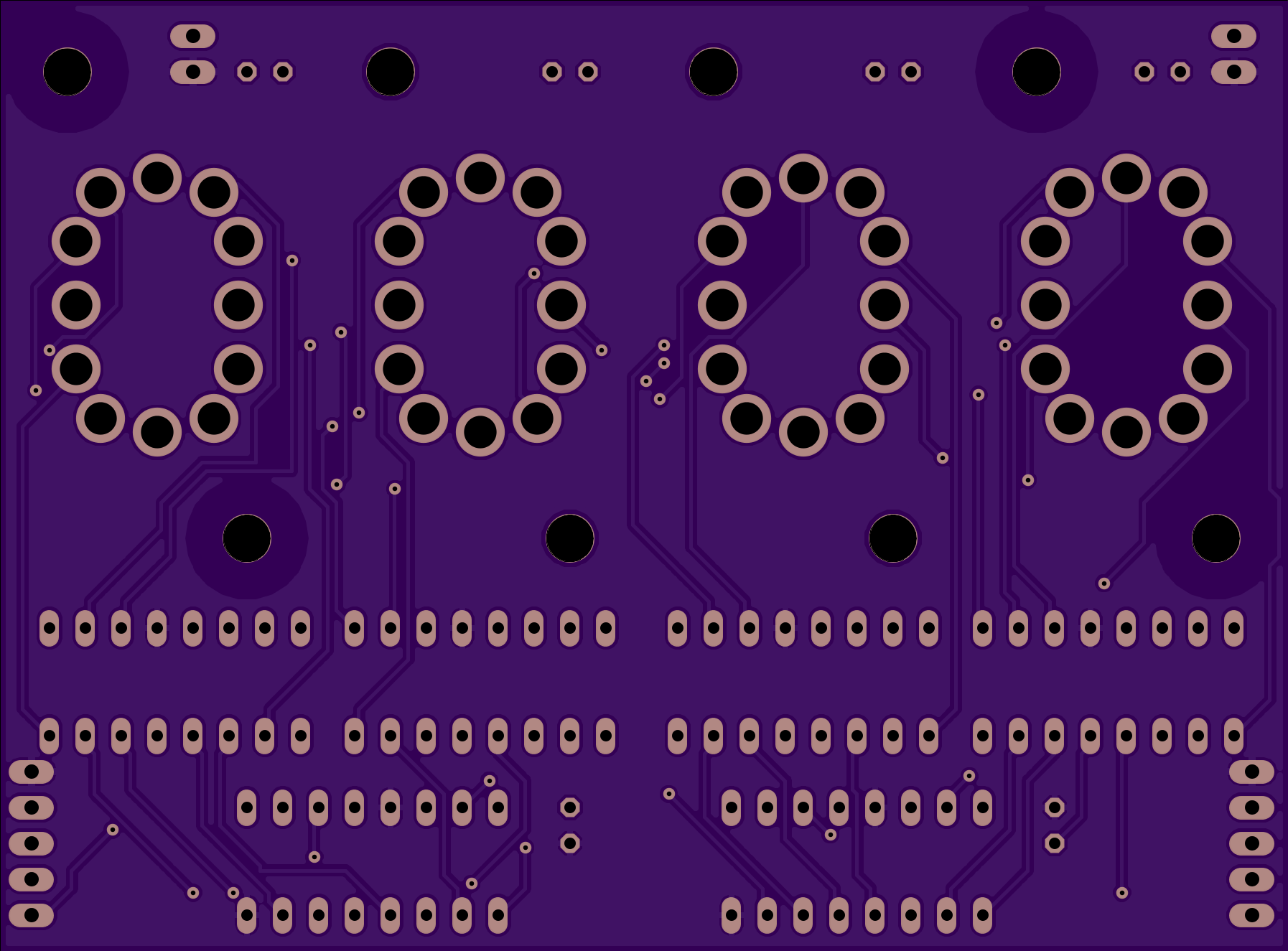

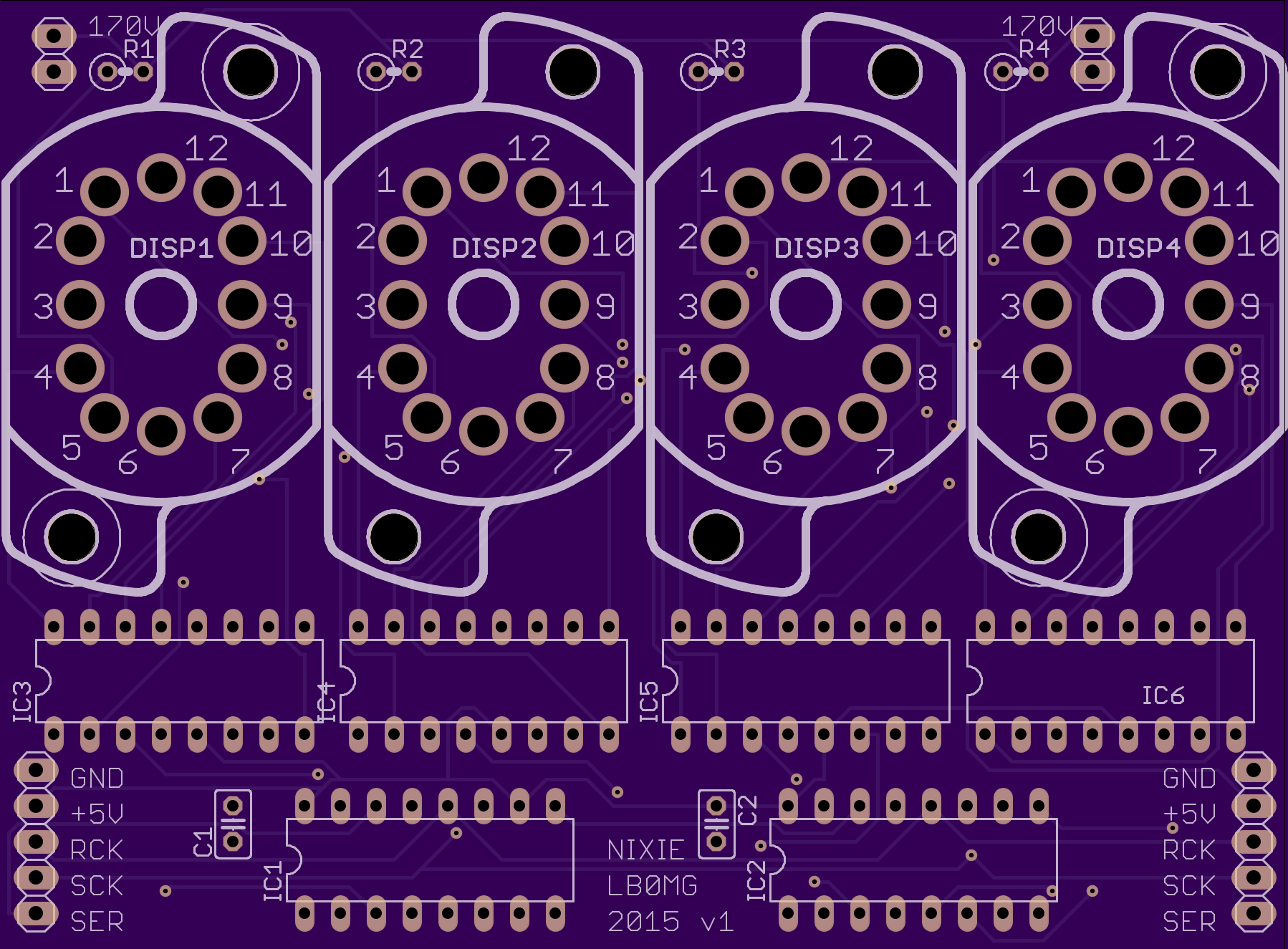

2 layer board of 3.59x2.65 inches (91.14x67.31 mm).
Shared on October 18th, 2015 19:52.

Driving four IN-12 Nixie tubes with shift registers. Several boards can be cascaded. Disclaimer. The IN-12s must be mounted on the back side of the board, since the pin out is wrong.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Timelapse Camera Controller

by diycrap.
Top
Bottom

2 layer board of 2.22x4.77 inches (56.26x121.06 mm).
Shared on November 10th, 2013 19:22.

Pan/Tilt/Dolly camera control for timelapse photography. Controls three Easydriver stepper motor drivers from an ATMega328. The camera is controlled via optocouplers. The circuit can also be used for a CNC router.
