Shared projects

StackLightMonitor.brd

by dkt01.
Top
Bottom

2 layer board of 1.99x1.98 inches (50.44x50.37 mm).
Shared on April 9th, 2017 17:30.

Arduino Pro Micro shield to drive LES-302 AW stack lights

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

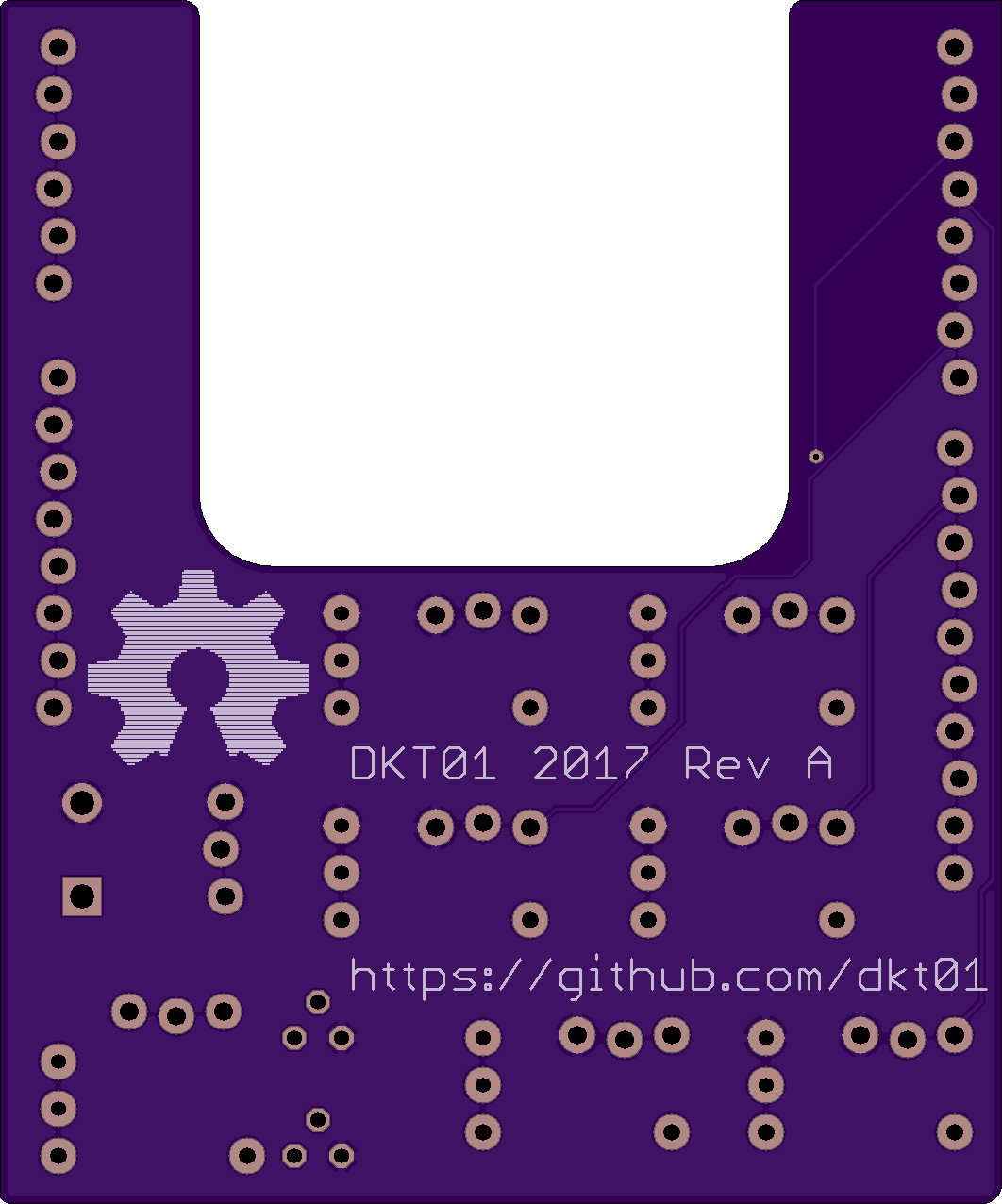

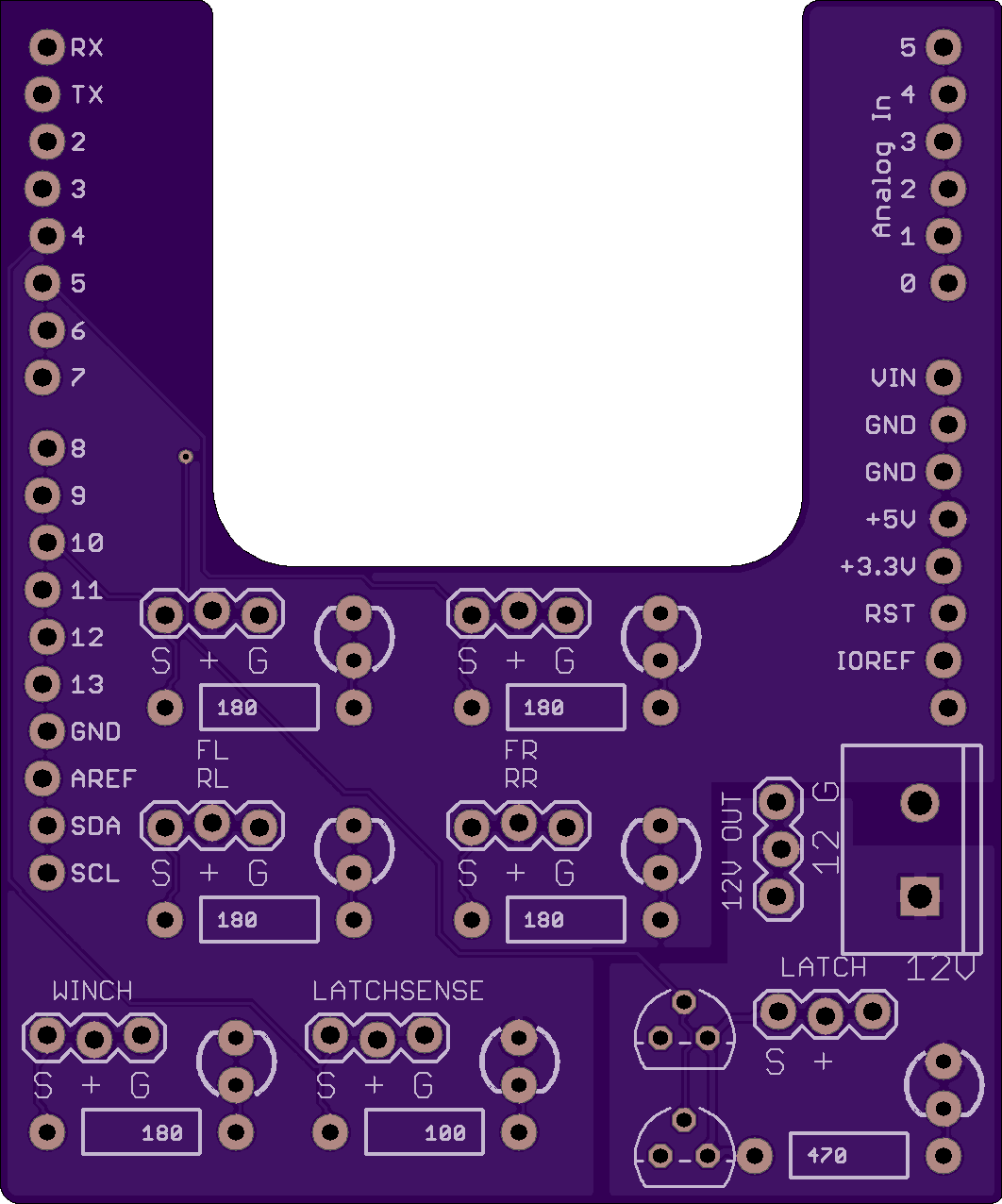

BBShield_OSH.brd

by dkt01.
Top
Bottom

2 layer board of 2.12x2.55 inches (53.90x64.80 mm).
Shared on December 24th, 2016 23:13.

Arduino Uno R3 Shield to control five PWM electronic speed controllers, one switch, and one 12V motor.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
