Luminardo V.2.1

by dmitryp.
Top
Bottom

2 layer board of 3.95x1.58 inches (100.33x40.23 mm).
Shared on November 10th, 2016 04:08.

Arduino compatible ATMega128 powered board with MVFD panel 16S8D interface, USB Host, battery backed up RTC, motion and temperature sensors. Refer to http://magictale.com/category/luminardo/

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Magictale VFD Panel 16S8D V.2.0

by dmitryp.
Top
Bottom

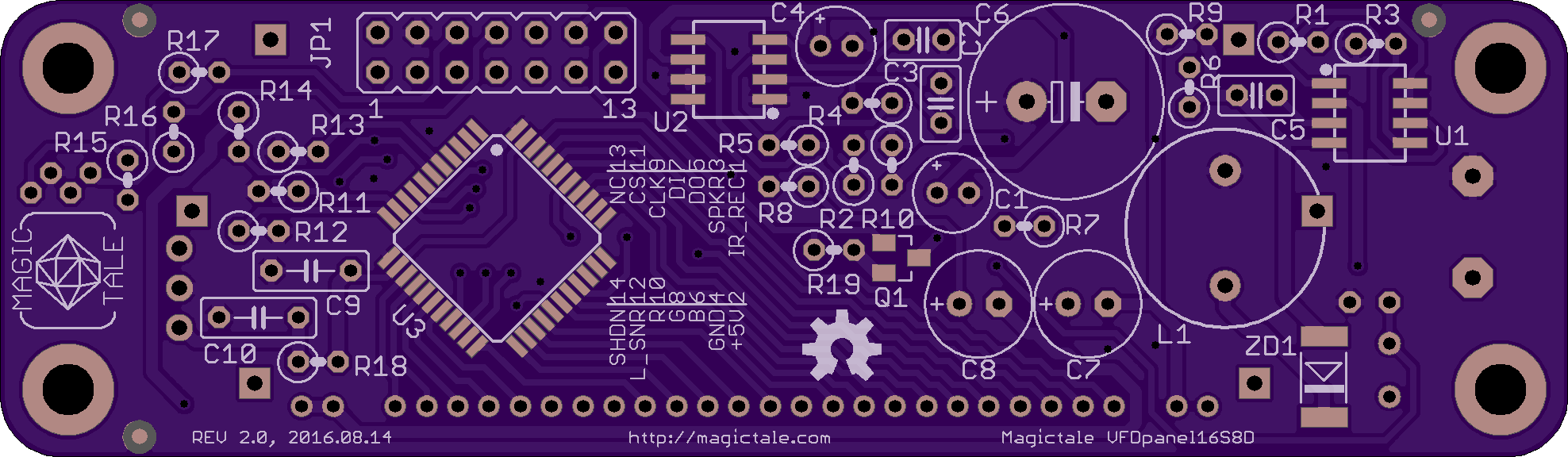

2 layer board of 3.95x1.15 inches (100.33x29.21 mm).
Shared on August 31st, 2016 13:15.

VFD Panel 16 segments 8 digits with a buzzer, an infrared receiver, an RGB LED, a photocel and dedicated VFD driver/controller.
Refer to http://magictale.com/3047/a-16s8d-vfd-panel-revamp-revision-2-0/
