Shared projects

PET2_COMPANIONv7.brd

by ekchess.
Top
Bottom

2 layer board of 3.02x1.12 inches (76.61x28.35 mm).
Shared on April 2nd, 2017 23:04.

Companion board for PET2+ timer with DIP switch. Uses an Arduino Pro Mini and a MPU6050 (GY-521) 6-axis accel/gyro breakout board.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

HM-TRP_Breakout_Board.brd

by ekchess.

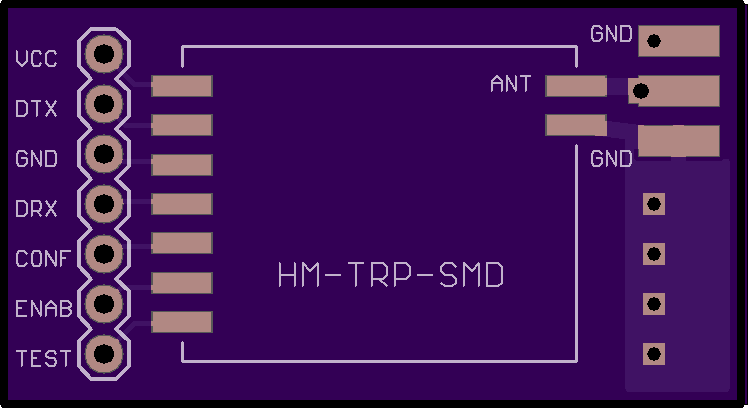

Top

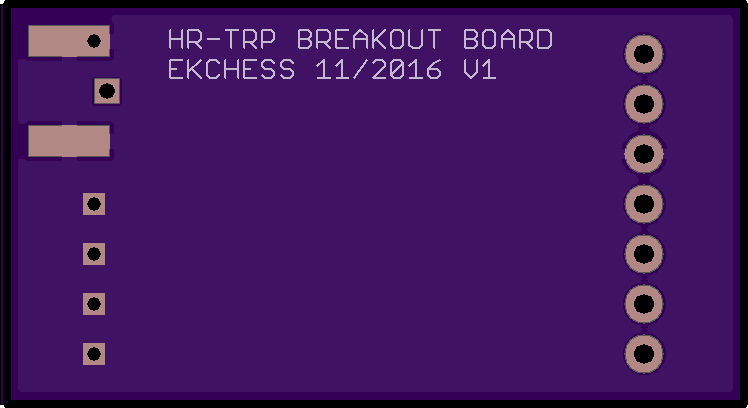

Bottom

2 layer board of 1.50x0.82 inches (38.00x20.73 mm).
Shared on March 16th, 2017 01:43.

Breakout Board for HopeRF HM-TRP Board

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
