Shared projects
16276^0
by
epccs.
2
layer board of
1.60x2.05
inches
(40.64x52.10
mm).
Shared on
November 1st, 2016 18:22.

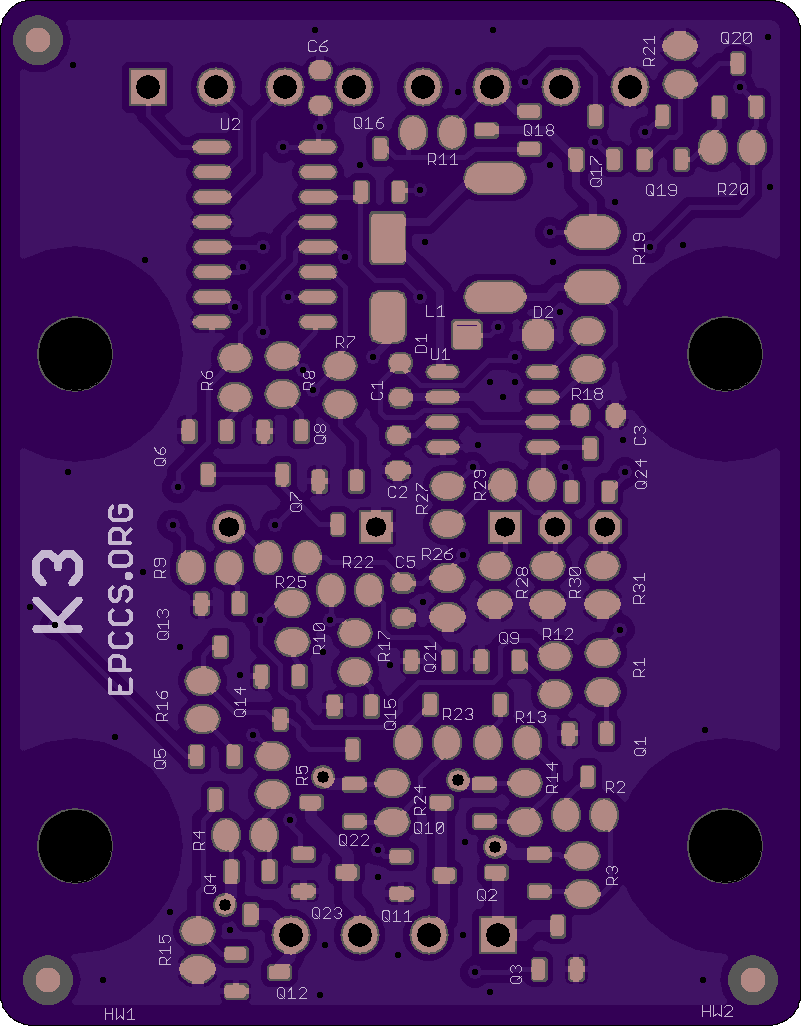

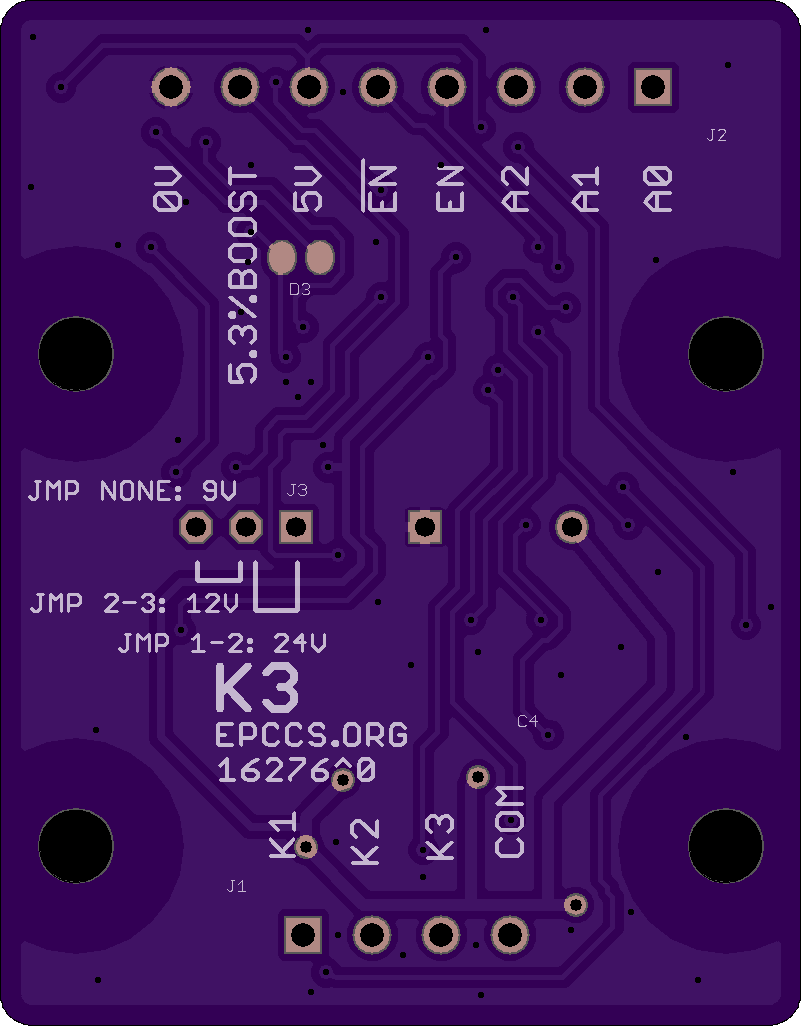

K3
Latching Solenoid or Relay driver with three half bridge and a common half bridge that can be used to discharge a (9V/12V/24V) capacitively stored charge into a latching Solenoid or Relay coil.
16197^0
by
epccs.
2
layer board of
2.40x2.10
inches
(60.99x53.37
mm).
Shared on
October 1st, 2016 20:41.
RPUpi
Shield for full duplex RS422 over CAT5 with a Pi Zero host. Its a multidrop bus that works with serial bootloaders (e.g. optiboot, xboot… ) and avrdude.
14140^4
by
epccs.
2
layer board of
3.10x2.60
inches
(78.77x66.07
mm).
Shared on
September 23rd, 2016 06:40.
RPUno
Solar Powered ATmega328P with pluggable connections for a pulse sensor, six digital I/O, and two analog loop inputs. 20W of PV with a 12V SLA charge control and simple battery management are aimed at being enough to power a Pi Zero on the RPUpi shield.
14145^3
by
epccs.
2
layer board of
2.38x2.10
inches
(60.33x53.37
mm).
Shared on
September 6th, 2016 07:39.

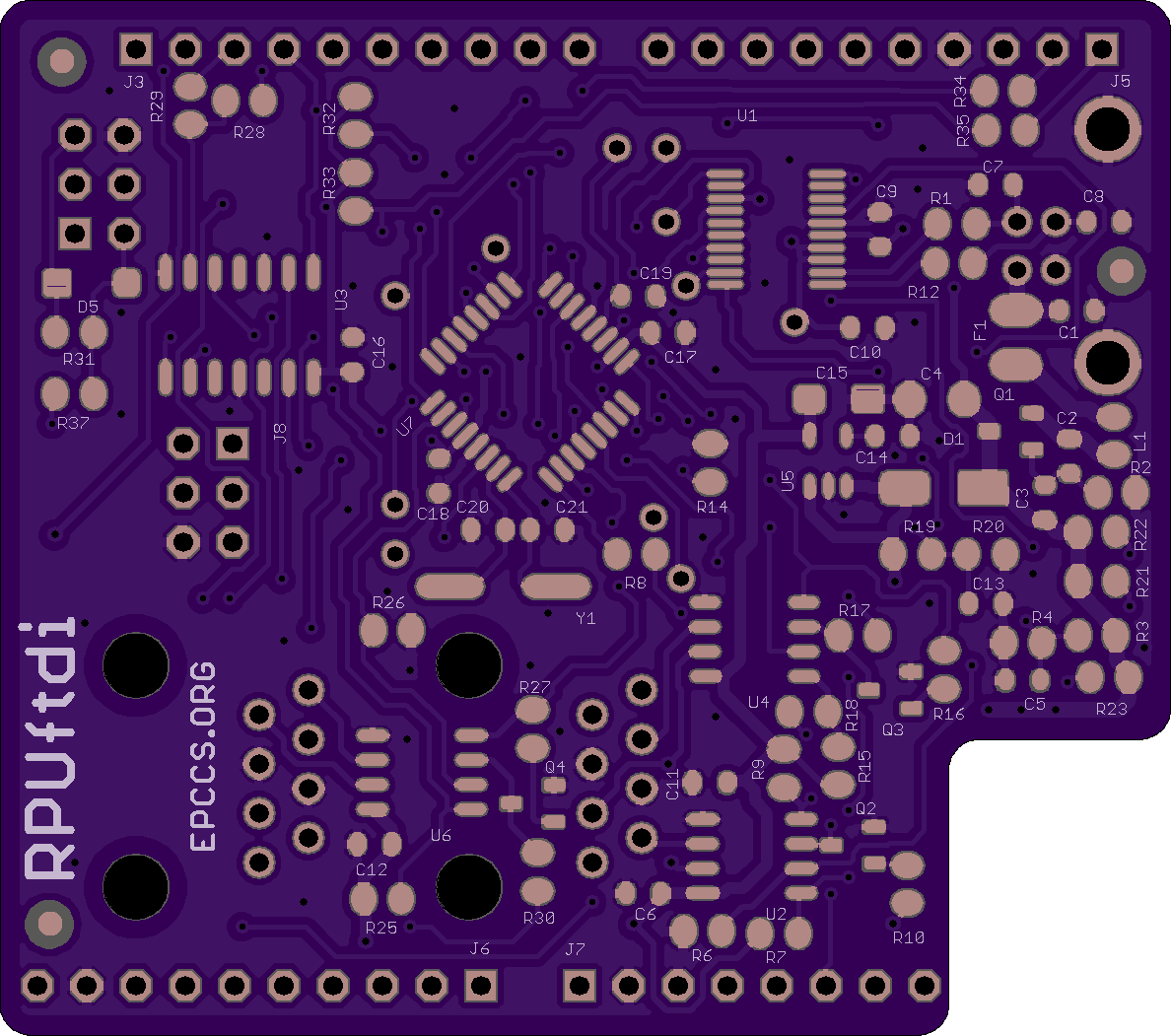

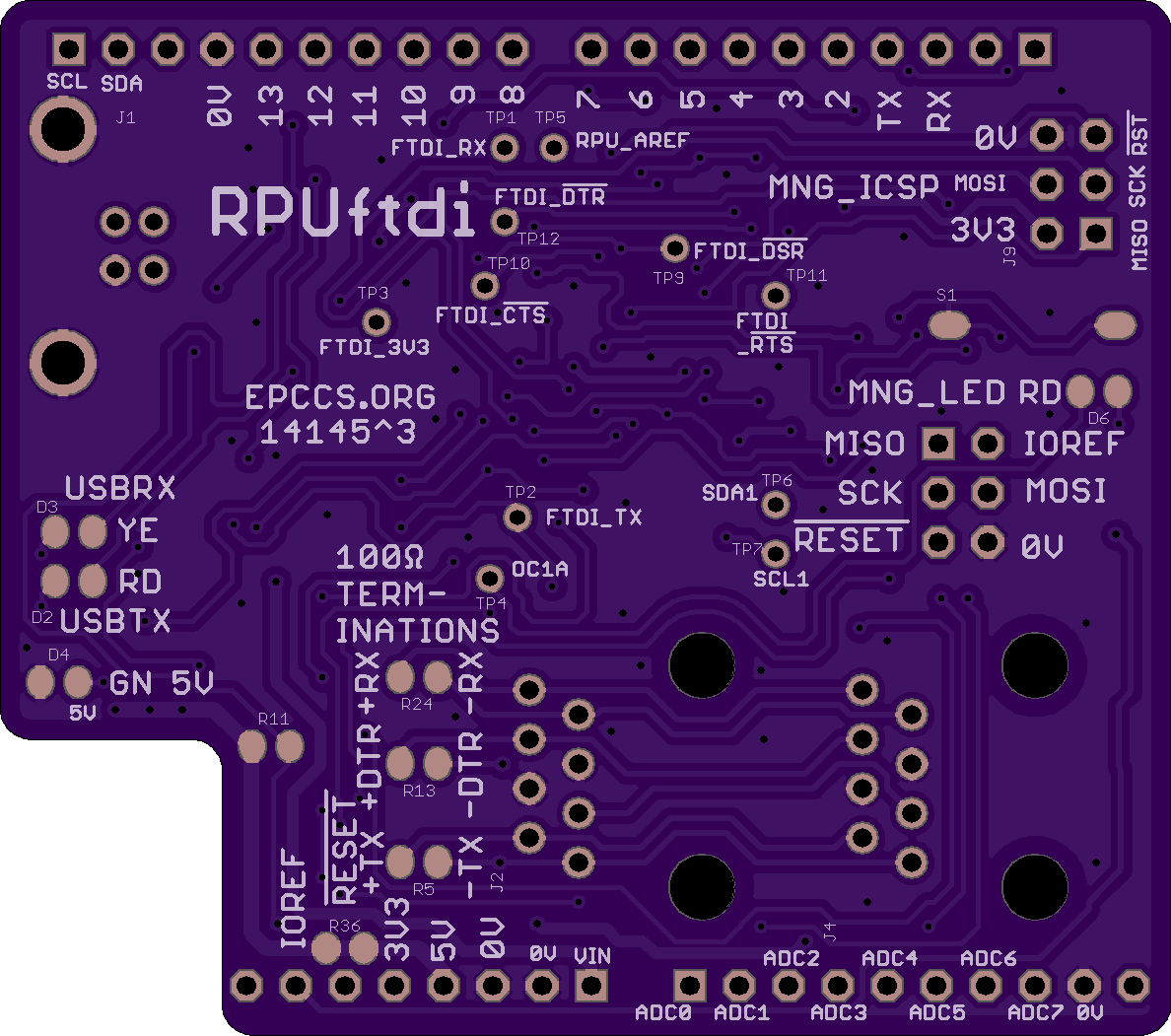

RPUftdi
Shield for full duplex RS-422 over CAT5 with USB for a host. Its a multidrop bus that works with serial bootloaders (e.g. optiboot, xboot… ) and avrdude.
14226^3
by
epccs.
2
layer board of
2.38x2.10
inches
(60.33x53.37
mm).
Shared on
August 24th, 2016 02:13.

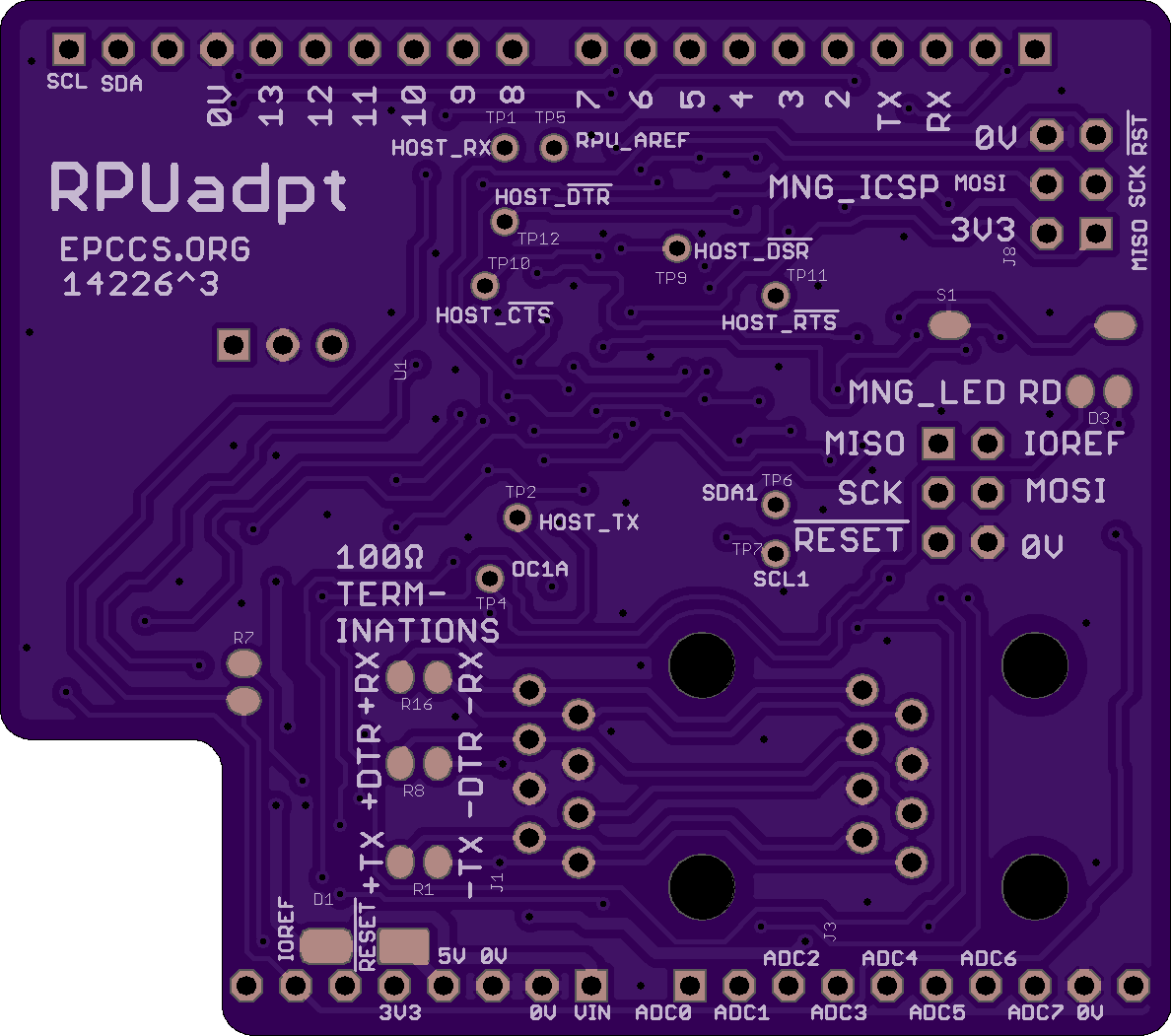

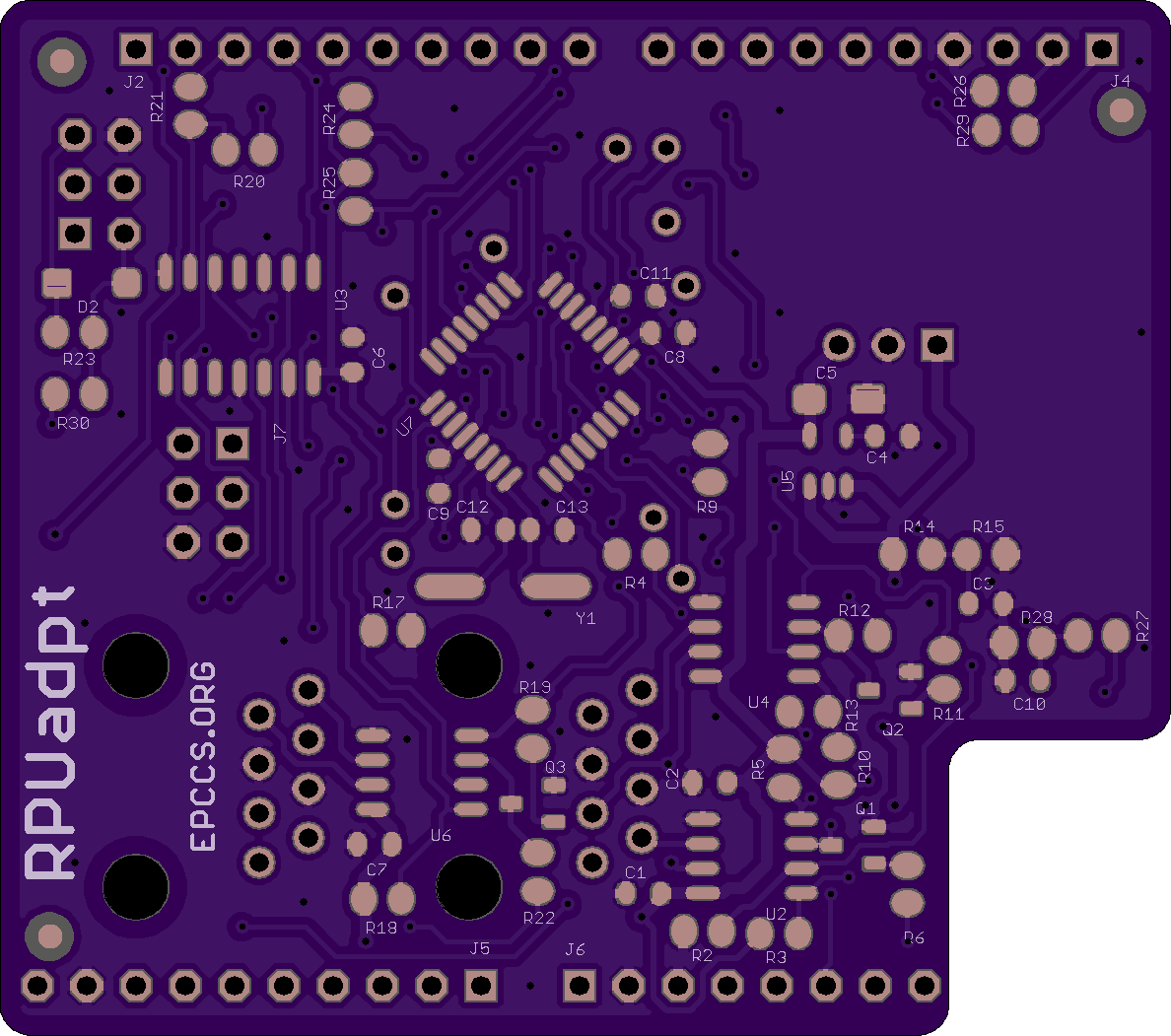

RPUadpt
Shield for full duplex RS-422 over CAT5. Its a multidrop bus that works with serial bootloaders (e.g. optiboot, xboot… ) and avrdude.
