OSH Park
Profile for epccs
Shared projects
15016^4
by
epccs.
2
layer board of
1.70x1.55
inches
(43.18x39.37
mm).
Shared on
January 17th, 2016 06:37.

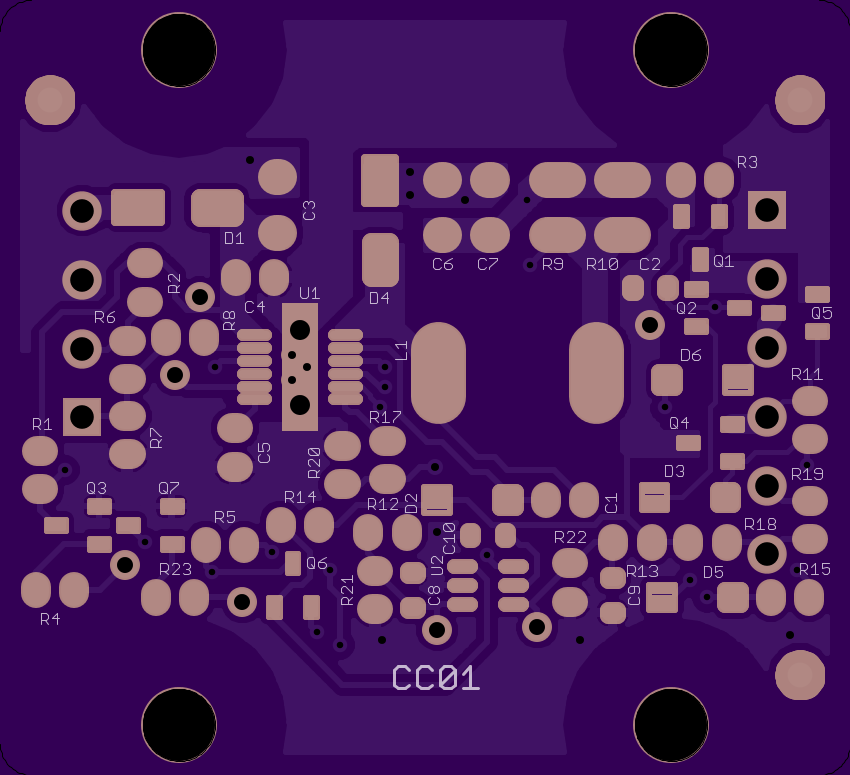

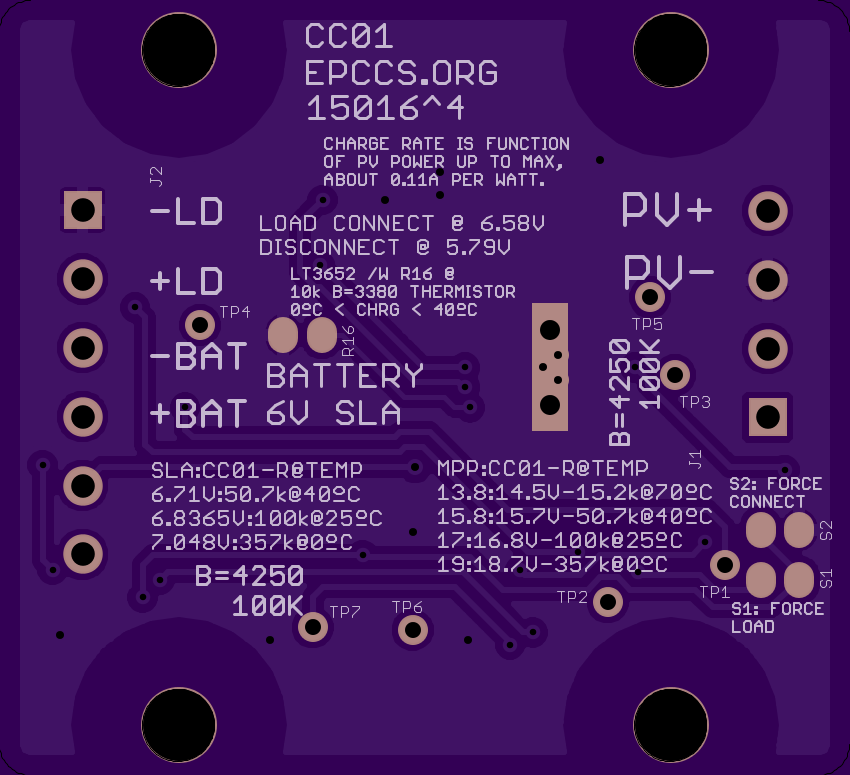

CC01
Uses an LT3652 buck charge controller, it is optimized to step down a 36 cell solar panel and charge a 6V SLA battery.
15063^0
by
epccs.
2
layer board of
4.25x4.20
inches
(107.95x106.71
mm).
Shared on
November 10th, 2015 21:10.

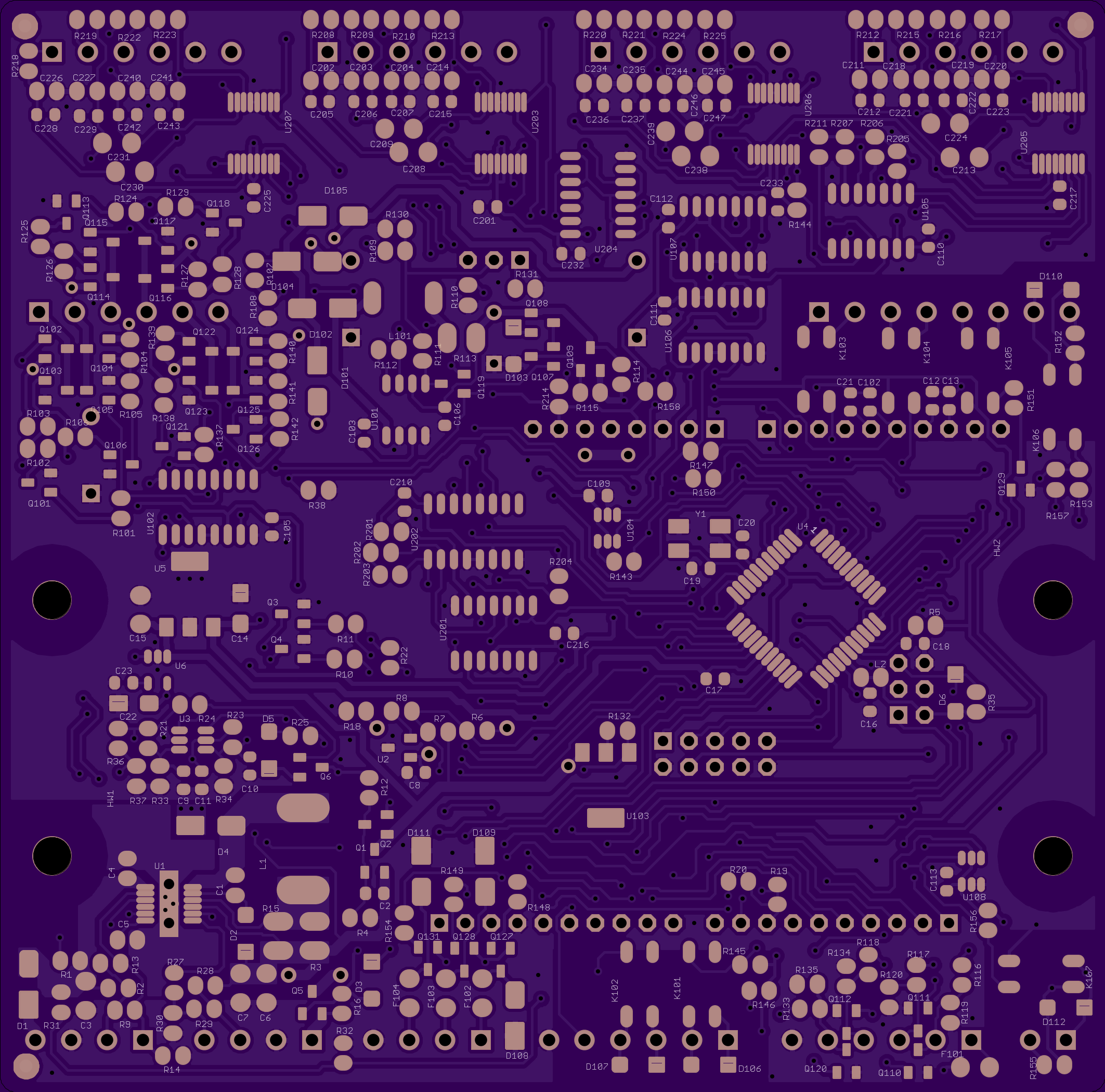

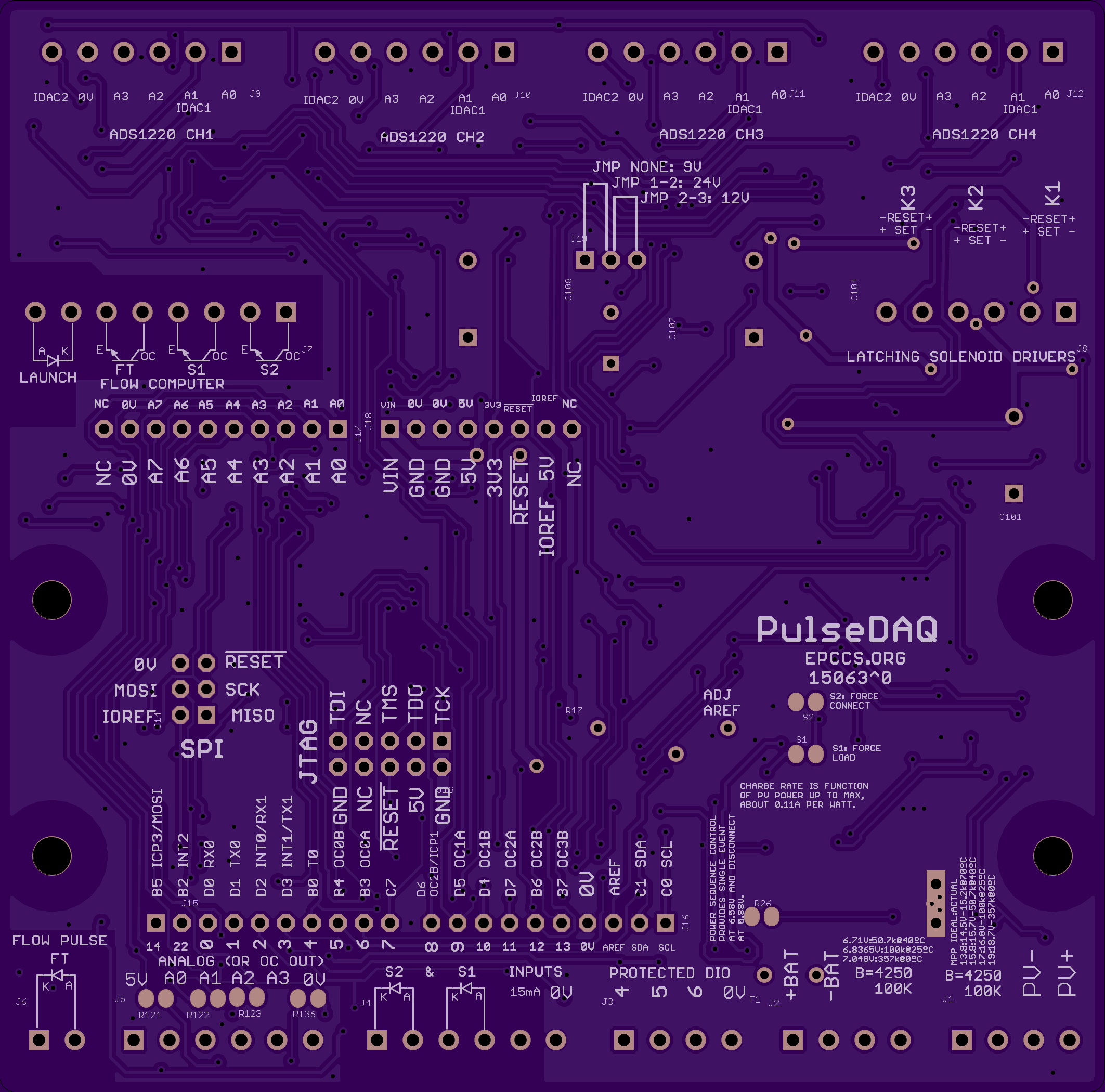

PulseDAQ
The goal for this board is to implement the basic data acquisition electronics for a reasonably accurate flow lab, e.g. flow meter and calibration equipment.
14320^0
by
epccs.
2
layer board of
4.25x4.20
inches
(107.95x106.71
mm).
Shared on
May 14th, 2015 05:53.

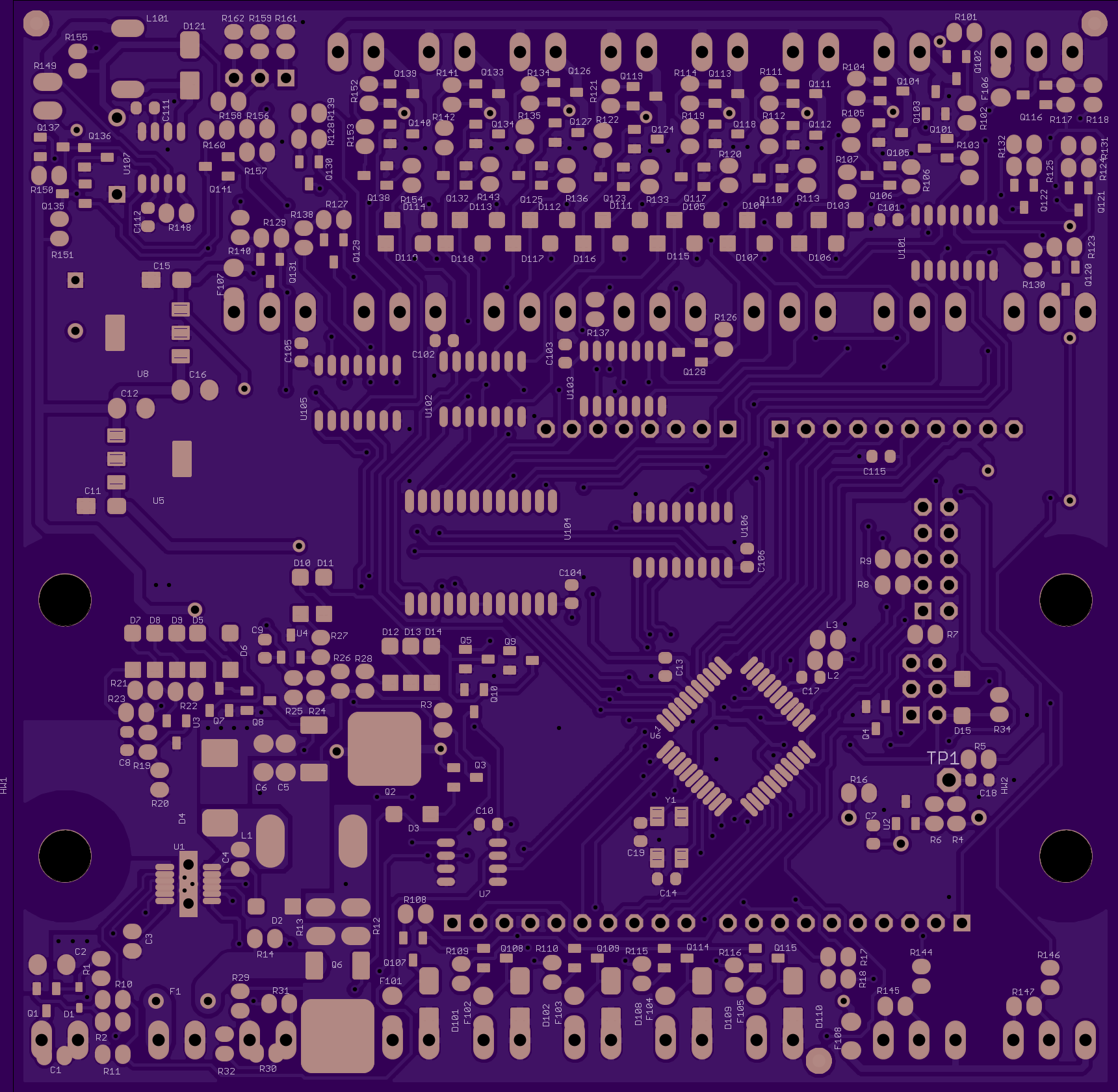

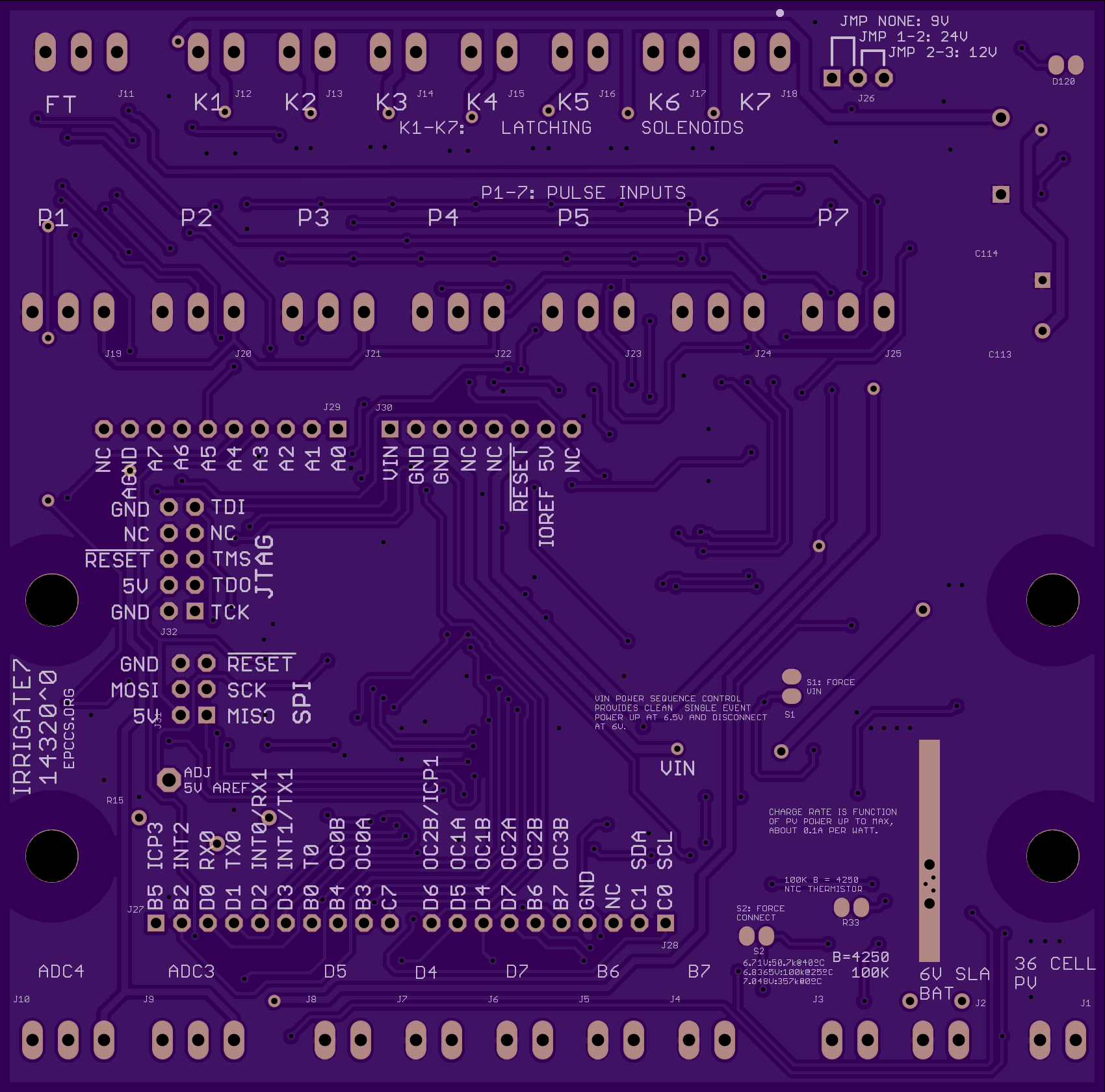

Irrigate7
Seven latching solenoid driver outputs, seven pulse-type sensor inputs for moisture and one pulse-type flow sensing input. Solar power charge control for 6V SLA type battery. ATMega1284P mapped to Arduino Uno R3 compatible header. DIN rail mounting.
15027.0
by
epccs.
2
layer board of
1.86x2.36
inches
(47.14x59.87
mm).
Shared on
January 30th, 2015 21:48.

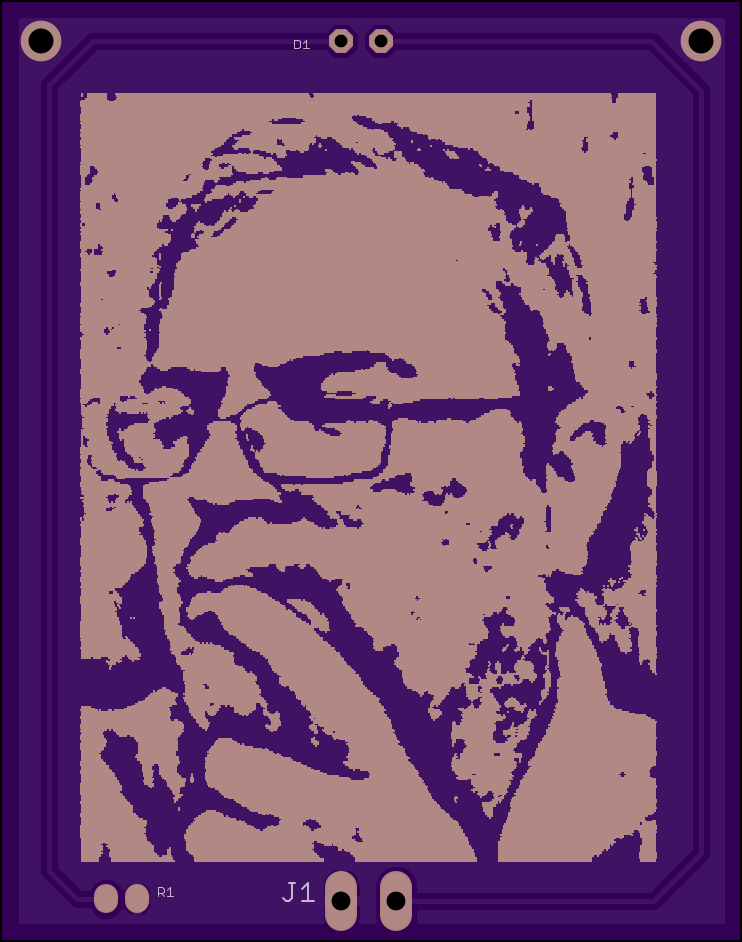

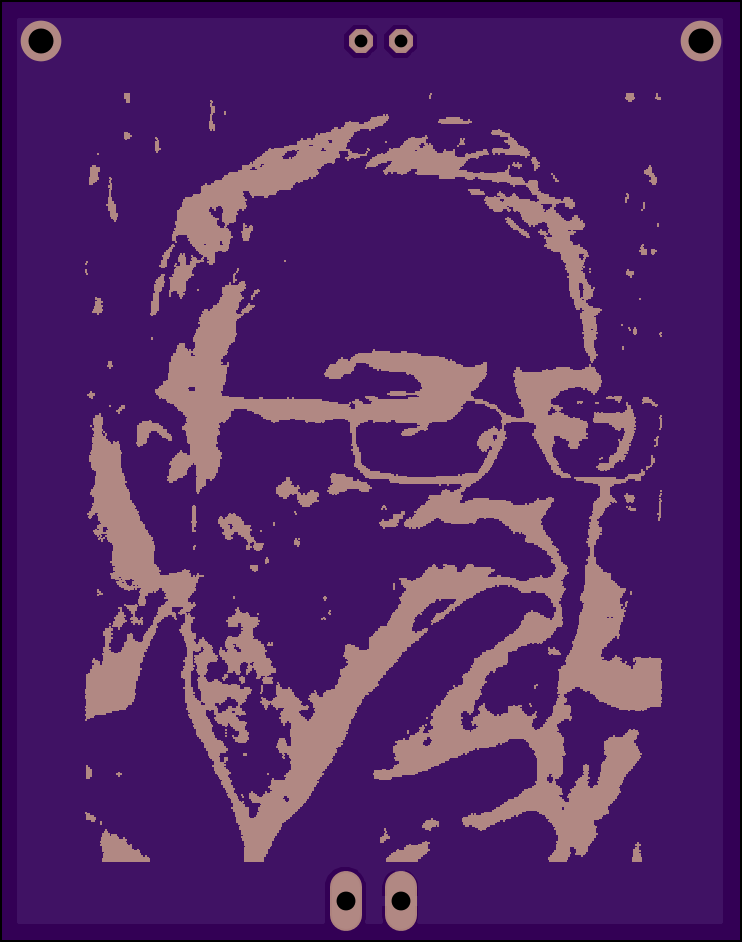

Self Image on Circuit Board
I guess at some point everyone does this…
