Shared projects

KBot Power rev 1

by exuvo.

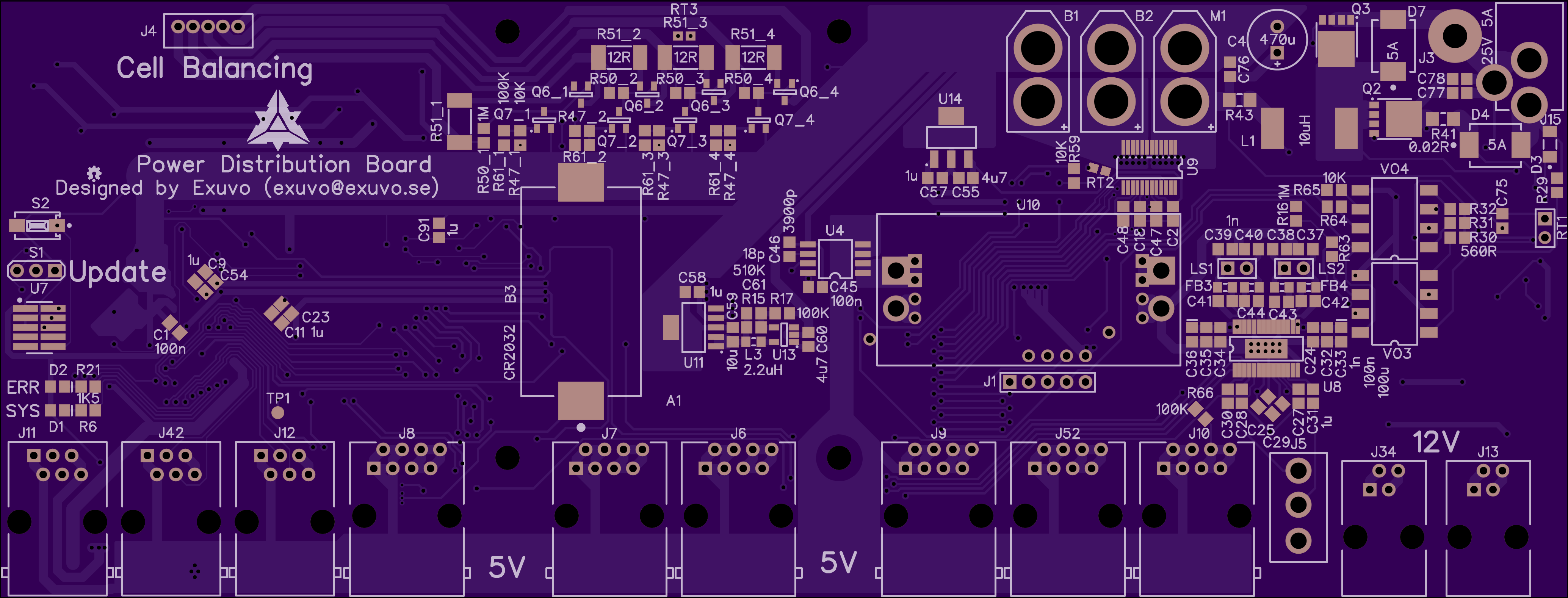

Top

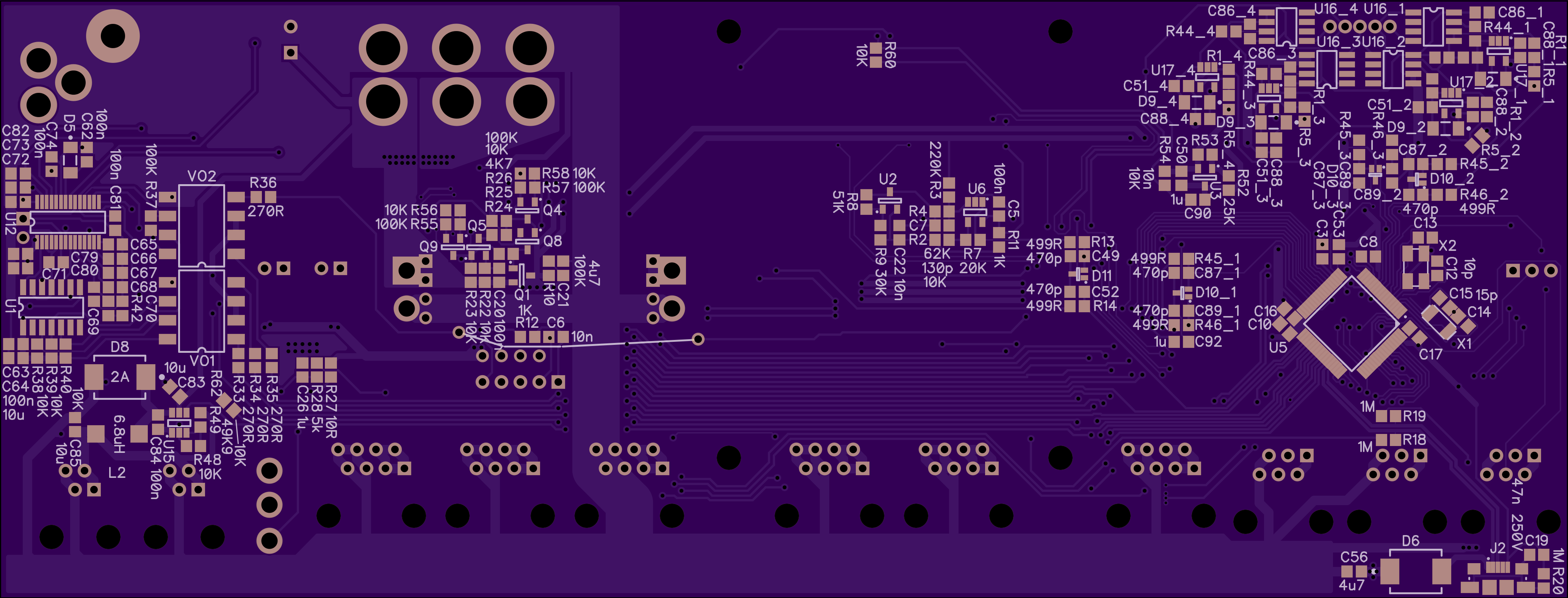

Bottom

2 layer board of 8.27x3.16 inches (210.16x80.16 mm).
Shared on January 14th, 2017 13:07.

Power distribution, monitoring and charging. http://exuvo.se/project/page/kbot4

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

K-LC5 Radar Rev 3

by exuvo.

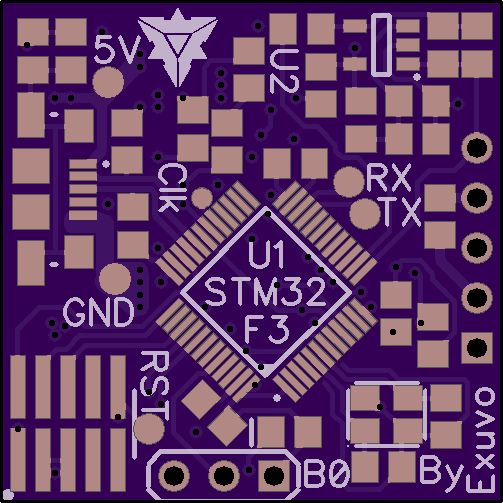

Top

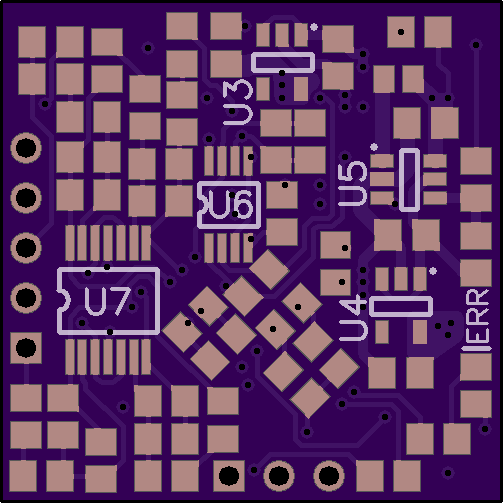

Bottom

4 layer board of 1.01x1.01 inches (25.55x25.55 mm).
Shared on March 23rd, 2014 22:50.

Processor board for RFbeam K-LC5

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Zircon 4

by exuvo.

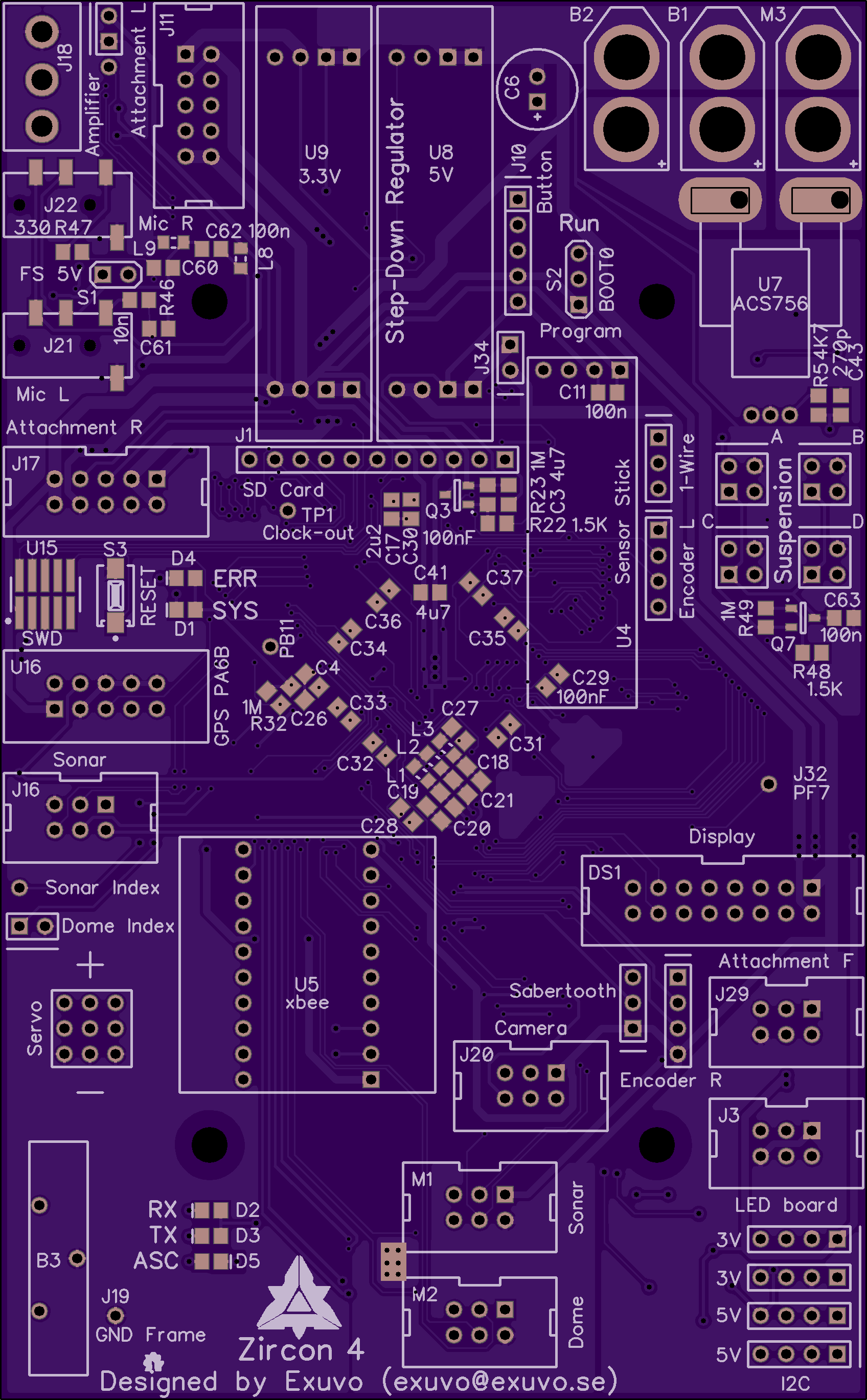

Top

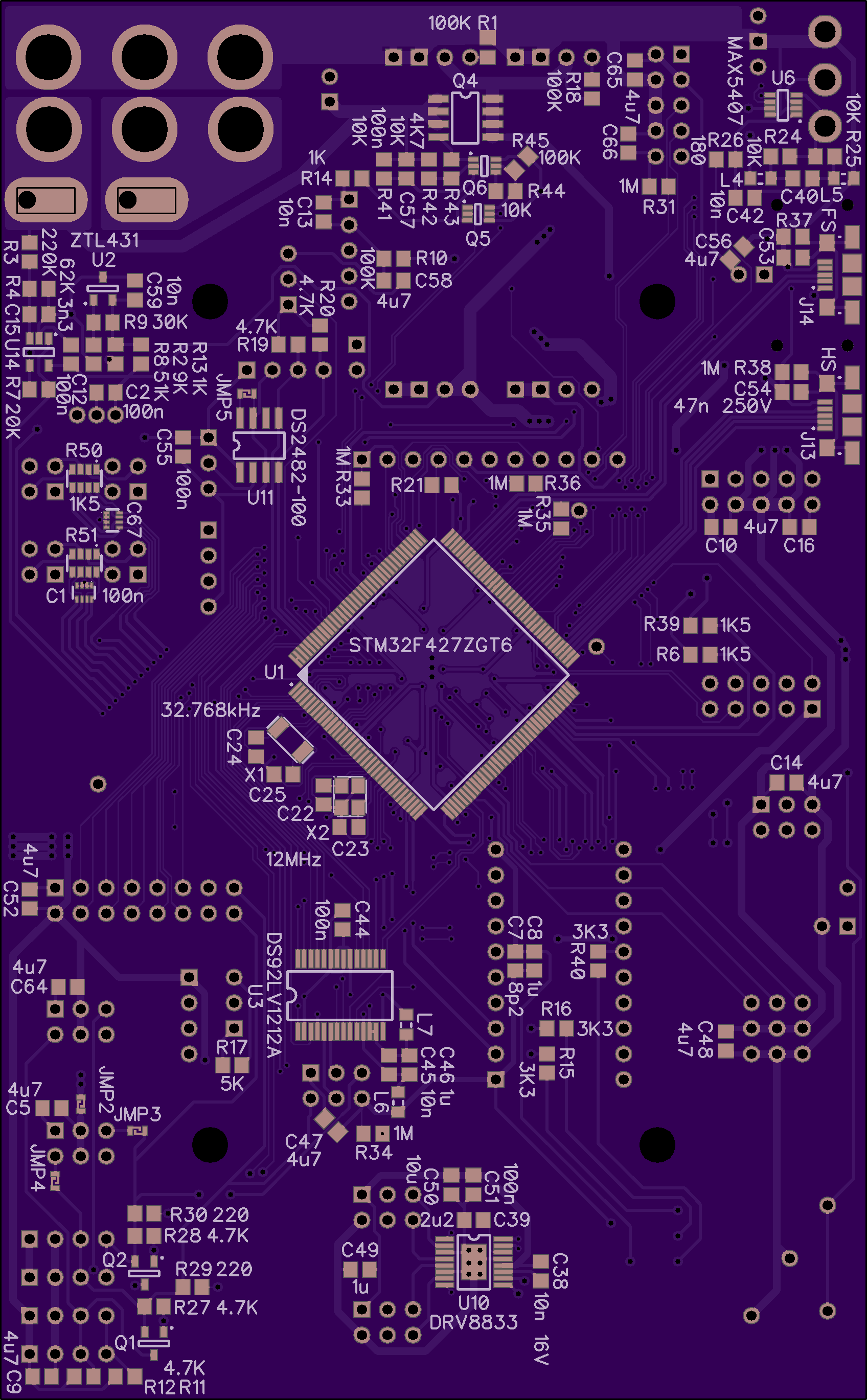

Bottom

2 layer board of 3.39x5.48 inches (86.16x139.14 mm).
Shared on March 17th, 2014 20:12.

Robot controller. Documentation.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

PowerLED board V1

by exuvo.
Top
Bottom

2 layer board of 5.91x0.79 inches (150.16x20.14 mm).
Shared on January 9th, 2014 19:03.

Board with 5st 1-2W PowerLEDs driven by a TLC59401 and controlled with a ATTINY24A.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
