Shared projects

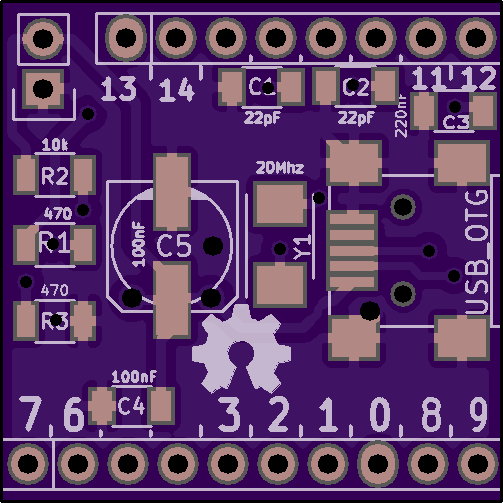

Pinguino_SMD-4550.kicad_pcb V2.1.

by fandres.
Top
Bottom

2 layer board of 1.01x1.01 inches (25.55x25.55 mm).
Shared on May 27th, 2017 02:06.

PCB in surface mount of the Pinguino board based on the microcontroller PIC18F4550 V2.1.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

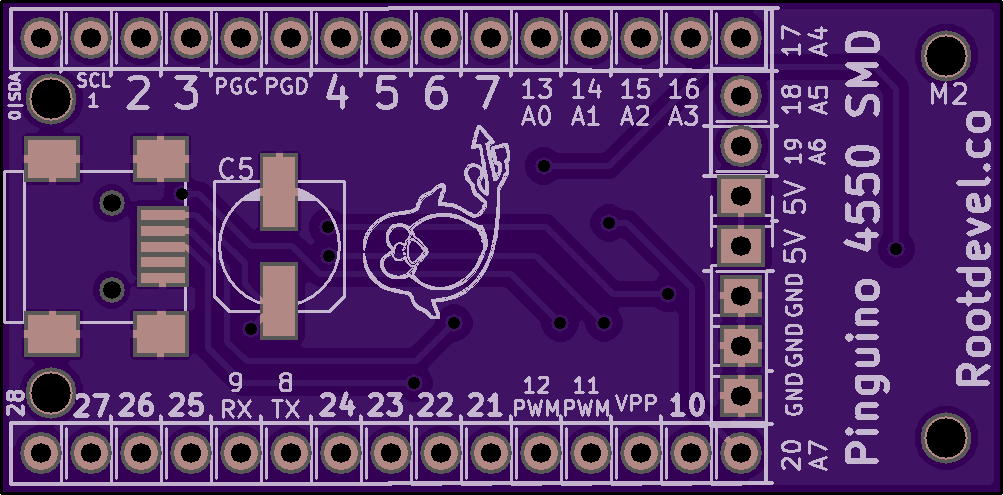

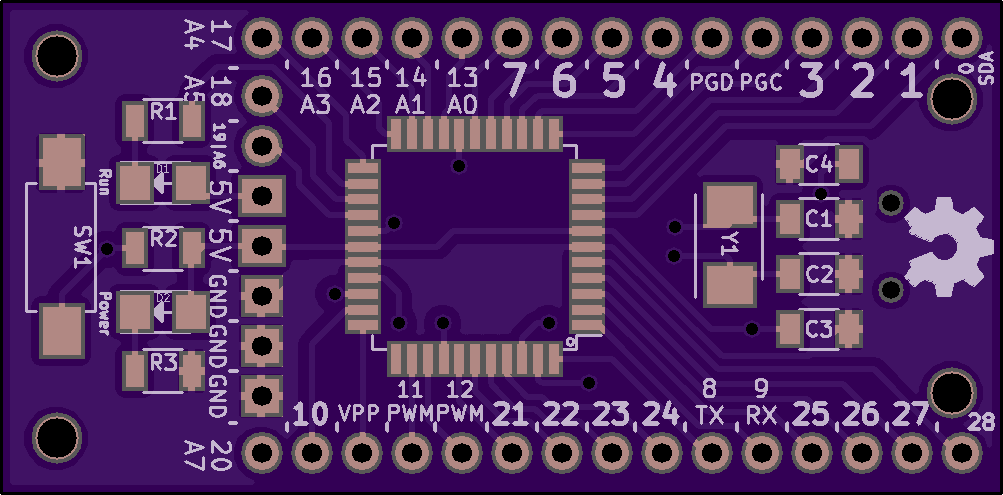

Pinguino_SMD-4550.kicad_pcb V1.0

by fandres.
Top
Bottom

2 layer board of 2.01x0.99 inches (50.95x25.17 mm).
Shared on April 9th, 2017 17:30.

PCB in surface mount of the Pinguino board based on the microcontroller PIC18F4550 V1.0.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

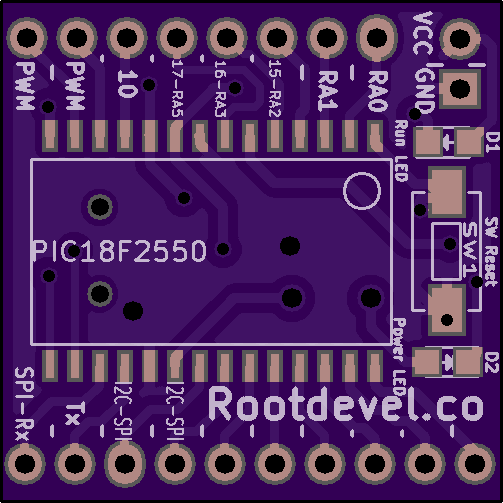

Pinguino_SMD-2550.kicad_pcb

by fandres.
Top
Bottom

2 layer board of 1.01x1.01 inches (25.55x25.55 mm).
Shared on February 21st, 2017 23:34.

PCB in surface mount of the Pinguino board based on the microcontroller PIC18F2550.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
