OSH Park
Profile for flthymcnsty
Shared projects
FlthyPowerStrip v1 type2
by
flthymcnsty.
2
layer board of
0.90x1.98
inches
(22.78x50.19
mm).
Shared on
June 13th, 2017 08:22.
FlthyPowerStrip v1
by
flthymcnsty.
2
layer board of
0.90x1.98
inches
(22.78x50.19
mm).
Shared on
June 13th, 2017 08:22.

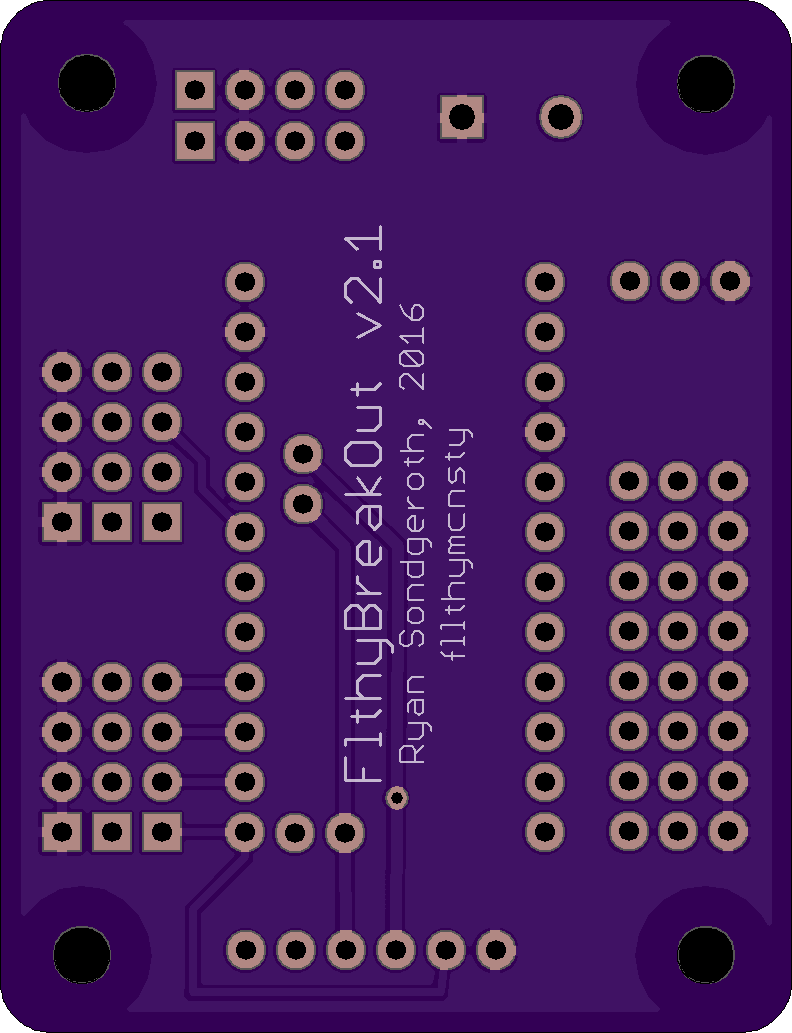

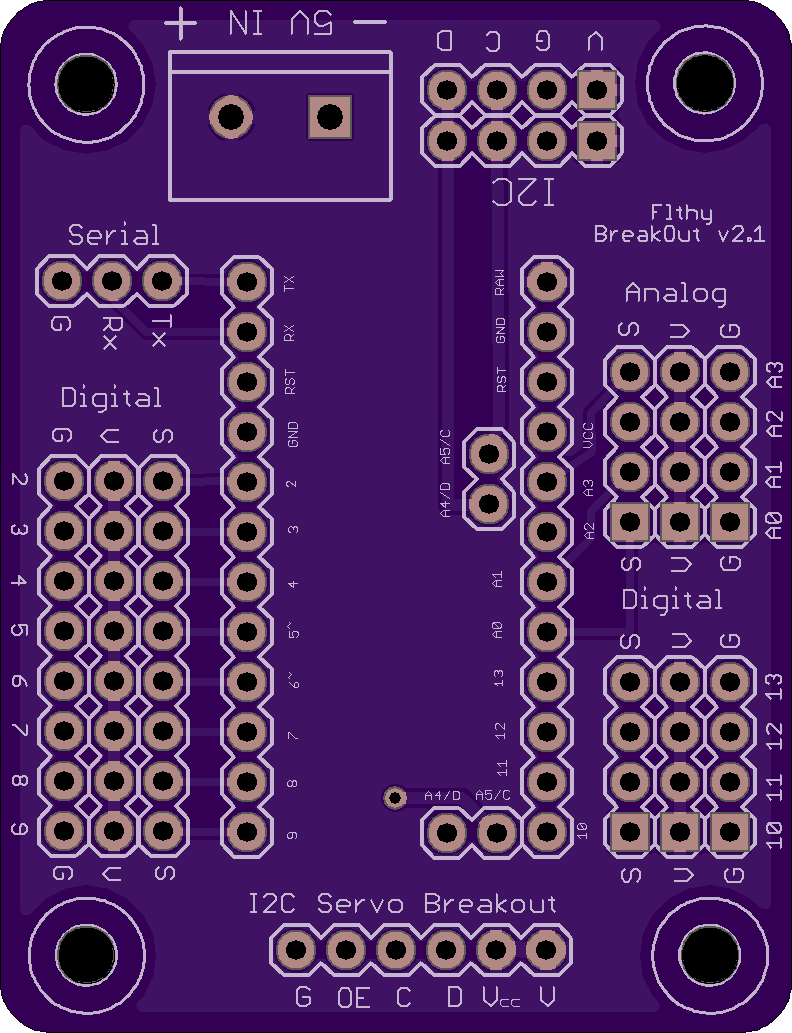

Flthy BreakOut v2.1
by
flthymcnsty.
2
layer board of
1.58x2.06
inches
(40.18x52.43
mm).
Shared on
January 20th, 2017 22:34.
Breakout board for use with FlthyHPs system and others

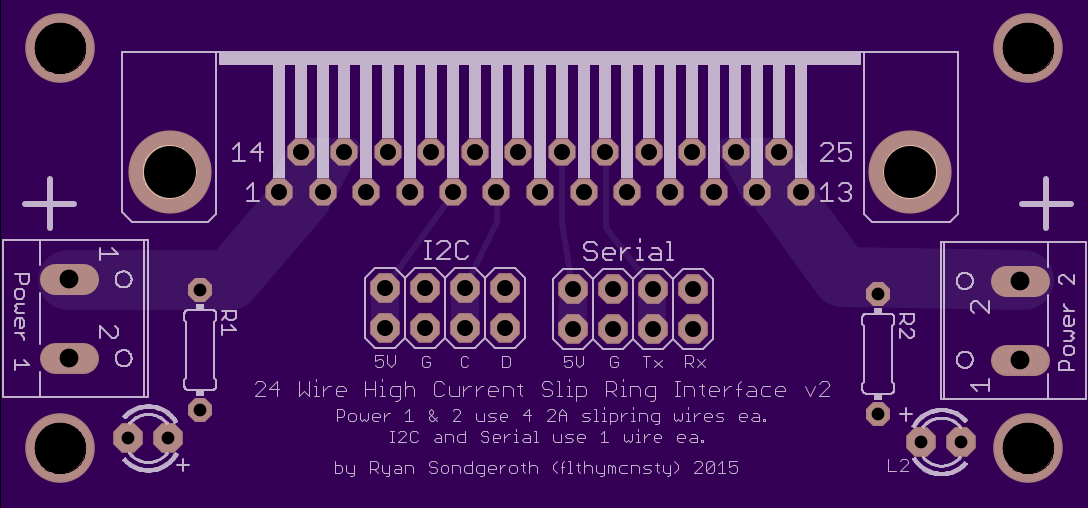

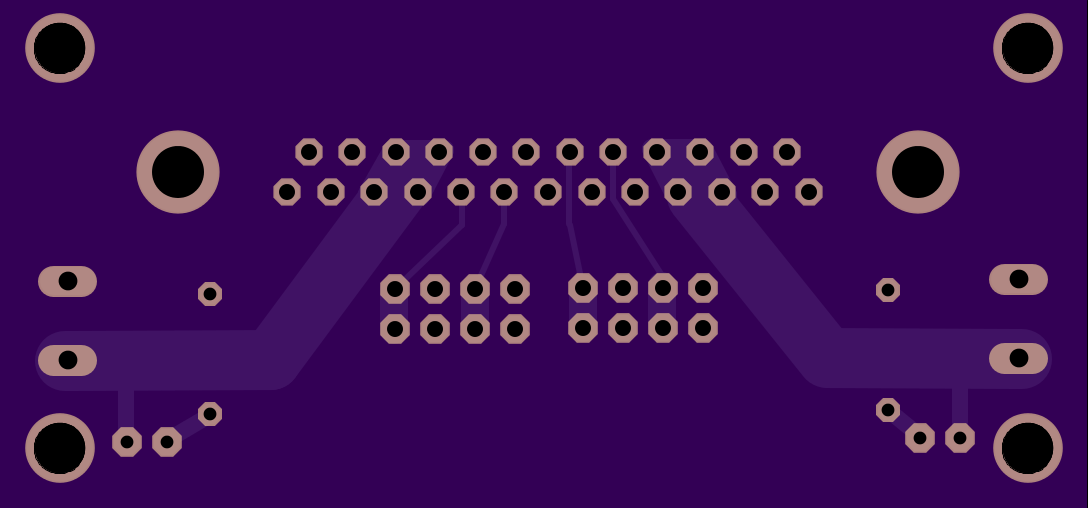

Slip Ring Interface - High Current
by
flthymcnsty.
2
layer board of
2.72x1.27
inches
(69.09x32.28
mm).
Shared on
February 15th, 2015 11:39.
The Slip Ring Interface boards utilize 4 slip ring wires on each of the two power rails to allow for higher currents. Board also has I2C (4 pins, D, C, 5V, G) and Serial (4 Pins, Tx, Rx, 5V, G) pins broken out. These 8 pins utilize one slip ring wire apiece and can also be used as one wishes.
LEDs can also be installed to provide visual feedback that power is indeed being passed correctly through the slip ring. Their installation is optional.
