Bosh180_SiHyg

by

2 layer board of 0.98x0.79 inches (24.84x19.99 mm).
Shared on July 30th, 2015 05:31.

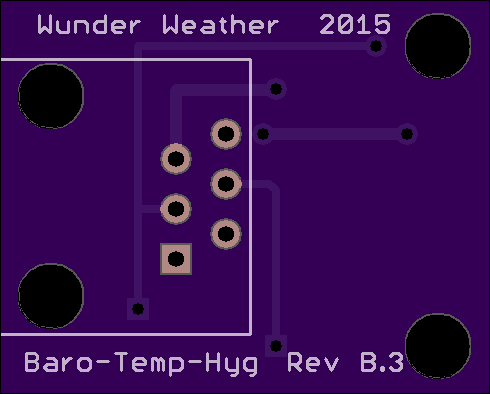

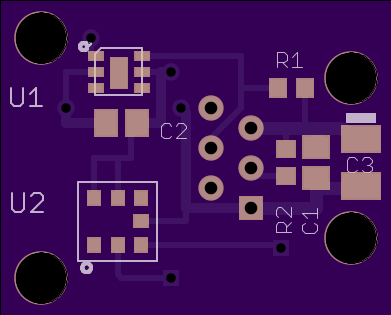

Airdata sensor with Bosh180 baro

Copy this HTML into your page to embed a link to order this shared project

nrf24_ard_ptch

by

2 layer board of 0.87x0.72 inches (22.07x18.31 mm).
Shared on May 6th, 2015 22:12.

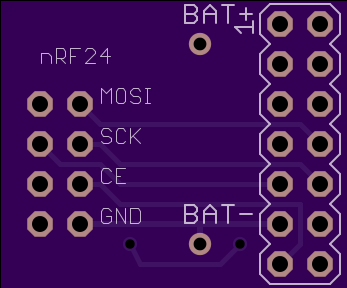

Connects a Nrf24 radio to Arduino Pro

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.00x1.00 inches (25.45x25.37 mm).
Shared on November 20th, 2014 17:40.

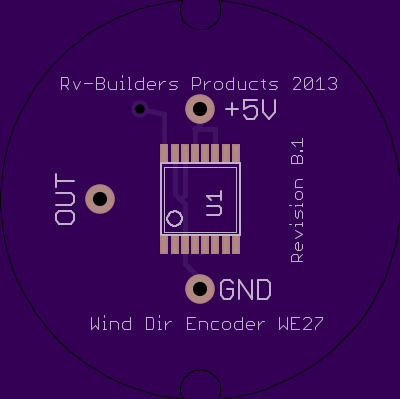

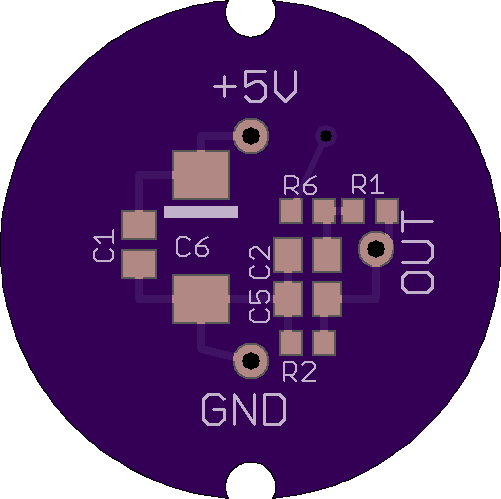

Wind Direction Encoder Revision B.1

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.34x1.48 inches (33.99x37.46 mm).
Shared on August 22nd, 2013 18:51.

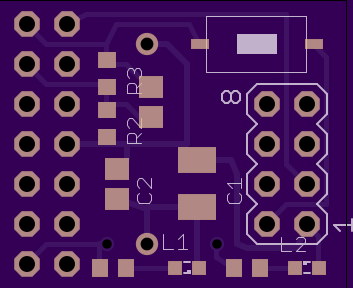

In-line power and sensor feed for solar and rain inputs. Layout for for vertical sockets.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.51x1.01 inches (38.25x25.55 mm).
Shared on August 22nd, 2013 18:43.

LED series resistors and switches for binary clock

Copy this HTML into your page to embed a link to order this shared project
