Air_LCDuino_Old_REV0.0

by

2 layer board of 2.30x2.35 inches (58.47x59.72 mm).
Shared on November 26th, 2016 19:15.

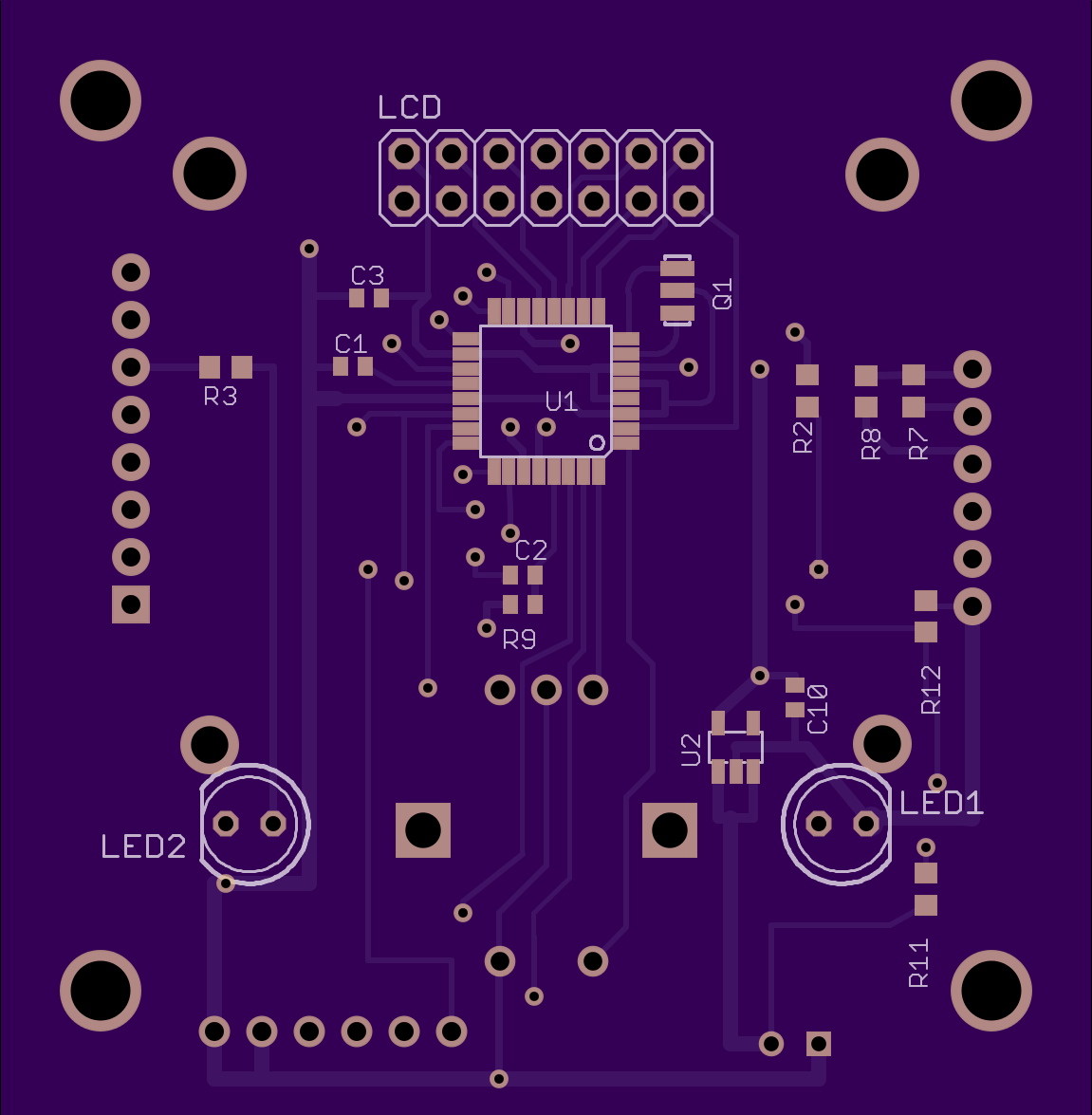

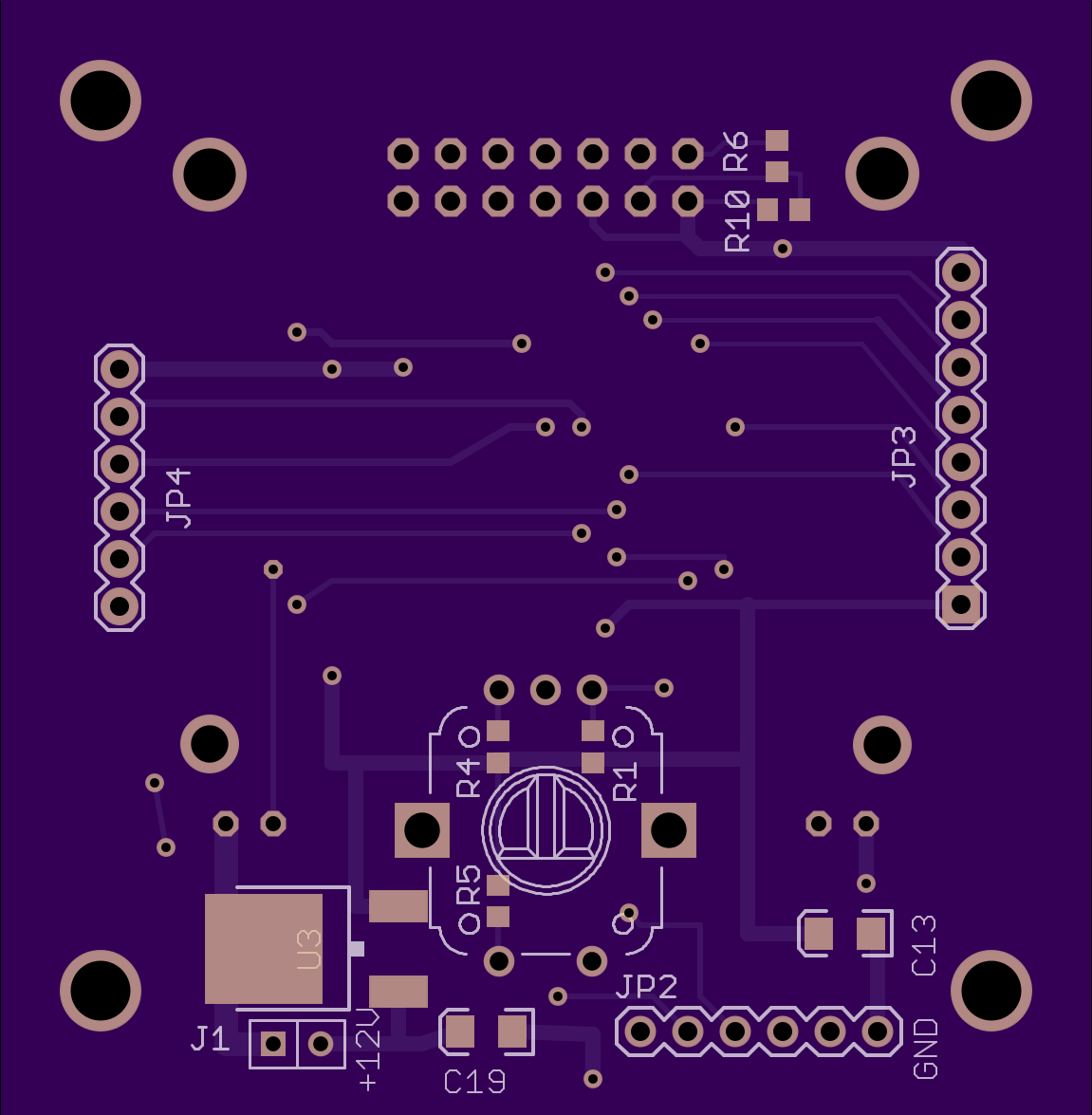

ATMEGA328P 16mhz with 8x2LCD in 2.25" aircraft instrument housing. See schematic here

Copy this HTML into your page to embed a link to order this shared project

MySensor nRF24 to Arduino

by

2 layer board of 1.22x0.72 inches (30.94x18.31 mm).
Shared on November 26th, 2016 19:14.

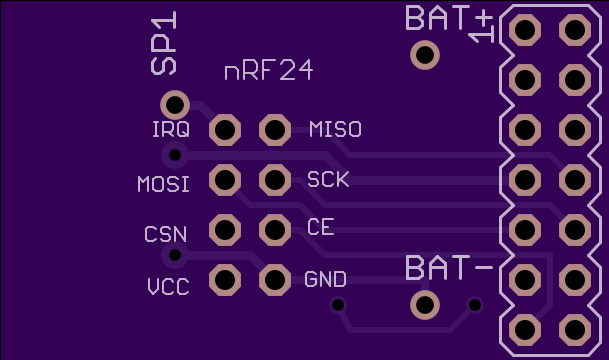

Patch board to connect Nrf24 modul to ArduinoProMini

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 2.06x1.14 inches (52.35x28.85 mm).
Shared on April 5th, 2016 23:52.

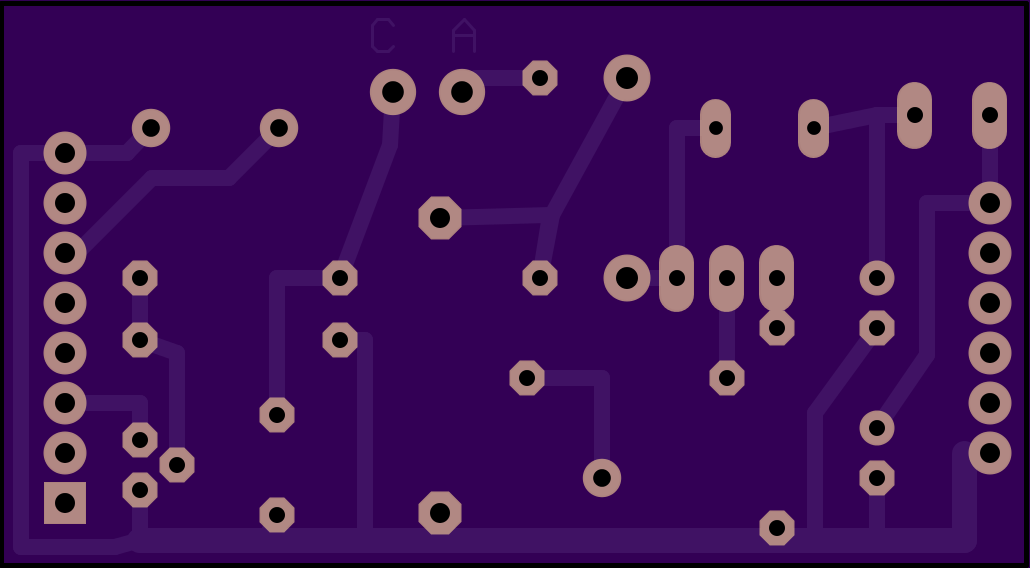

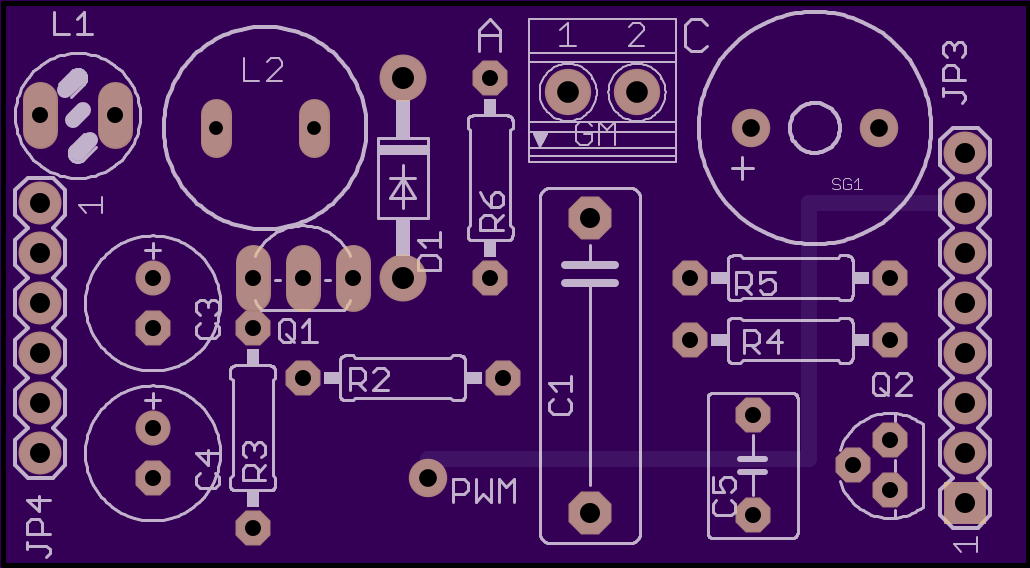

Geiger counter modul for AIR-LCD main pcb see schematic here https://github.com/garyStofer/Geiger

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.75x0.63 inches (19.05x15.88 mm).
Shared on March 9th, 2016 23:51.

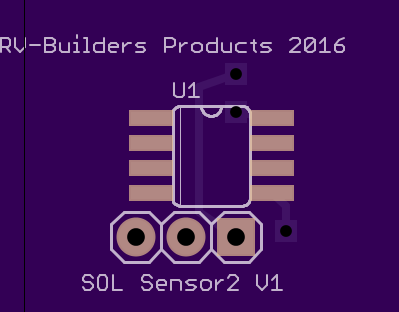

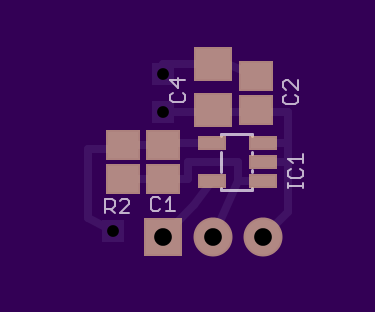

Solar influx Sensor for Wunder Weather Station

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.00x0.79 inches (25.40x19.99 mm).
Shared on February 12th, 2016 07:21.

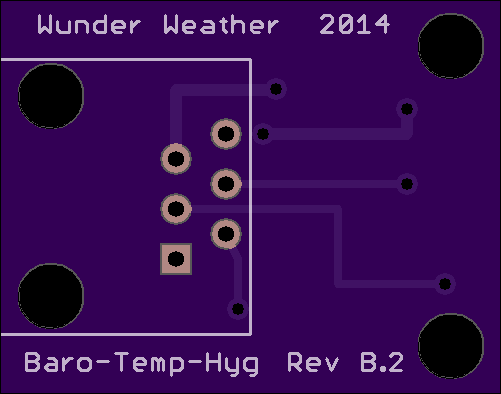

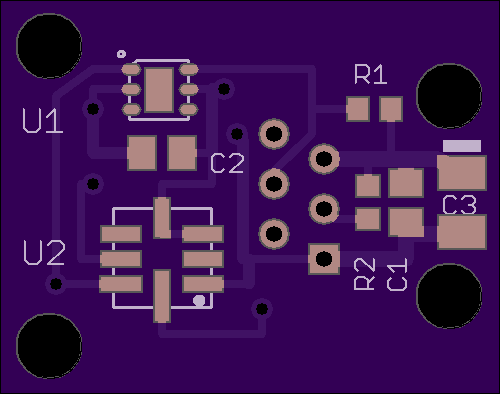

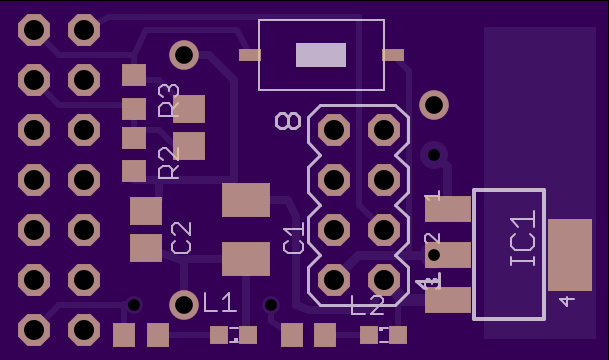

BaroHygTemp SI Hyg, BoshBMP085
