Shared projects

LFSA Seven

by gdelazzari.

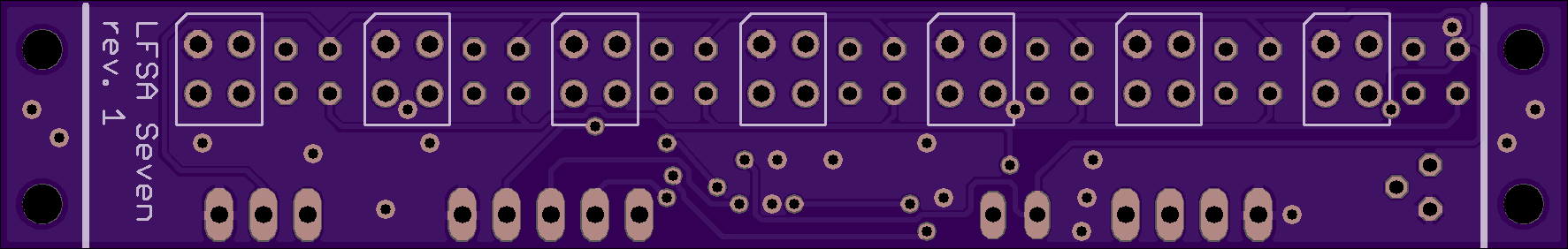

Top

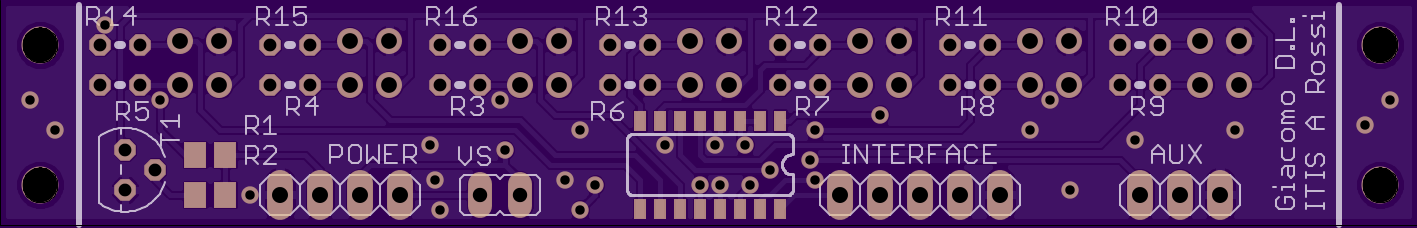

Bottom

2 layer board of 3.54x0.56 inches (90.02x14.30 mm).
Shared on April 25th, 2014 21:34.

Line Following Sensor Array featuring 7 reflective sensors (RPR-220). For more information check http://gdelazzari.altervista.org/blog/

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

TinyCTRL

by gdelazzari.
Top
Bottom

2 layer board of 0.57x0.68 inches (14.60x17.15 mm).
Shared on December 2nd, 2013 19:10.

Small ATTiny breakout board with 2 servo connectors

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
