Shared projects

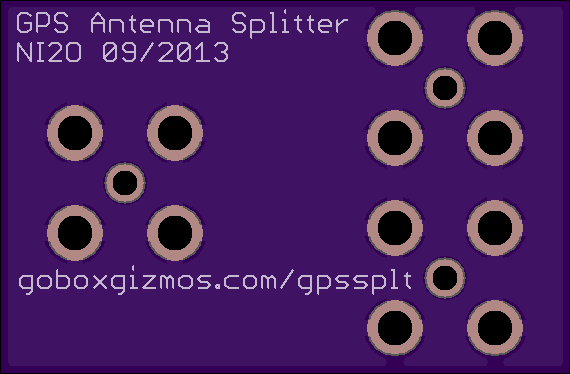

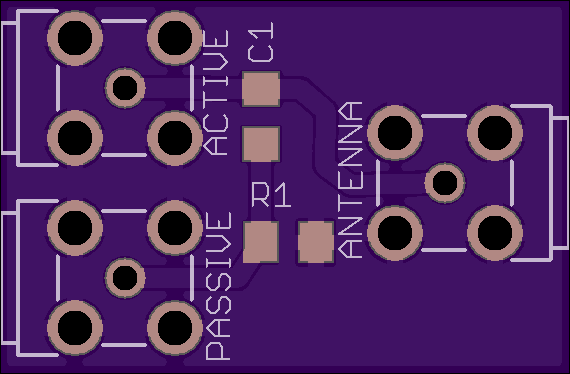

GPS Antenna Splitter
by
goboxgizmos.
2
layer board of
1.14x0.75
inches
(28.96x19.00
mm).
Shared on
February 2nd, 2014 16:00.
Add a second receiver to your GPS antenna.
http://enicomms.com/gpssplit/ for more info.

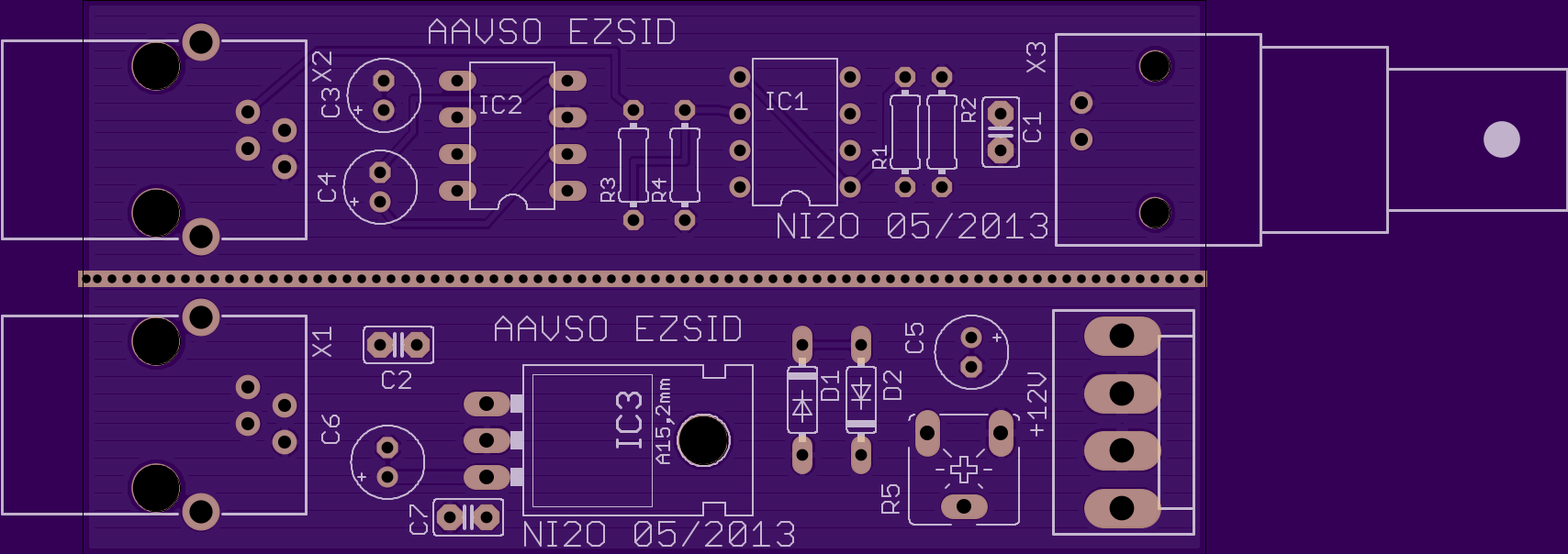

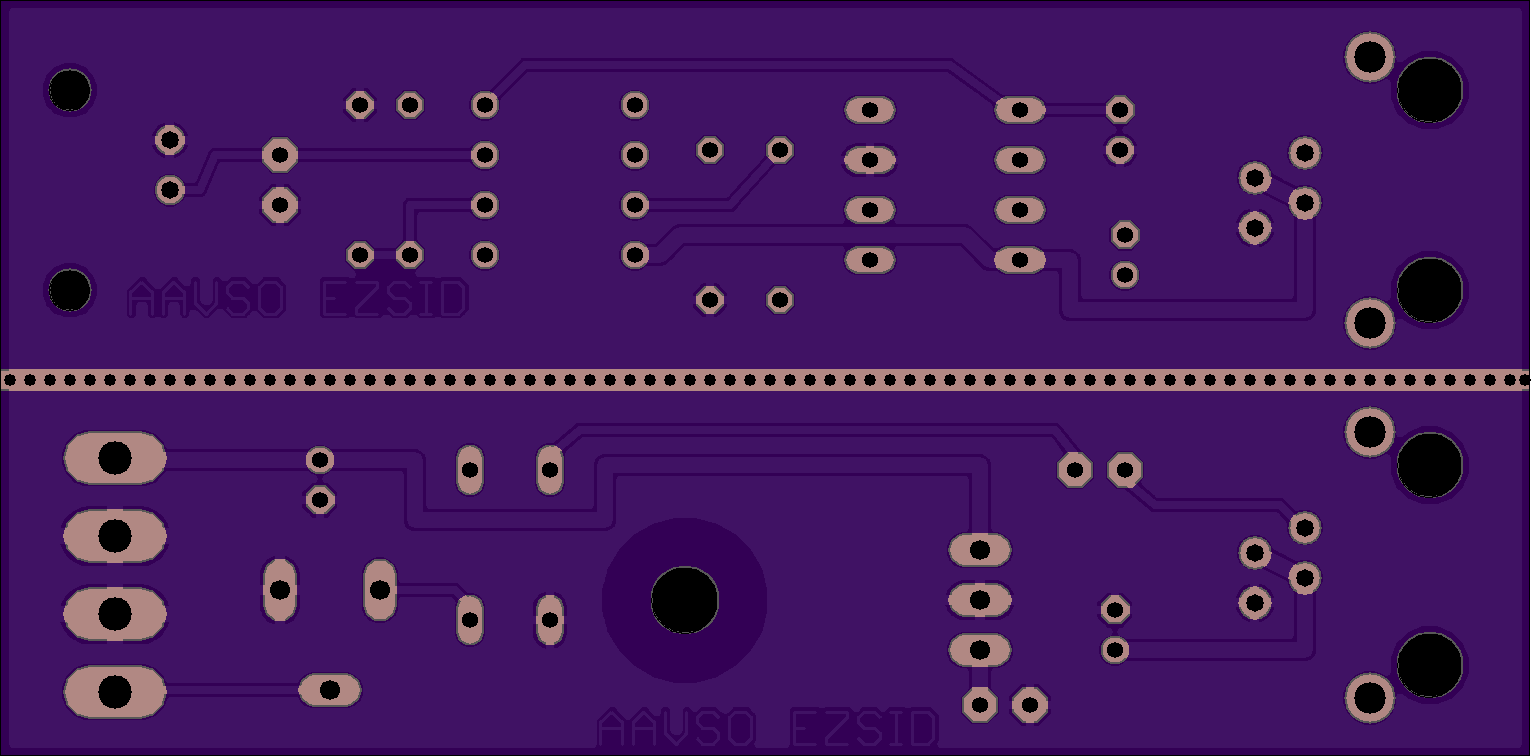

EZSID
by
goboxgizmos.
2
layer board of
3.06x1.51
inches
(77.67x38.35
mm).
Shared on
February 2nd, 2014 16:00.
Sudden Ionospheric Disturbance receiver. Useful for Astronomy work.

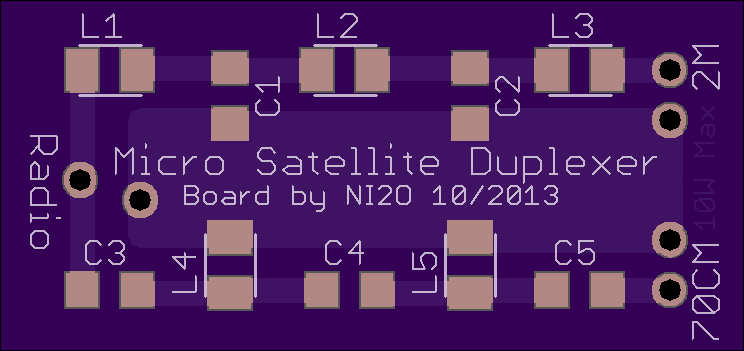

Micro Satellite Duplexer V2
by
goboxgizmos.
2
layer board of
1.49x0.70
inches
(37.80x17.78
mm).
Shared on
February 2nd, 2014 15:59.
10W VHF/UHF duplexer suitable for your HT and home brewed antennas.

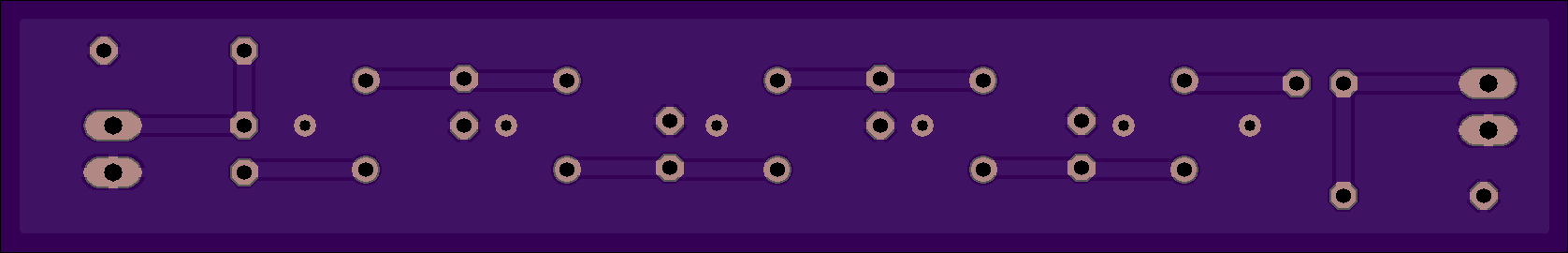

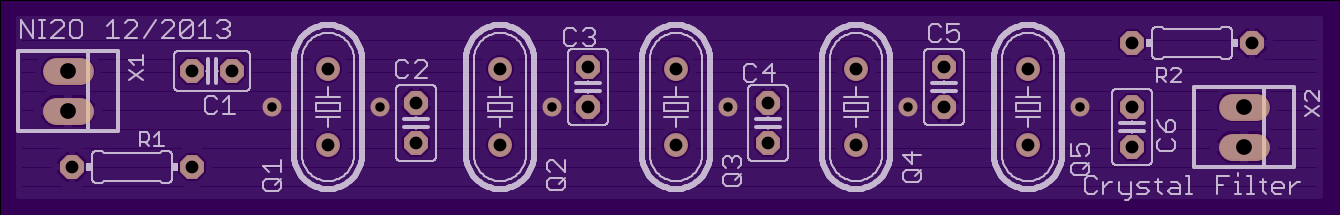

Crystal Filter
by
goboxgizmos.
2
layer board of
3.35x0.54
inches
(85.09x13.67
mm).
Shared on
February 2nd, 2014 15:59.

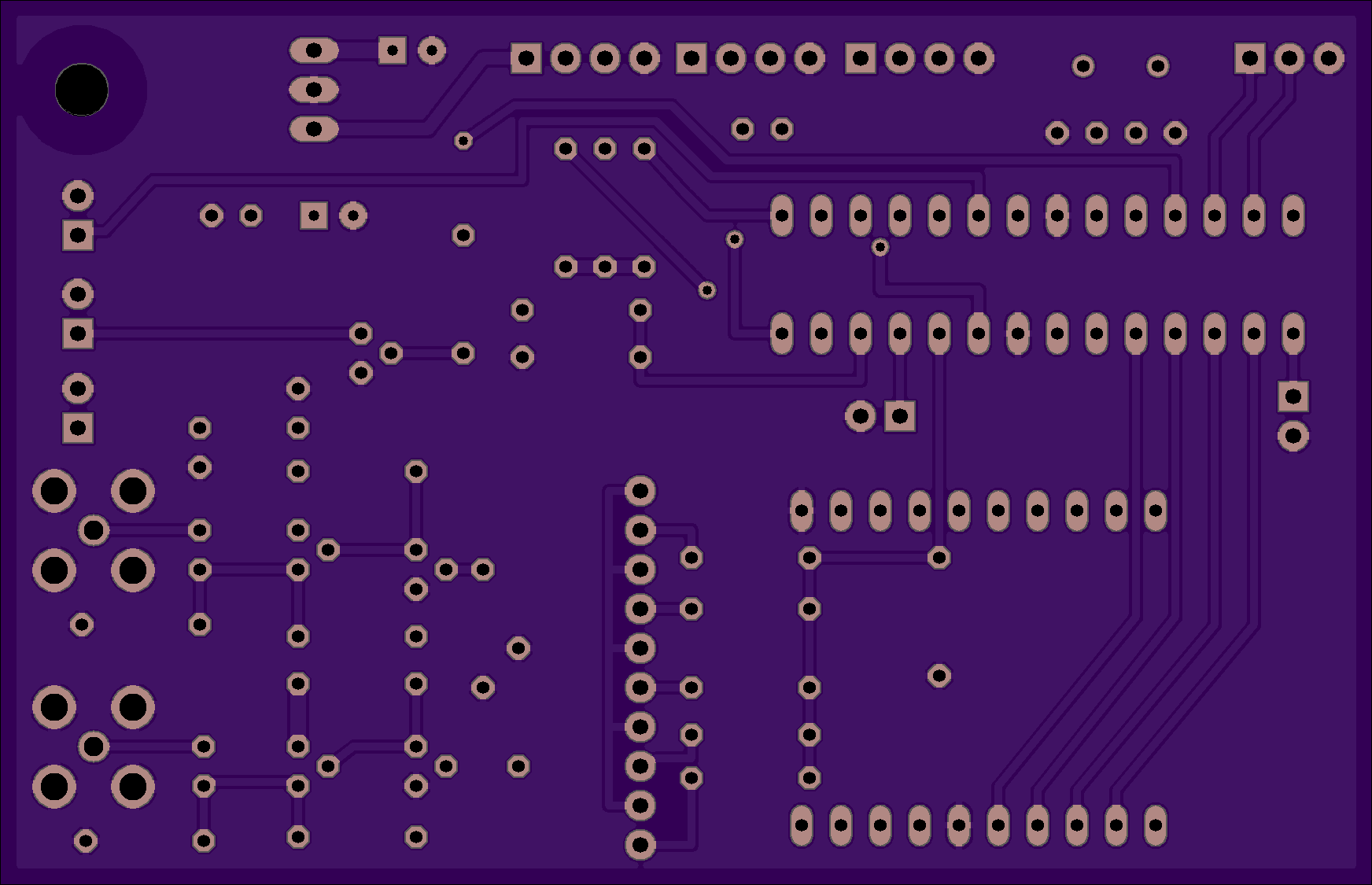

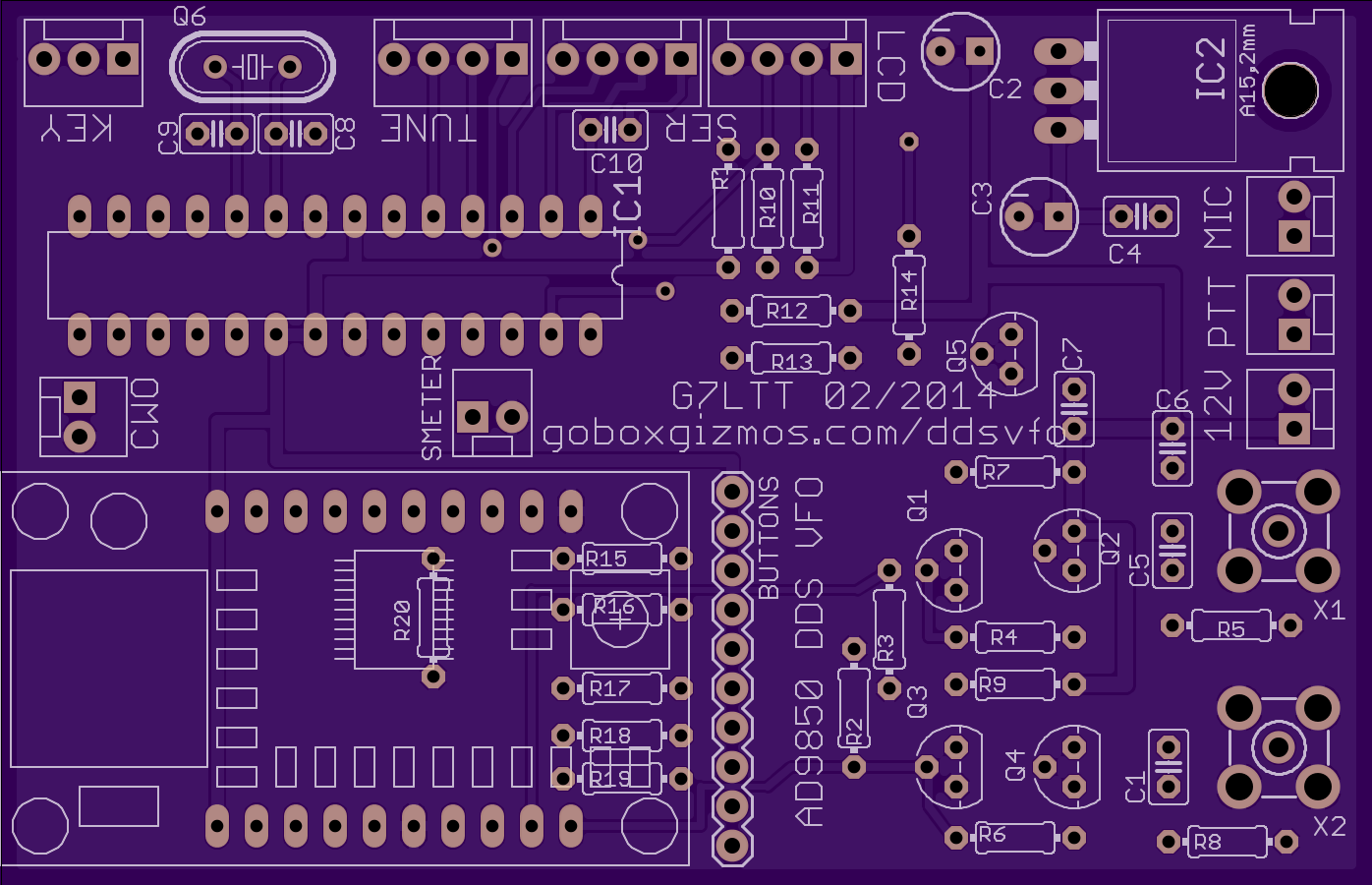

AVR DDS I2C LCD
by
goboxgizmos.
2
layer board of
3.49x2.25
inches
(88.57x57.15
mm).
Shared on
February 2nd, 2014 15:59.
Arduino based DDS with I2C LCD. Developed for use with home brewed HF radio’s. Includes Mic/PTT etc. Uses cheap DDS module from ebay.
