Shared projects

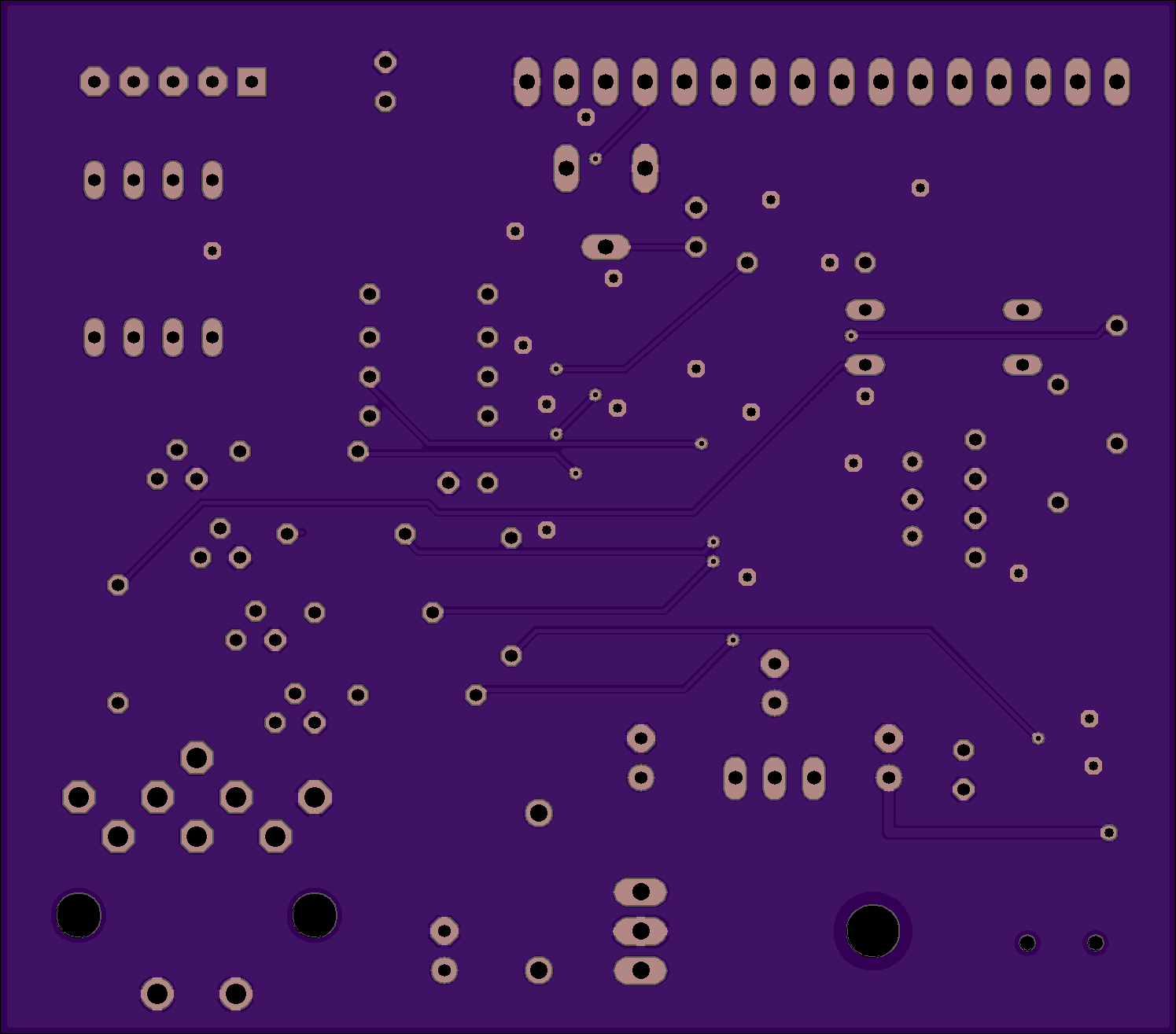

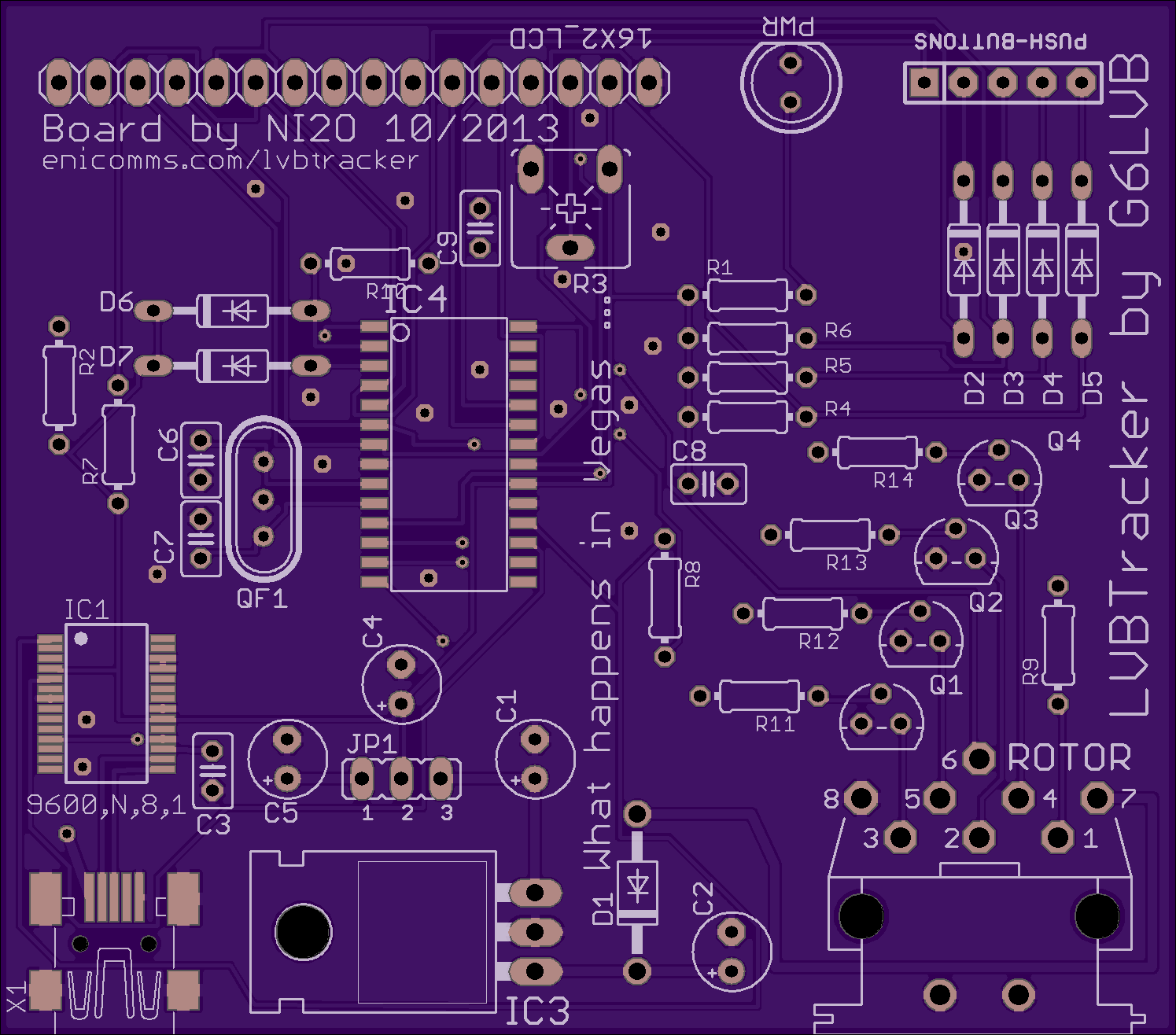

LVBTracker USB
by
goboxgizmos.
2
layer board of
2.99x2.63
inches
(75.87x66.80
mm).
Shared on
February 2nd, 2014 15:59.
My take on the G6LVB satellite antenna controller.

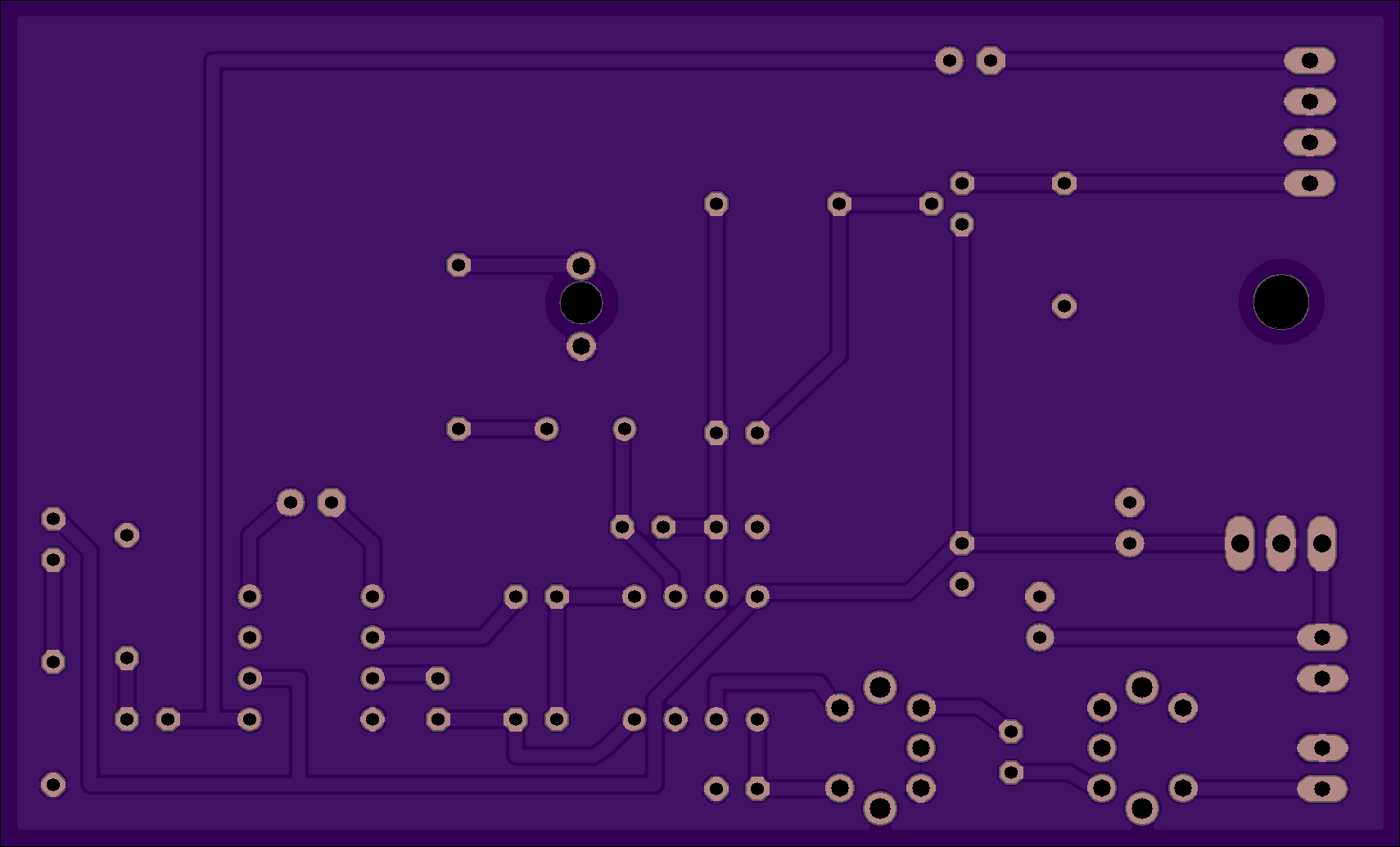

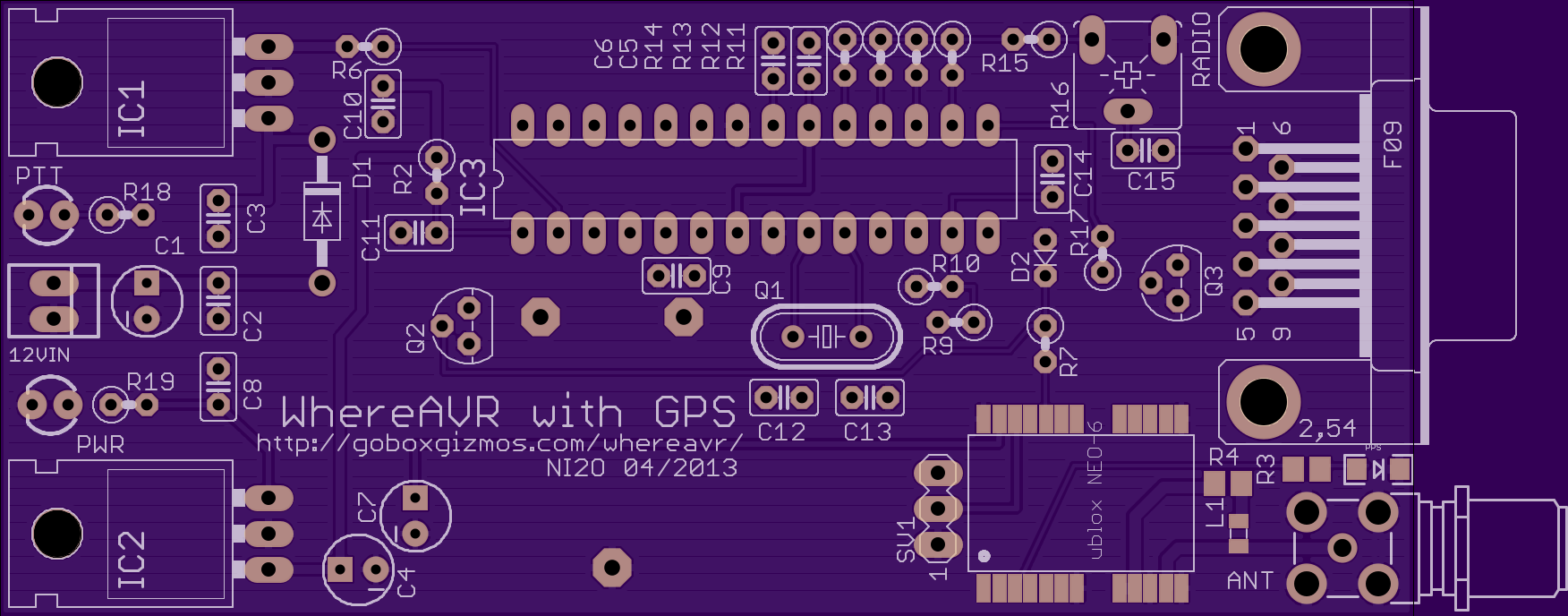

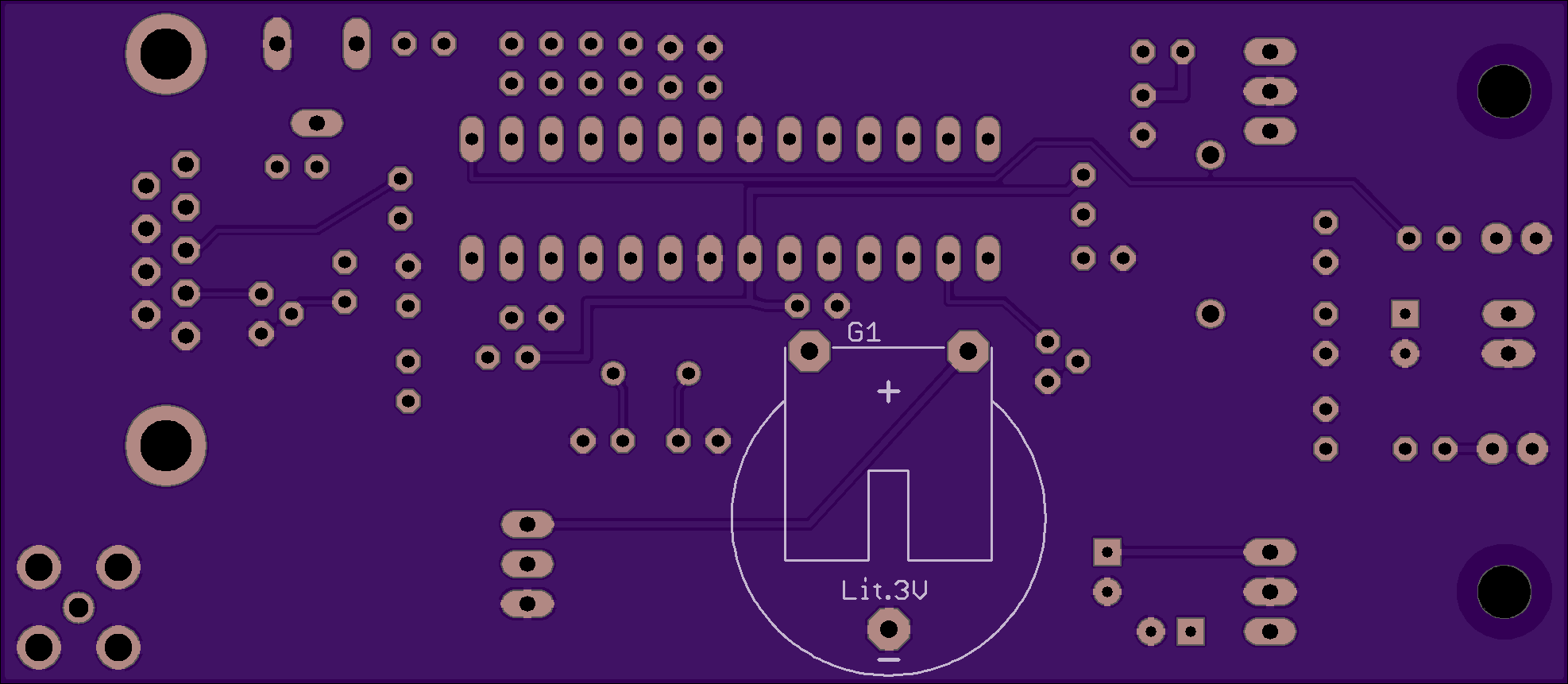

WhereAVR
by
goboxgizmos.
2
layer board of
3.95x1.72
inches
(100.25x43.69
mm).
Shared on
February 2nd, 2014 15:58.
AVR based APRS Tracker

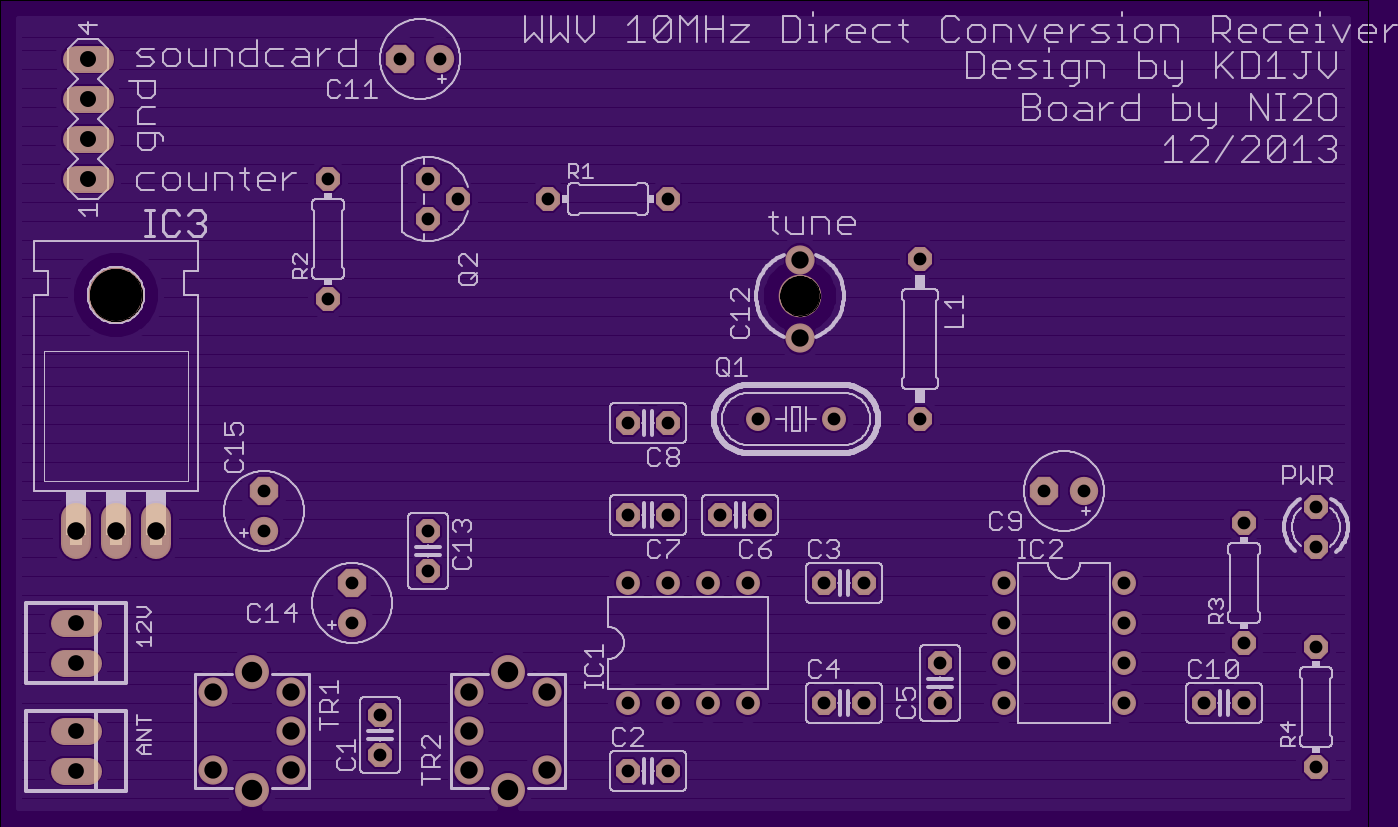

10MHz WWV DCR
by
goboxgizmos.
2
layer board of
3.42x2.07
inches
(86.87x52.53
mm).
Shared on
December 6th, 2013 15:10.

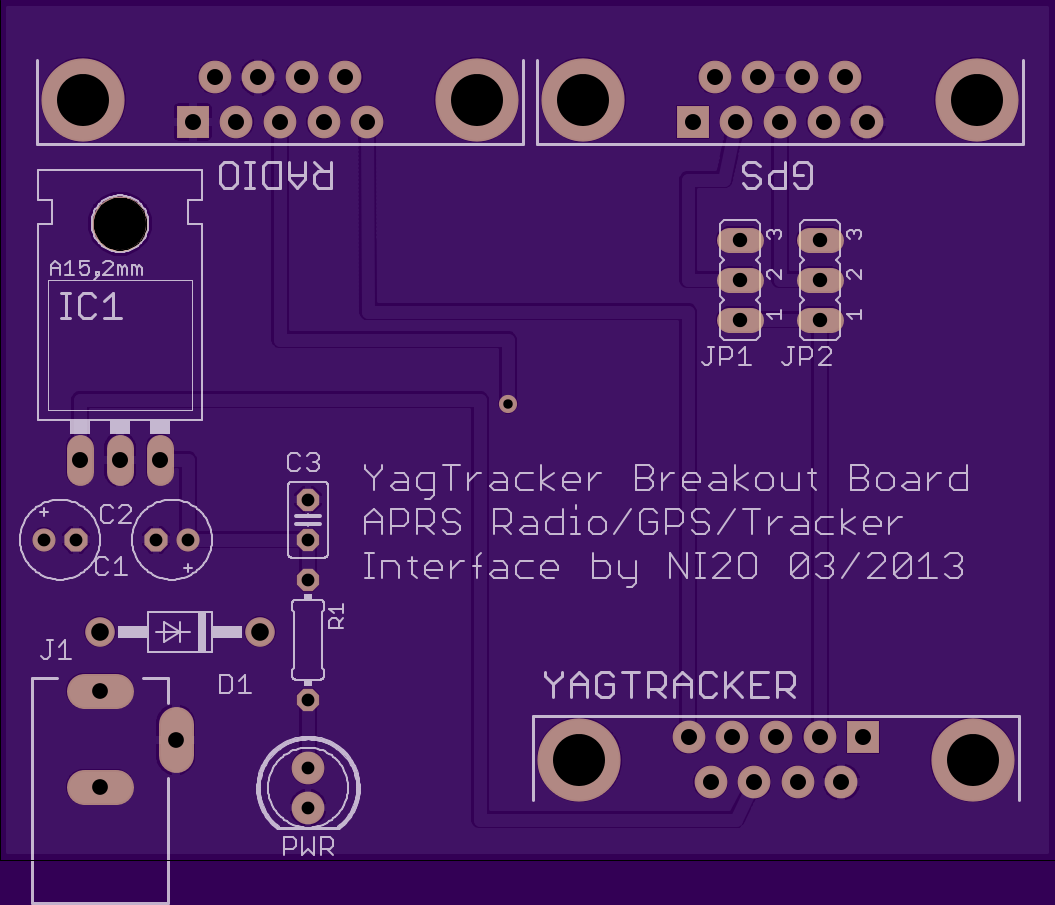

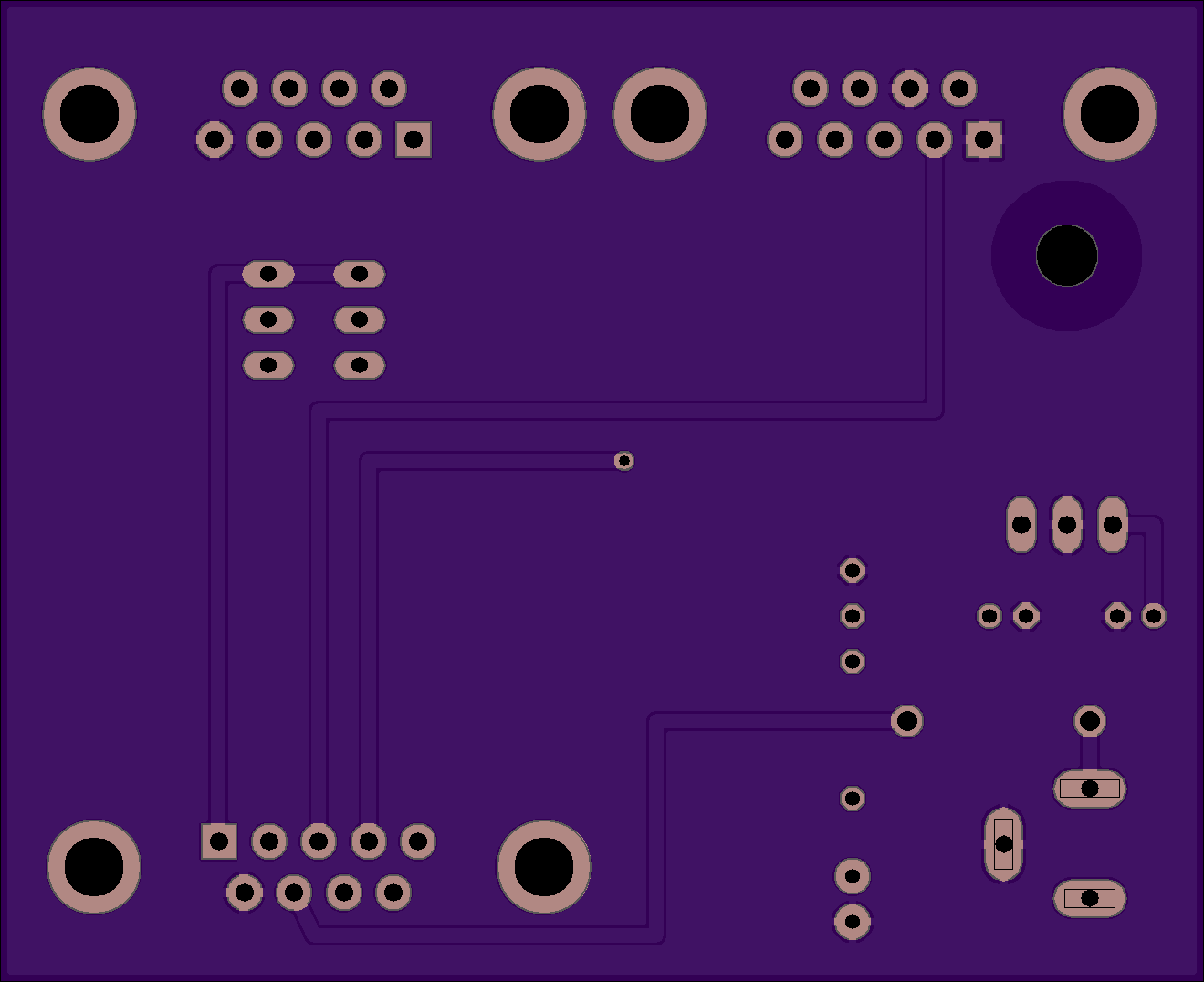

YagTracker Simple Breakout
by
goboxgizmos.
2
layer board of
2.64x2.15
inches
(67.01x54.61
mm).
Shared on
September 21st, 2013 03:20.
Breakout board for the YagTracker APRS tracker. Simplifies connections to all required devices. Ideal for firmware upgrades too.
+5V regulator may not be required. Included in case your GPS needs it. Install a wire link on the bottom of the board from the output of the 7805 to the +V pin on the GPS via the GPS DB9 connector.

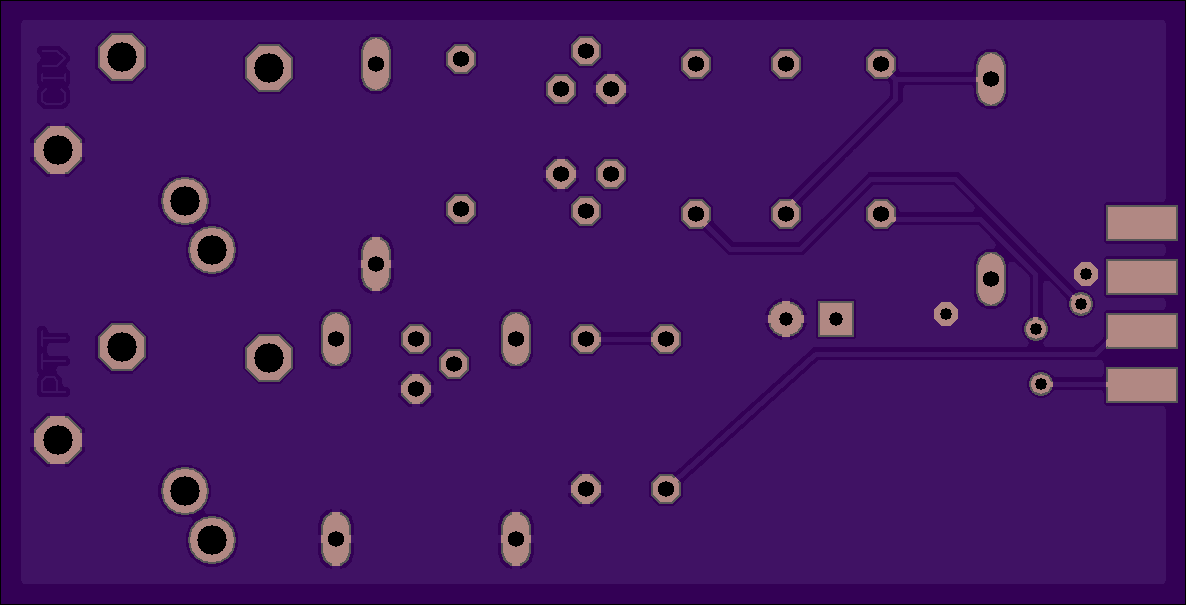

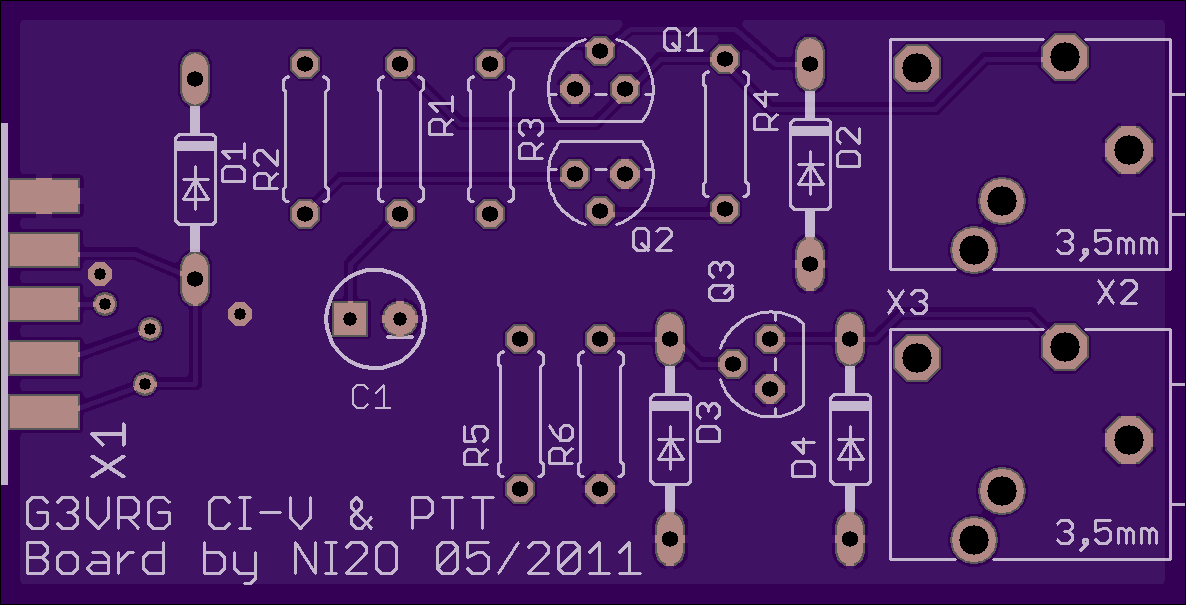

G3VGR Ci-V
by
goboxgizmos.
2
layer board of
2.37x1.21
inches
(60.20x30.66
mm).
Shared on
July 30th, 2013 17:06.
