sensor node V1.0.1 (WIP)

by hannes.
Top
Bottom

2 layer board of 1.19x2.13 inches (30.18x54.15 mm).
Shared on April 22nd, 2017 08:13.

A simple fully integrated sensor node.

I designed the board to get experience with the ARM Cortex M0+ platform.

IMPORTANT: this board has been designed for the 2 oz service; if ordered with the standard 1 oz service, the properties of the antenna will not be as expected

For more detail please consult the git hub page of the project.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

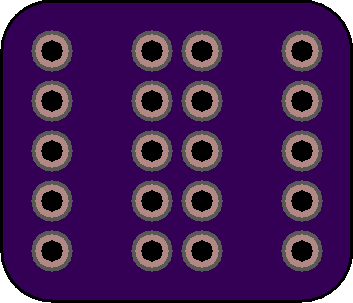

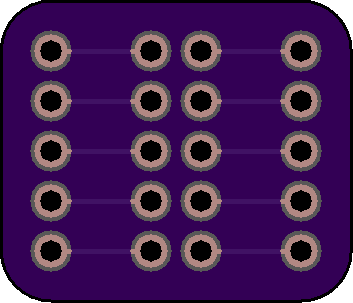

Bus Pirate Breadboard Connector

by hannes.
Top
Bottom

2 layer board of 0.71x0.61 inches (17.93x15.39 mm).
Shared on May 1st, 2016 07:01.

2x5 pin header breadboard connector

For more details see the github page of the project.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

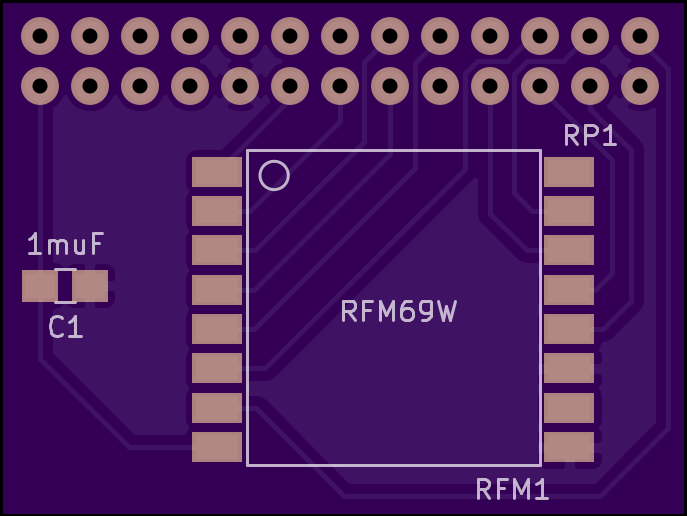

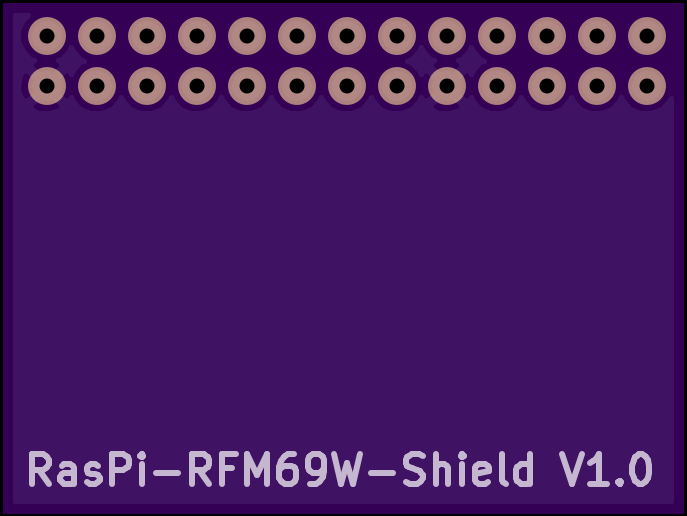

RasPi RFM69W shield (room for improvement)

by hannes.
Top
Bottom

2 layer board of 1.37x1.03 inches (34.90x26.24 mm).
Shared on March 12th, 2016 16:00.

A RaspberryPi shield for the RFM69W module.

The shield is functional, but I have some ideas for improvements:

  • pin DIO5 of the RFM69W module should be connected to a different pin on the Raspberry Pi connector
  • the pads for the RFM69W module should could be larger to make it easier to solder the shield by hand
  • the unconnected pin of the RFM69W module should be connected to ground
