Shared projects
DELL PowerEdge 1950 LCD backlight board
by
hitech95.
2
layer board of
0.89x0.50
inches
(22.61x12.62
mm).
Shared on
May 2nd, 2017 10:58.

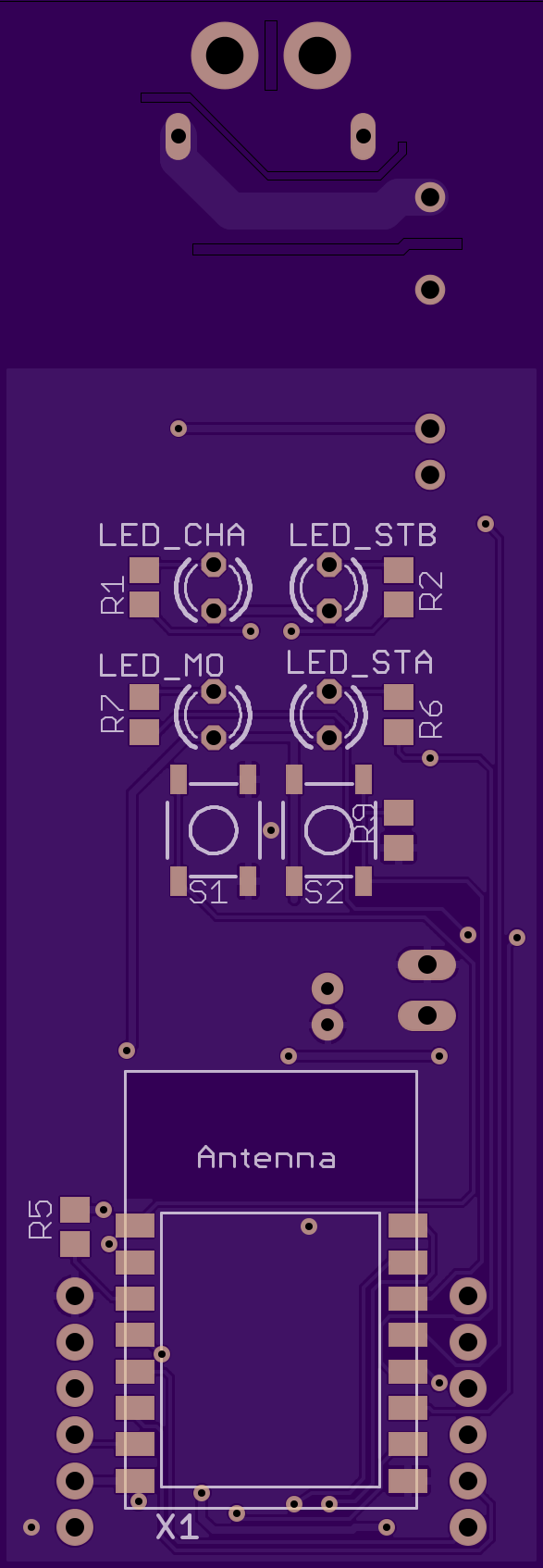

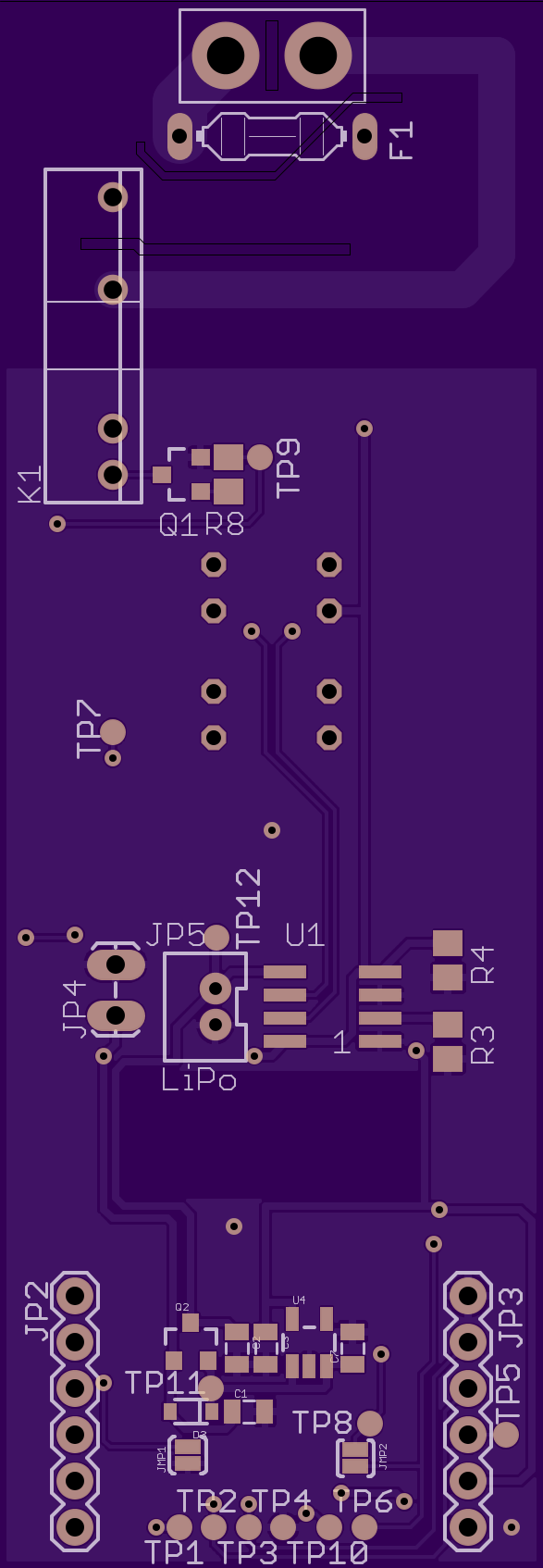

GSM DIN
by
hitech95.
2
layer board of
1.18x3.39
inches
(29.85x86.06
mm).
Shared on
April 5th, 2016 22:50.
GSM DIN TP4056 Lipo charger 3.3V LowDrop Onboard regulator ESP-12 Onboard MCU Onboard Omron SSR 2A with fuse GSM SIM800L board (Header)
Intel Server Front Panel Board
by
hitech95.
2
layer board of
1.90x1.00
inches
(48.29x25.43
mm).
Shared on
June 30th, 2015 16:49.

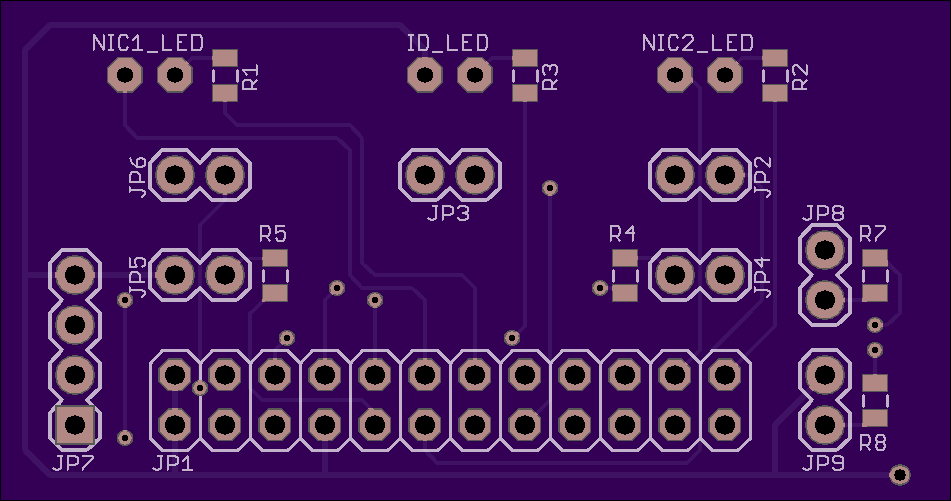

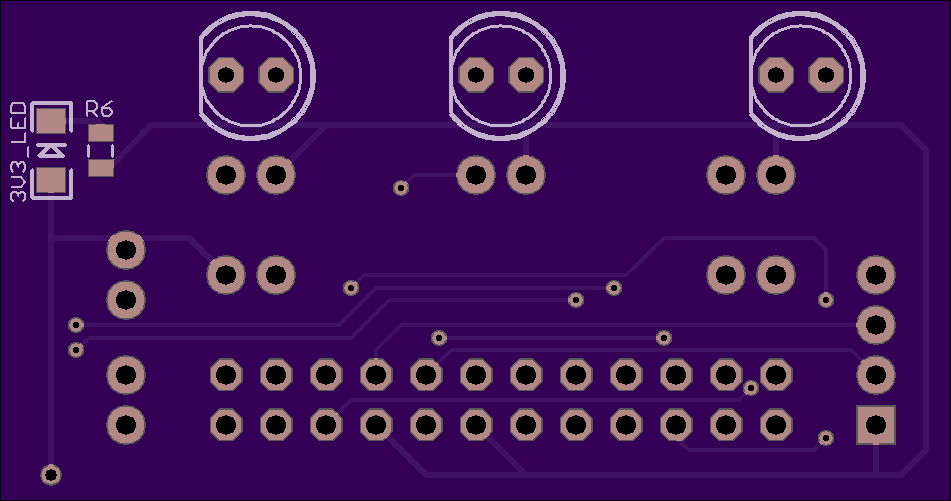

Intel Server Front Panel
Board for Intel Server Front Panel 24 Pin Header.
It has been developed to be able to use a standard chassis with an Intel server motherboard. Simply connect the ribbon cable to the motherboard and chassis’s cables to the Panel board.
Features:
- 5V STB LED (Included on PCB)
- Power LED (External Connector)
- HDD Activity LED (External Connector)
- ID LED (Included on PCB)
- NIC 1 Activity LED (Included on PCB)
- NIC 2 Activity LED (Included on PCB)
- System Status LED#1 (External Connector)
- System Status LED#2 (External Connector)
- Power Button (External Connector)
- Reset Button (External Connector)
- ID button (External Connector)
- SM Bus Header to read data (External Connector)

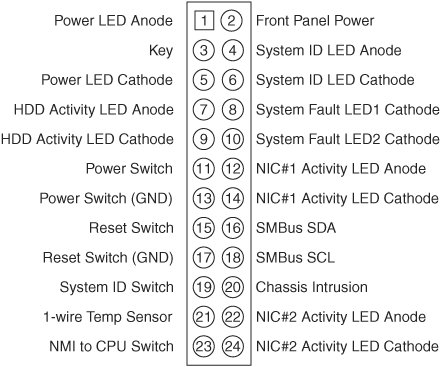

24Pin Header Pinout
Todo’s
- 1-Wire Temp Sensor
Form more info see: Intel Header
This is a test project, was made only in order to use the feature without using an Intel chassis.
