Shared projects

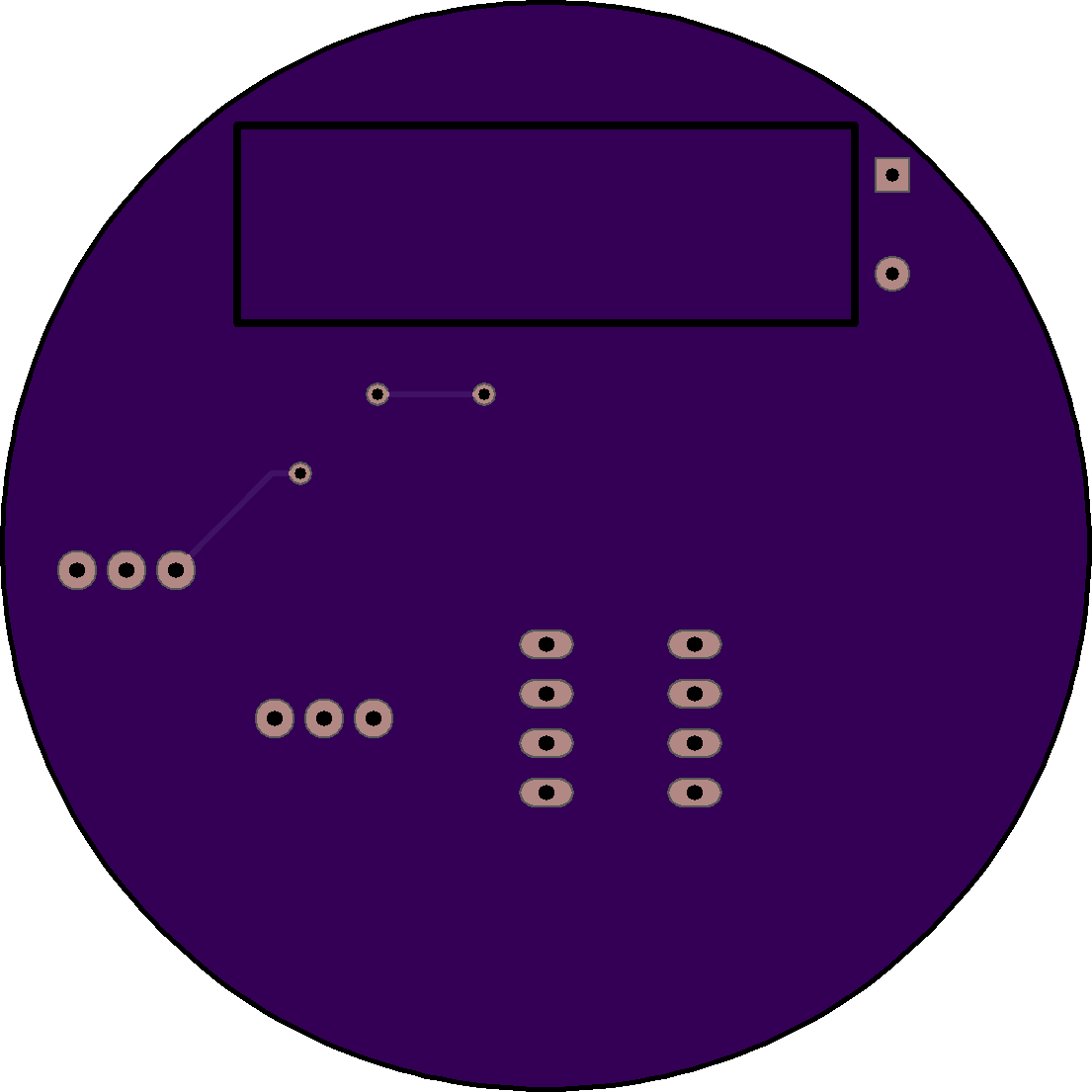

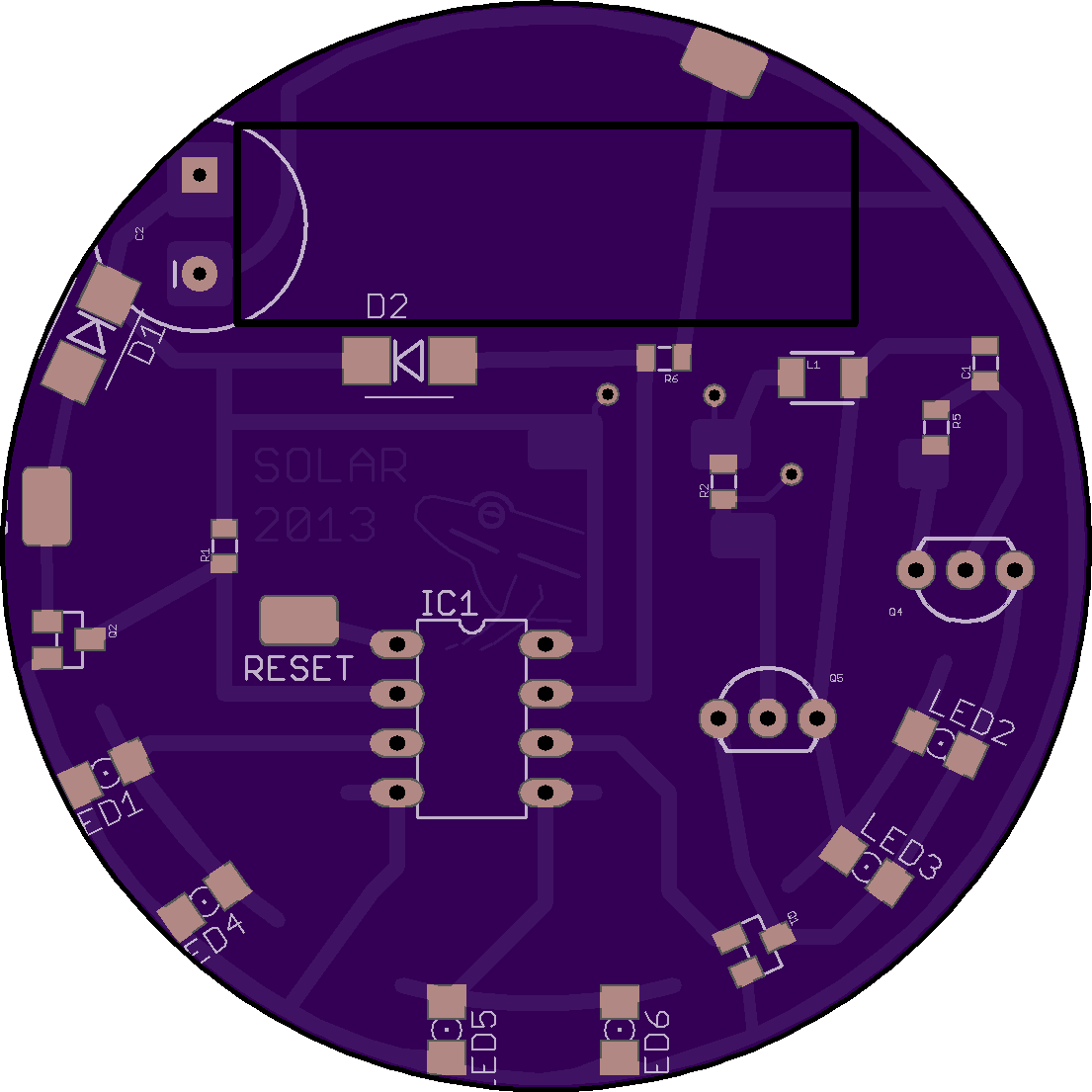

Solar Blink 2013

by hydronics.
Top
Bottom

2 layer board of 2.21x2.21 inches (56.13x56.13 mm).
Shared on January 5th, 2014 06:28.

LED Shield for Adafruit round solar panel. see the instructables: http://www.instructables.com/id/Solar-Bling/

Here is the Mouser parts list: https://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=1ef01ee312

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

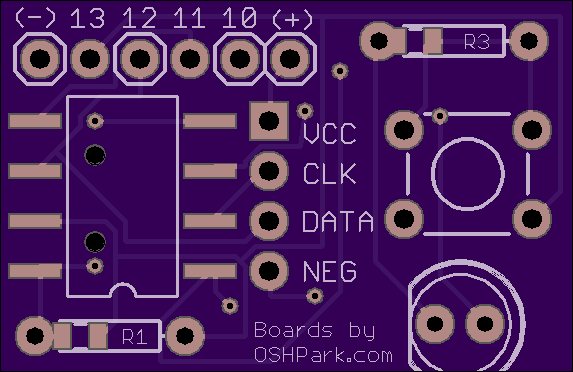

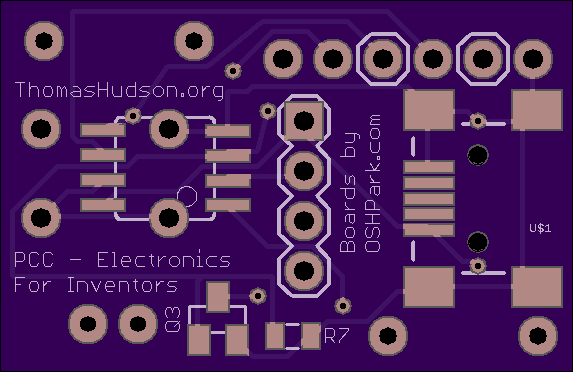

PCC - January Class

by hydronics.
Top
Bottom

2 layer board of 1.15x0.74 inches (29.08x18.85 mm).
Shared on December 26th, 2013 23:26.

Attiny85 - Button - USB - programmer - 8806 LED strip

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Polo Timer (small)

by hydronics.
Top
Bottom

2 layer board of 2.30x0.26 inches (58.42x6.68 mm).
Shared on November 7th, 2013 06:42.

Part of a 7 digit display using the WS2812 addressable RGB LEDs

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

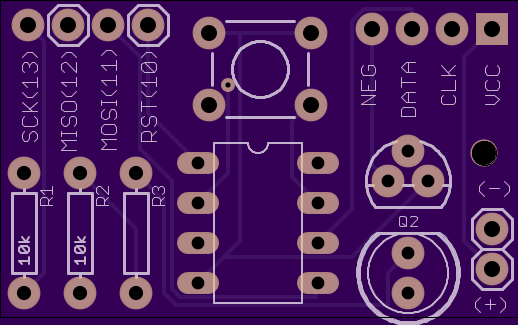

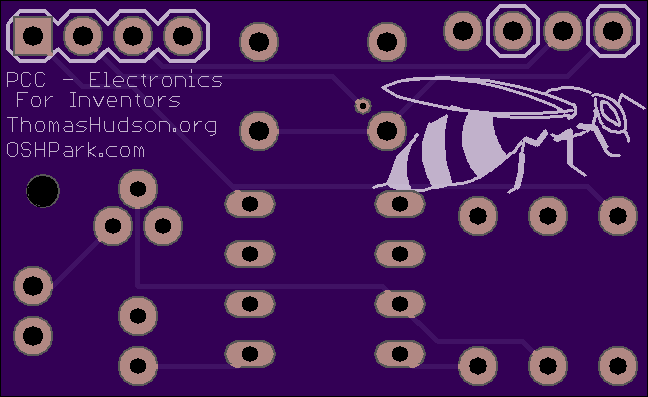

PCC Class

by hydronics.
Top
Bottom

2 layer board of 1.30x0.79 inches (32.89x20.12 mm).
Shared on October 11th, 2013 04:40.

8806 LED driver board w/ attiny85

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

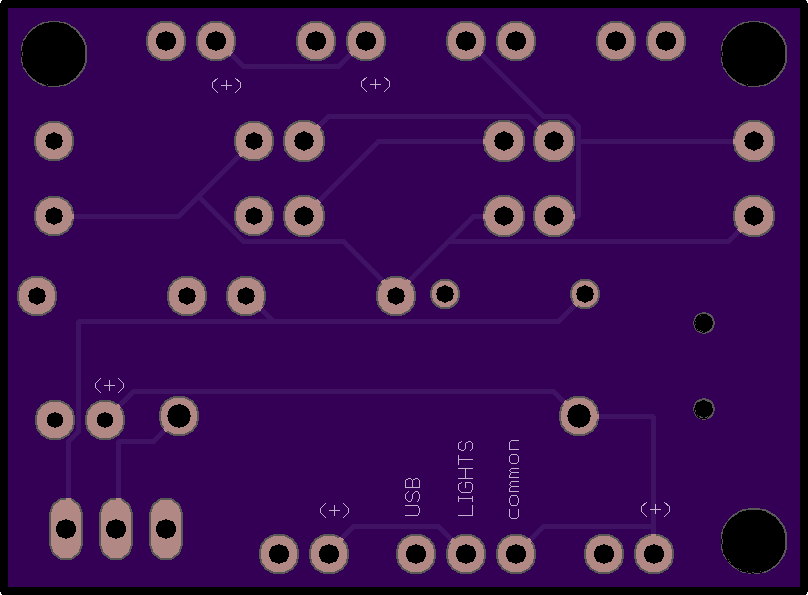

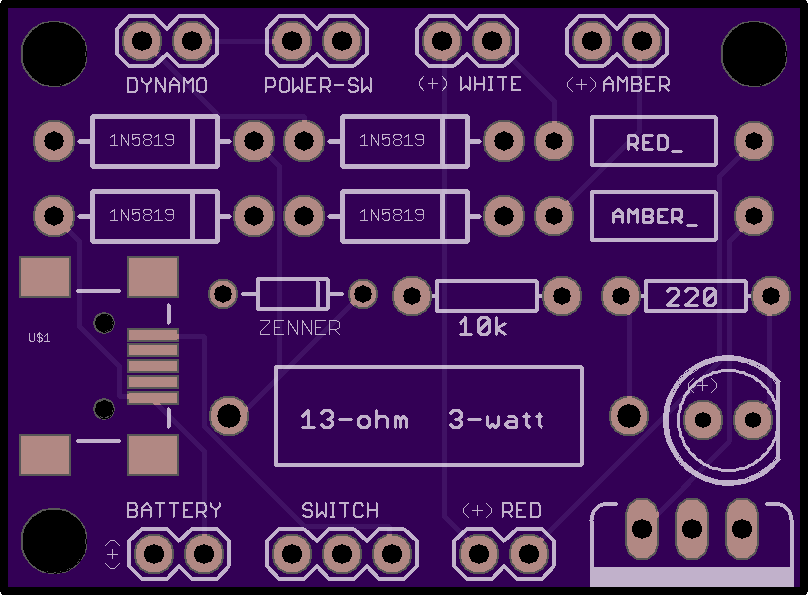

Dynamo Charger

by hydronics.
Top
Bottom

2 layer board of 1.62x1.19 inches (41.05x30.28 mm).
Shared on September 17th, 2013 04:47.

Dynamo Charger with diode bridge LED light connections (white power LEDs, red and amber leds with optional resistor), a circuit protection transistor with diode that drains to a 3W resistor over 6.2volts DC.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
