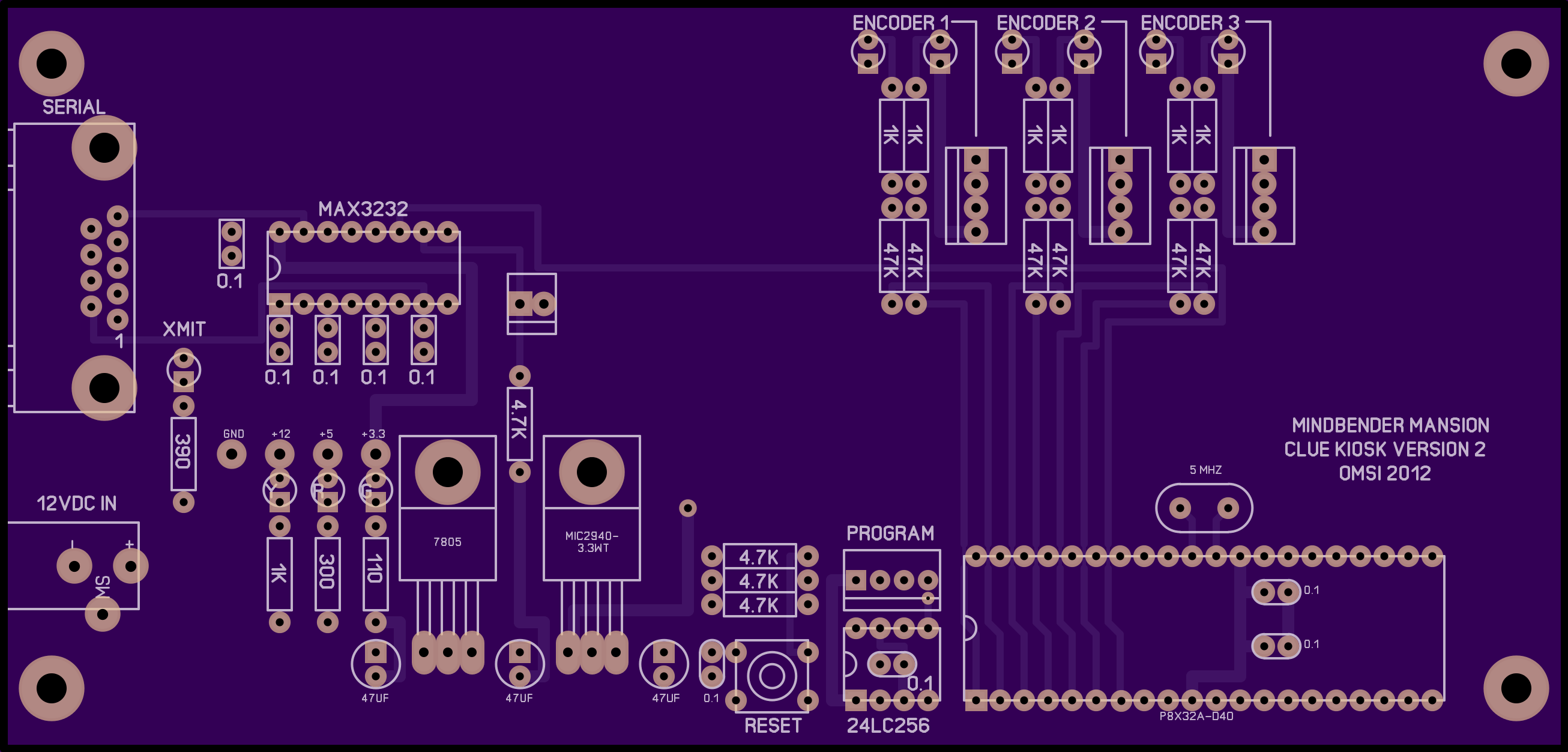

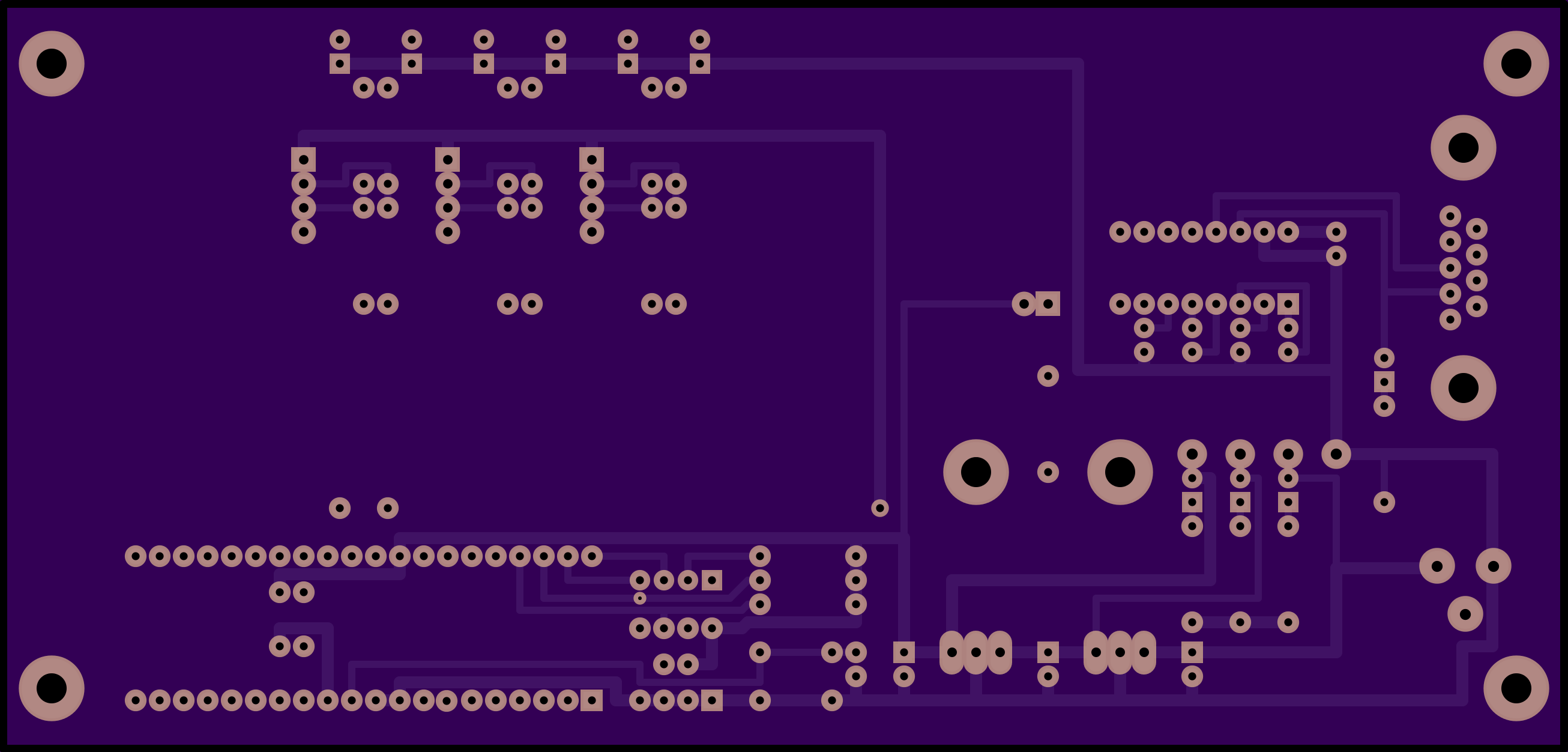

OMSI - Vault, Clue Kiosk

by

2 layer board of 6.53x3.13 inches (165.91x79.55 mm).
Shared on March 27th, 2015 19:52.

Vault with larger through holes for the molex connectors

Copy this HTML into your page to embed a link to order this shared project

OMSI Spelling Fever - letter board

by

2 layer board of 2.02x2.02 inches (51.18x51.23 mm).
Shared on March 26th, 2015 22:31.

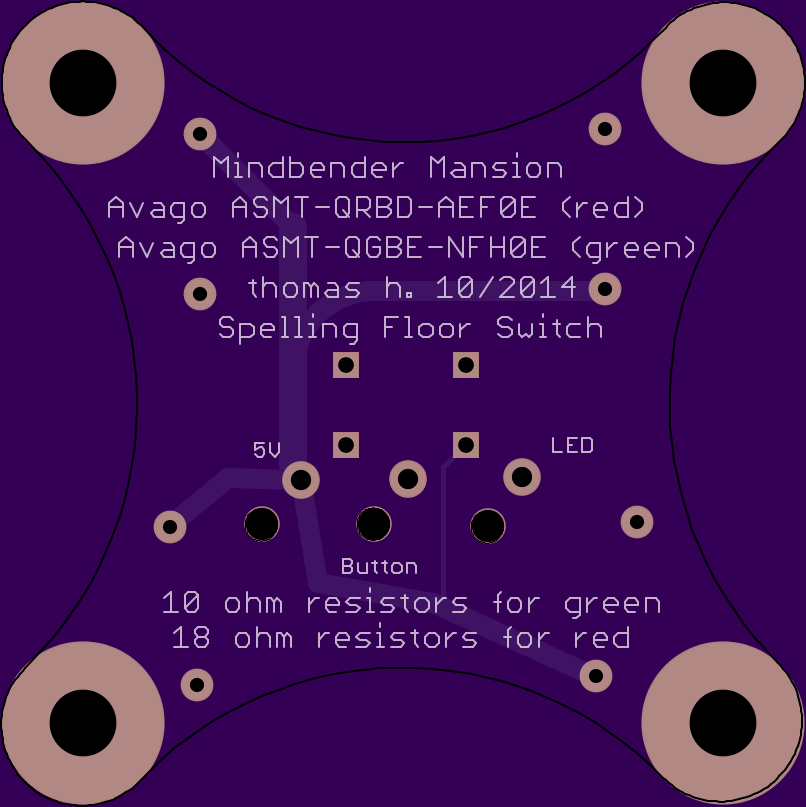

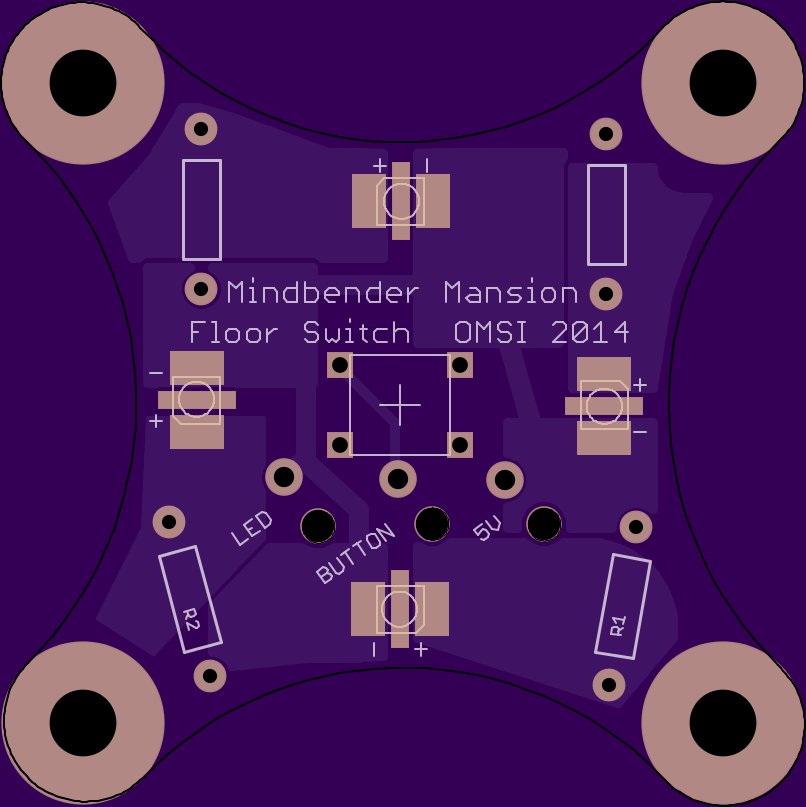

for mounting Red/green Avago LEDs and tactile button. this is the 1.6" board as sent to PCB4u.com on 11/7/2014

Copy this HTML into your page to embed a link to order this shared project

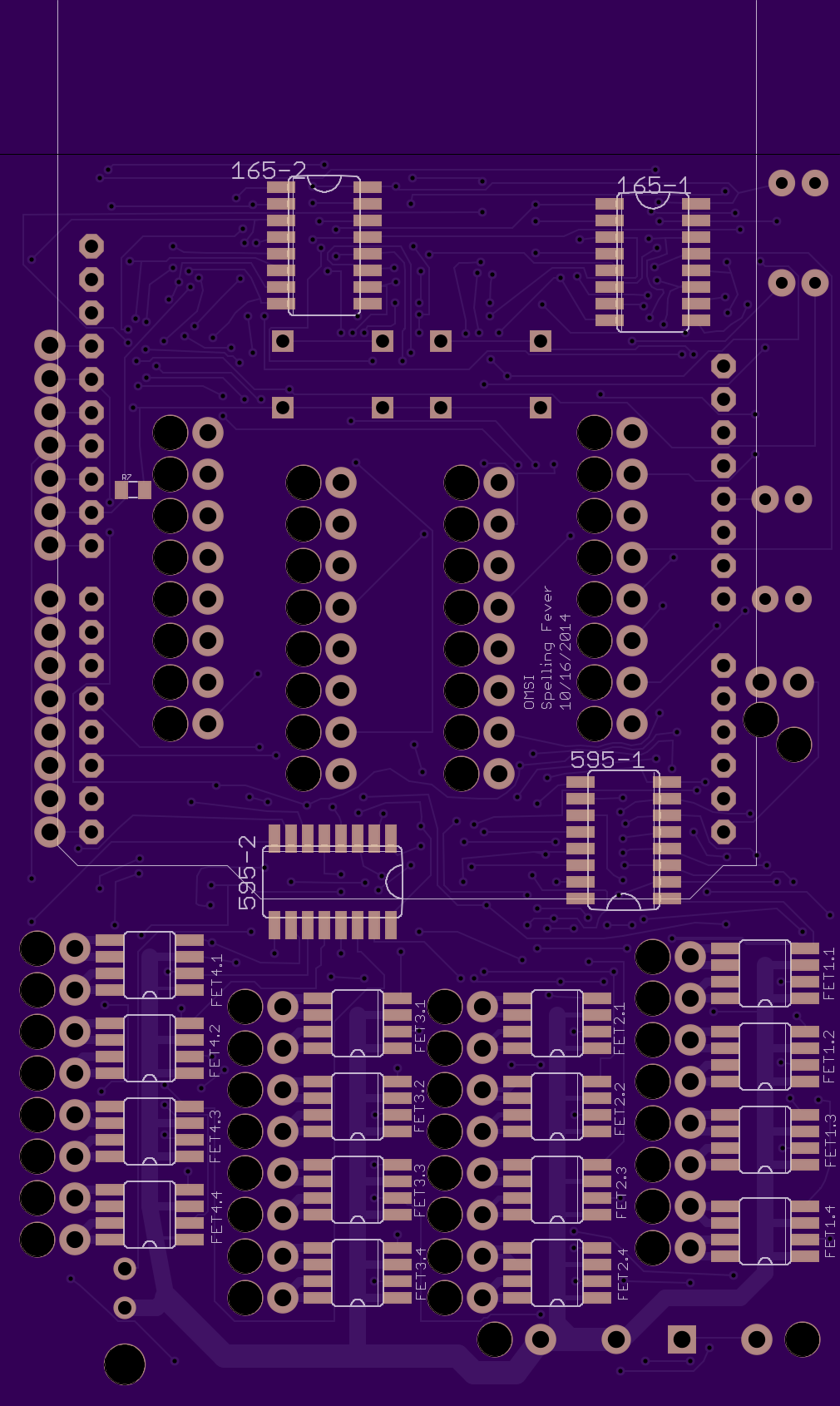

by

2 layer board of 2.53x3.76 inches (64.13x95.58 mm).
Shared on March 26th, 2015 21:43.

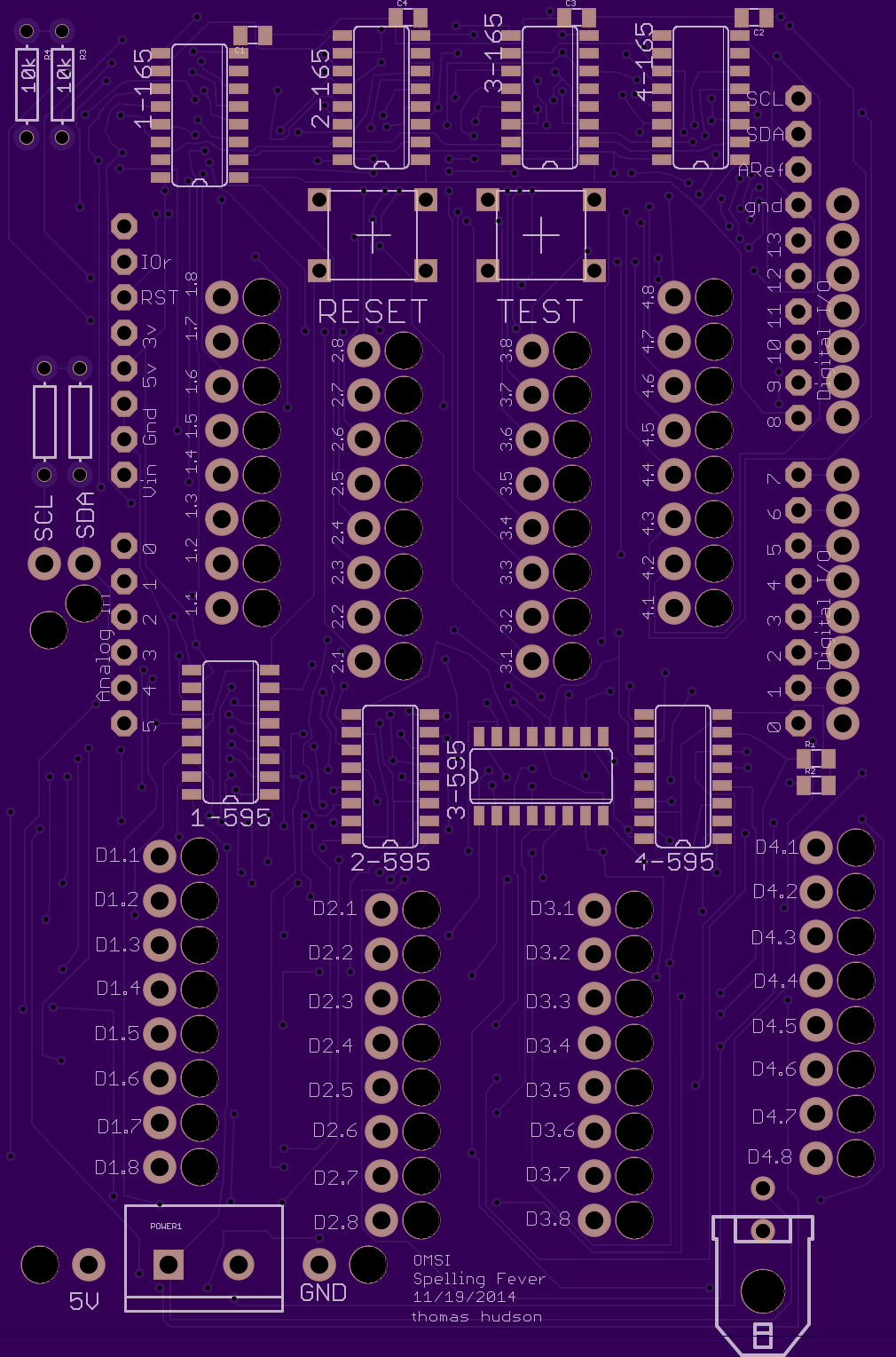

Shift-in buttons and shift-out LEDs. 3/26/15 fixed broken trace

Copy this HTML into your page to embed a link to order this shared project

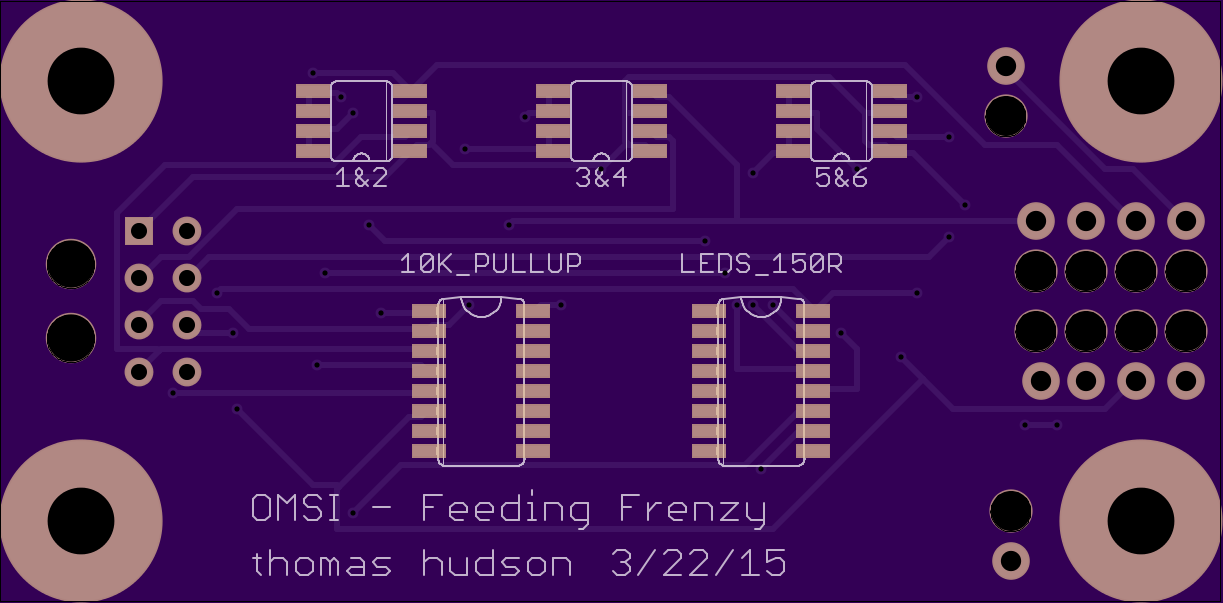

by

2 layer board of 3.05x1.50 inches (77.50x38.13 mm).
Shared on March 23rd, 2015 03:43.

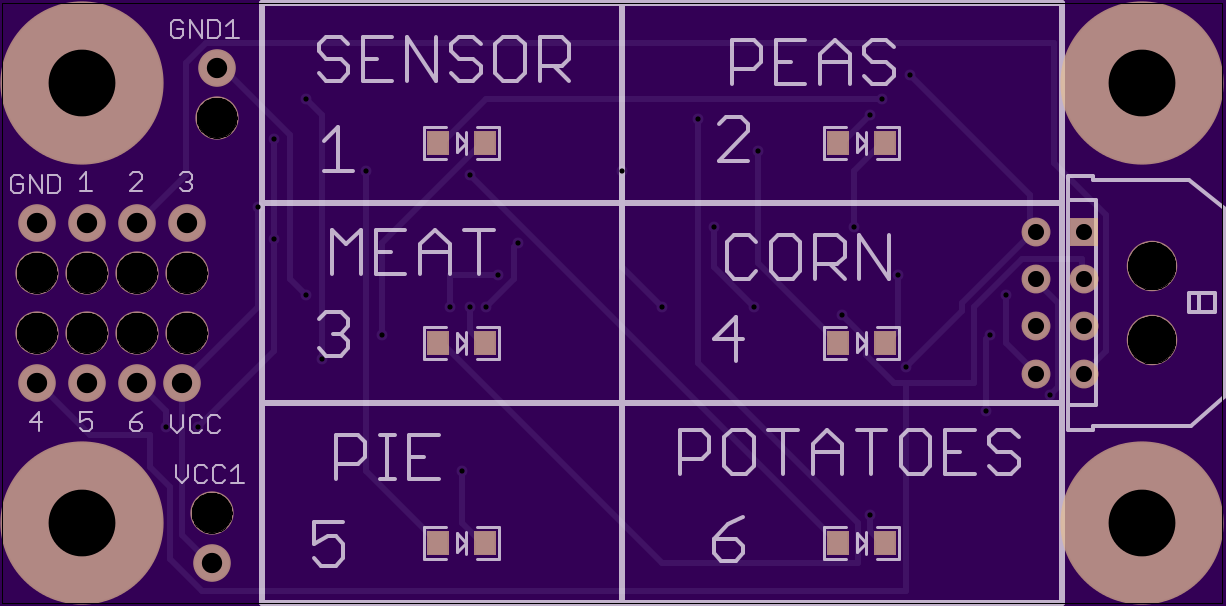

food identifier. LED lights up when associated reed switch closes

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.45x1.40 inches (36.83x35.59 mm).
Shared on December 29th, 2014 06:48.

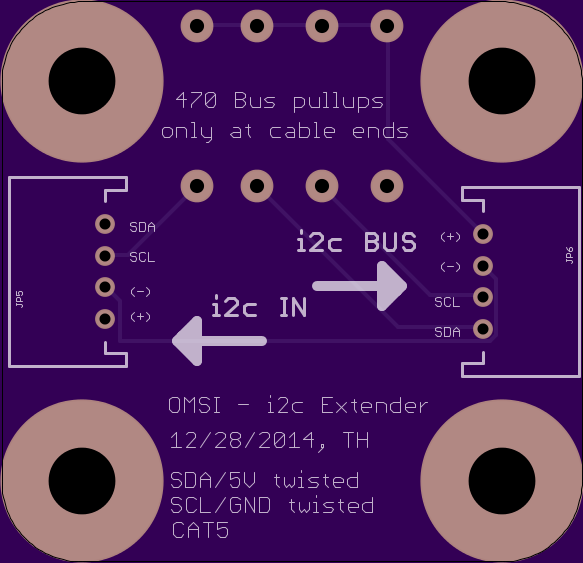

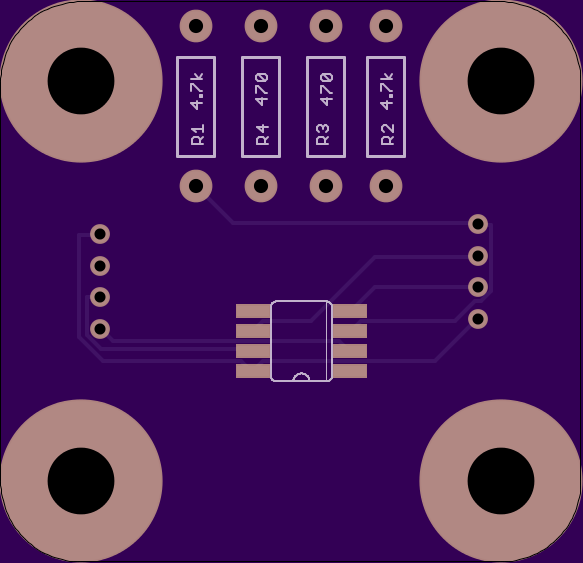

i2c Extender

Copy this HTML into your page to embed a link to order this shared project
