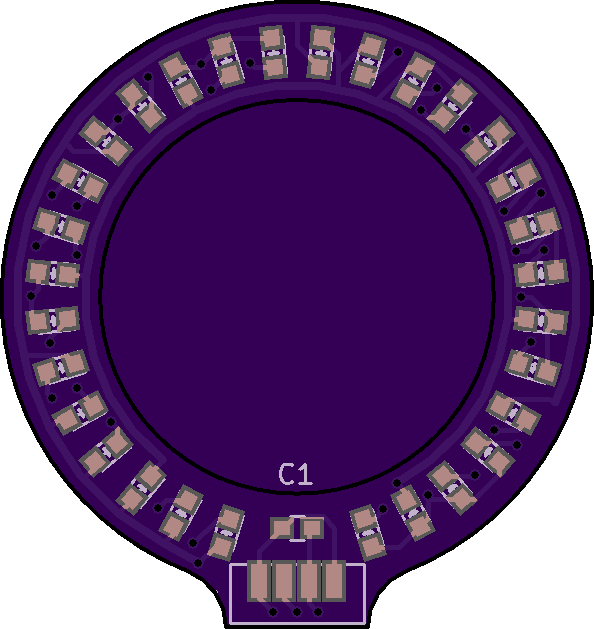

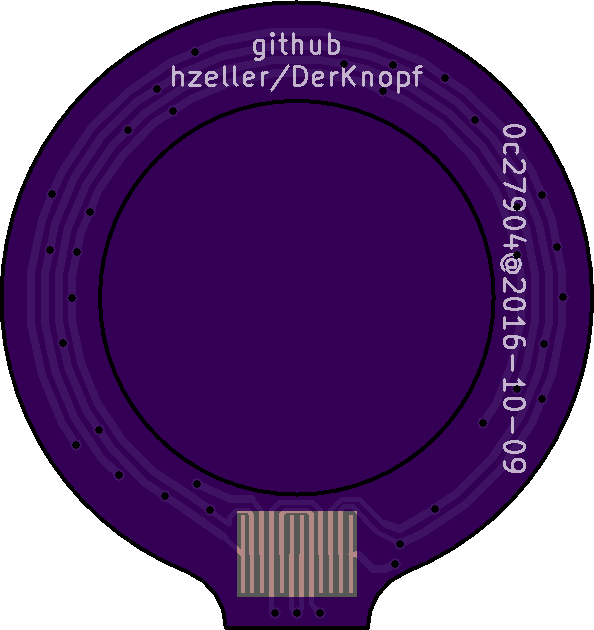

DerKnopf LED ring
by
hzeller.
2
layer board of
1.19x1.26
inches
(30.20x32.00
mm).
Shared on
November 6th, 2016 21:32.
IR receiver and charlieplexed LED ring around volume control. Used in https://github.com/hzeller/DerKnopf but can be useful for other things as well. 6-wire charlieplexing for 30 LEDs, lined up exactly with 1/32 turn for 32-detent encoder; two spacing.
TMC2660 Breakout
by
hzeller.
2
layer board of
1.06x1.23
inches
(27.03x31.22
mm).
Shared on
October 29th, 2016 01:58.
https://github.com/hzeller/tmc2660-breakout

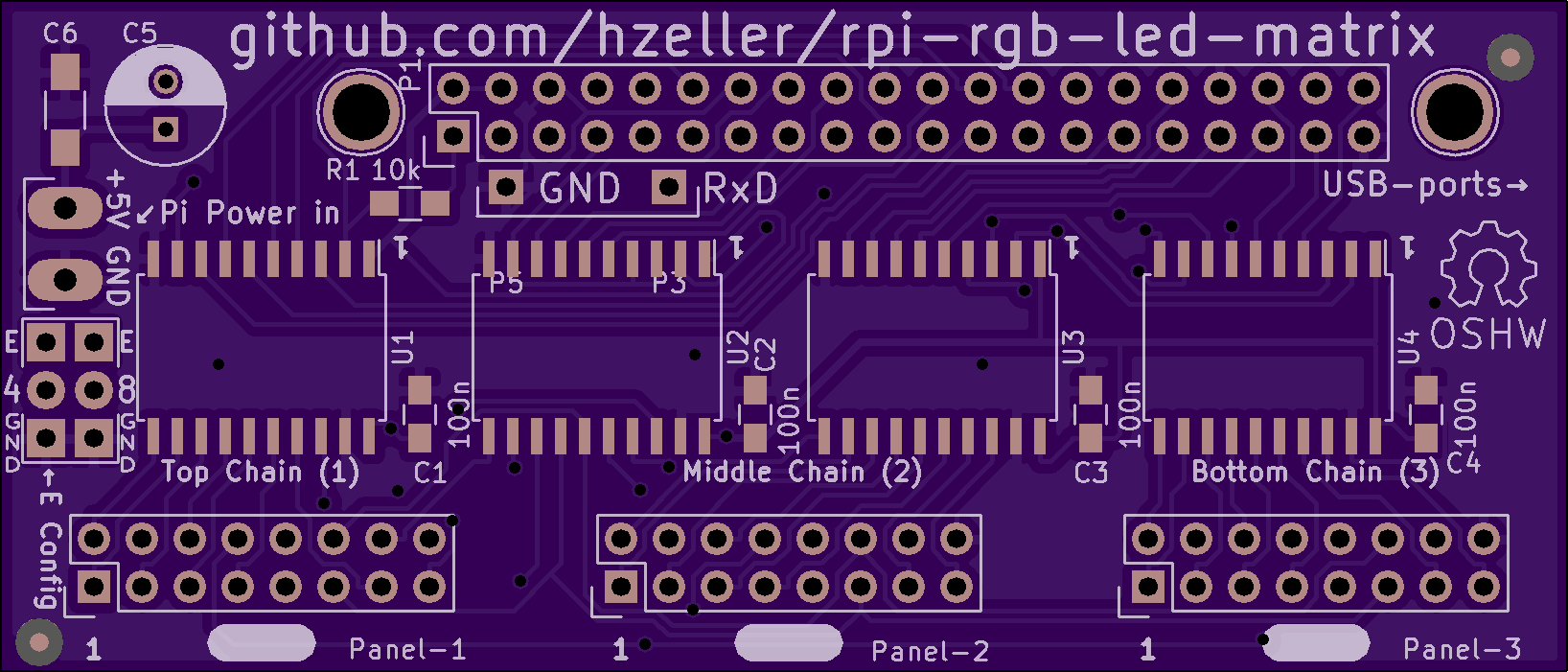

Active-RPi-3xHub75-Adapter E-Line
by
hzeller.
2
layer board of
3.27x1.40
inches
(83.11x35.61
mm).
Shared on
August 7th, 2016 04:36.
Raspberry Pi RGB Matrix Adapter for the Raspberry Pi RGB Matrix project on github

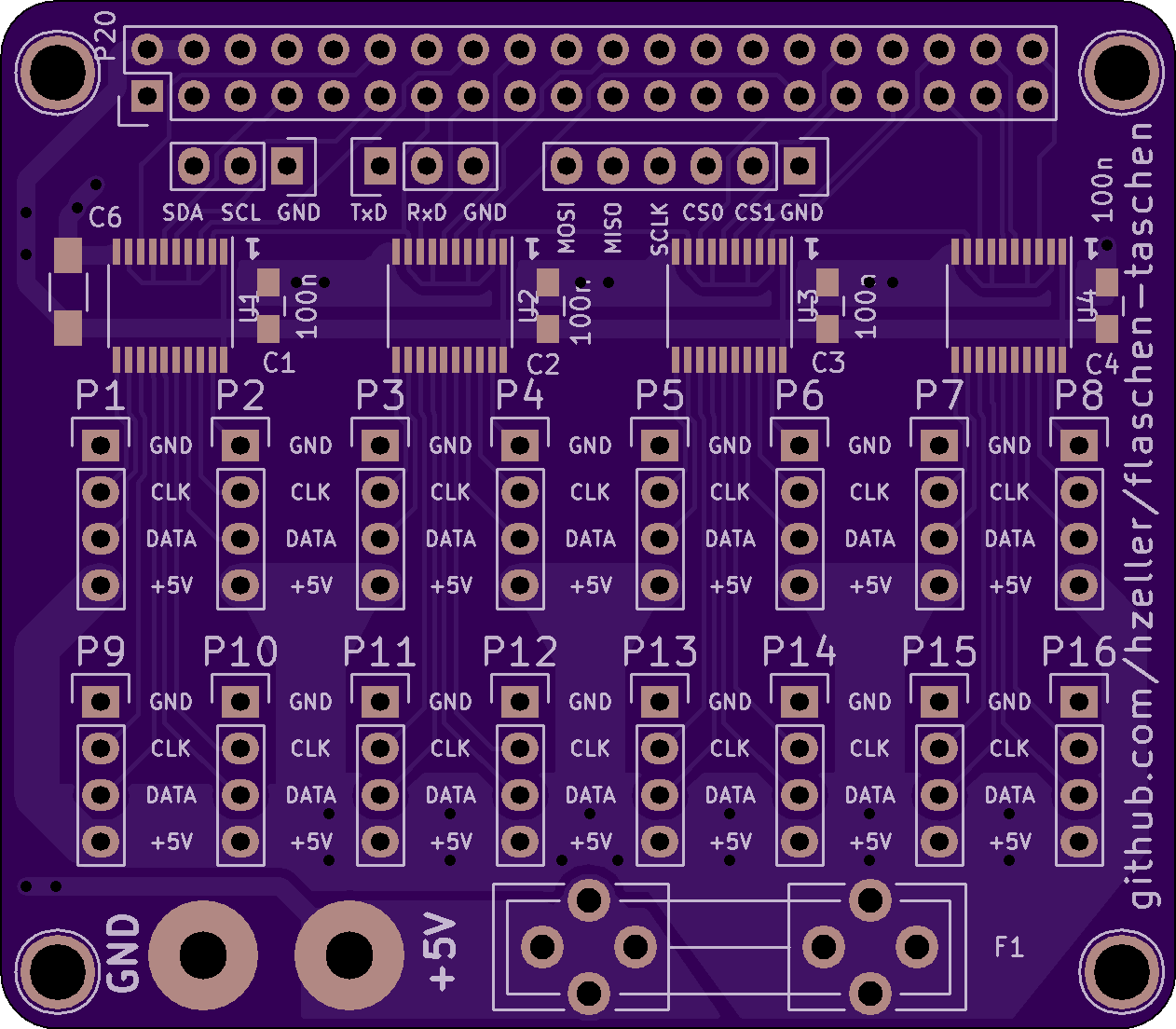

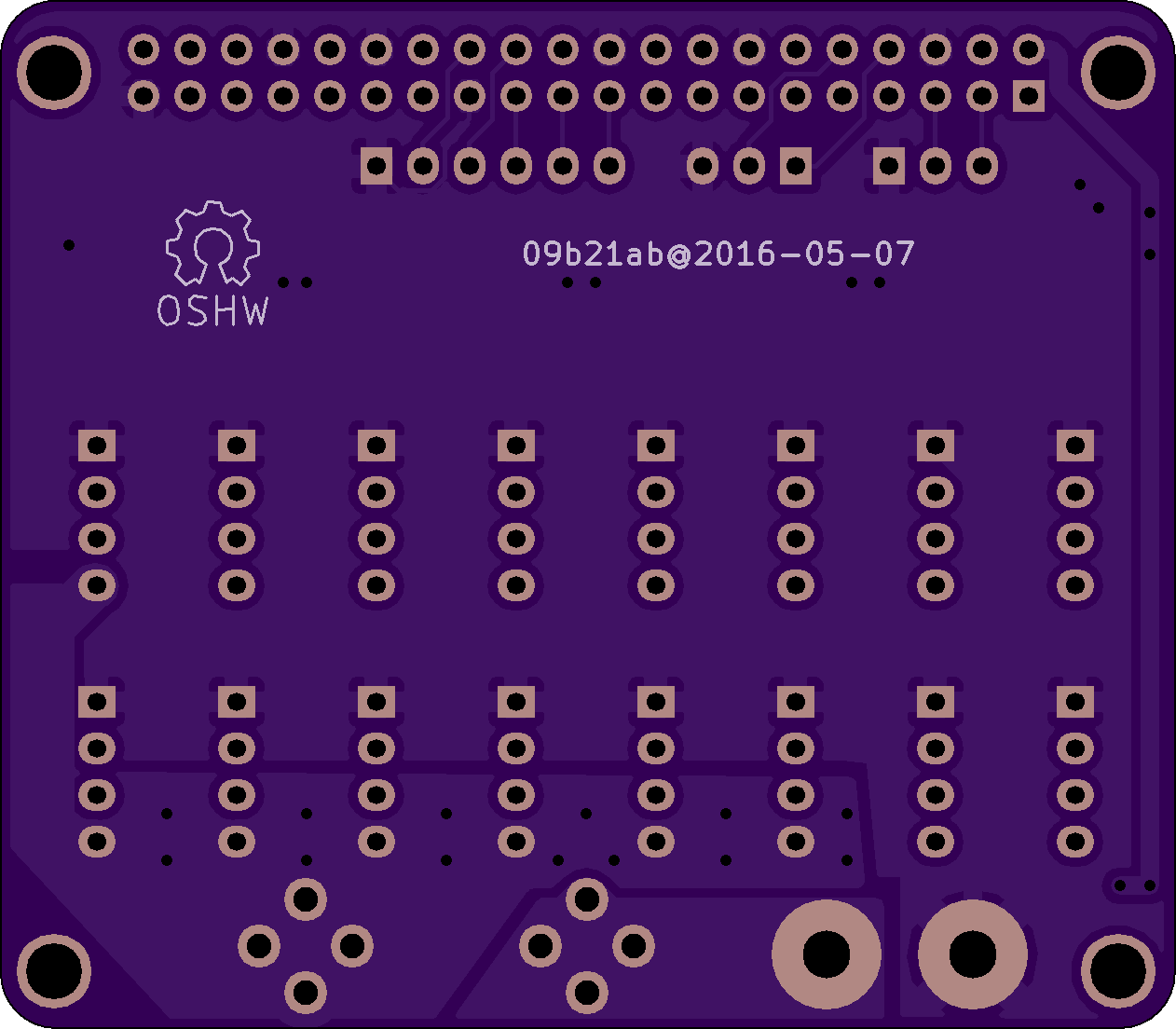

Spixels - 16 SPI LED Strip Raspberry Pi Adapter
by
hzeller.
2
layer board of
2.52x2.21
inches
(64.11x56.11
mm).
Shared on
May 30th, 2016 19:37.
Adapter to control up to 16 SPI LED strips with a Raspberry Pi provided in the Spixels project.
The Spixels library and PCB to control SPI-type LED strips was originally developed for the Noisebridge Flaschen-Taschen project, but broken out as separate project because it is independently useful for many other LED strip applications.
If you want to power your strips through the board, consider the 2oz copper option of OshPark.

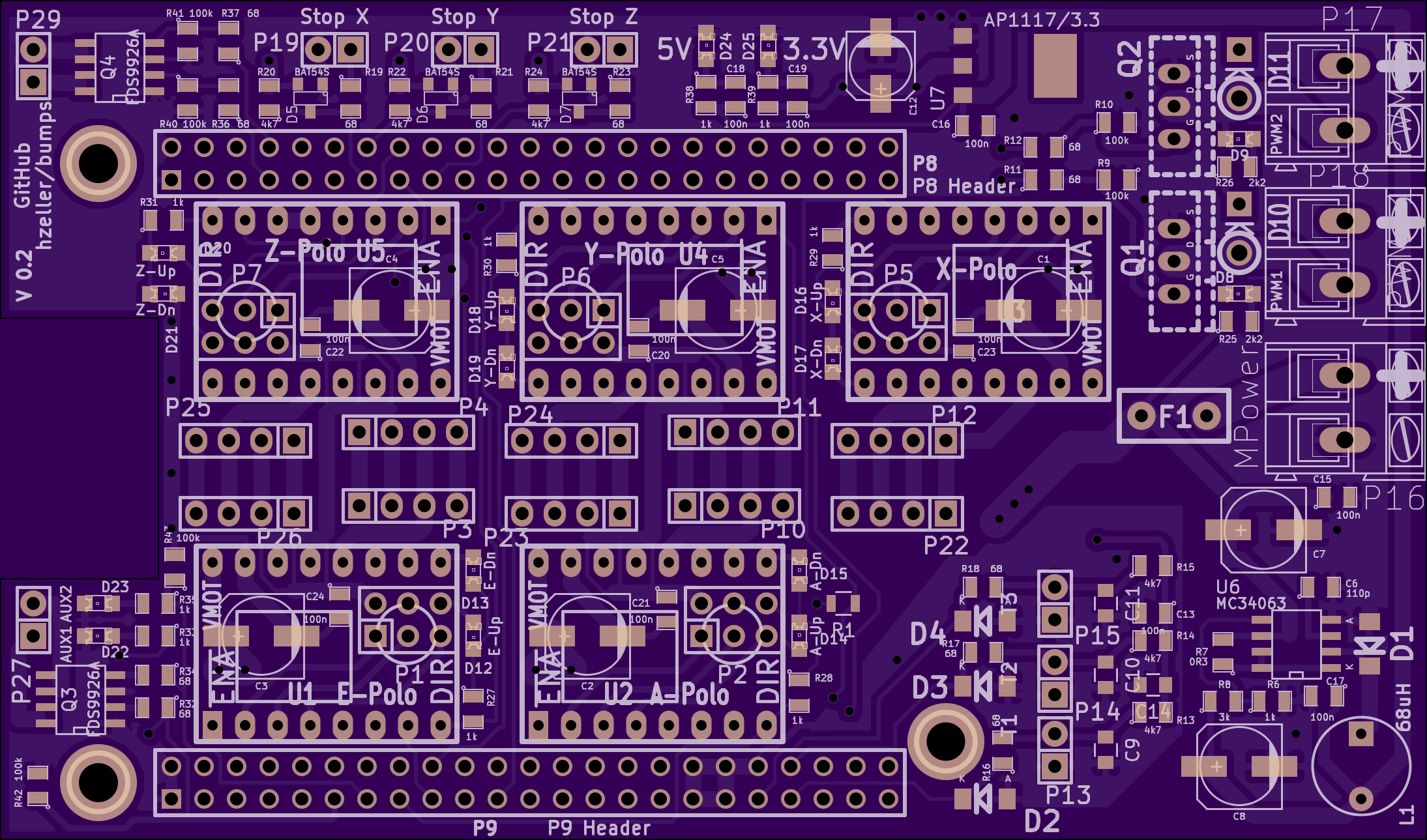

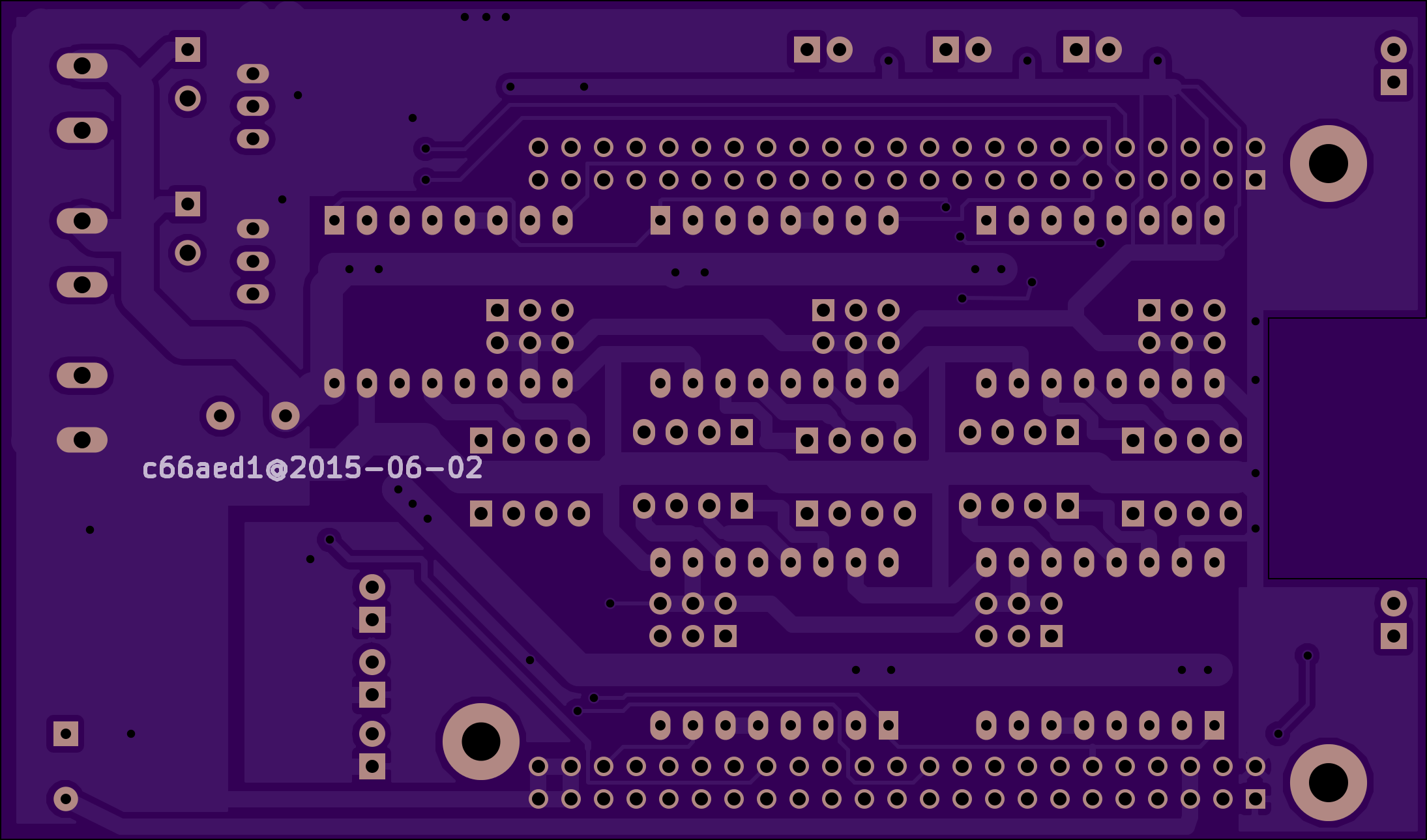

Bumps
by
hzeller.
2
layer board of
4.38x2.58
inches
(111.23x65.51
mm).
Shared on
December 14th, 2015 03:12.
3D printer/CNC Cape to work with BeagleG
