Shared projects

STM32F030-Ethernet

by isthatme.
Top
Bottom

2 layer board of 2.47x2.11 inches (62.66x53.67 mm).
Shared on March 24th, 2017 03:33.

A simple board using an STM32F030R8 with a WIZNet W5500 for ethernet. Has an SD card and several GPIO expanded. Takes 12V in.

All KiCAD source files located on github.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

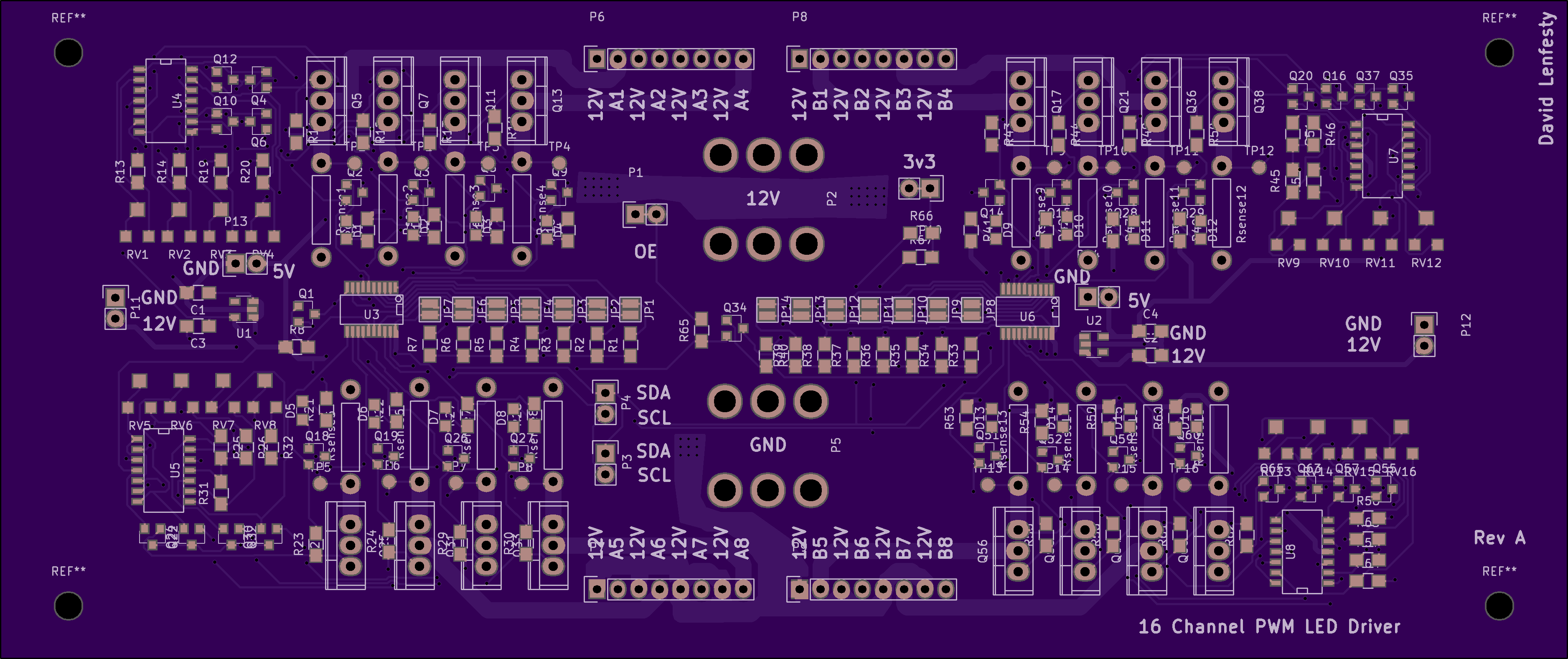

16 Channel PWM LED Driver

by isthatme.
Top
Bottom

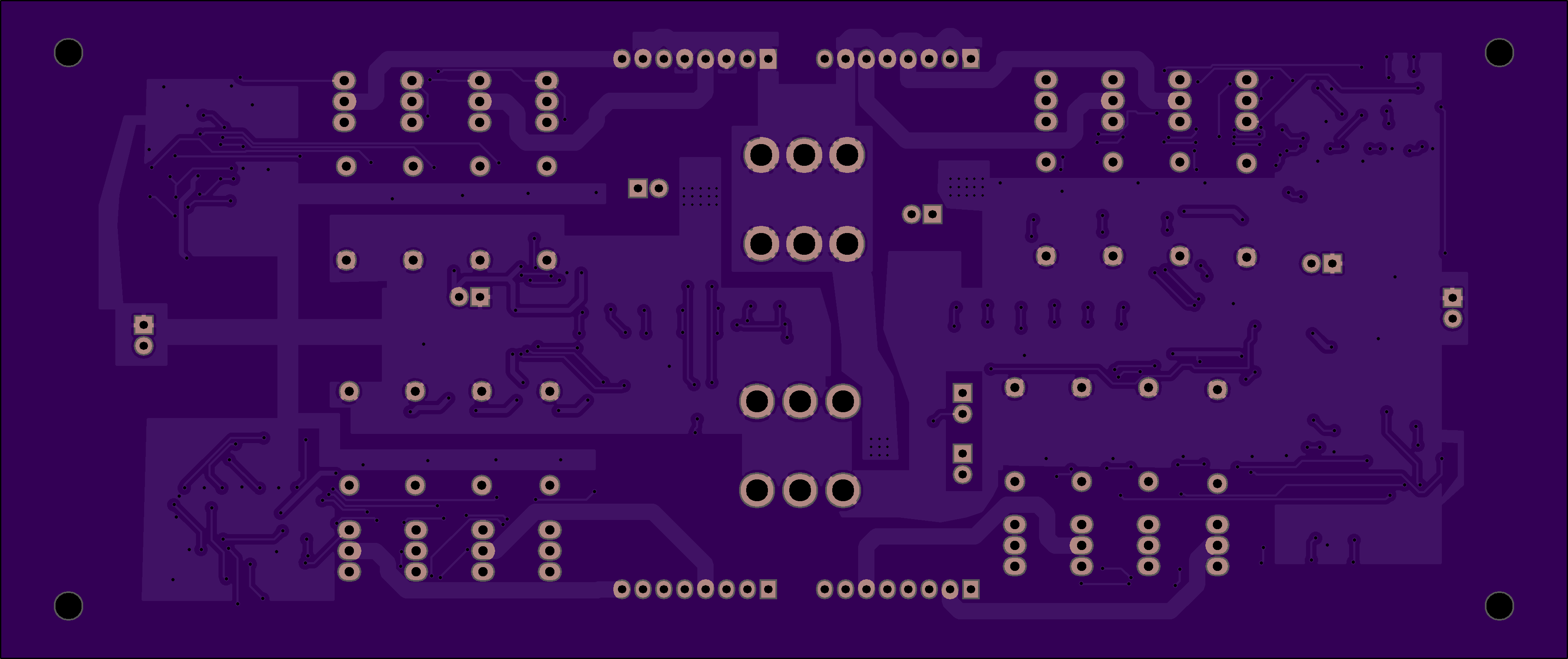

2 layer board of 7.51x3.16 inches (190.65x80.16 mm).
Shared on February 7th, 2017 03:18.

(Has not been tested yet, may not work) A 16 Channel LED Driver, meant to drive high power LEDs. Contains two PCA9634s. Controlled via I2C. Revision A

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

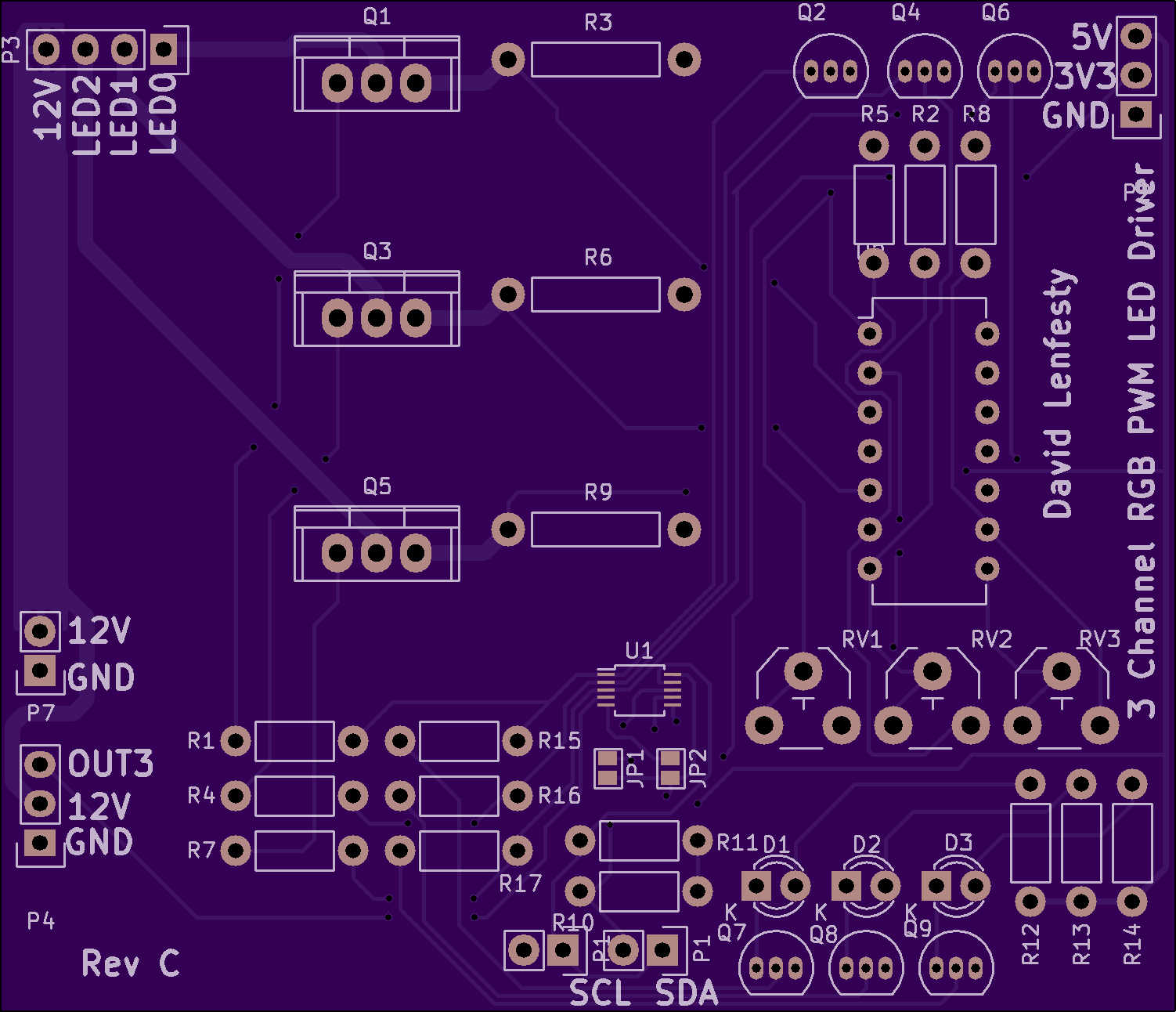

3 Channel LED PWM Driver - RevC

by isthatme.
Top
Bottom

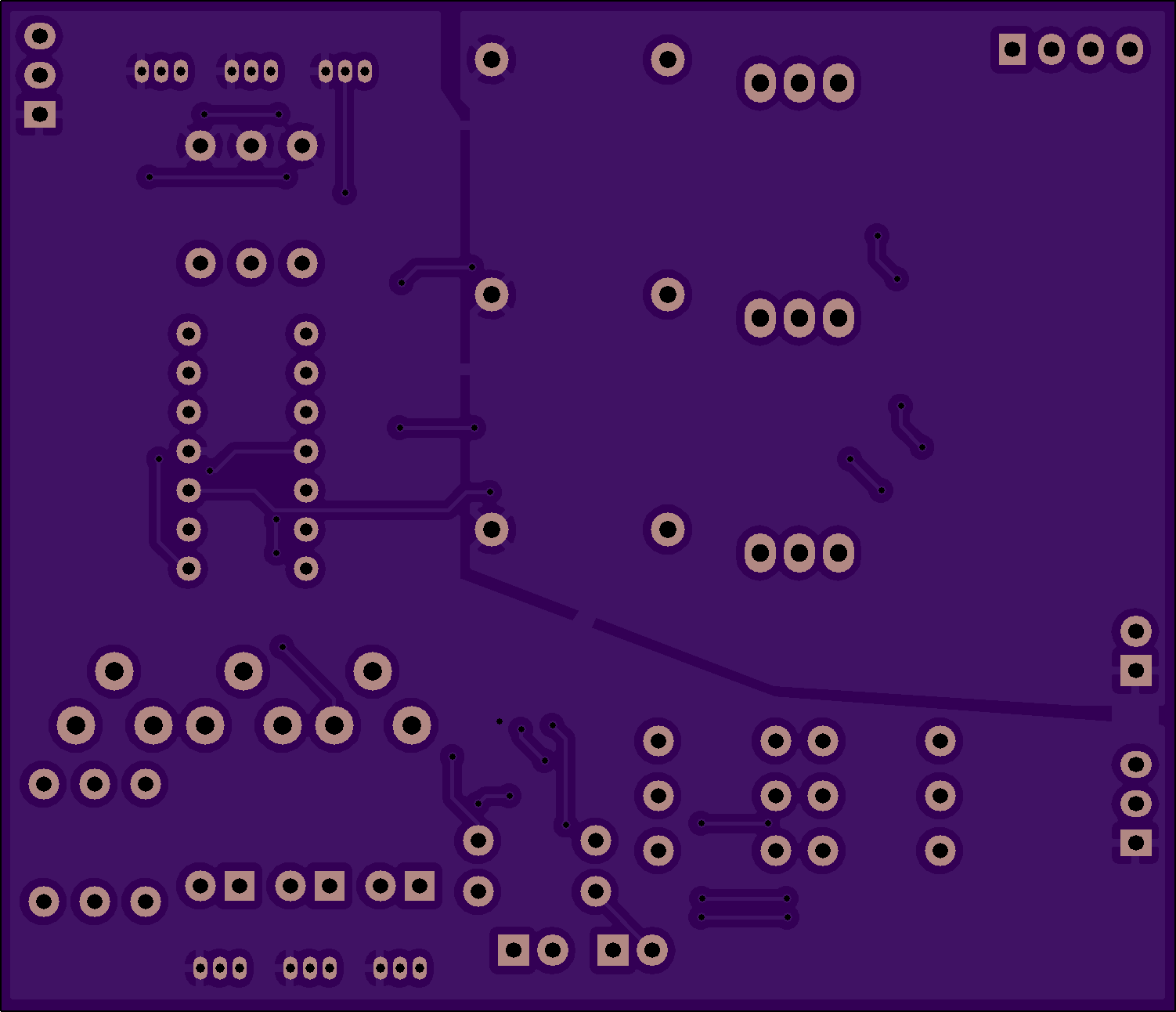

2 layer board of 3.00x2.58 inches (76.30x65.63 mm).
Shared on January 28th, 2017 01:45.

Small i2c 3 channel LED driver. Powered by a PCA9633. Third Revision.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
