Shared projects

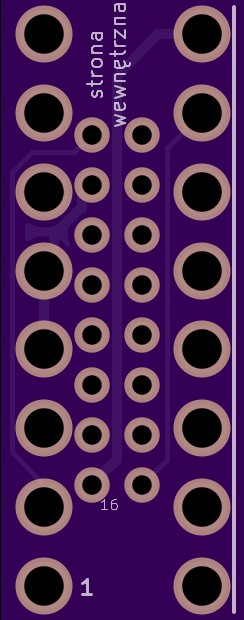

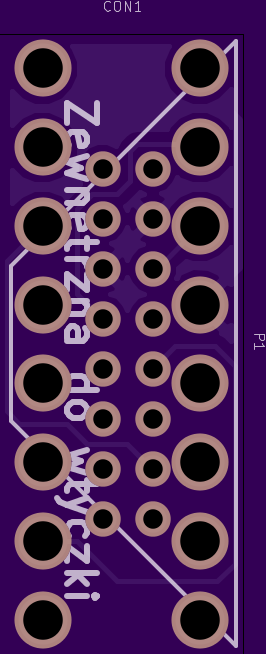

socket-board

by iwasz.
Top
Bottom

2 layer board of 0.49x1.24 inches (12.42x31.52 mm).
Shared on May 31st, 2016 21:20.

glue pcb between two sockets

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

connector.zip

by iwasz.
Top
Bottom

2 layer board of 0.88x0.71 inches (22.38x17.93 mm).
Shared on May 31st, 2016 21:20.

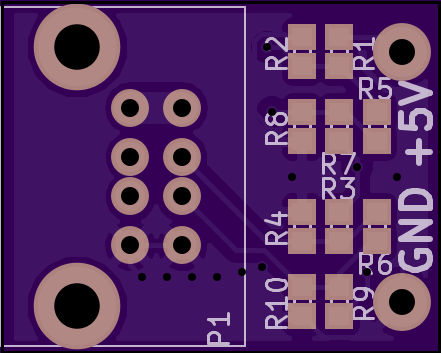

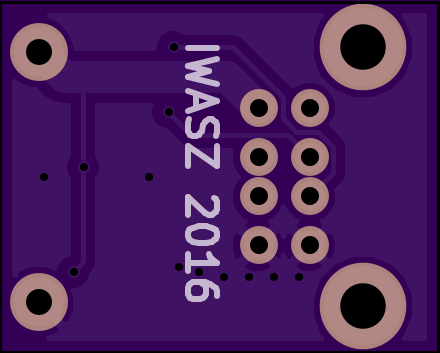

moto-dc-dc-connect

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

moto-dcdc.zip

by iwasz.
Top
Bottom

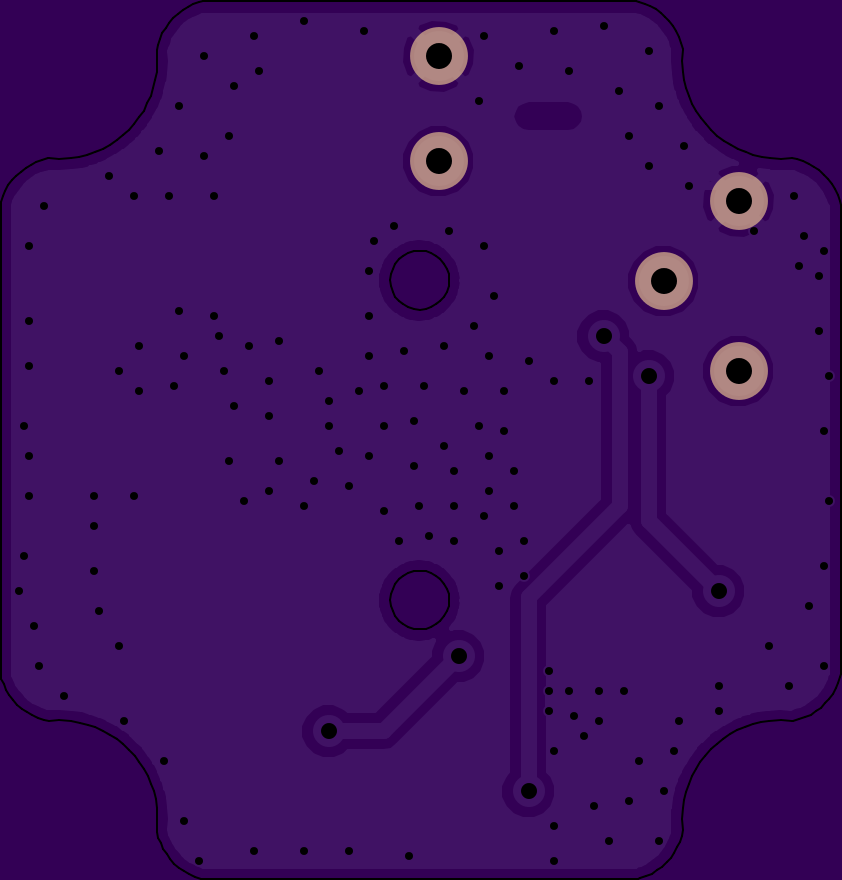

2 layer board of 1.69x1.76 inches (42.80x44.70 mm).
Shared on May 31st, 2016 21:20.

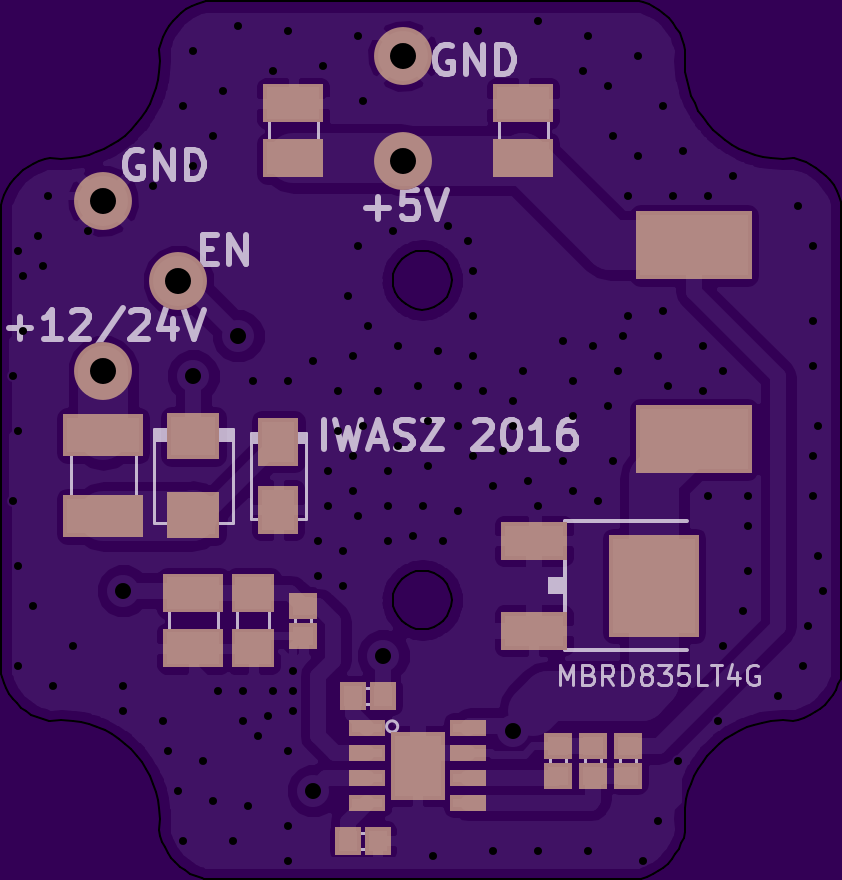

5A 5V motorcycle charger

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

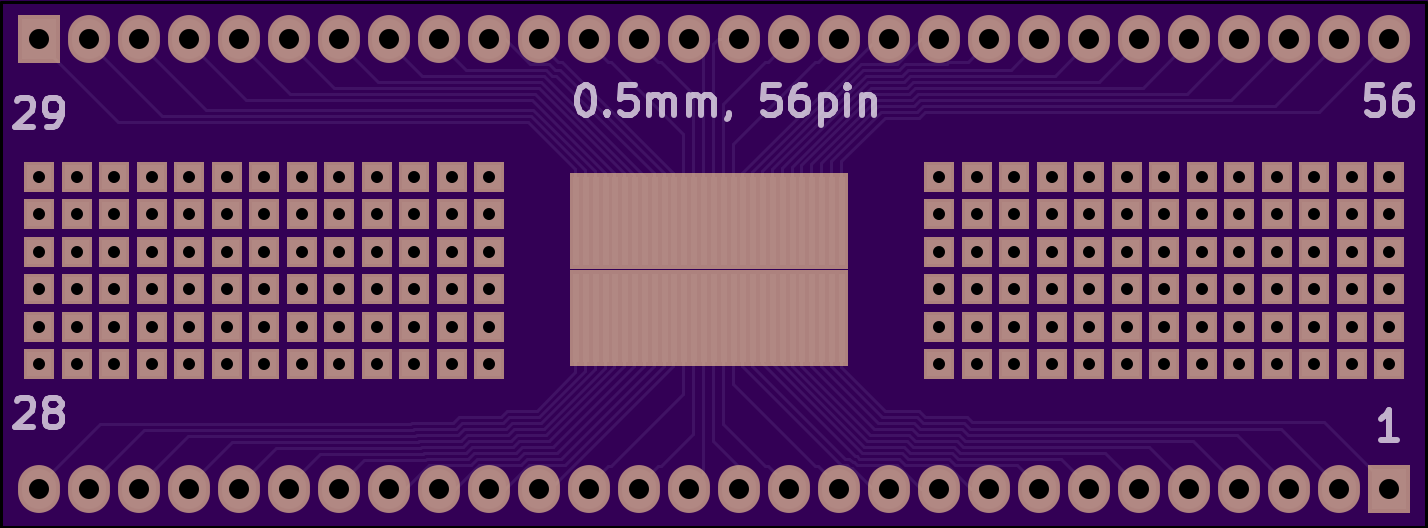

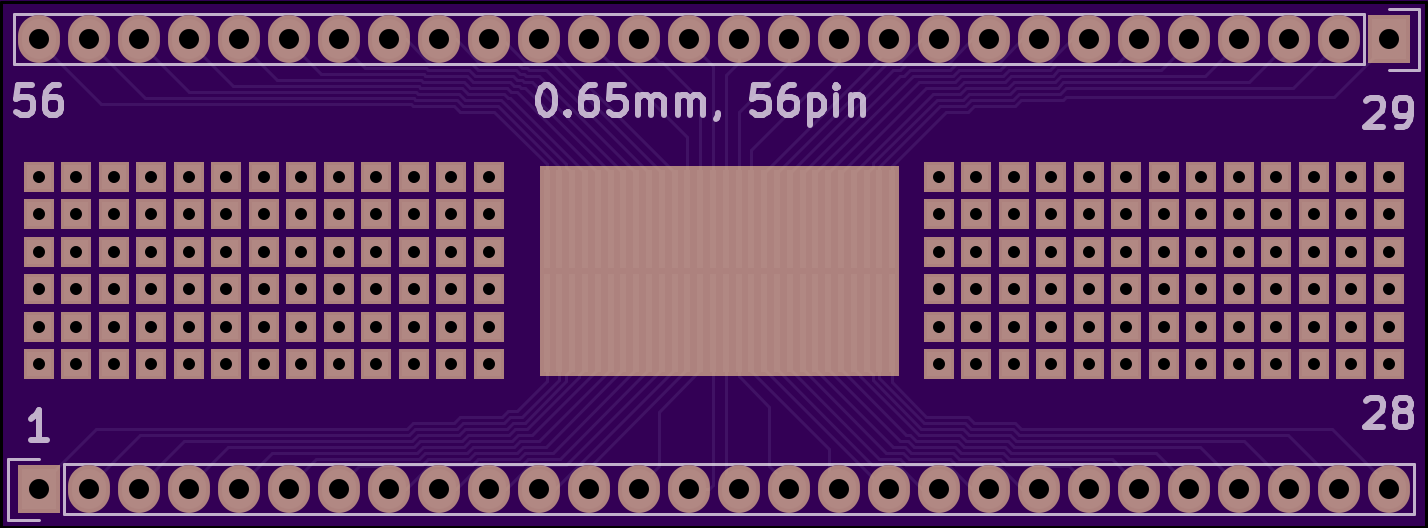

proto-board 0,5-0,65mm

by iwasz.
Top
Bottom

2 layer board of 2.86x1.06 inches (72.54x26.82 mm).
Shared on March 9th, 2016 08:16.

Suitable for breadboards.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

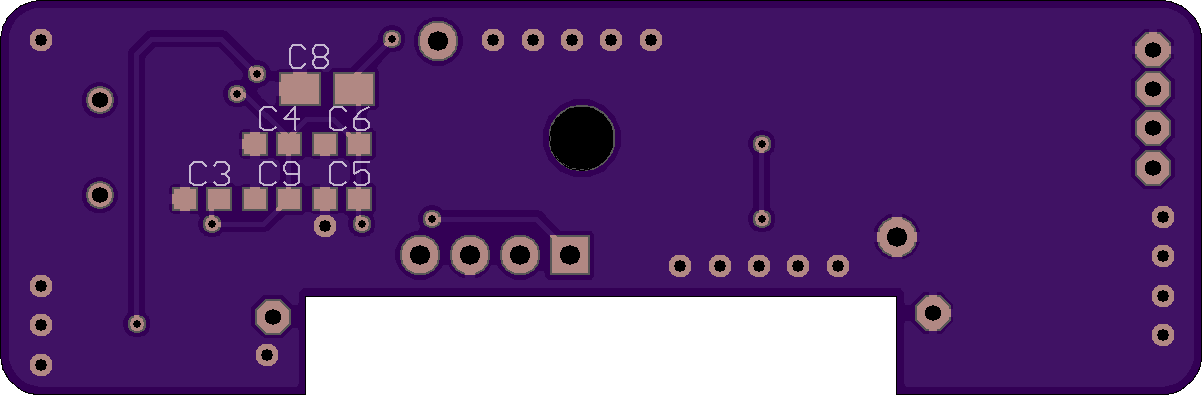

drama button2

by iwasz.
Top
Bottom

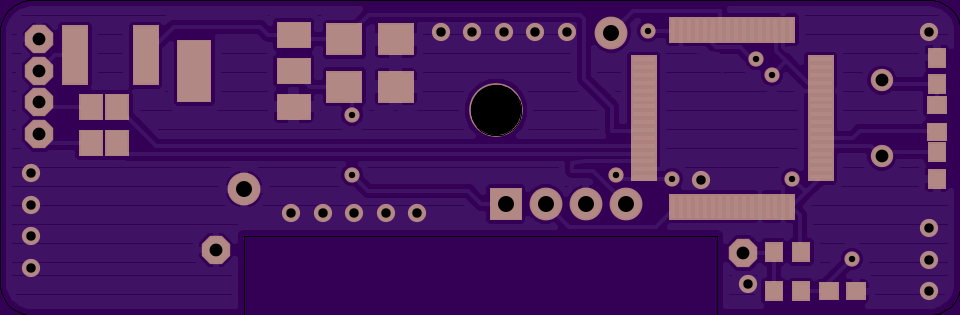

2 layer board of 2.40x0.79 inches (61.01x20.02 mm).
Shared on December 1st, 2013 23:53.

Simple USB keyboard with only one button. Suitable for XB2-j174 case

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
