Shared projects

ATTiny24 -> TinyAVR

by jbaboval.
Top
Bottom

2 layer board of 0.40x0.80 inches (10.16x20.32 mm).
Shared on April 7th, 2017 19:30.

Connect an SOIC14 ATTiny 24/44/84 to the SparkFun TinyAVR programmer via a circuit clip

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Rotary Encoder + AVR

by jbaboval.
Top
Bottom

2 layer board of 0.74x1.53 inches (18.72x38.74 mm).
Shared on March 29th, 2017 01:21.

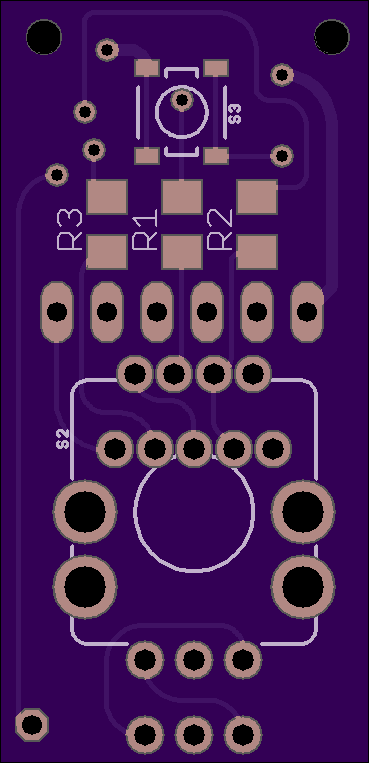

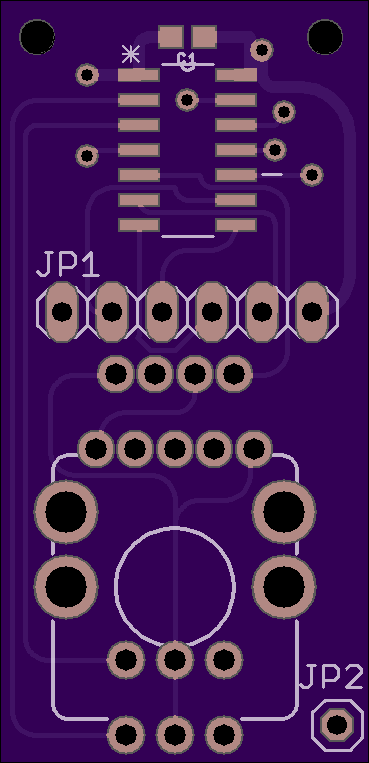

Multi-purpose RG/RGB + SW Rotary encoder connected to an Attiny24

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Slide Switches

by jbaboval.
Top
Bottom

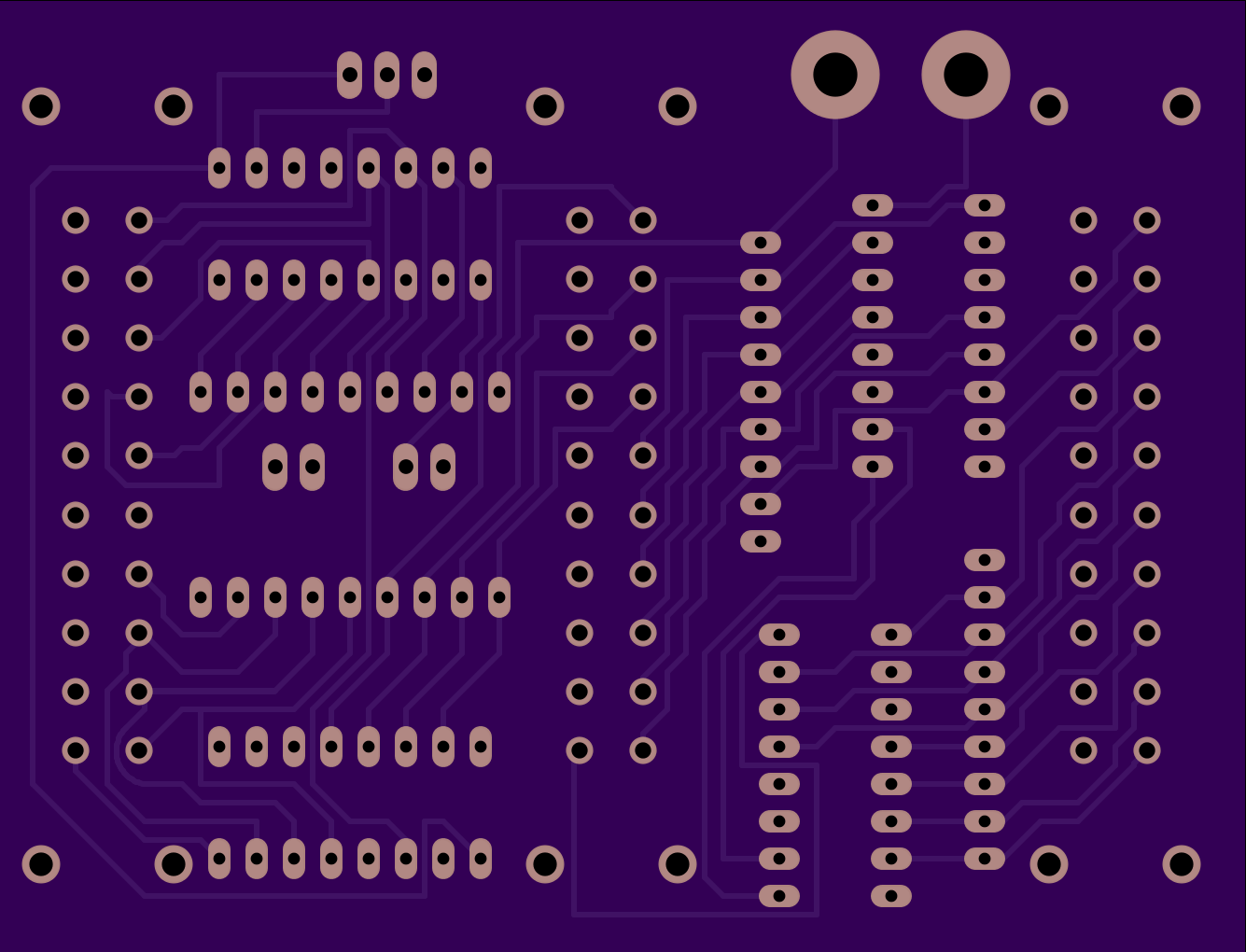

2 layer board of 3.34x2.55 inches (84.79x64.77 mm).
Shared on March 29th, 2017 01:21.

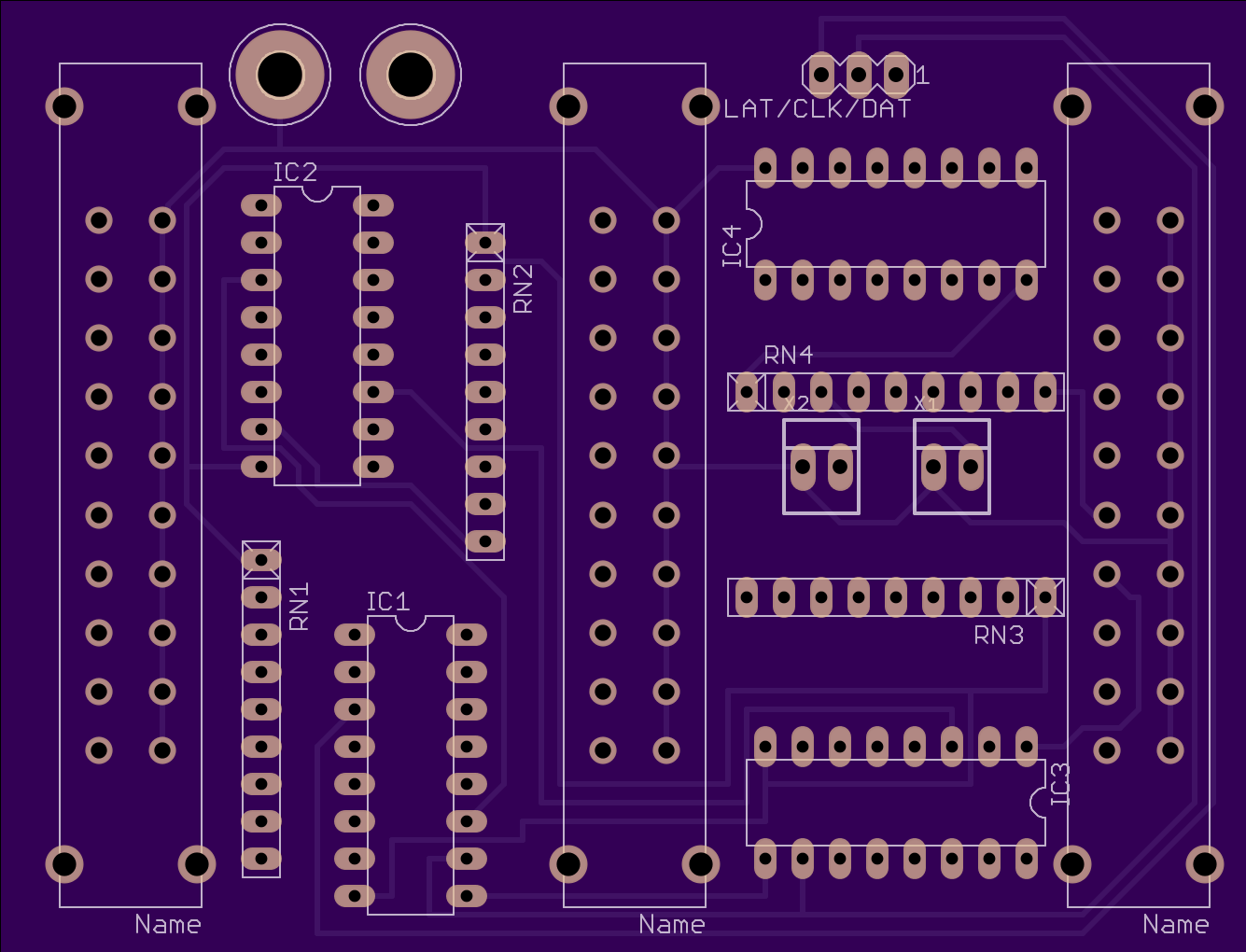

Three slide switches connected to shift registers

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
