Shared projects

OLED RV 2

by jedhodson.
Top
Bottom

2 layer board of 2.34x2.15 inches (59.39x54.61 mm).
Shared on October 16th, 2013 07:00.

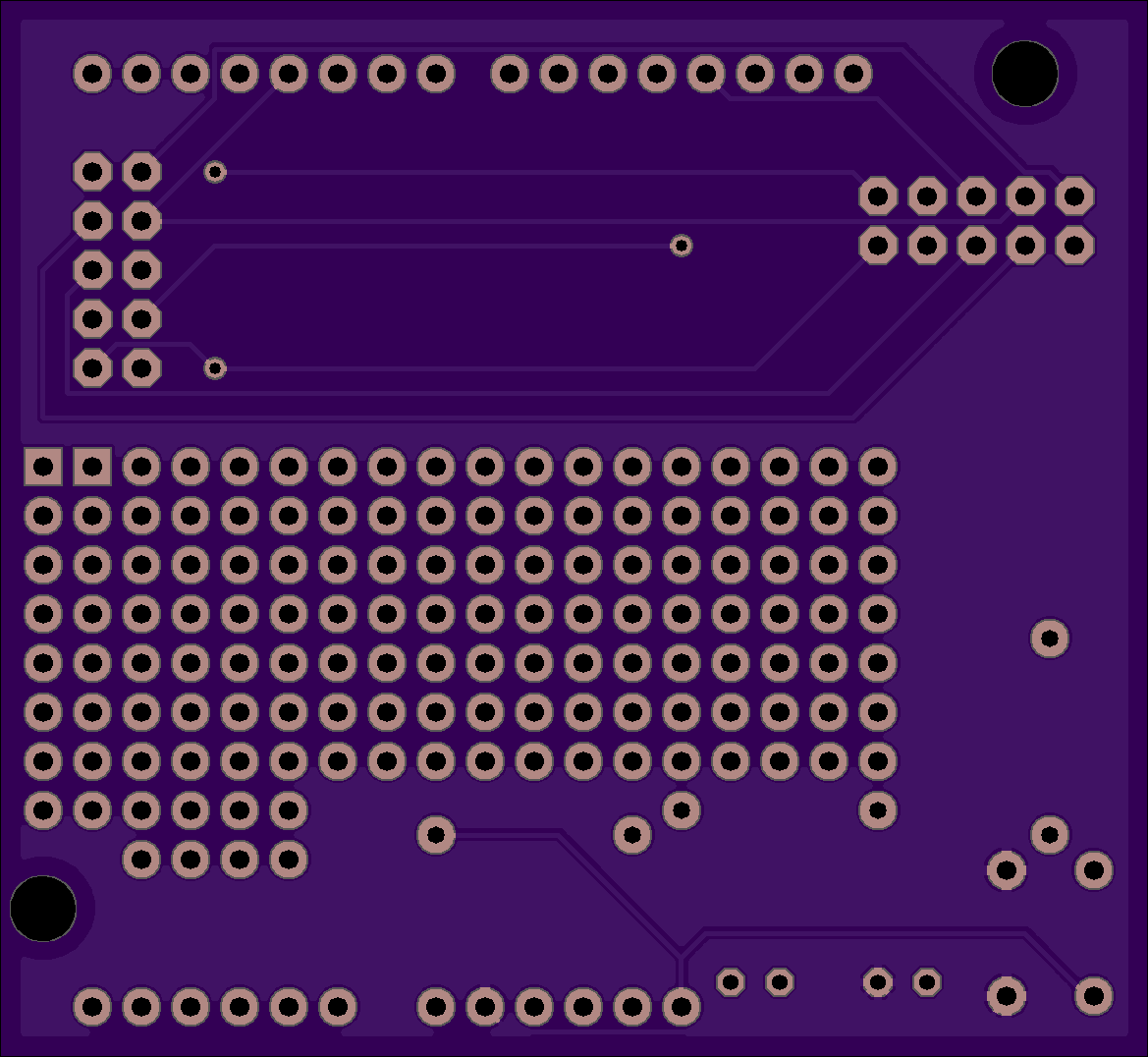

RV2 of OLED Shield

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

OLED Shield

by jedhodson.
Top
Bottom

2 layer board of 2.34x2.15 inches (59.39x54.61 mm).
Shared on September 25th, 2013 06:07.

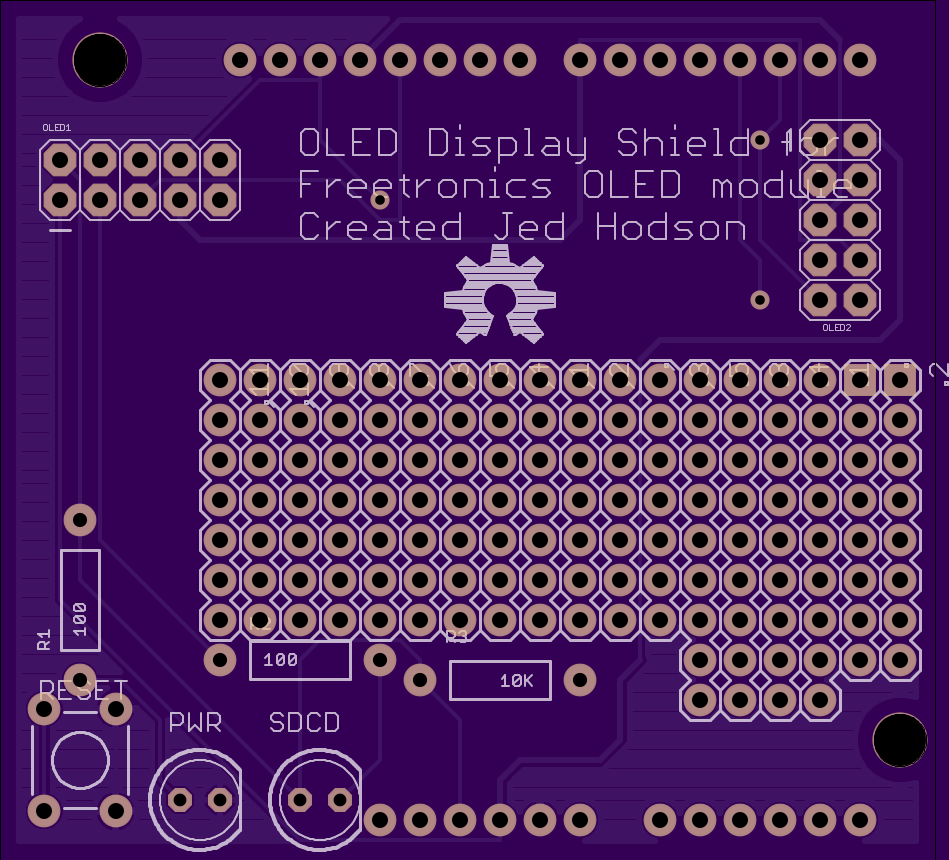

An Arduino shield for freetronics OLED Display. Contains Proto area and two connecters for OLED – 1.Direct Connection and 2.Cable Connection.Created 25/09/13 ©Jed Hodson 2013

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

OLED_BOX

by jedhodson.
Top
Bottom

2 layer board of 1.54x2.05 inches (39.04x52.07 mm).
Shared on September 21st, 2013 06:58.

A “Box Controller” board for Freetronics OLED Display and ATmega 328P ©Jed Hodson 2013

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
