OSH Park
Profile for joebar
Shared projects
Mav2GoPro
by
joebar.
2
layer board of
1.01x0.94
inches
(25.76x23.98
mm).
Shared on
August 18th, 2015 04:30.

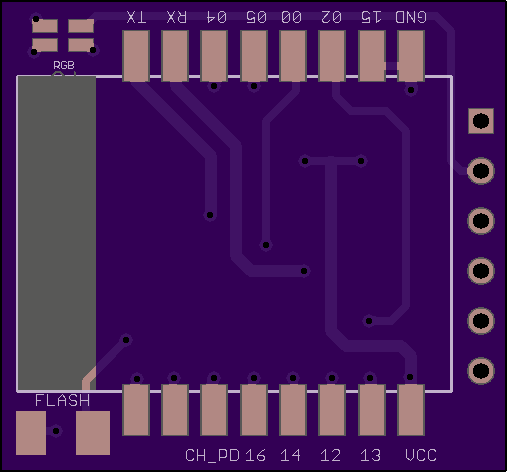

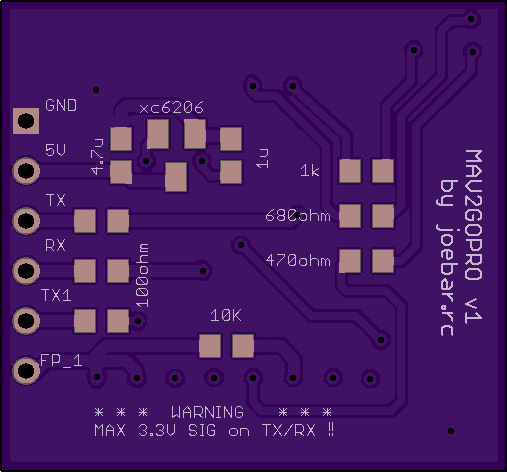

Mavlink controlled GoPro using ESP8266 https://www.github.com/joebarteam/mav2gopro
AutoQuad misc
by
joebar.
2
layer board of
2.29x2.29
inches
(58.17x58.17
mm).
Shared on
March 6th, 2014 15:05.

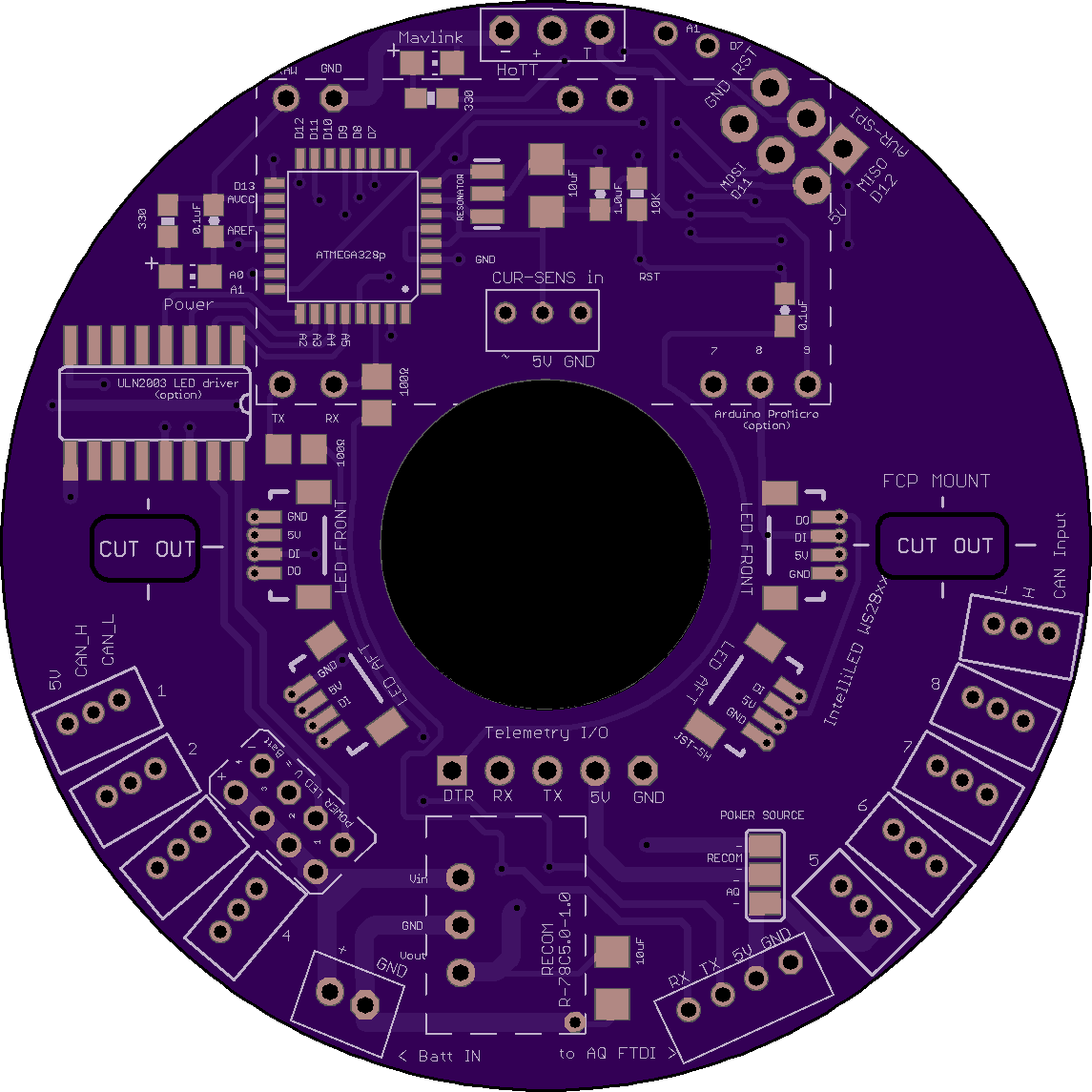

Mav2HoTT / LED / CAN board
Usage:
8 port powered CAN distribution
4 port IntelliLED WS2812B
4 port High Power LED(strip)
Arduino onboard for Mav2HoTT or Mav2FrSky / Mav2LED
Powered by AutoQuad and/or Recom DC/DC converter up to 36V input
CurrentSensor input (see other projects)
Arduino AVR SPI programming interface
Fits the FlyDuino FCP
CAN bus connectors:
FCP CAN/LED/Mav2HoTT bob:
CAN: JST-ZH 1.5mm (Spektrum) 3 pins
External Batt connector: JST-PH 2.0mm or any other 2.0 mm connector 2 pins
To AQ FTDI: JST-PH 2.0mm or any other 2.0 mm connector 4 pins
Current sens in connector: JST-PH 2.0mm or any other 2.0 mm connector 3 pins
LED connectors: For IntelliLED strips - JST-SH 1.0mm connector 4 pins (I2C connector)
For the HighPower led strips 2x4 2.0mm pin header (So called Xbee header). or any other 2.0mm connector
To external Telemetry: Standard 2.54mm pin header or connector 4-5 pins (5th pin for Arduino DTR)
AVR/ISP (Arduino program connector): 2x3 standard 2.54mm pin header
HoTT telemetry out: 1x3 standard 2.54mm pin header
Components:
ATMEGA328P
SMD resonator 16Mhz Murata CSTCE16M0V53-R0
3 x 0.1uF 0603 size (16v or higher)
1 x 1.0uF 0603 size
2 x 10uF 25V using 4S or 1 x 10uF 25V and 1 x 22uF 50V using 6S as main batt input
10k resistor 0603
2x 330ohm resistor 0603
4 x 100ohm resistor 0805 for protecting the RX and TX lines
2 x led (red/green or blue/green), 1 for power and 1 for led D13 0805 size
Recom 78C5.0-1.0 (the C version is 1A and a lot smaller than the 78B version. Also up to 6S)
AutoQuad misc
by
joebar.
2
layer board of
1.11x1.19
inches
(28.30x30.12
mm).
Shared on
January 23rd, 2014 16:04.

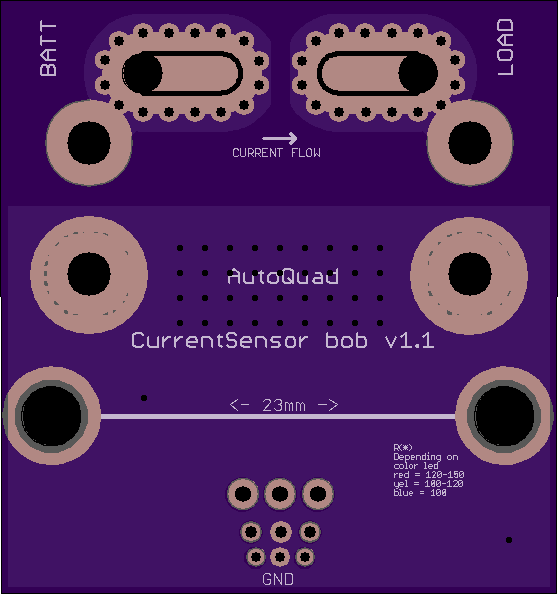

Currentsensor breakoutboard for ACS75x
( * not tested yet, design rules checked - Update: increased drill size for awg14 wire and thermal via’s*)
Example usage: Connect to the mav2hott arduino to send the current usage and capacity to the HoTT transmitter.
AutoQuad CAN v1.11
by
joebar.
2
layer board of
1.70x0.63
inches
(43.28x16.00
mm).
Shared on
January 22nd, 2014 16:59.

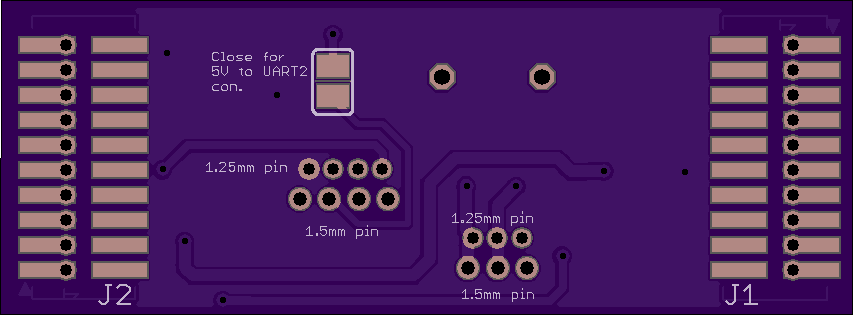

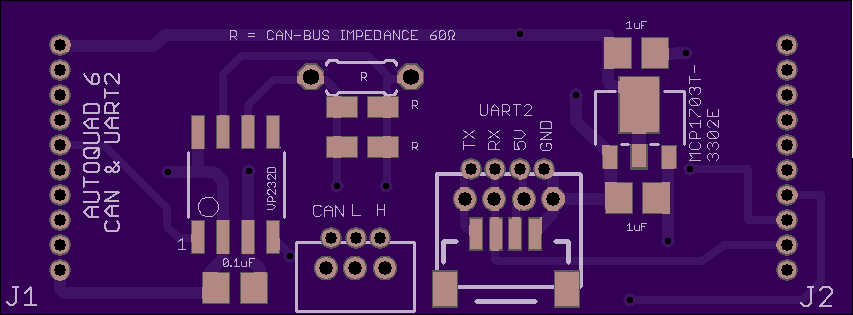

AutoQuad CAN & UART2 breakoutboard
( * Functional * ) * Corrected GPIO pin5/6 to RX & TX *
This shield is host to the CAN transceiver and provide access to the free UART2 port on the AutoQuad 6 FC.
Multiple connector options: JST-ZH, JST-SH, Molex 1.5
Dual 10 pin 1.27mm pin headers smt (angled) or single passthrough 10 pin 1.27mm pin header.
Rest of info on autoquad.org
AutoQuad misc
by
joebar.
2
layer board of
2.57x0.32
inches
(65.23x8.13
mm).
Shared on
January 22nd, 2014 05:51.

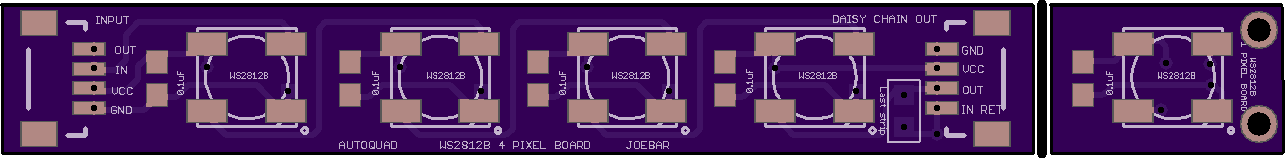

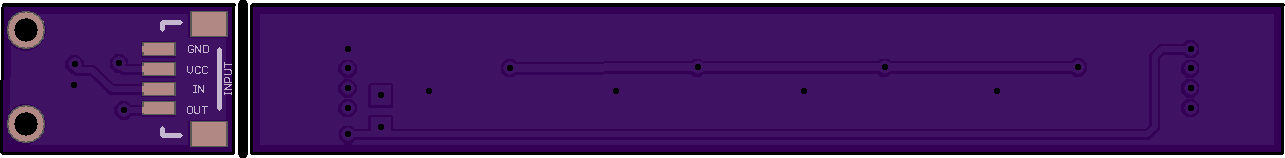

WS2812B 4 and 1 pixel board for Mav2HoTT
( * Functional * )
Intended purpose is to place the 4 pixelboard on a multirotor boom and (optional) the 1 pixel board (can be cut from the pcb) on the front.
Boards can be daisy chained up to 50 leds on the Mav2HoTT.
BOM:
Connectors: jst-sh 1.0mm (I2C cables)
Leds: WS2812B (B = 4 pins!)
Caps: 0.1uF 0605 size
Data retour line (DO) is also available on the input connector for easy daisy chaining to next board
