Midelic Flysky RX ATTINY85/45

by joefarmer.
Top
Bottom

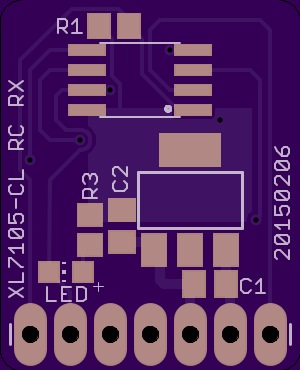

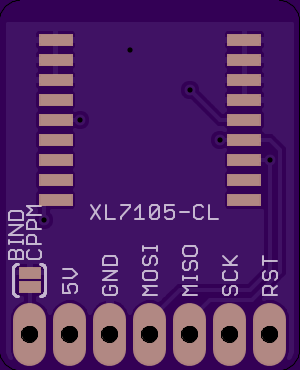

2 layer board of 0.75x0.93 inches (19.05x23.49 mm).
Shared on February 22nd, 2015 06:34.

Schematic and code from http://www.rcgroups.com/forums/showthread.php?t=2325483

  • C1 100nf 0805
  • C2 10uf 0805
  • IC3 LD117AS33TR SOT223
  • LED blue 3.3v 0805
  • R1 10k 0805
  • R3 1k 0805
  • U$1 ATTINY85
  • U$2 XL7105CL
