Profile for jtklein
Shared projects
E Field probe
by
jtklein.
4
layer board of
2.68x0.32
inches
(68.17x8.15
mm).
Shared on
September 25th, 2016 19:23.

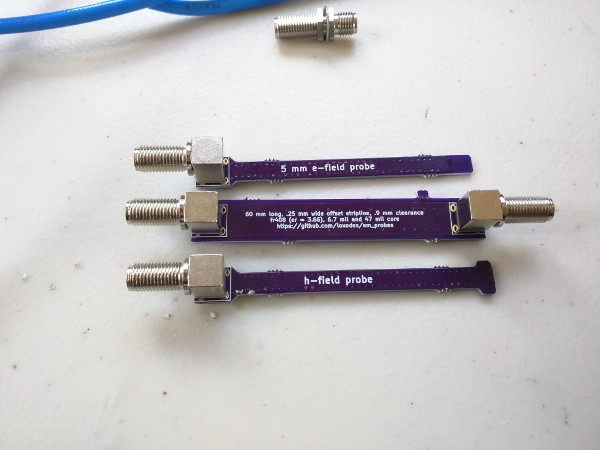

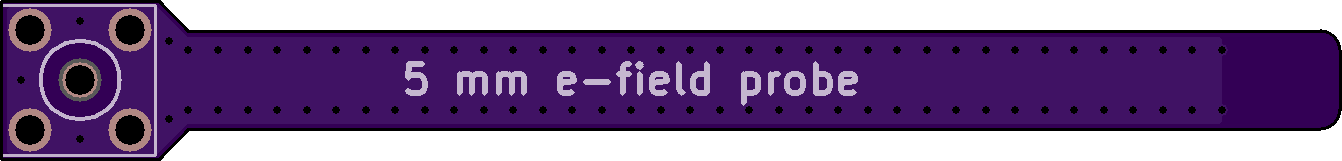

E field probe, usable to about 6 GHz

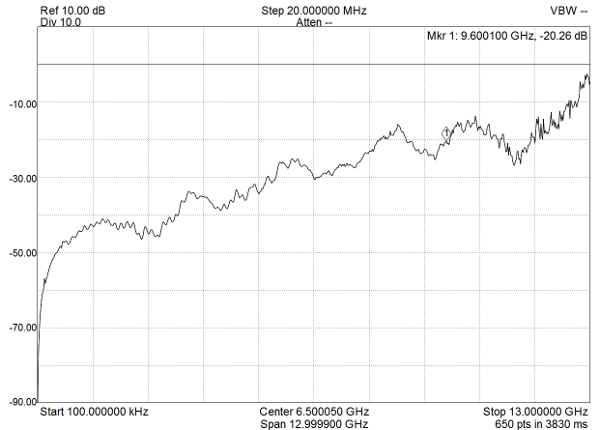

Coupling to probe, 1 mm above microstrip:
H Field probe
by
jtklein.
4
layer board of
2.66x0.32
inches
(67.67x8.15
mm).
Shared on
September 25th, 2016 19:23.

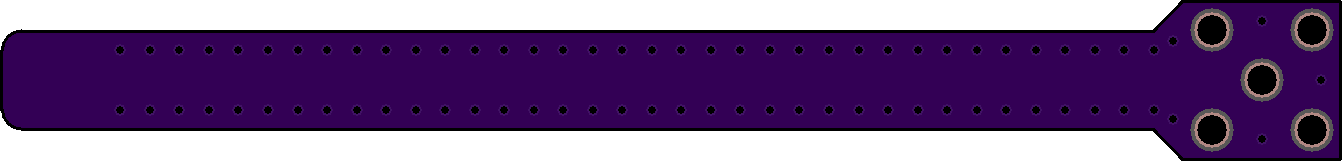

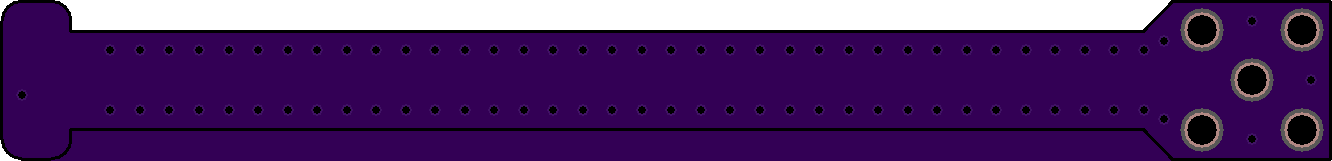

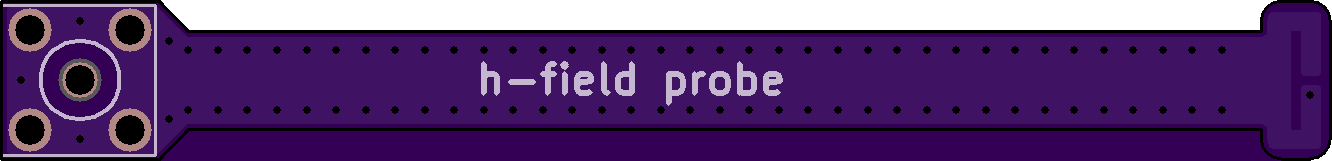

h field probe, usable to about 6 GHz

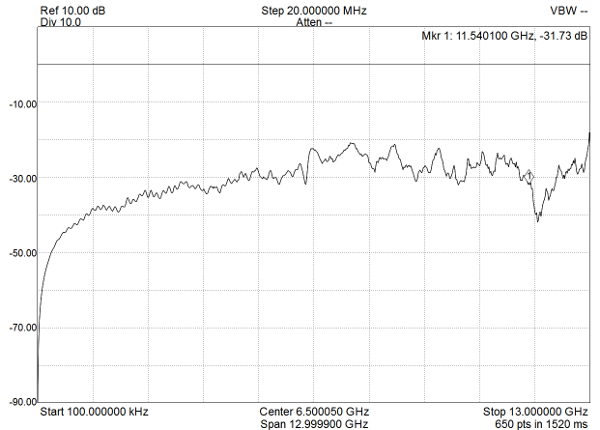

Coupling to probe, 1 mm above and parallel to microstrip:
mr_radar r0
by
jtklein.
4
layer board of
2.76x1.70
inches
(70.08x43.15
mm).
Shared on
June 13th, 2014 05:07.

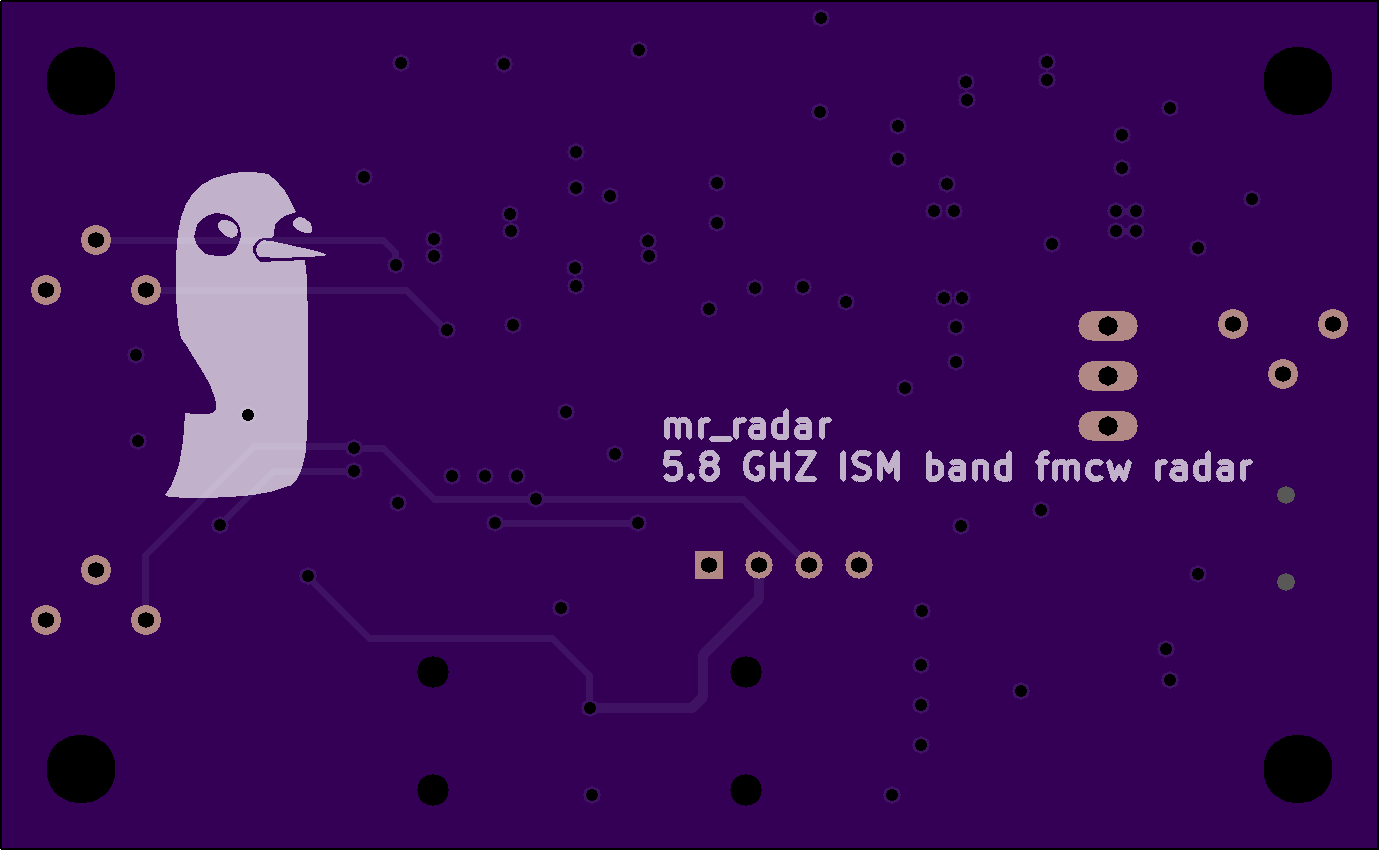

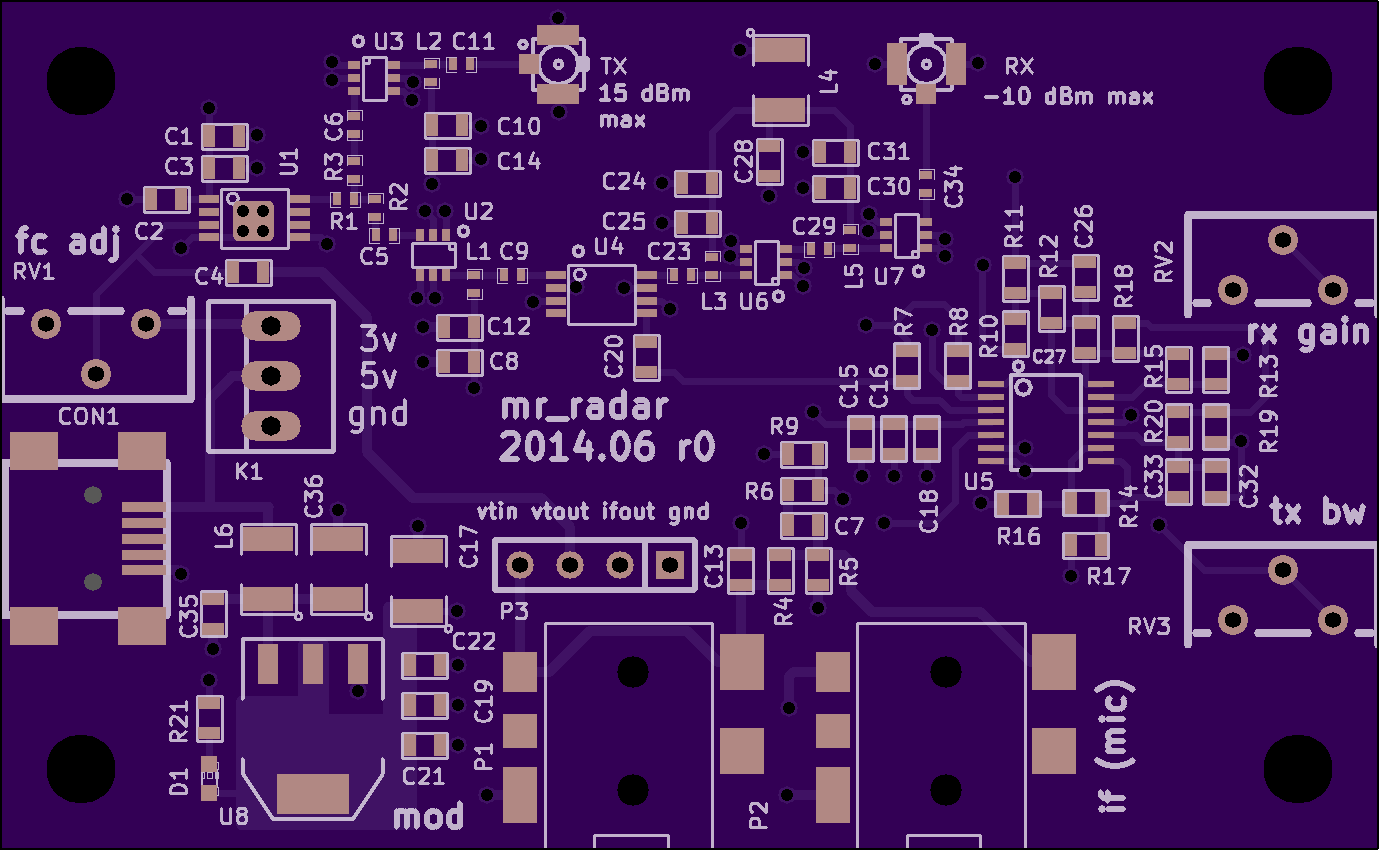

5.8 GHz fmcw radar (currently untested)
hardware files and documentation at: https://github.com/loxodes/mr_radar
rtlsdr-lna
by
jtklein.
2
layer board of
1.36x0.46
inches
(34.62x11.76
mm).
Shared on
September 12th, 2013 17:50.
wideband LNA for the rtl-sdr
