CAN-breakout-v2.brd

by jvanier.
Top
Bottom

2 layer board of 1.10x0.60 inches (27.94x15.27 mm).
Shared on March 17th, 2017 14:34.

Connect microcontrollers together with CAN bus.

Schematics and BOM available on the GitHub repository

Copyright 2017 Julien Vanier. Released under the MIT license

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

CAN-Simulator v1

by jvanier.
Top
Bottom

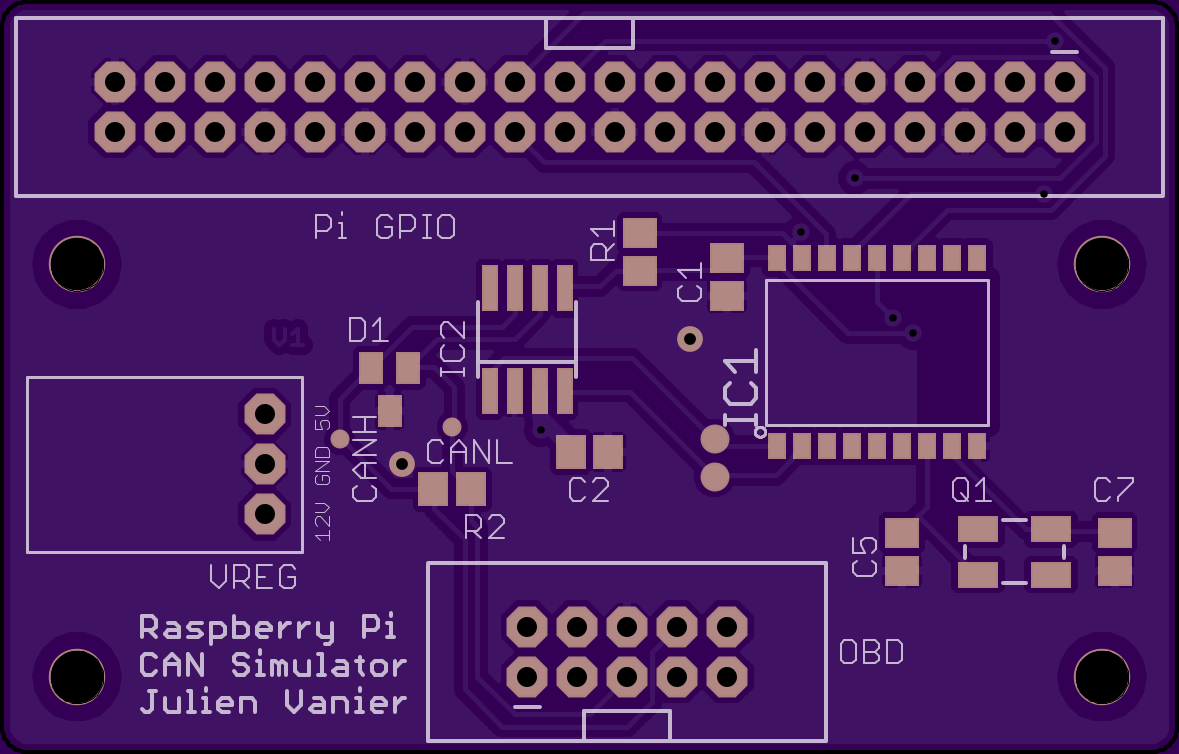

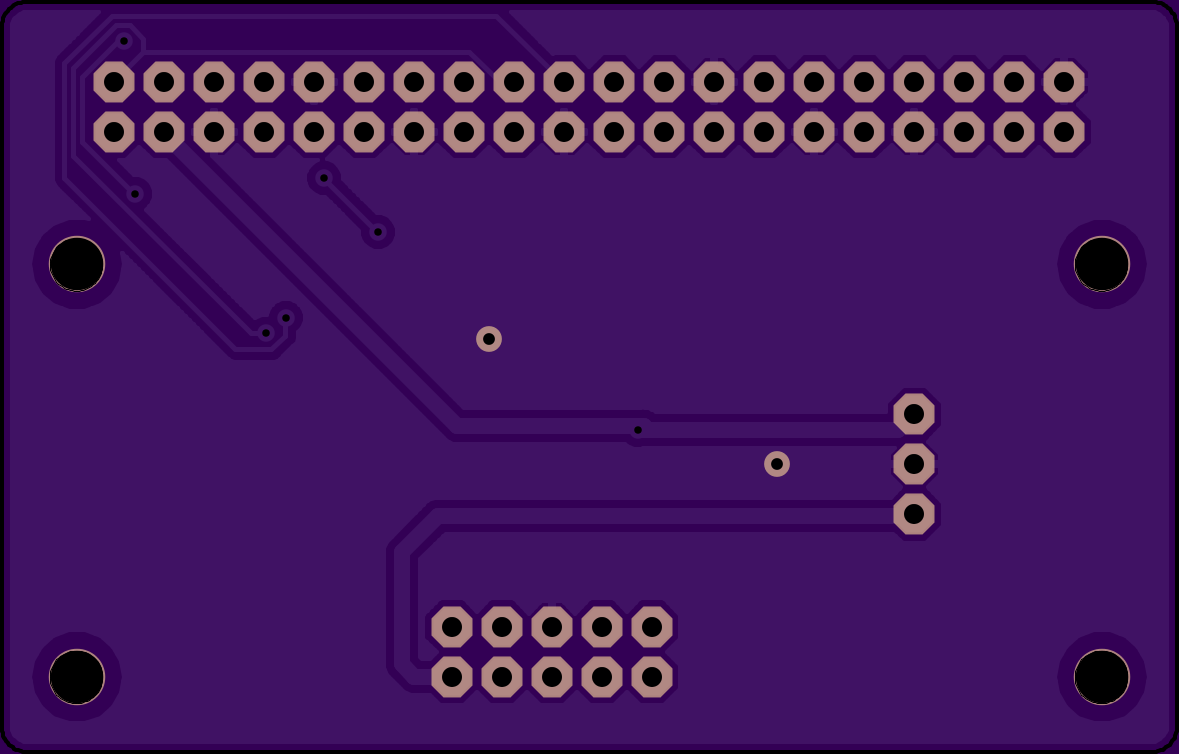

2 layer board of 2.36x1.51 inches (59.89x38.33 mm).
Shared on June 2nd, 2016 03:56.

CAN bus simulator on the Rasperry Pi

See https://github.com/carloop/simulator for BOM and instructions

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Carloop R3.1

by jvanier.
Top
Bottom

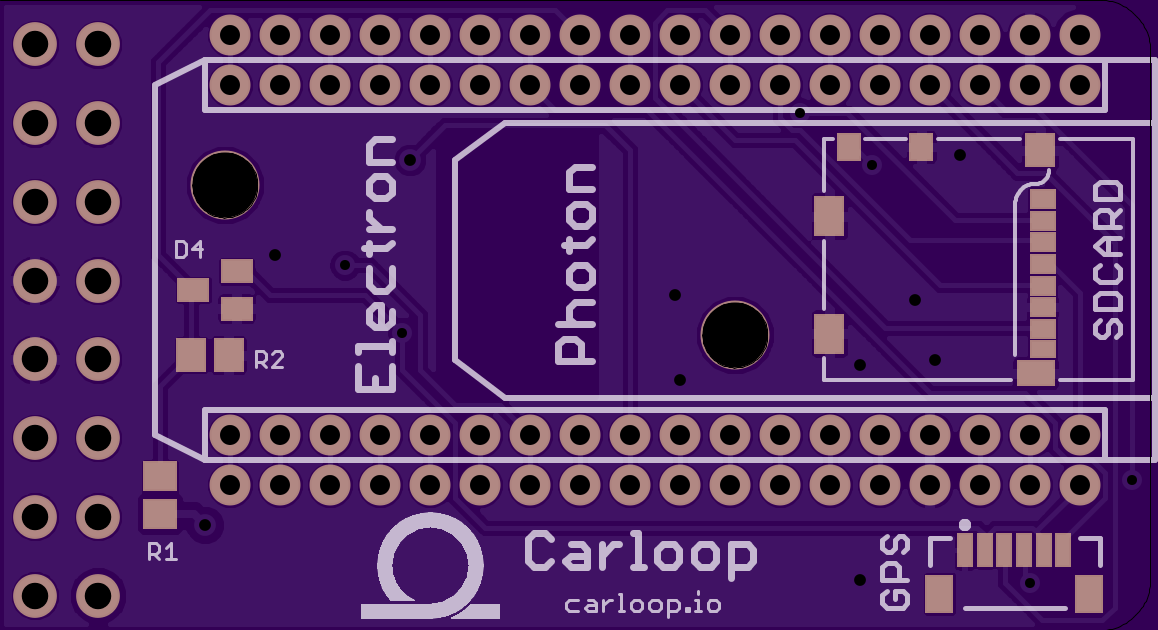

2 layer board of 2.30x1.26 inches (58.42x32.00 mm).
Shared on February 24th, 2016 19:09.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Carloop R2.1

by jvanier.
Top
Bottom

2 layer board of 1.25x1.49 inches (31.78x37.85 mm).
Shared on February 24th, 2016 19:09.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

OBD Breakout

by jvanier.
Top
Bottom

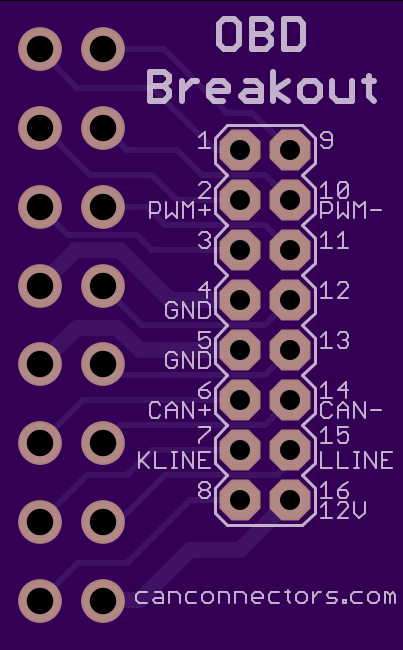

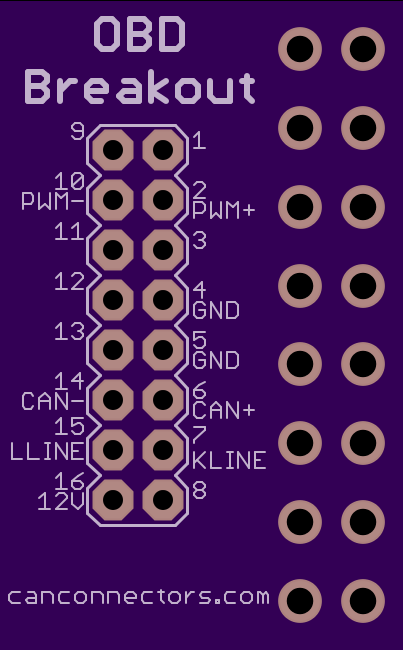

2 layer board of 0.81x1.30 inches (20.50x33.02 mm).
