Shared projects

nrf-v1.zip

by khyale.
Top
Bottom

2 layer board of 0.96x0.45 inches (24.46x11.43 mm).
Shared on May 8th, 2017 00:42.

2.4GHz wireless module based on Nordic NRF24L01 chip

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

petitAVR-v1

by khyale.

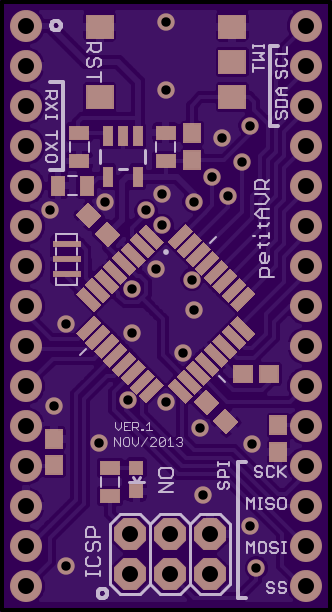

Top

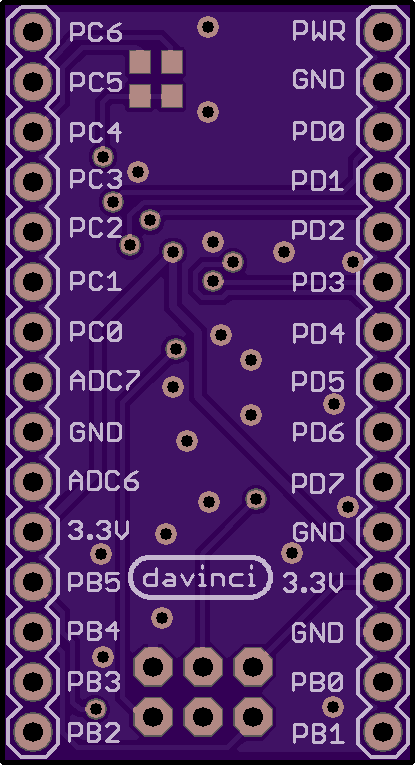

Bottom

2 layer board of 0.83x1.53 inches (21.08x38.89 mm).
Shared on November 19th, 2013 19:02.

Small circuit board for Atmega328P applications

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
