picWAVE

by kj6msg.

2 layer board of 2.80x2.15 inches (71.15x54.61 mm).
Shared on December 30th, 2016 03:19.

PIC-base WAVE File Player

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

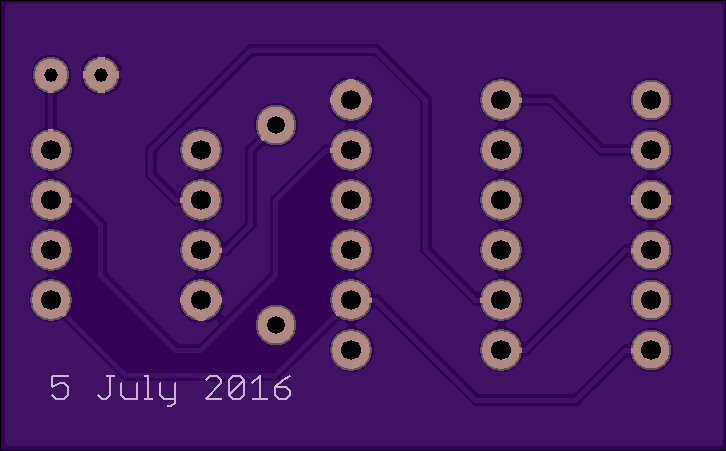

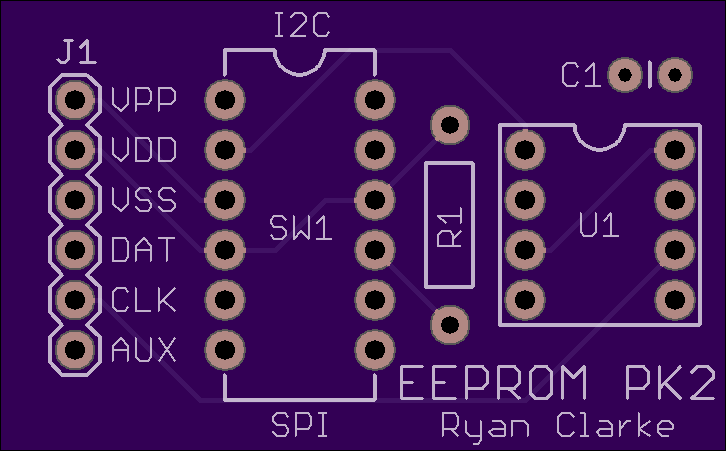

EEPROM PK2

by kj6msg.

2 layer board of 1.45x0.90 inches (36.83x22.89 mm).
Shared on July 29th, 2016 19:46.

EEPROM Programming Board for PICkit 2. Connects to PICkit 2 via 0.1" header and can be used to program I2C and SPI serial EEPROMs.

Symbol Description Digi-Key
C1 0.1u 399-4266-ND
J1 0.1" right-angle header 732-5339-ND
R1 10k 10KQBK-ND
SW1 4PDT switch 450-1633-ND
U1 8-pin DIP socket AE9986-ND
