Shared projects

mchck.try1

by krasin.

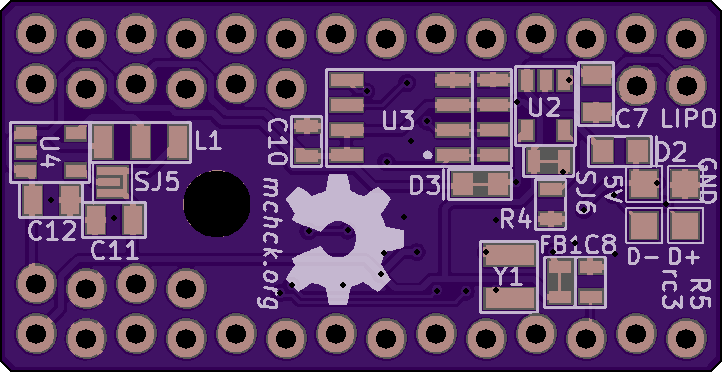

Top

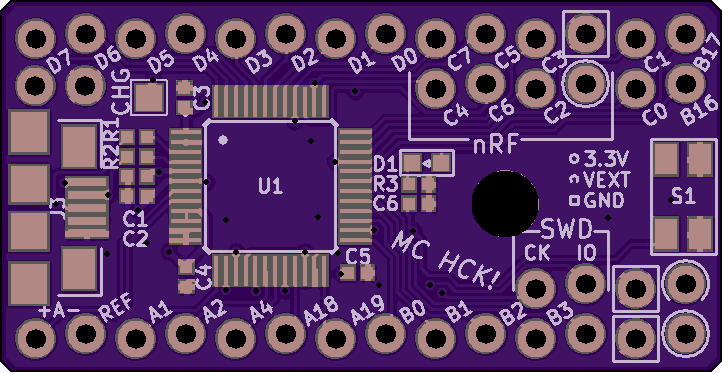

Bottom

2 layer board of 1.44x0.74 inches (36.68x18.90 mm).
Shared on June 18th, 2014 01:53.

mchck board, https://mchck.org/

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Crazyflie Board

by krasin.
Top
Bottom

4 layer board of 3.16x3.16 inches (80.21x80.21 mm).
Shared on September 23rd, 2013 00:56.

Unmodified Crazyflie quadcopter control board taken from https://bitbucket.org/bitcraze/crazyflie-electronics

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

LED Butterfly

by krasin.
Top
Bottom

2 layer board of 3.59x2.66 inches (91.11x67.61 mm).
Shared on September 21st, 2013 21:42.

Yet another experiment with Eagle and LEDs

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

BBB-LED-GPIO-48

by krasin.
Top
Bottom

2 layer board of 2.39x0.60 inches (60.66x15.24 mm).
Shared on September 21st, 2013 08:30.

LED shield for BeagleBone Black (gpio48)

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

ZZZ

by krasin.
Top
Bottom

2 layer board of 0.79x1.00 inches (19.99x25.40 mm).
Shared on September 20th, 2013 19:29.

DDD

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
