RPi Thermocouple Hat Rev 1.2
by
lawr1000.
2
layer board of
2.56x2.21
inches
(65.10x56.11
mm).
Shared on
April 8th, 2017 15:21.
Not Tested Yet Triple MAX31855 Thermocouple Digitizer, DS18S20 local temperature, DS3231 Real Time Clock, and Alert Buzzer. Board is designed with Kicad. Check Github for the KiCad design files.
RPi Zero Thermocouple pHat Rev 1.2
by
lawr1000.
2
layer board of
2.56x1.19
inches
(65.10x30.12
mm).
Shared on
April 7th, 2017 20:13.
Not Tested Yet Four MAX31850 Thermocouple Digitizers, one DS18S20 and an Alert Buzzer. Board is designed with Kicad. Check Github for the KiCad design files.

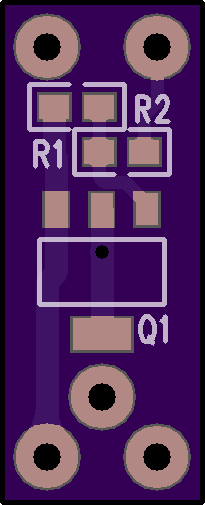

PDM60 Ground Trigger
by
lawr1000.
2
layer board of
0.41x1.01
inches
(10.44x25.68
mm).
Shared on
April 9th, 2014 22:41.
Allows 12V to control the ground trigger on Rowe Electronics’s PDM60 module.
The Ignition wire on the PDM60 senses the presence of 12V to turn outputs on. While the Ground Trigger wire senses the presence of a ground to turn outputs on. This works great for ground switched items like horns but some vehicles switch 12V to the horn and leave the ground always connected i.e. some BMW motorcycles. This circuit board uses 12V to turn a transistor on which shorts the Ground Trigger wire to ground. I also included some PTCs which act like re-settable fuses to hopefully prevent catastrophic results from miss-wiring. I included the PTC for the Ignition wire.

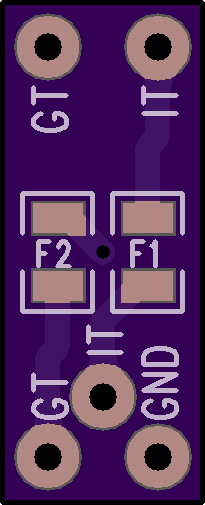

The side of the board with three solder terminals is intended to be connected to the PDM60 with GND terminal finding it’s way back to battery negative terminal. The other side with two solder terminals is the sense side where IG is connected say your headlight 12V and the GT is connected to the 12V switch horn.
