Shared projects
Mini-NES_Panel_V1 @coderkevin
by
mafe72.
2
layer board of
1.22x0.48
inches
(30.99x12.22
mm).
Shared on
May 20th, 2017 22:03.
This front panel match @coderkevin schematic
BOM
150ohm Power LED Resistor, Quantity: 1 digikey: http://bit.ly/2qCImqK
Front Panel Power LED, Quantity: 1 digikey: http://bit.ly/2qCURmf
Latching Push Button Switche (Power Switch) Quantity: 1 amazon: http://amzn.to/2rpfMua
Momentary Push Button Switch (Reset Switch) Quantity: 1 amazon: http://amzn.to/2rpqrF1

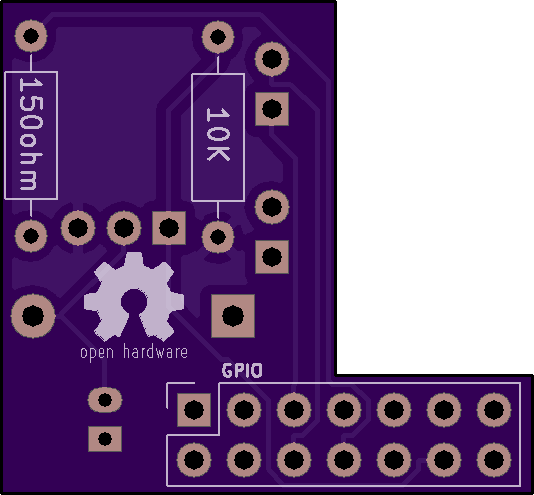

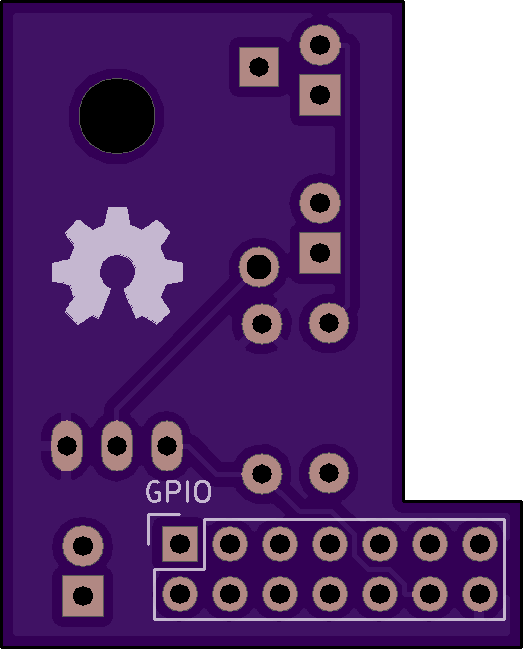

Mini-NES_Board Rev 1 @coderkevin
by
mafe72.
2
layer board of
0.86x0.60
inches
(21.72x15.27
mm).
Shared on
May 20th, 2017 22:02.
This board match @coderkevin schematic.
Software: https://github.com/coderkevin/mini-nes BOM
Micro JST Picoblade 1.25mm Pitch 4 Pin(NFC Reader) Quantity: 1 ebay: http://ebay.to/2qCuWeq
Micro JST Picoblade 1.25mm Pitch 5 Pin(Front Control Panel) Quantity: 1 ebay: http://ebay.to/2qCNTNT
Resistor 10kohm, Quantity: 1 digikey: http://bit.ly/2rpp1KH
16 Pin Pi Header Connector, Quantity: 1 digikey: http://bit.ly/2rp8Ehp

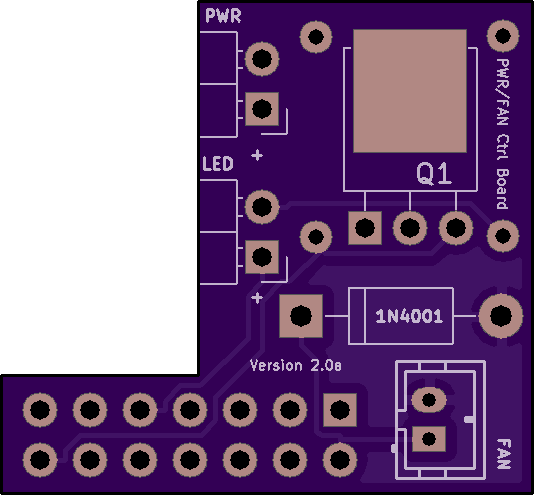

Power and Fan Control Board v2.0a
by
mafe72.
2
layer board of
1.07x0.99
inches
(27.13x25.15
mm).
Shared on
March 14th, 2017 17:20.
Power switch and fan control board for the Raspberry Pi mini NES, full details and schematic at https://www.facebook.com/groups/miniNESbuilders/permalink/489956341190644/
Scripts to manage this PCB can be found here:
https://www.facebook.com/groups/miniNESbuilders/516239388562339/
https://www.facebook.com/groups/miniNESbuilders/508956222623989/
Front PCB: https://oshpark.com/shared_projects/fVcUTRQC
BOM: R1=150ohm R2=10K D1=1N4001 Q1=NDD02N40 (or equivalent N-MOSFET) Fan=B2B-PH-K-S JST straight 2mm pitch
Note: Polarity on the LED is reversed, negative pole is label as positive.

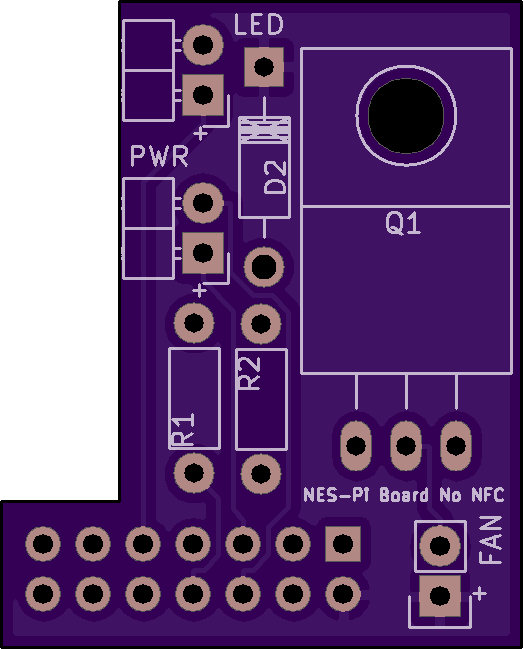

NES-Pi Board no NFC
by
mafe72.
2
layer board of
1.05x1.30
inches
(26.54x32.94
mm).
Shared on
December 24th, 2016 23:18.
Basic power switch control and fan control for the mini NES, base on the Raspberry Pi full details and schematic at https://www.facebook.com/groups/miniNESbuilders/permalink/489956341190644/
Scripts to manage this PCB can be found here:
https://www.facebook.com/groups/miniNESbuilders/516239388562339/
https://www.facebook.com/groups/miniNESbuilders/508956222623989/
Front PCB: https://oshpark.com/shared_projects/fVcUTRQC
BOM: R1=150ohm R2=10K D2=1N4001 Q1=NDD02N40 (or equivalent N-MOSFET) Fan=B2B-PH-K-S JST straight 2mm pitch
Note: Polarity on the LED is reversed, negative pole is label as positive.
