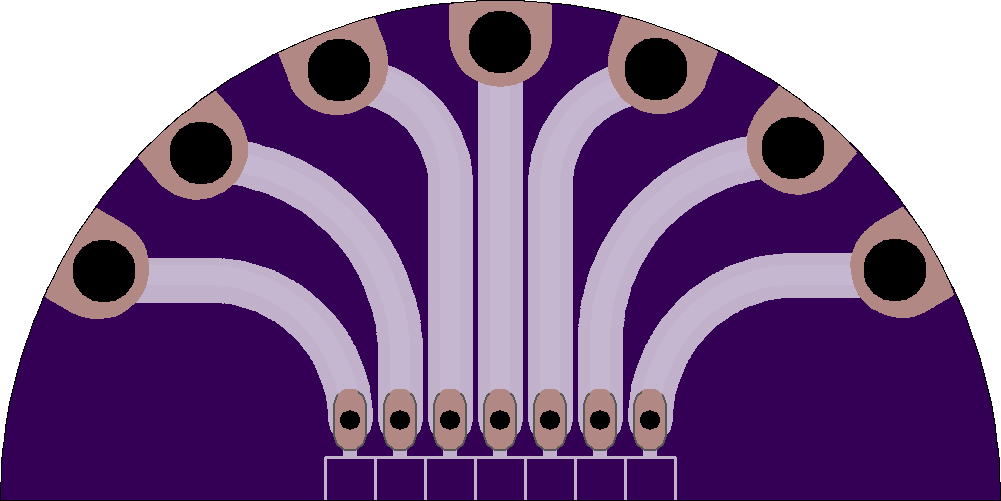

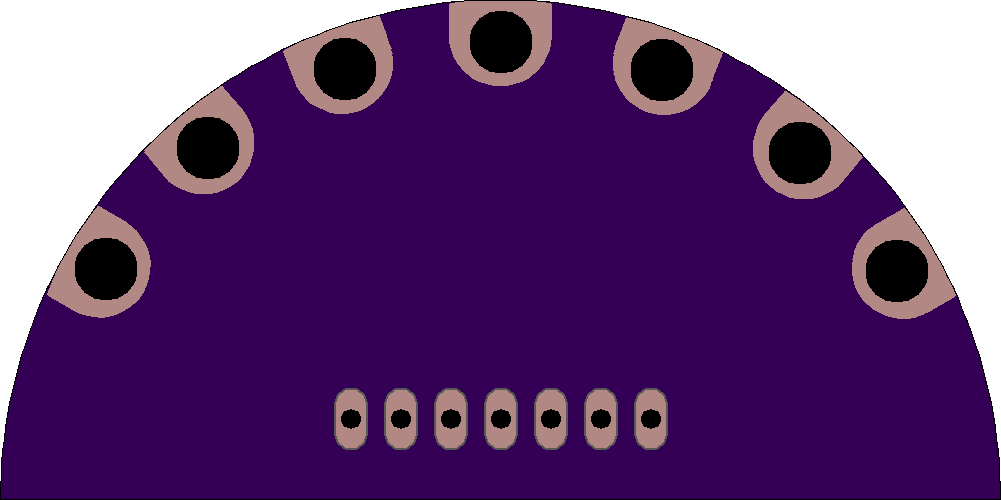

Gator Tiara

2 layer board of 2.00x1.00 inches (50.80x25.40 mm).
Shared on February 4th, 2017 16:51.

Alligator clip to bread board

Order board. Download. Permalink. Embed order link.

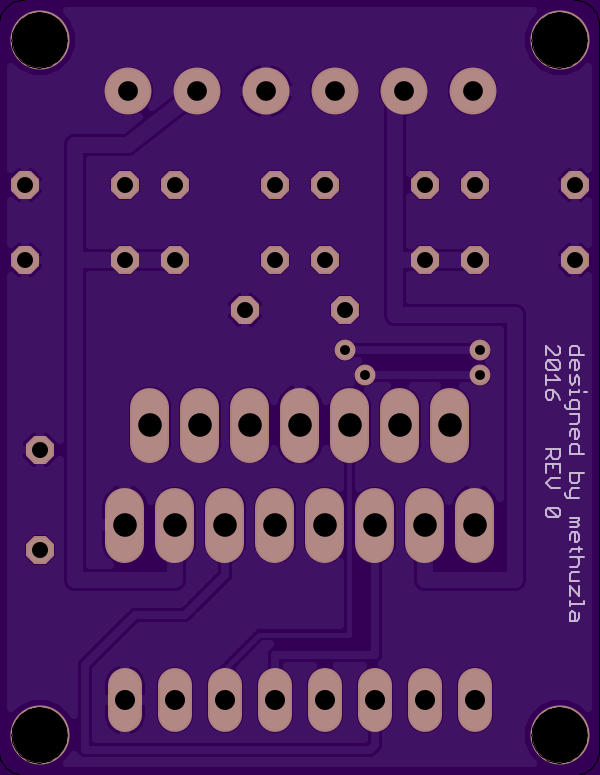

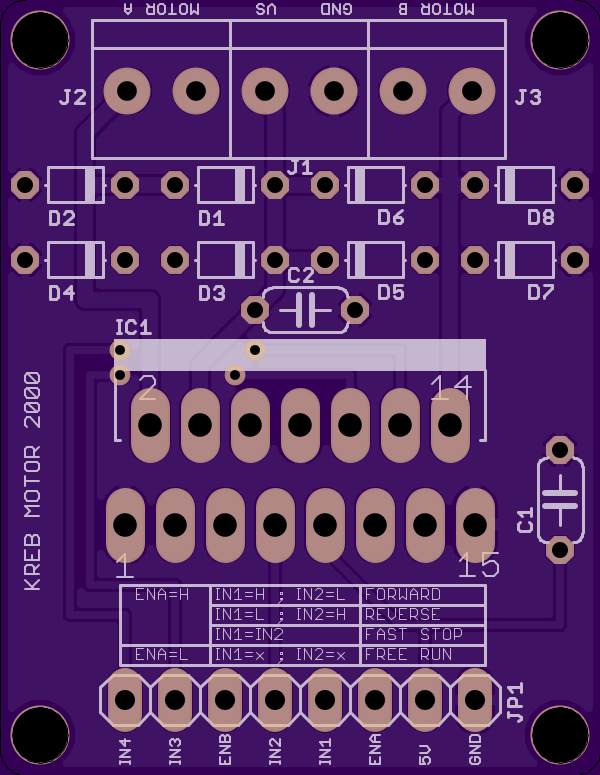

L298 Motor Driver

2 layer board of 1.20x1.55 inches (30.48x39.37 mm).
Shared on March 3rd, 2016 22:07.

[TESTED: WORKS] L298 dual H-bridge motor driver. Diode area is pretty tight.

Order board. Download. Permalink. Embed order link.

LM386 Audio Amp rev1

2 layer board of 2.00x1.00 inches (50.80x25.43 mm).
Shared on November 10th, 2013 18:39.

[TESTED: WORKS] Very simple LM386 based single channel audio amp. Use R3 to adjust gain.

• IC1 = LM386
• C1 = C3 = 220uF
• C2 = 10uF
• R1 = R4 = 10ohm
• R2 = 1kohm
• R3 = 10k pot (Adafruit ID 356)
• Terminal Blocks (Adafruit ID 724)

Order board. Download. Permalink. Embed order link.
