PWMController

by

2 layer board of 1.15x1.68 inches (29.16x42.60 mm).
Shared on December 18th, 2014 06:26.

Generic switching power supply block, with emphasis on low EMI.

Copy this HTML into your page to embed a link to order this shared project

LinearPSU

by

2 layer board of 2.24x3.61 inches (56.90x91.57 mm).
Shared on December 18th, 2014 06:16.

High performance multi-output linear power supply.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 2.89x2.44 inches (73.33x61.90 mm).
Shared on November 16th, 2014 06:34.

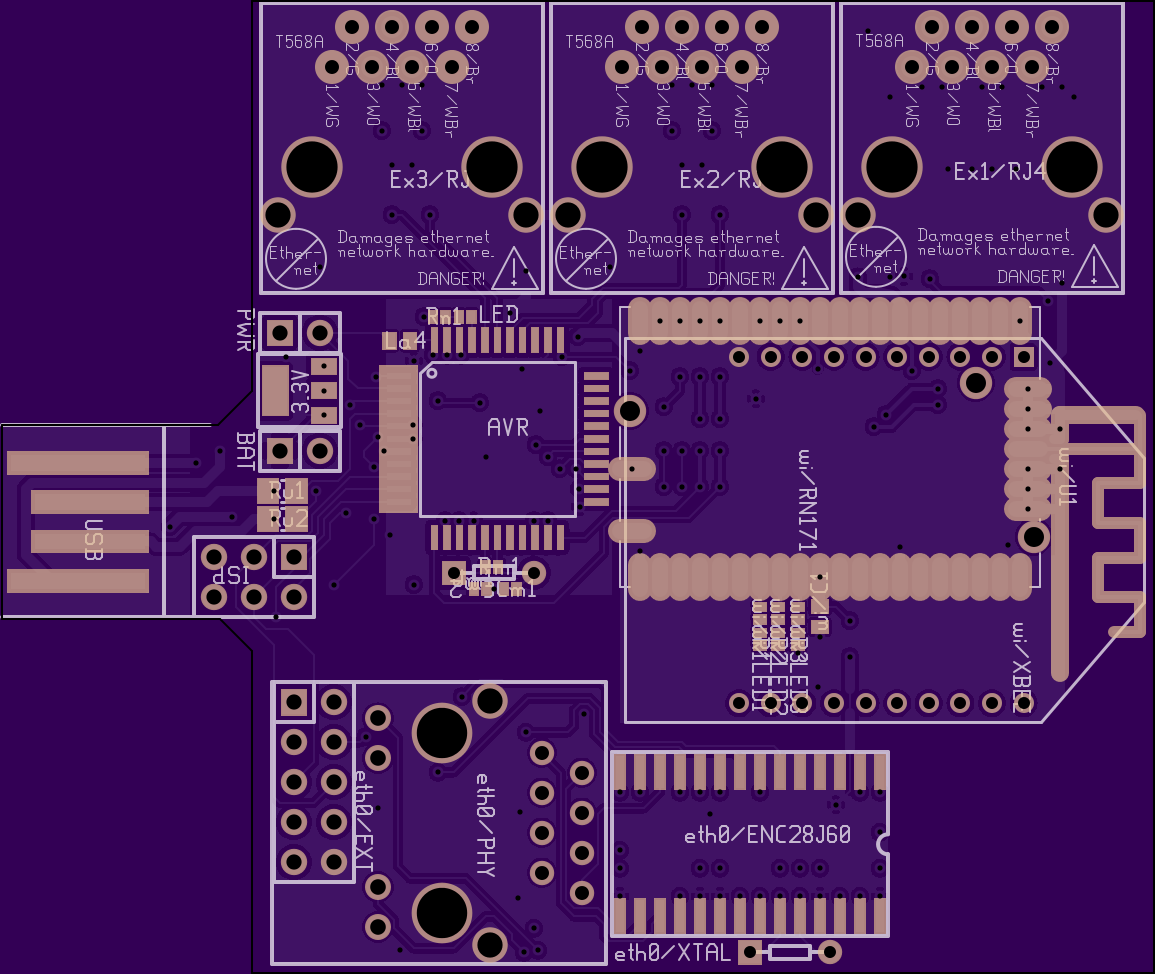

Advanced multi-peripherial low-power Networked Programmable Logic Controller (NetPLC) core platform.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 2.96x3.19 inches (75.18x80.90 mm).
Shared on October 15th, 2013 18:34.

Signal isolation and acquisition board. http://mirage335.dyndns.org/wiki/Mirage335BiosignalAmp

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.96x1.20 inches (24.41x30.35 mm).
Shared on October 15th, 2013 18:34.

Active electrode. Build a pair. http://mirage335.dyndns.org/wiki/Mirage335BiosignalAmp

Copy this HTML into your page to embed a link to order this shared project
