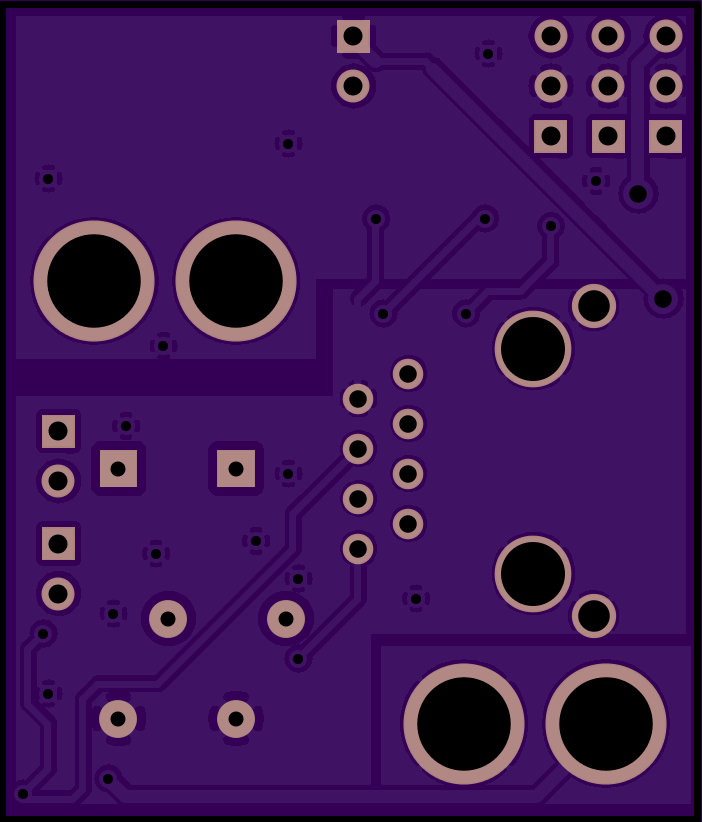

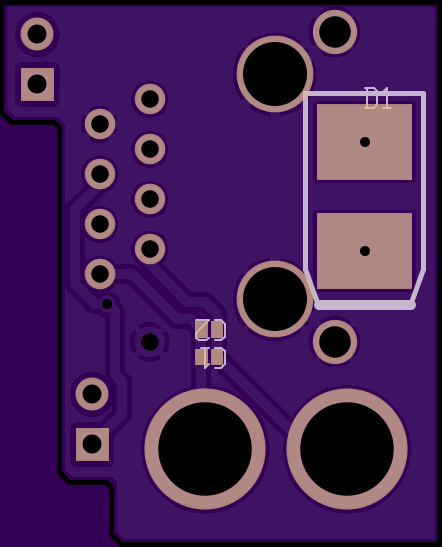

OpenEtherSurge

by

2 layer board of 1.70x0.73 inches (43.23x18.57 mm).
Shared on September 25th, 2016 21:21.

Open-source network Ethernet surge protector. Designed to keep both fast low-energy and slow high-energy transients from knocking equipment offline.

Copy this HTML into your page to embed a link to order this shared project

Splitter

by

2 layer board of 1.06x2.94 inches (26.92x74.68 mm).
Shared on September 25th, 2016 21:20.

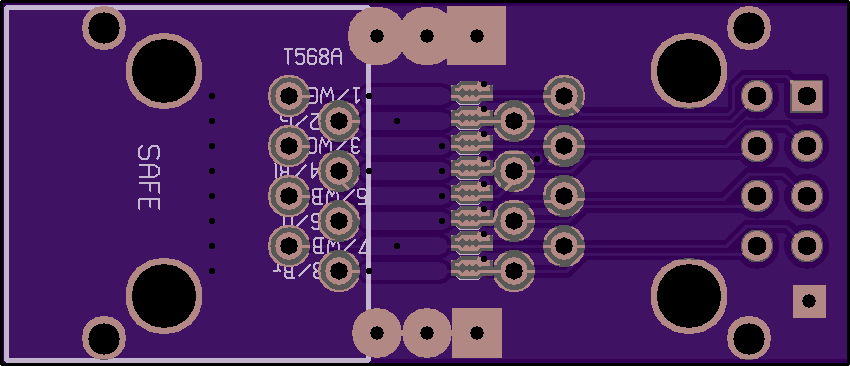

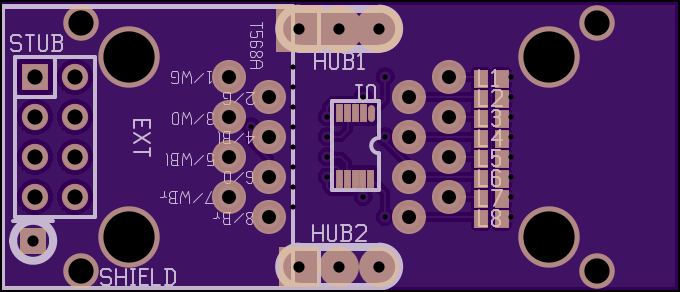

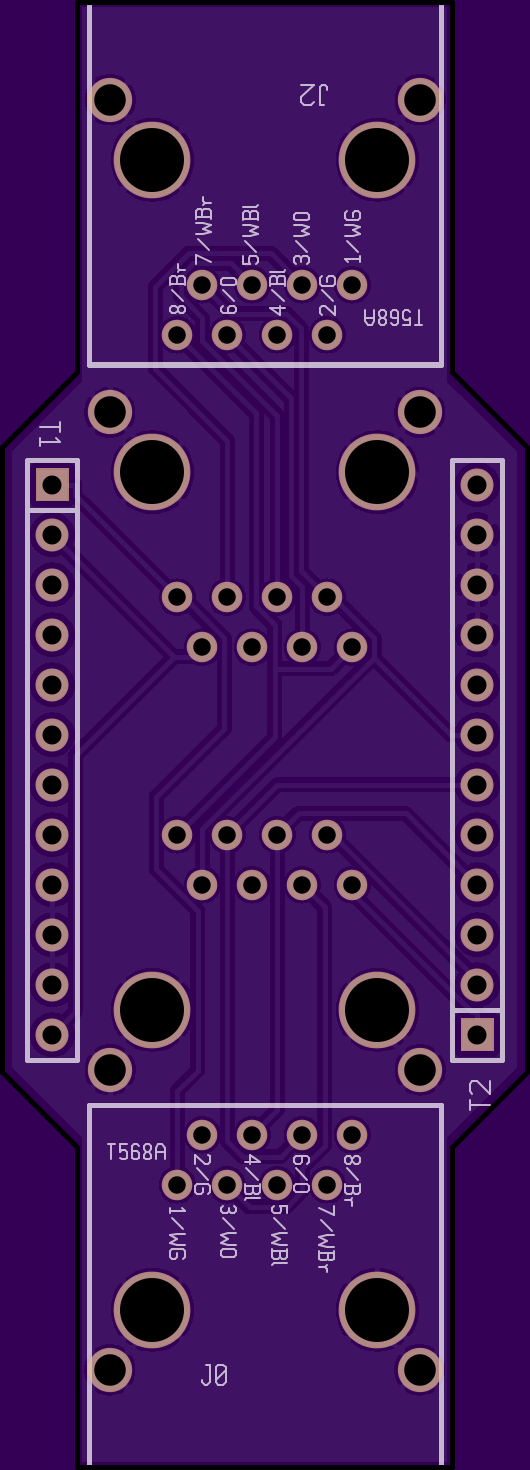

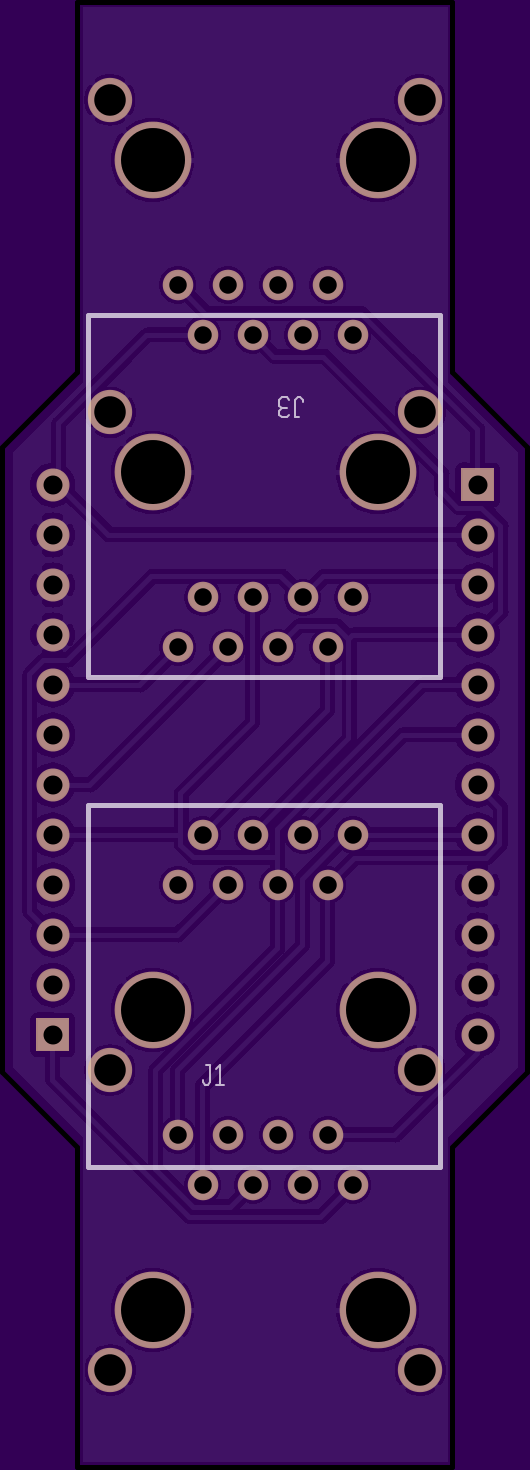

Shielded RJ45 Splitter

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.40x1.64 inches (35.66x41.76 mm).
Shared on September 25th, 2016 21:20.

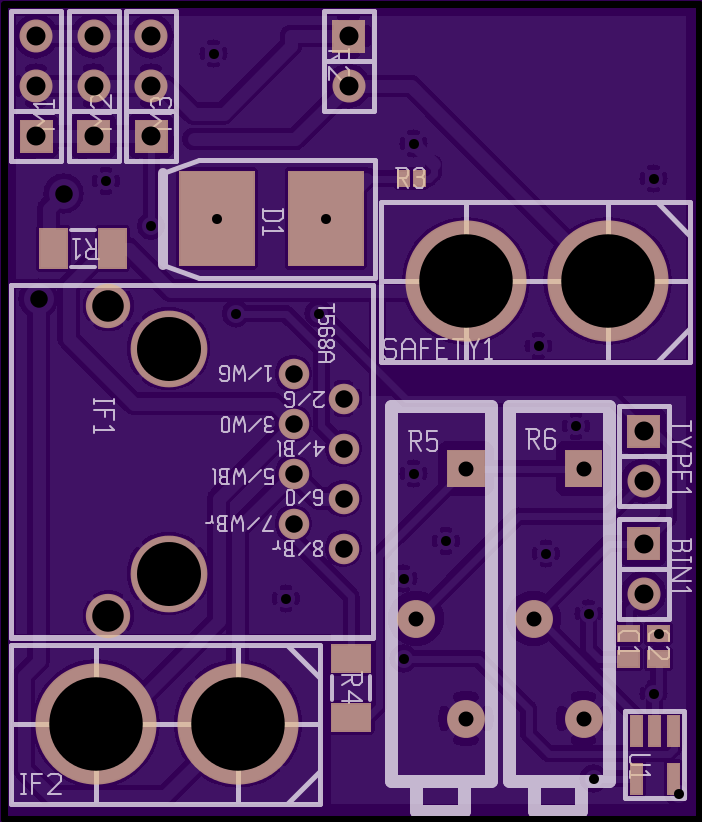

Buffered interface for LaserDriver.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.89x1.10 inches (22.48x27.81 mm).
Shared on September 25th, 2016 21:20.

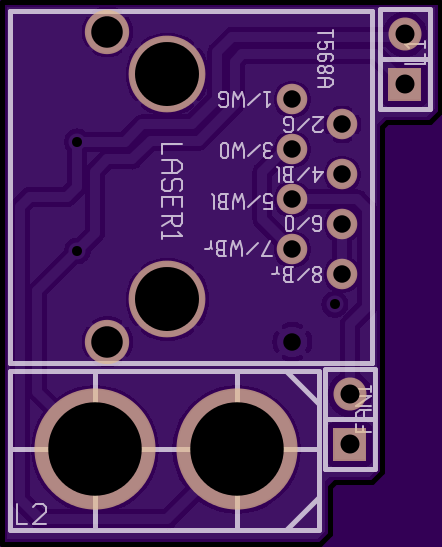

Connector PCB for Laser.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 3.20x1.55 inches (81.28x39.27 mm).
Shared on September 25th, 2016 21:20.

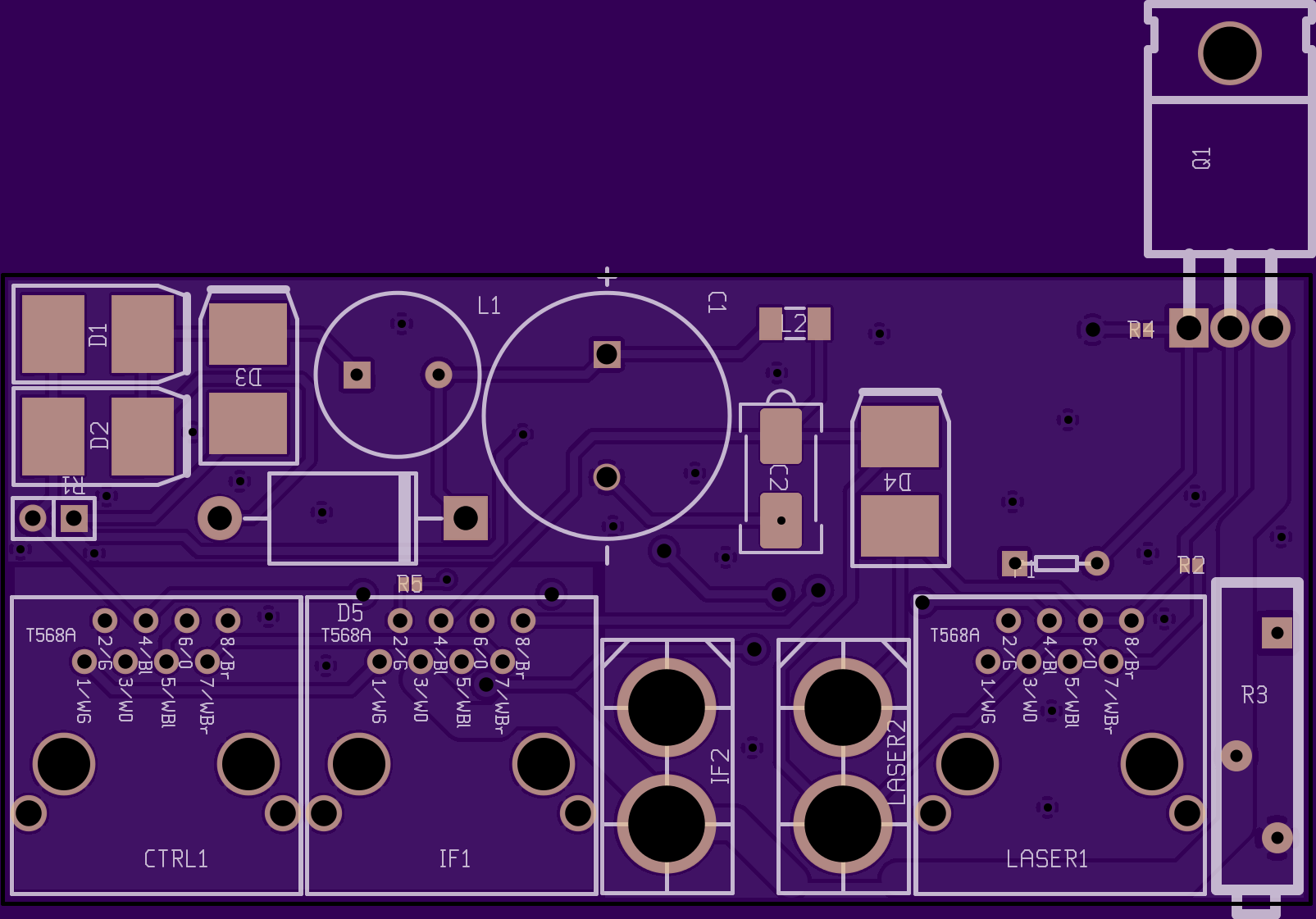

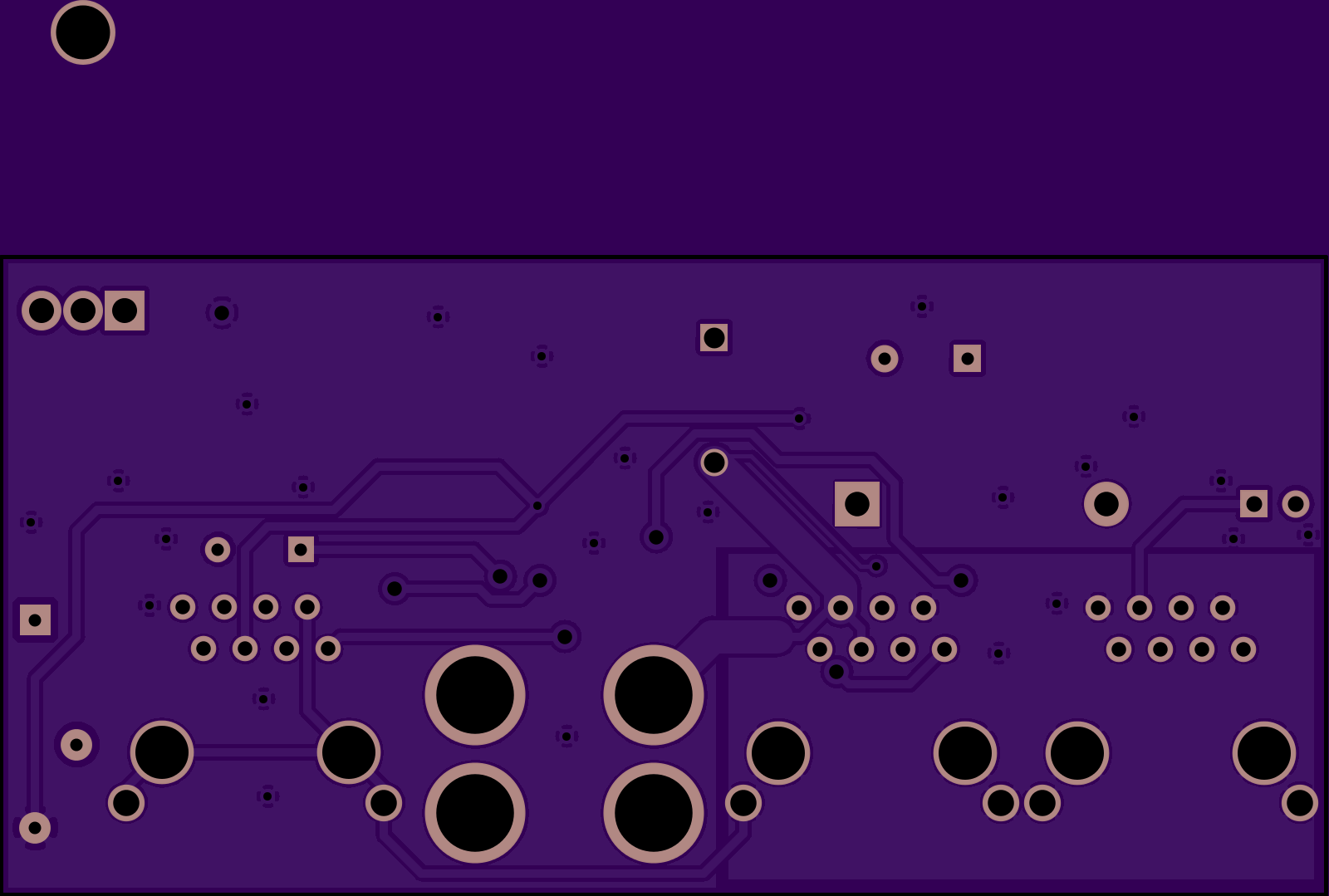

Constant current power supply module.
