Solar harvester

by morrowwm.
Top
Bottom

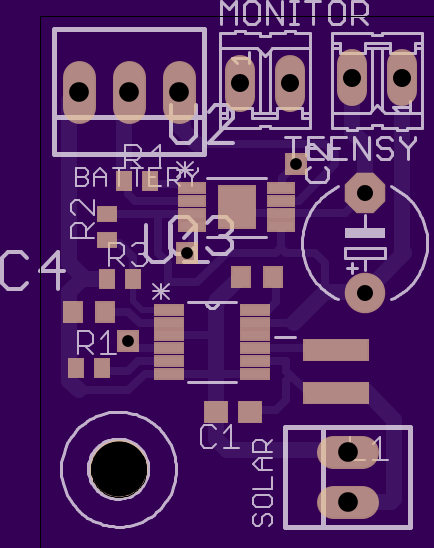

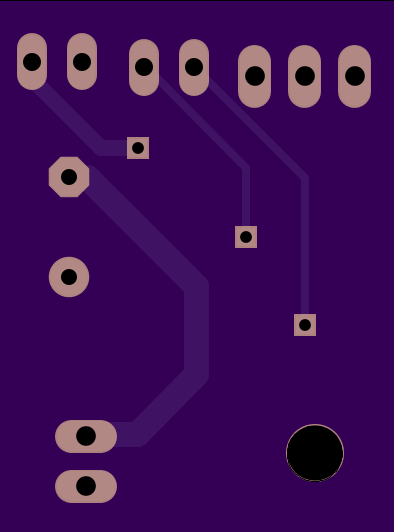

2 layer board of 0.77x1.06 inches (19.51x27.03 mm).
Shared on January 17th, 2016 01:11.

Single cell solar powered li-ion charger. Basically a copy of the circuit of Linear Technologies' Solution 1639. I just made this, and have not received the board yet. No guarantee it works. Update: a couple of traces got missed, and it seems I left out a critical cap. It doesn’t work. See V2.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Solar harvester V2

by morrowwm.
Top
Bottom

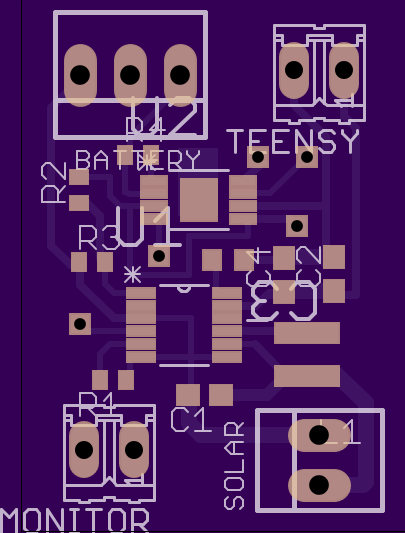

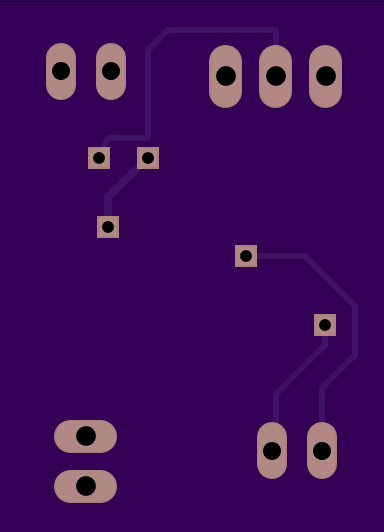

2 layer board of 0.79x1.06 inches (20.02x27.03 mm).
Shared on January 17th, 2016 01:11.

fixes missing component traces

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

DRV11873 breakout

by morrowwm.
Top
Bottom

2 layer board of 1.14x1.22 inches (29.03x31.01 mm).
Shared on January 5th, 2014 21:28.

Breakout board for TI DRV11873 brushless DC motor driver.
