Shared projects
StarSeq'R Eighty-Eight (v2.3): A tribute to LiteLab L-8000 and Diversitronics MLS-8
by
n0mjs710.
2
layer board of
6.40x4.15
inches
(162.59x105.44
mm).
Shared on
April 11th, 2015 19:10.

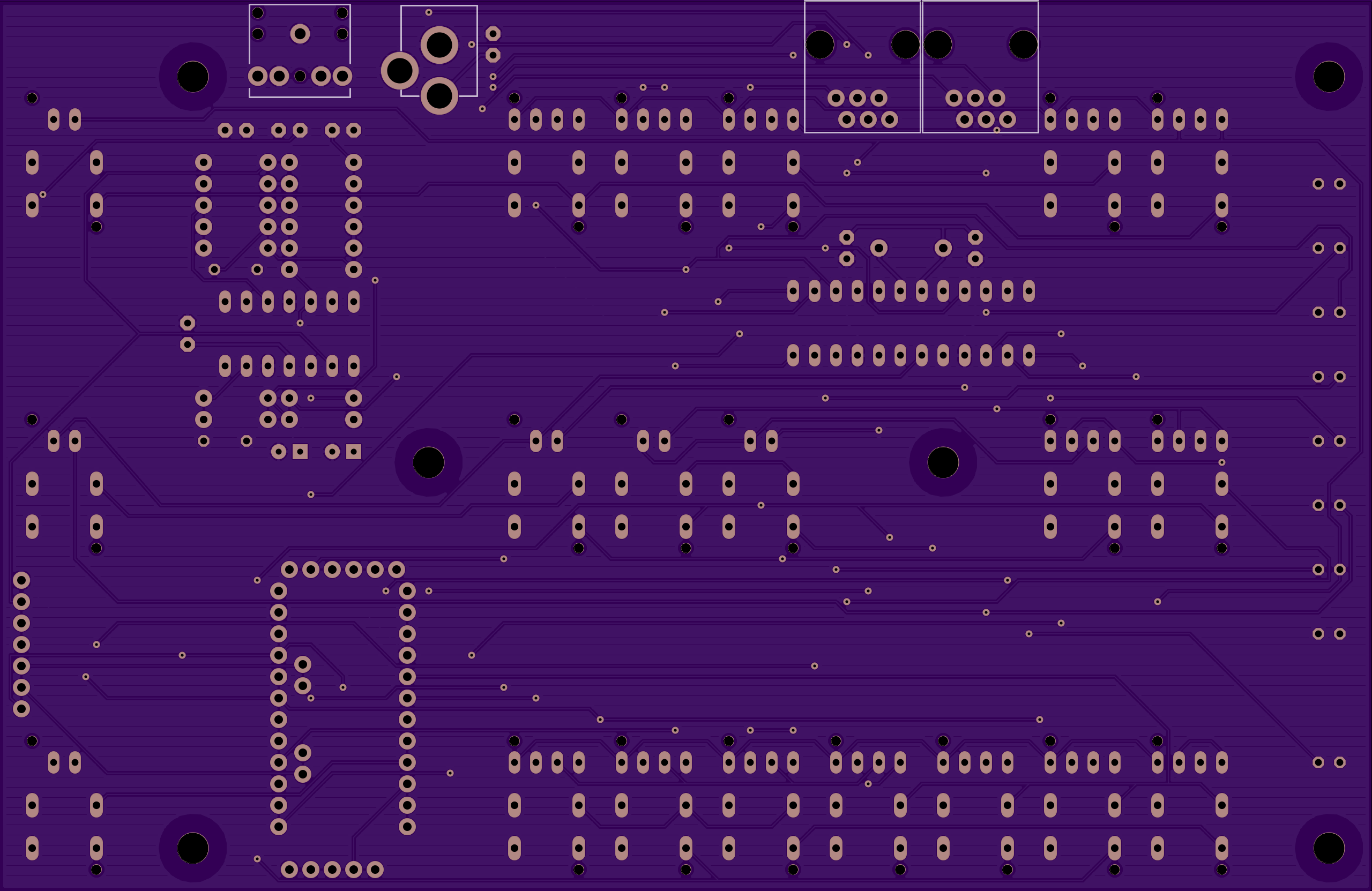

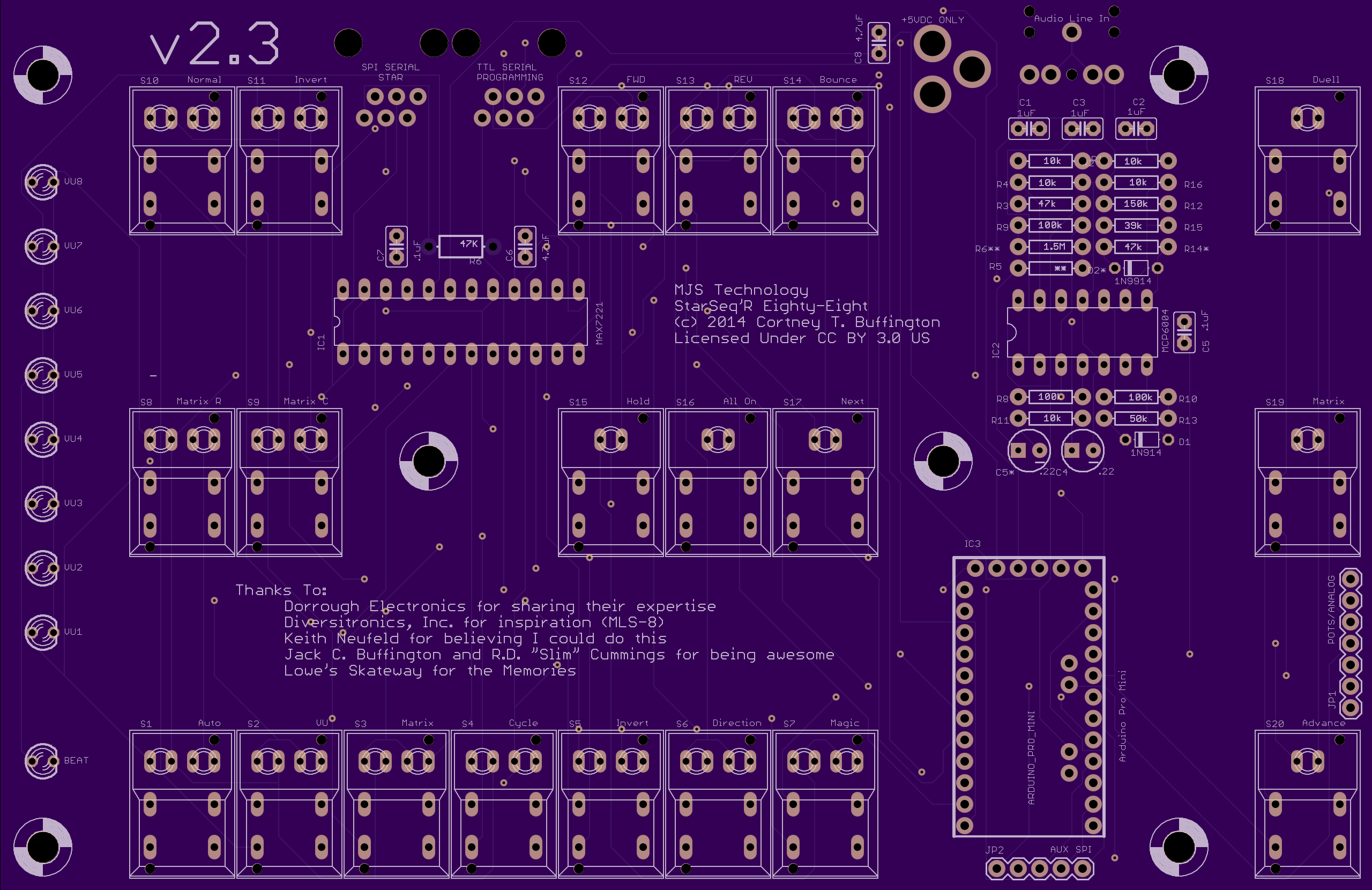

Dance Floor Lighting Controller as a tribute to vintage units from LiteLab and Diversitronics. Operates 64 lights in an 8x8 matrix, just like the originals. The project “core” is an Arduino Pro Mini.
A MCP23S17 & MOSFET driver board to power LEDs with the system is located here:
https://oshpark.com/shared_projects/ZkcYL0bz
Breakout boards for piranha LEDs are located here:
https://oshpark.com/shared_projects/xaTP3Xtc
A MCP23S17 and SSR driver board for controlling AC light bulbs is located here:
https://oshpark.com/shared_projects/9E7VqS0A
If you really want to build one of these, find me online and I’ll share the code. My username isn’t hard to track down.
MCP23S17 8x8 MOSFET Matrix Driver
by
n0mjs710.
2
layer board of
3.80x2.01
inches
(96.52x51.13
mm).
Shared on
April 11th, 2015 19:10.

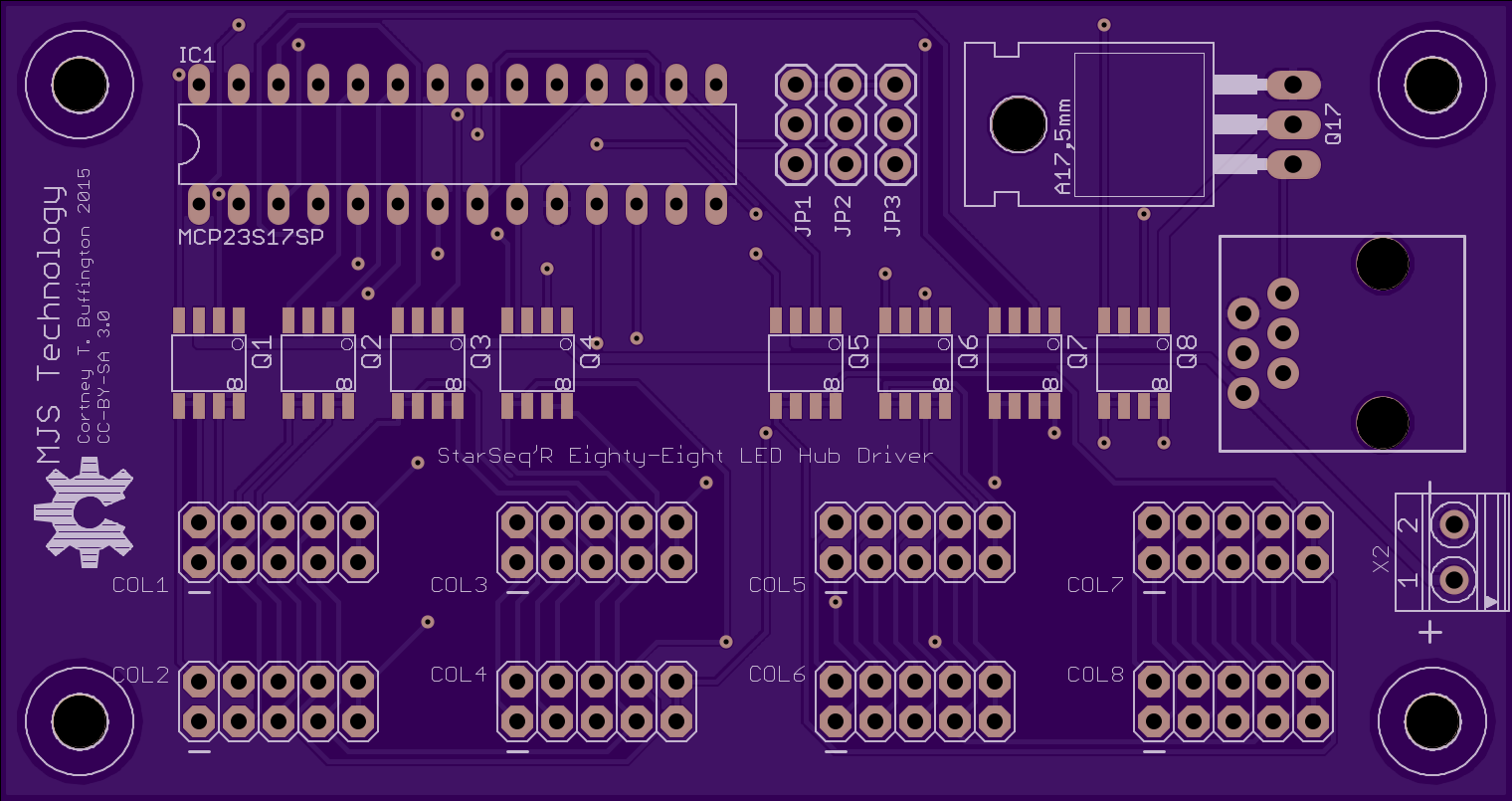

Uses the MCP23S17’s 16 I/O lines to address a matrix of 64 LEDs. Connectors are broken out so that there are 8 busses of 8 LEDs each.
Piranha LED carrier boards for use with this board are located here:
https://oshpark.com/shared_projects/xaTP3Xtc
Stereo VU Meter Display
by
n0mjs710.
2
layer board of
6.50x1.40
inches
(165.10x35.59
mm).
Shared on
April 11th, 2015 16:17.

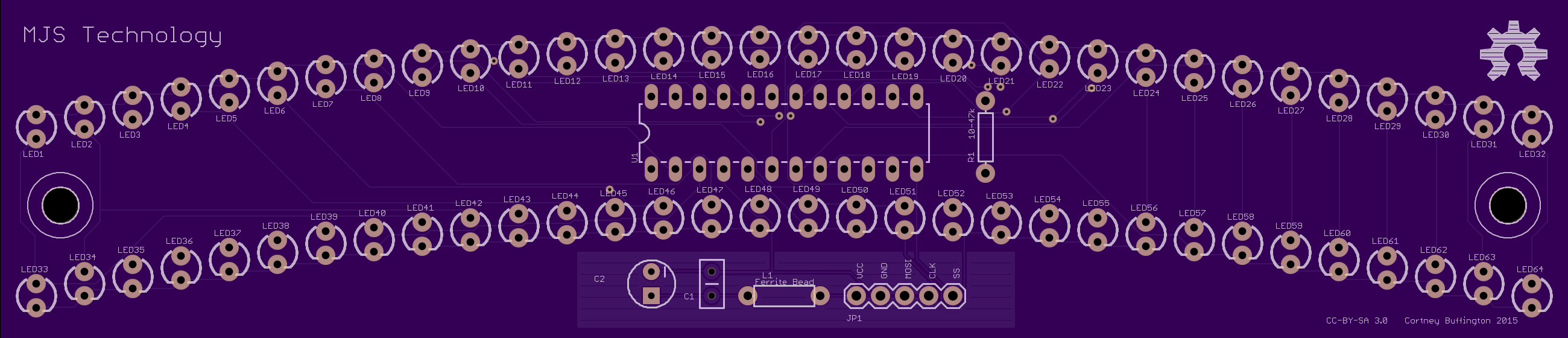

LED VU (or other) meter display based on the MAX7221 LED driver IC. Eagle and PDF files are available at:
https://github.com/n0mjs710/Stereo-VU-Meter-v2
Part of a larger project for a complete stereo VU meter with 32 LEDs per channel that also includes:
Code:
https://github.com/n0mjs710/Stereo-VU-AVE-PEAK-Teensy
Audio Board:
https://github.com/n0mjs710/Stereo-Audio-Dectector-v2
https://oshpark.com/shared_projects/bmVo1UHP
Stereo Audio Integrator
by
n0mjs710.
2
layer board of
2.10x1.70
inches
(53.37x43.18
mm).
Shared on
April 11th, 2015 15:59.

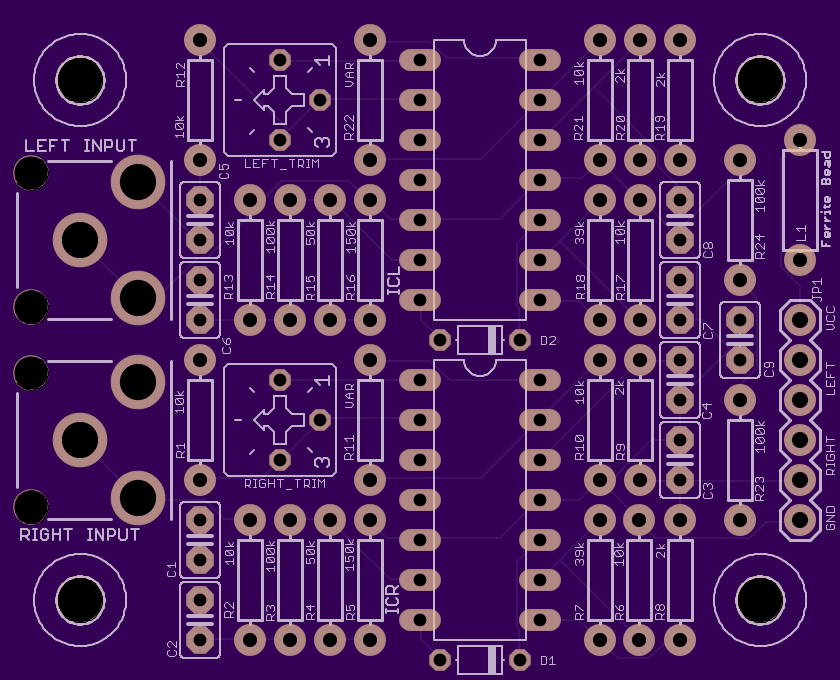

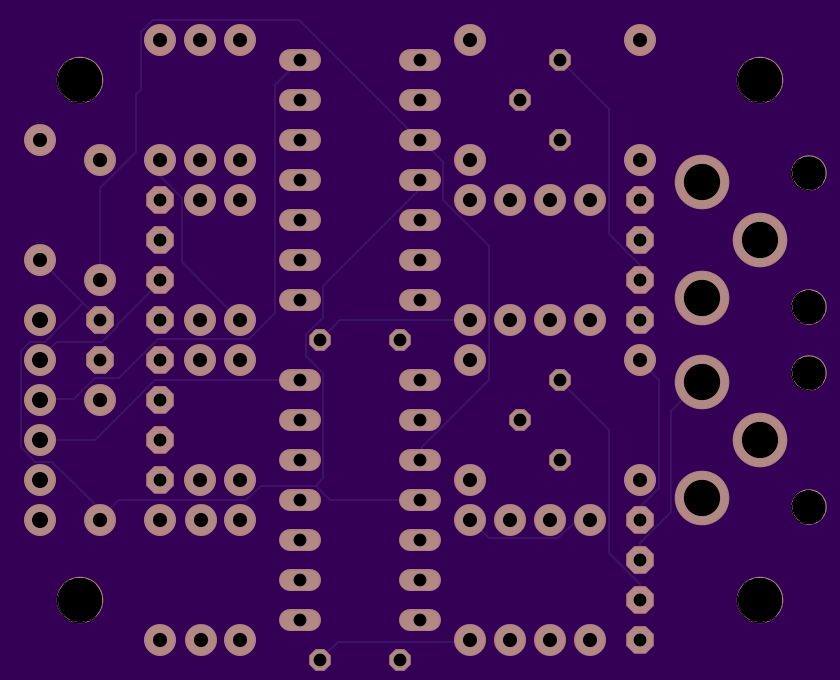

Stereo audio precision rectifier and envelope follower for VU meters or other low-frequency AC signals. Can be used to directly drive meter displays or with an ADC and a microcontroller. Eagle and PDF files are available at:
https://github.com/n0mjs710/Stereo-Audio-Dectector-v2
Part of a larger project for a complete stereo VU meter with 32 LEDs per channel that also includes:
Code:
https://github.com/n0mjs710/Stereo-VU-AVE-PEAK-Teensy
Display Board:
https://github.com/n0mjs710/Stereo-VU-Meter-v2
https://oshpark.com/shared_projects/fC6WZwjg
Piranha LED Carrier Boards
by
n0mjs710.
2
layer board of
5.56x0.65
inches
(141.33x16.54
mm).
Shared on
January 2nd, 2015 19:15.

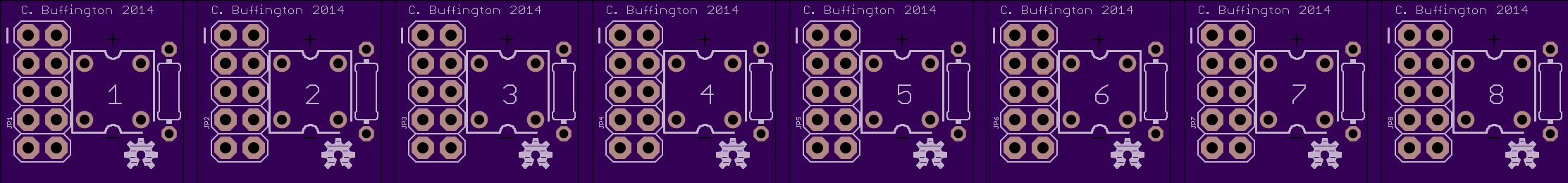

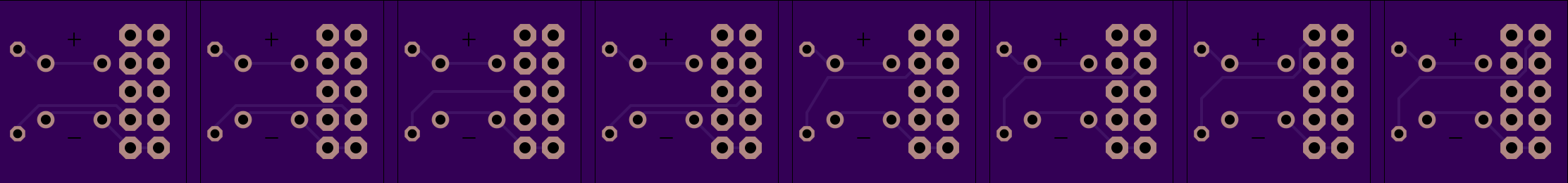

Each PCB contains 8 individual board that you “snap” apart. Each board holds one piranha LED and a current limiting resistor. The 10-pin dual-row header uses two pins for ground (return) and the 8 remaining are each used on one board. This allows one to use a ribbon cable to access 8 LEDs in “parallel”. Originally created to build an 8x8 matrix of LEDs with 16 I/O lines.
A MCP23S17 and MOSFET driver board intended to be used with these boards is located here:
https://oshpark.com/shared_projects/ZkcYL0bz
