BRAT rev 1

2 layer board of 1.40x3.13 inches (35.56x79.45 mm).
Shared on May 27th, 2017 02:17.

Badge Reader Active Tap : allows man in the middle, recording and replaying wiegand traffic.

Copy this HTML into your page to embed a link to order this shared project

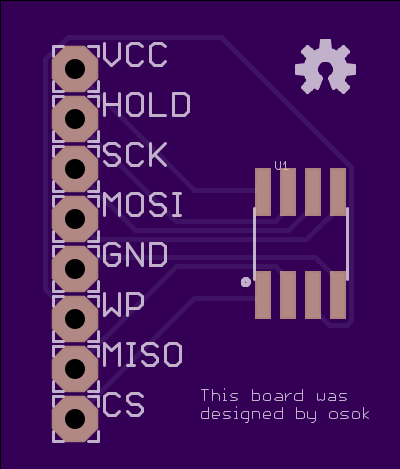

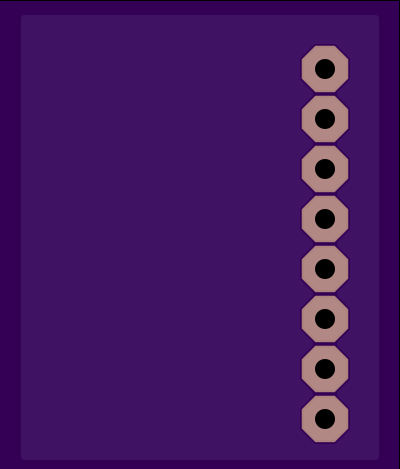

W25Q##BV Breakout Board

2 layer board of 0.80x0.94 inches (20.32x23.83 mm).
Shared on February 5th, 2016 03:55.

This has been test with the W25Q80BV 1 Meg SMD chip and works great.

Copy this HTML into your page to embed a link to order this shared project
