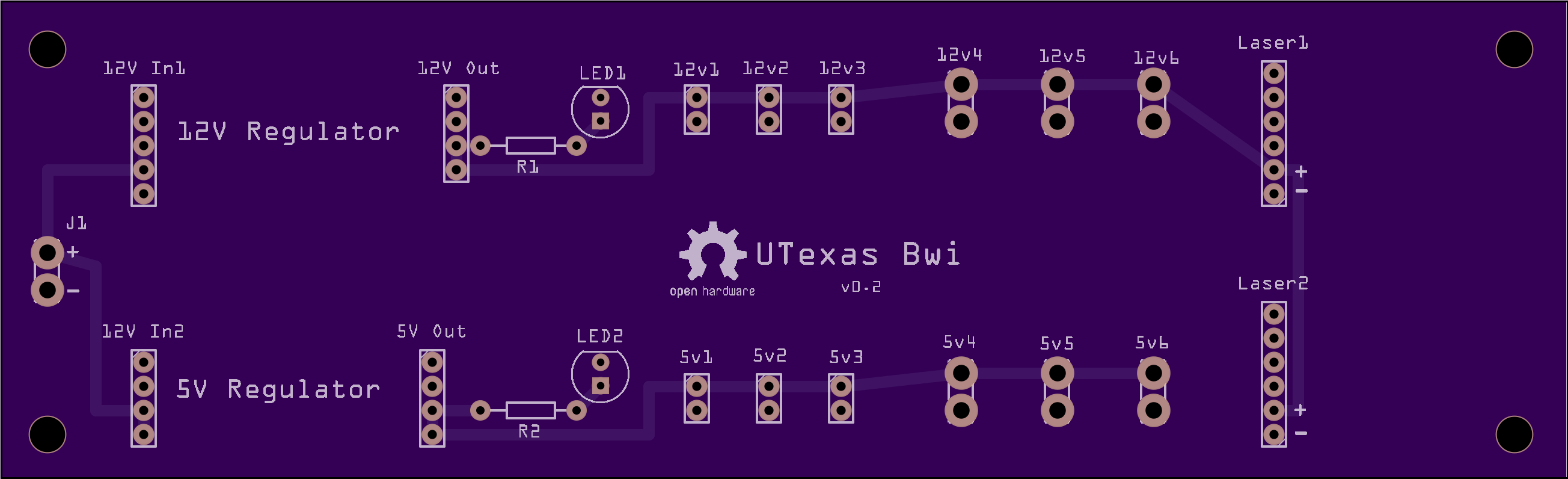

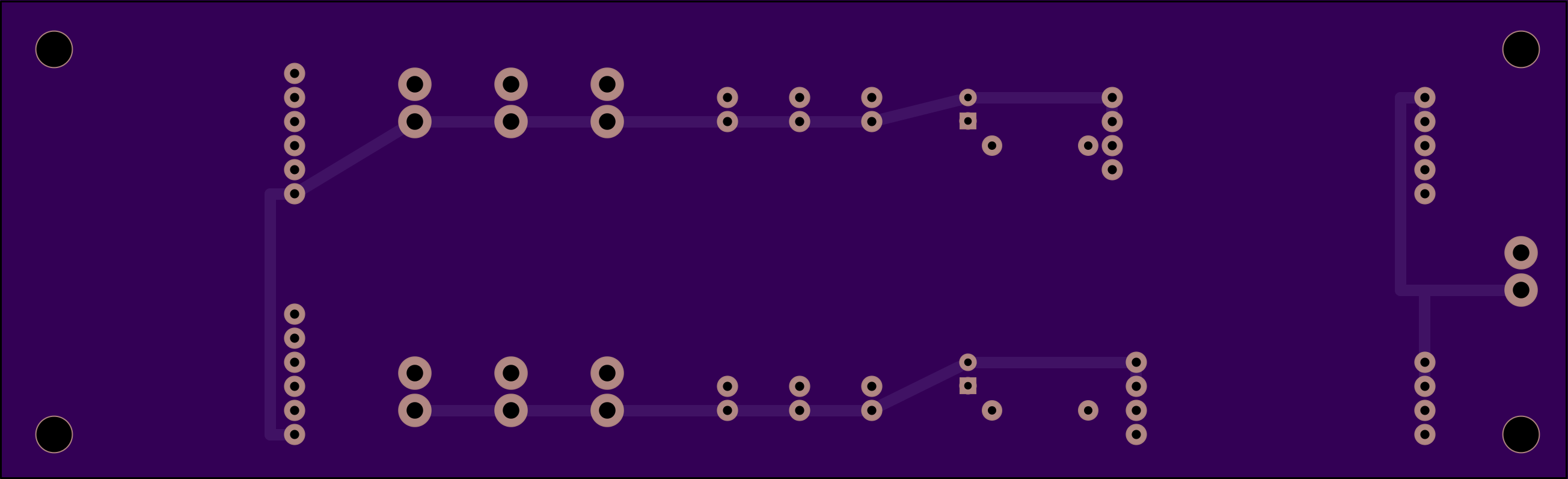

UTexas BWI - Power Distribution Board

2 layer board of 6.52x1.99 inches (165.61x50.55 mm).
Shared on May 26th, 2015 16:32.

Board for distributing unregulated 12v and regulated 12v/5v to all our sensors and actuators.

Copy this HTML into your page to embed a link to order this shared project

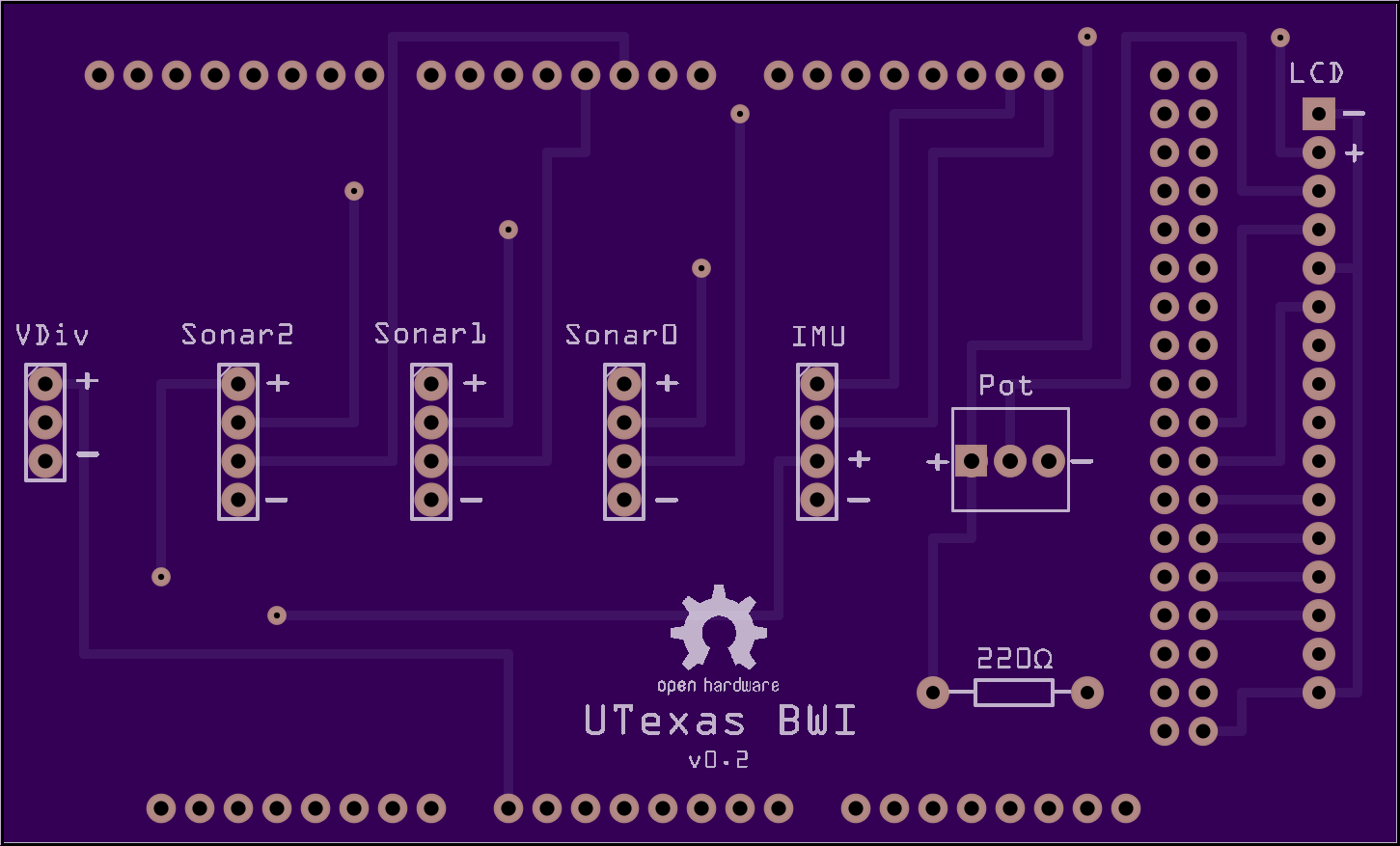

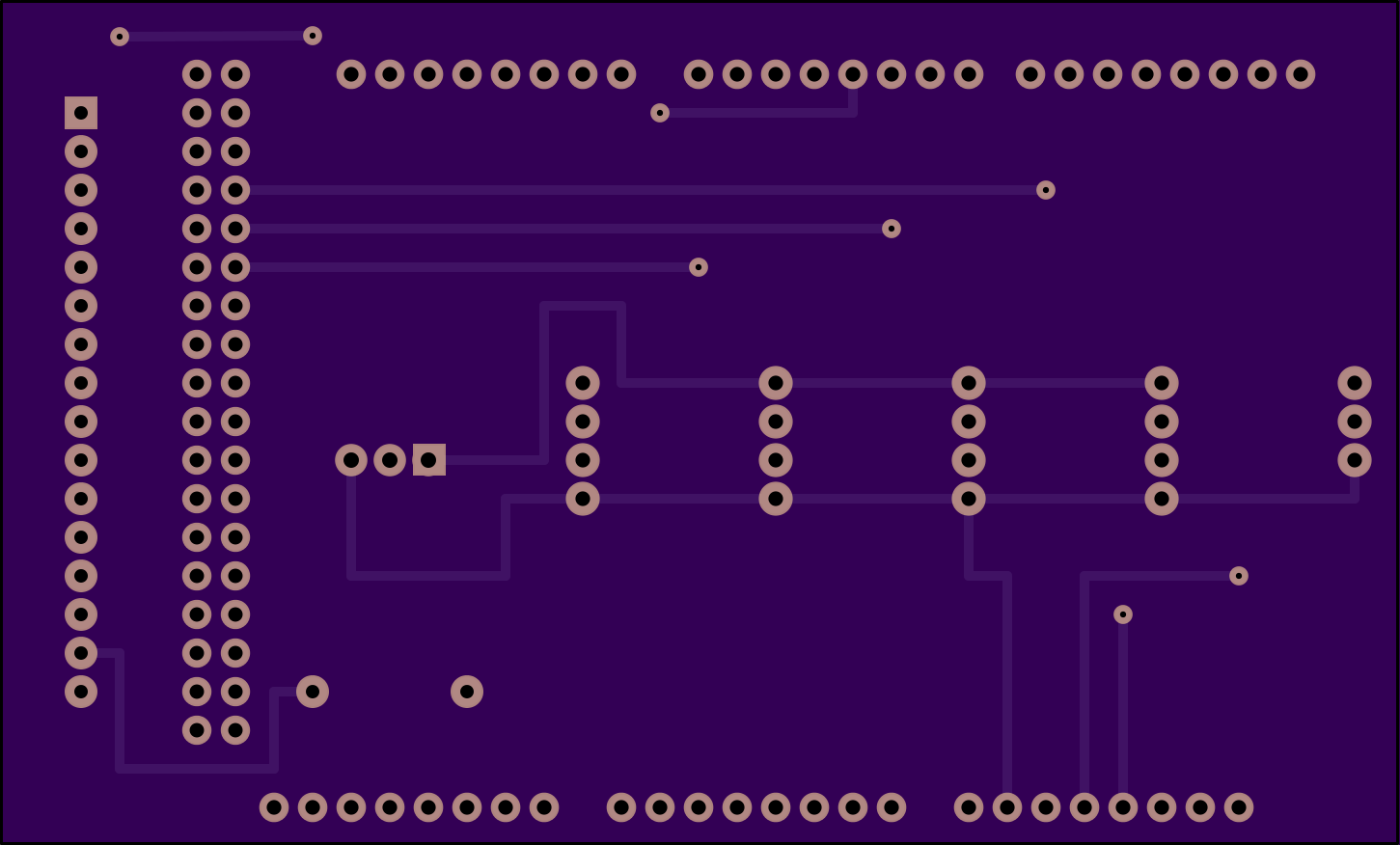

UTexas BWI Sensor Board v0.2

2 layer board of 3.63x2.19 inches (92.15x55.65 mm).
Shared on March 27th, 2015 17:34.

Sensor board for ultrasound, IMU, voltage reader, and IMU

Copy this HTML into your page to embed a link to order this shared project

2 layer board of 0.91x1.04 inches (23.04x26.39 mm).
Shared on October 21st, 2013 15:28.

Handy device that you can use to inform people outside your dorm on whether you are available, working, sleeping, or in need of solitude.

You can check out the source and pictures of the final product at Github
