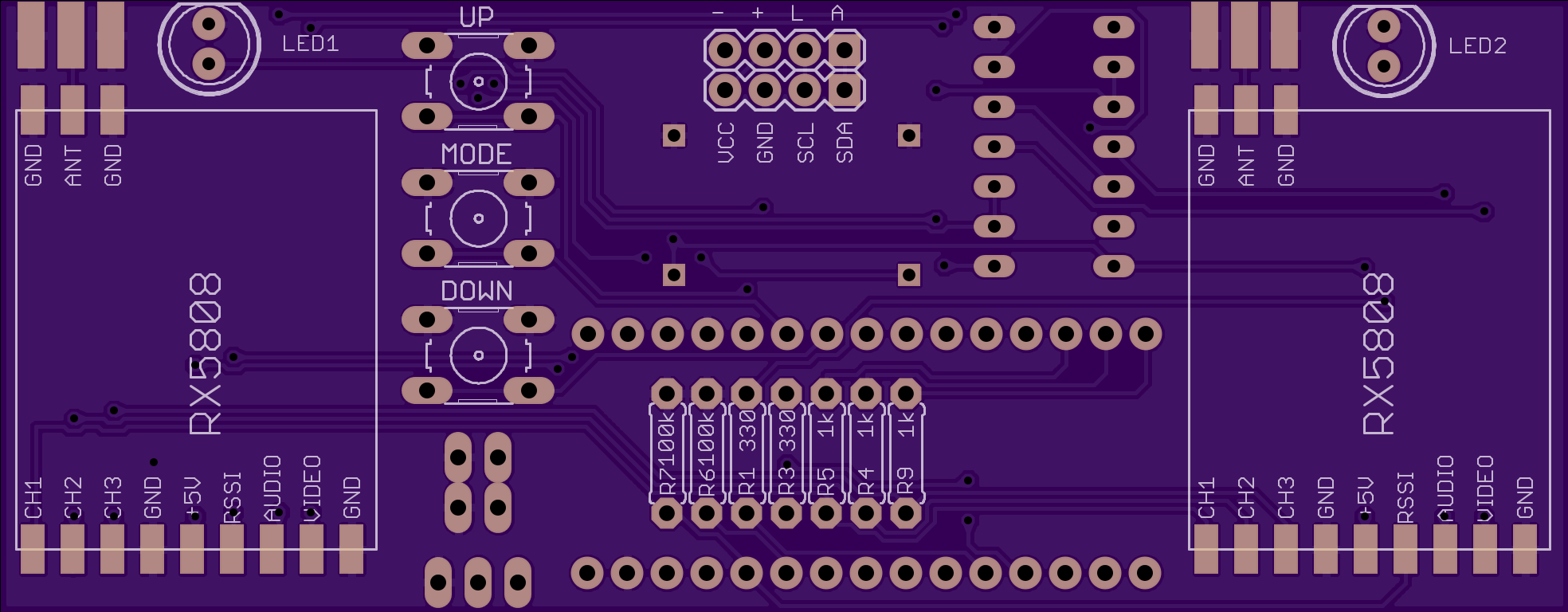

rx5808 Nano Board
by
pfriedel.
2
layer board of
3.94x1.54
inches
(100.00x39.01
mm).
Shared on
February 17th, 2016 15:50.
Half the height, all the fun. Ok, only 15mm out of 54, but it’s an important 15mm. Only change to the BOM is an Arduino Nano replacing a Pro Micro. Some quality of life improvements to the layout, but nothing significant.

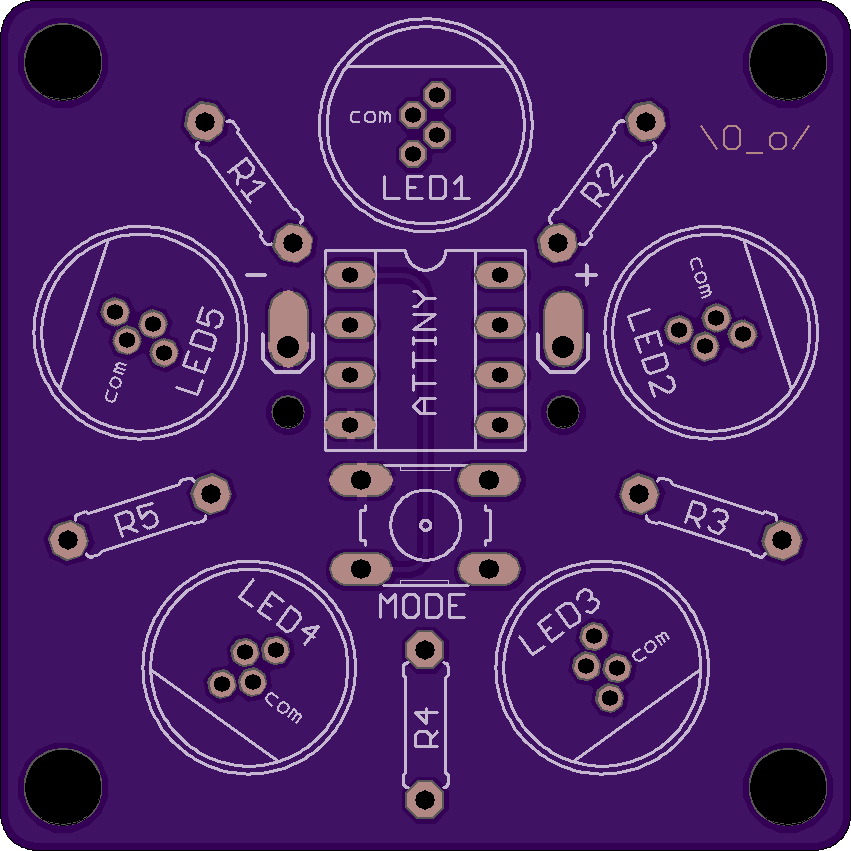

Tiny 5 Circle
by
pfriedel.
2
layer board of
1.70x1.70
inches
(43.18x43.18
mm).
Shared on
February 16th, 2016 22:15.
5 RGB LEDs and an ATtiny85. 3 sq. in. of glowing love.

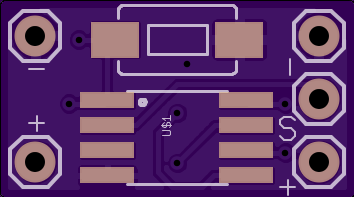

Telemetry Inverter - 1 Channel
by
pfriedel.
2
layer board of
0.47x0.36
inches
(12.01x9.02
mm).
Shared on
February 16th, 2016 15:52.
Converts your standard UART output to something FrSky receivers will use.

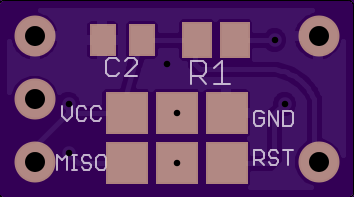

WS2812 Driver - Tiny85
by
pfriedel.
2
layer board of
0.71x0.39
inches
(18.01x10.01
mm).
Shared on
October 5th, 2015 20:30.
The smallest ATtiny[25|45|85] carrying board I could design to fit on quads and still have a mode change button hooked into reset.

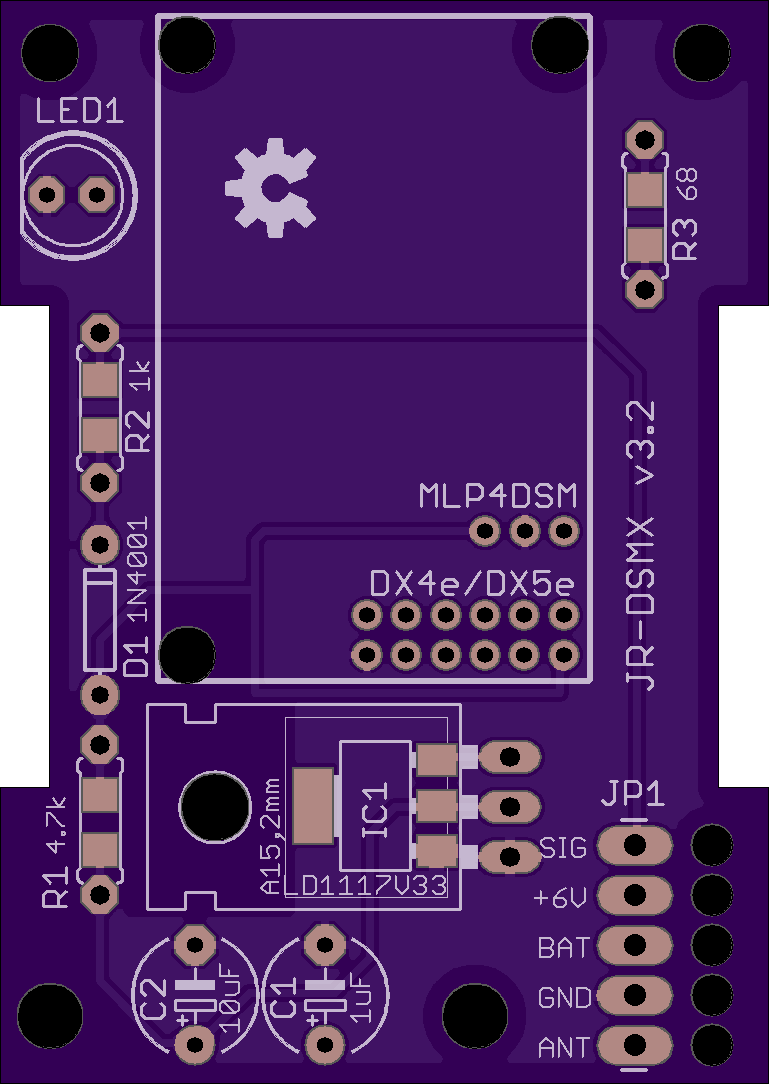

JR DSM Board v3.2
by
pfriedel.
2
layer board of
1.54x2.17
inches
(39.01x55.02
mm).
Shared on
July 8th, 2015 03:27.
Now with 1206 pads embedded in the through hole parts. Note: insulate the smd vreg pads if you use the TO220 package so you don’t risk shorting everything out.
