Shared projects

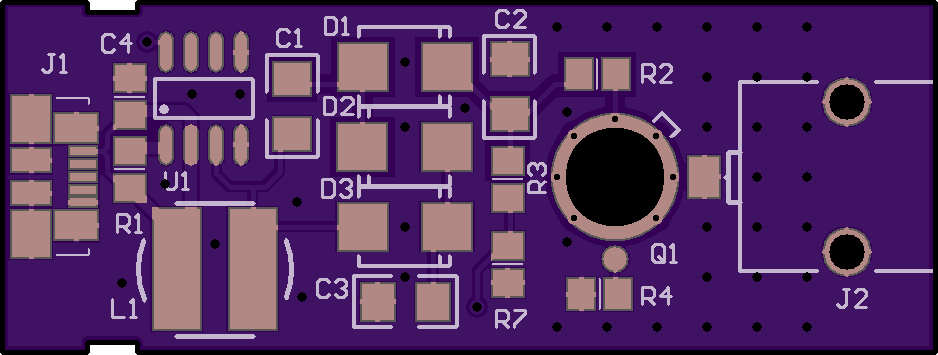

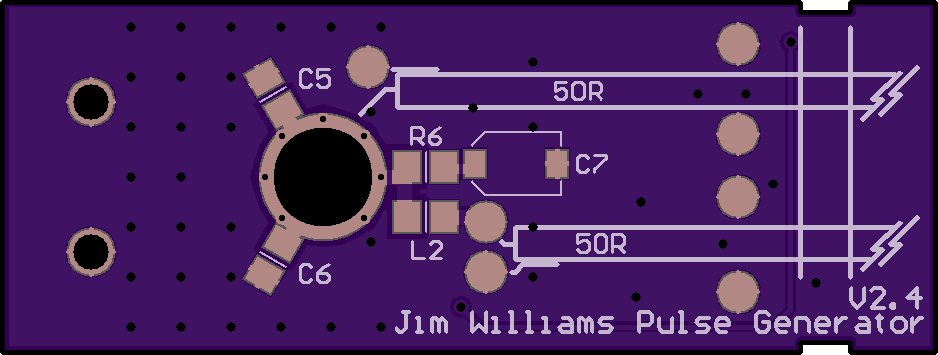

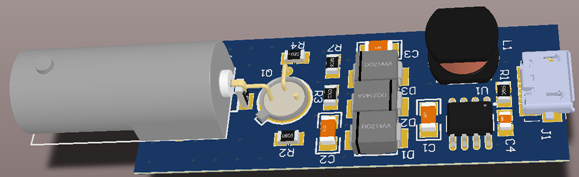

Jim Williams Pulse Generator V2.4

by pgo.
Top
Bottom

2 layer board of 1.88x0.71 inches (47.63x18.03 mm).
Shared on February 19th, 2017 11:37.

Main use is for testing Oscilloscope rise-time and hence estimating bandwidth.

Details available at GitHub.

An image

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

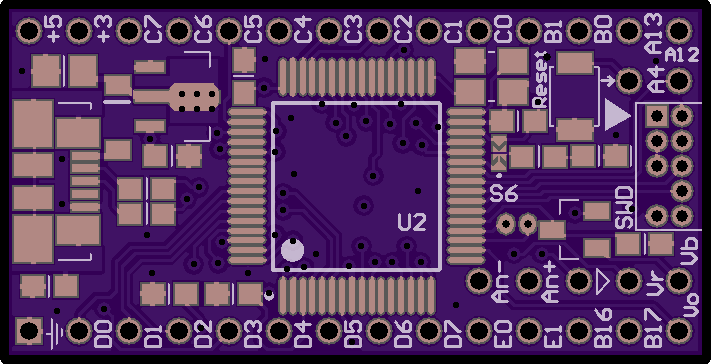

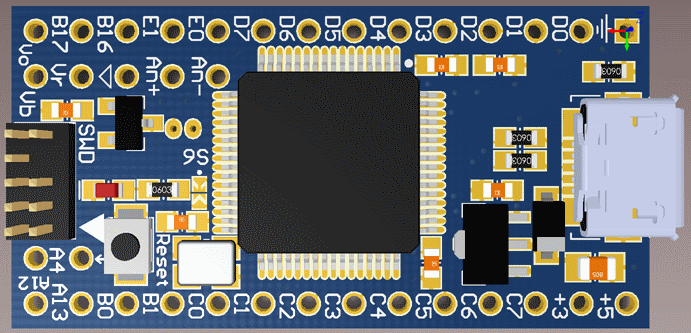

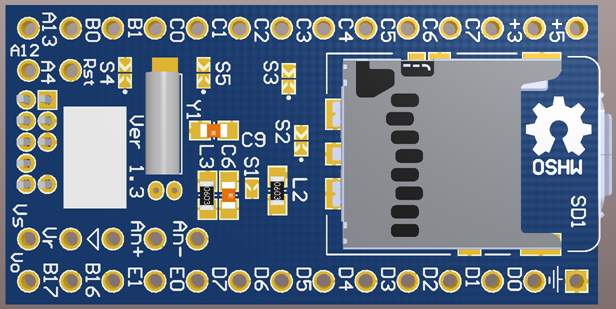

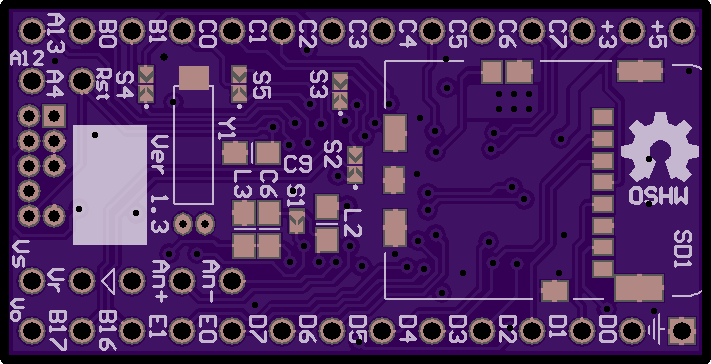

KinetisDIP V1.3

by pgo.
Top
Bottom

4 layer board of 1.42x0.73 inches (36.12x18.52 mm).
Shared on January 21st, 2017 02:44.

Kinetis MK22FN512VLH12 module in DIP format

Basic module for use with breadboard.

Details available at GitHub.

Keywords: Kinetis SWD MK20

An image

An image

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

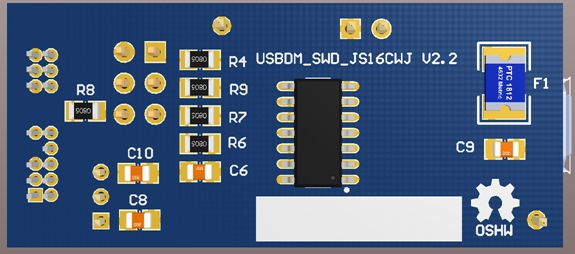

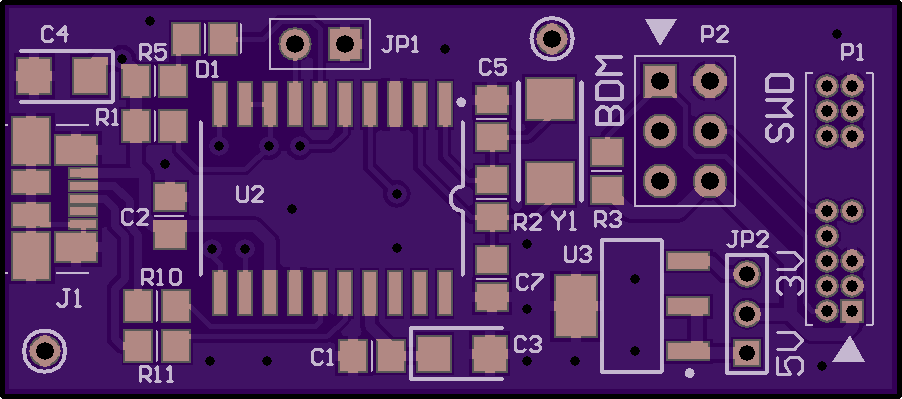

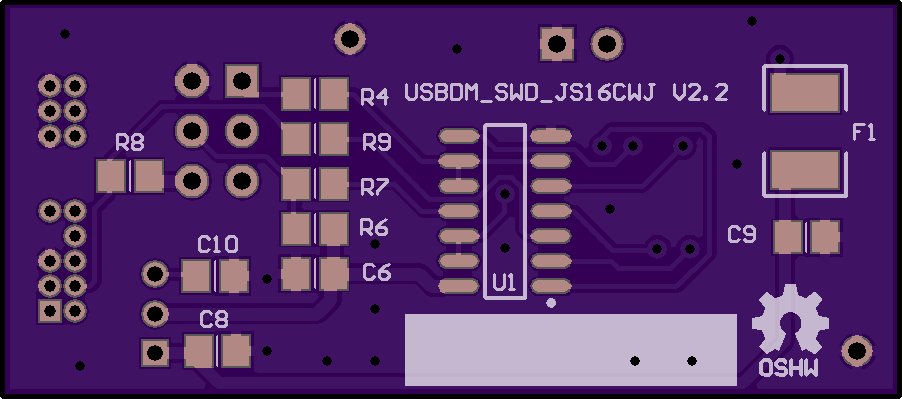

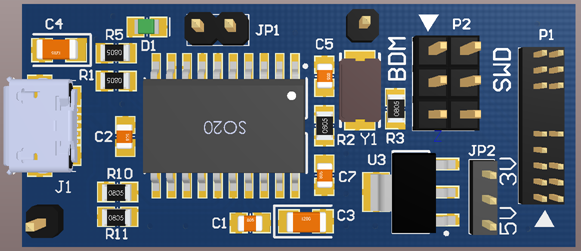

USBDM_SWD_JS16CWJ V2.2

by pgo.
Top
Bottom

2 layer board of 1.80x0.80 inches (45.82x20.27 mm).
Shared on January 20th, 2017 02:33.

USBDM BDM for
- Kinetis (SWD)
- RS08
- HCS08
- HCS12
- CFV1
Documentation available at Sourceforge.
Software information available at Sourceforge.
Design files available at GitHub.

An image

An image

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
