Shared projects

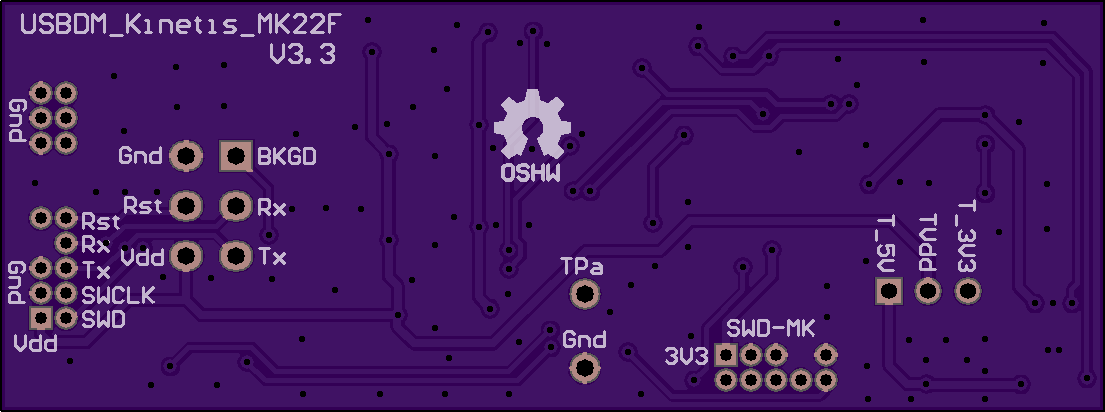

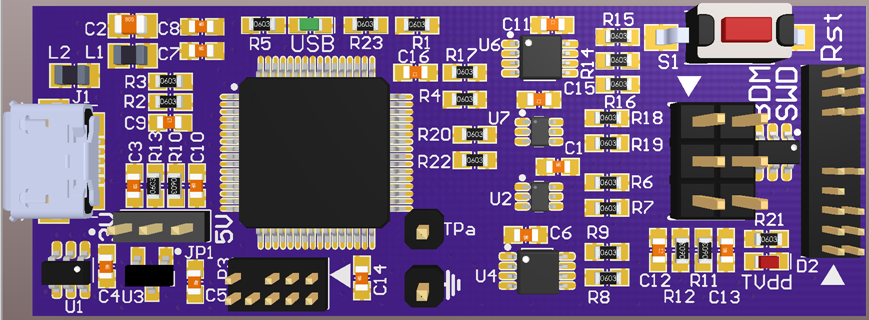

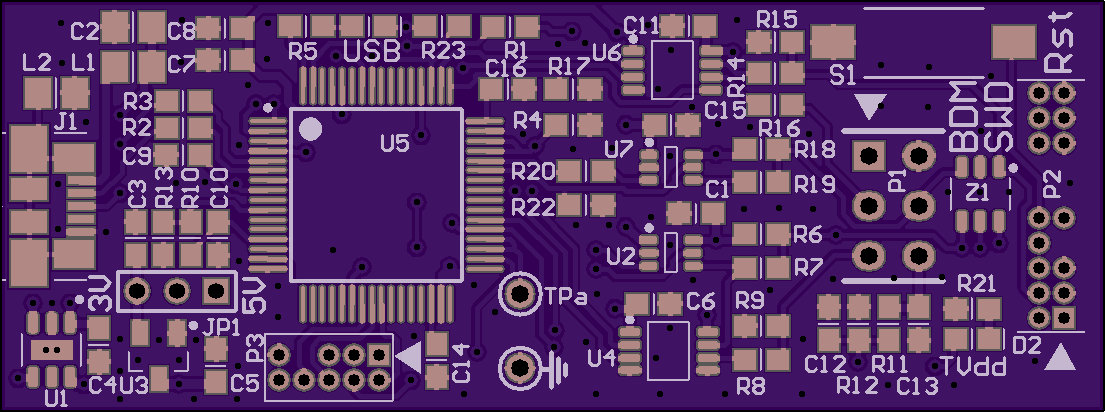

USBDM_Kinetis_MK22F

by pgo.
Top
Bottom

2 layer board of 2.21x0.82 inches (56.16x20.93 mm).
Shared on April 19th, 2017 02:42.

USBDM Programmer - Kinetis MK22F version 3.3

Details available at GitHub.

Keywords: Kinetis HCS08 HCS12 CFV1 USBDM SWD BDM Programmer

An image

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

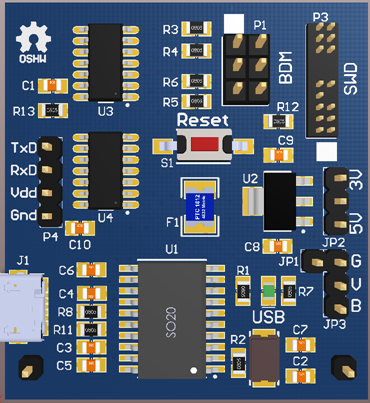

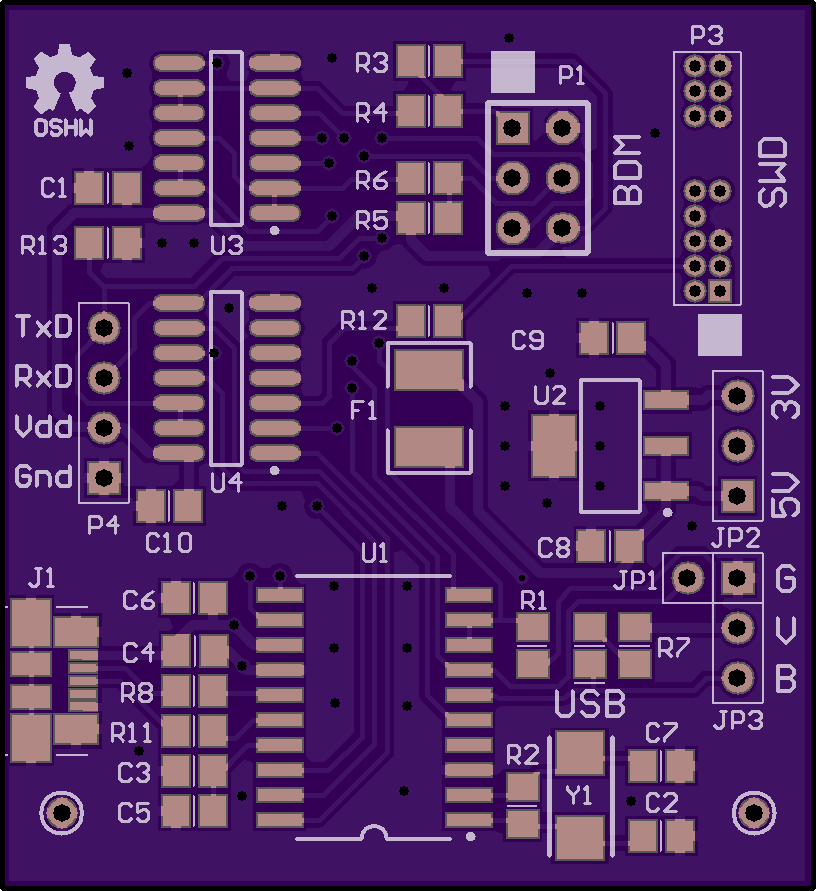

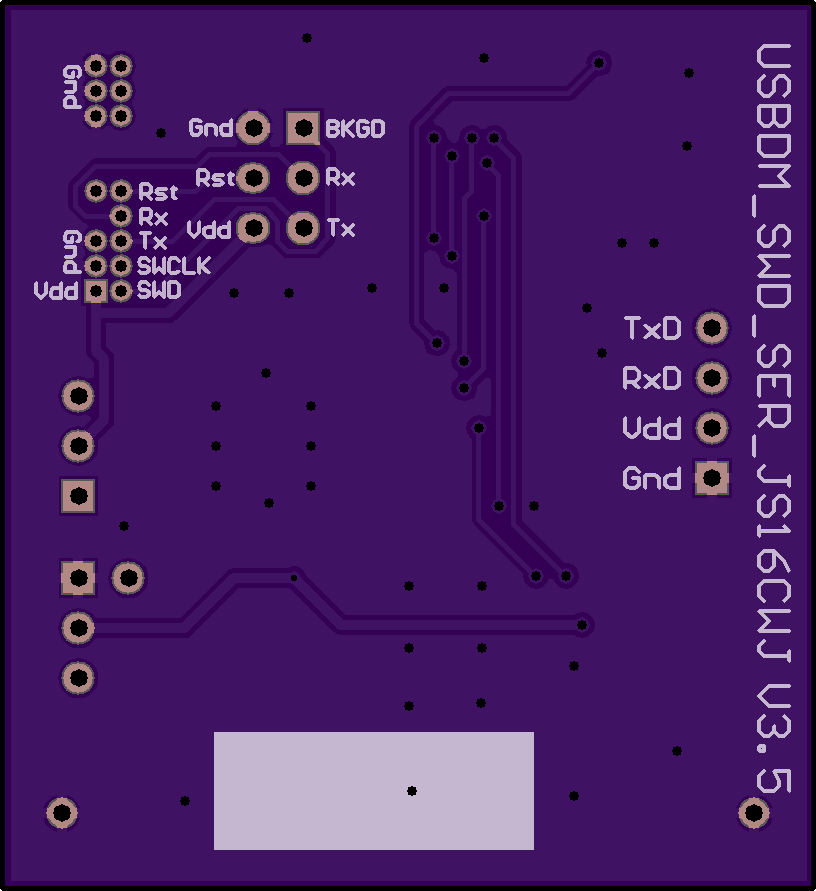

USBDM_SWD_SER_JS16CWJ V3.5

by pgo.
Top
Bottom

2 layer board of 1.63x1.78 inches (41.48x45.26 mm).
Shared on April 2nd, 2017 05:55.

USBDM BDM for
- Kinetis (SWD)
- HCS08
- HCS12
- CFV1
Documentation available at Sourceforge.
Software information available at Sourceforge.
Design files available at GitHub.

An image

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

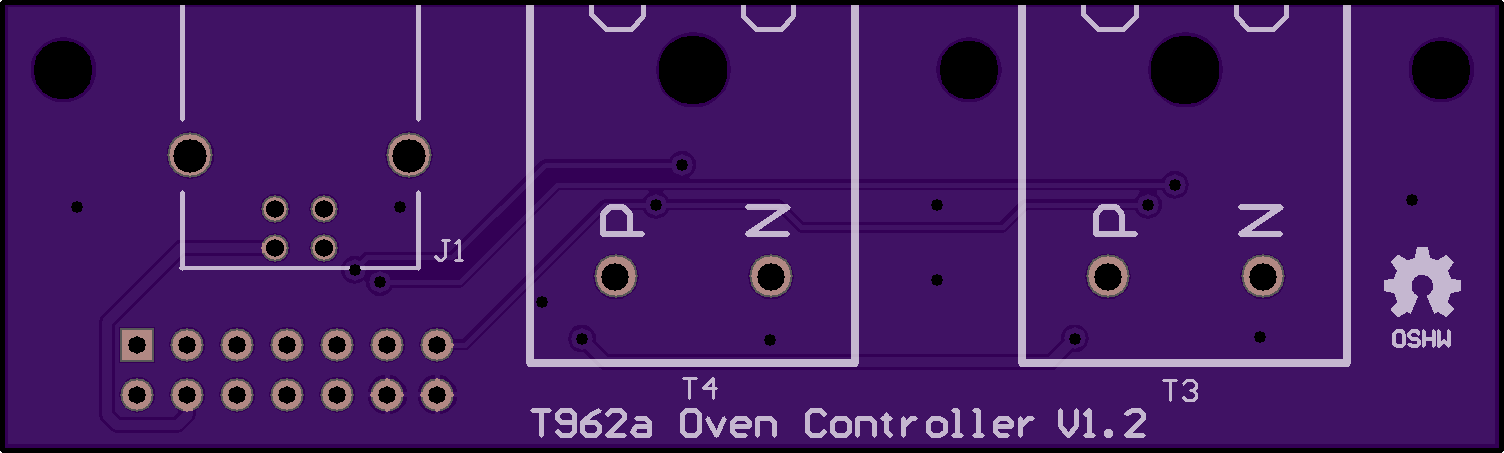

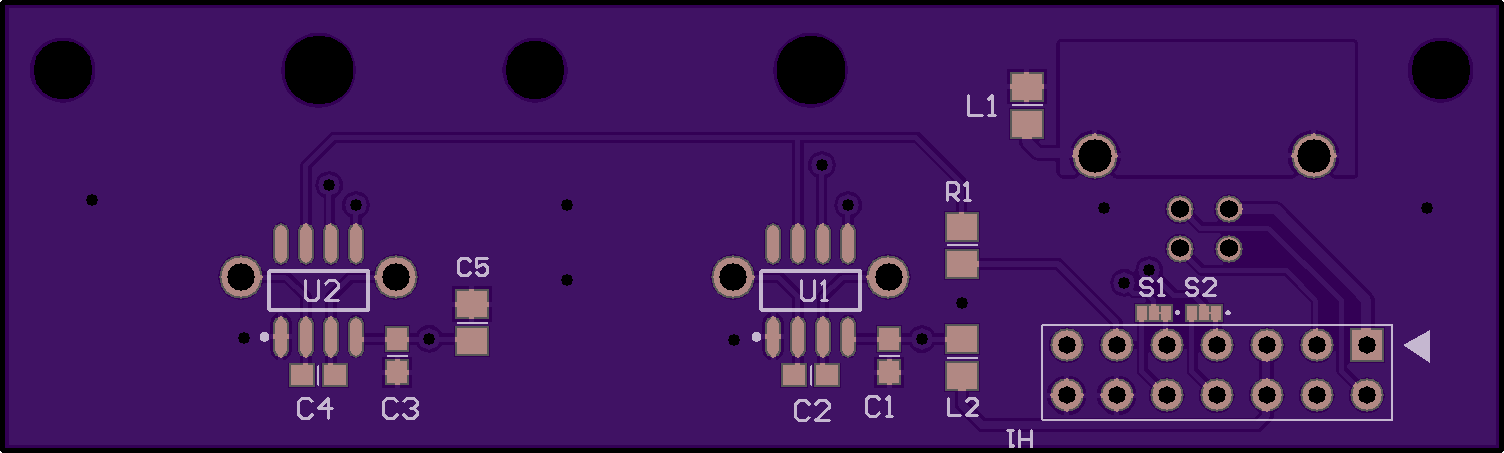

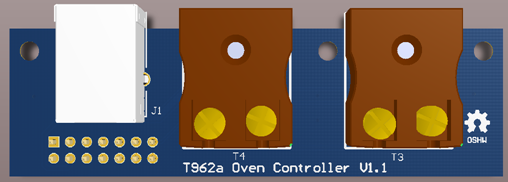

T962a SMT Oven - Panel V1.2

by pgo.
Top
Bottom

2 layer board of 3.01x0.91 inches (76.40x23.04 mm).
Shared on March 31st, 2017 00:40.

T962a Reflow oven - Expansion Panel

Details available at GitHub.

An image

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

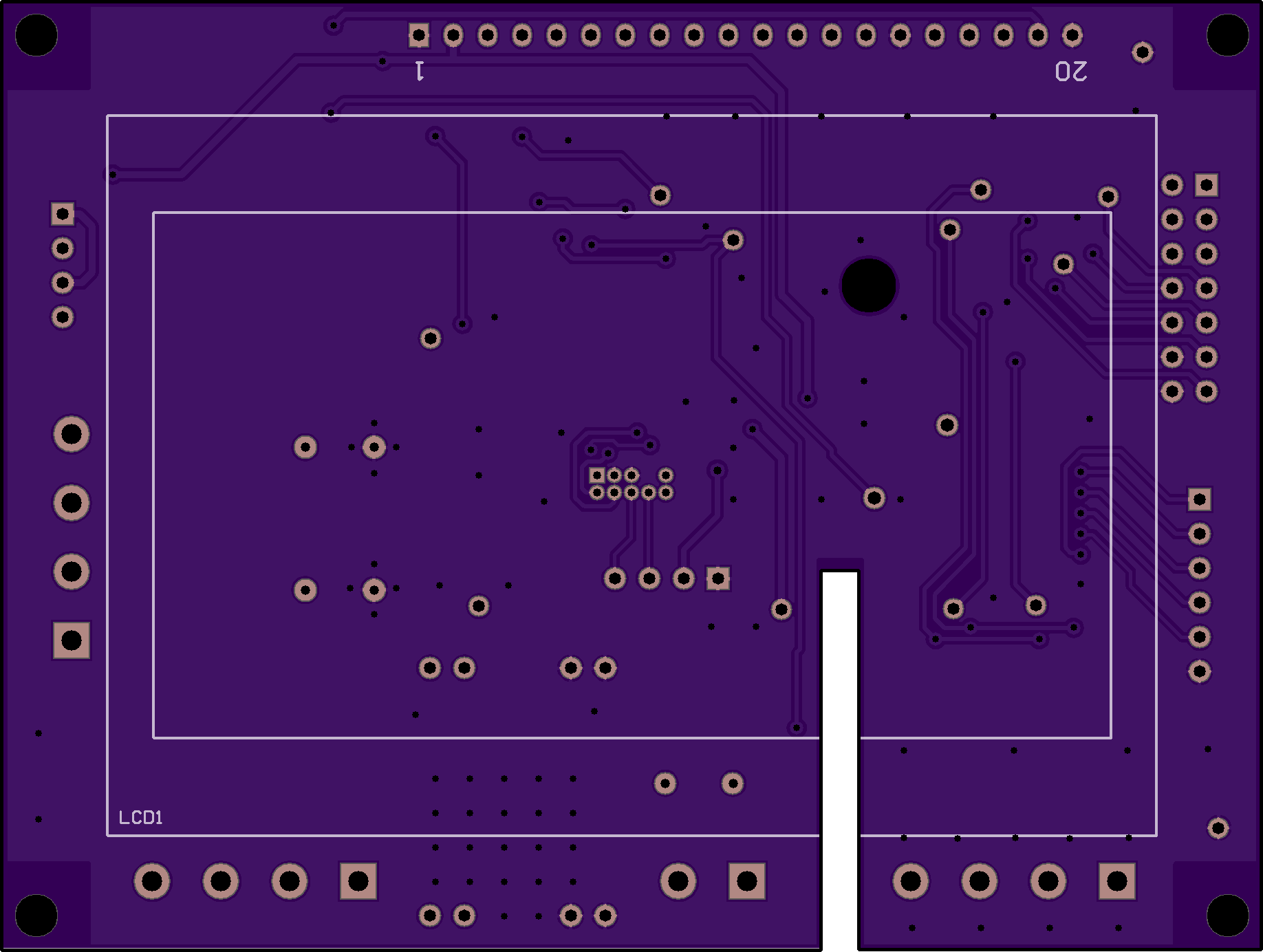

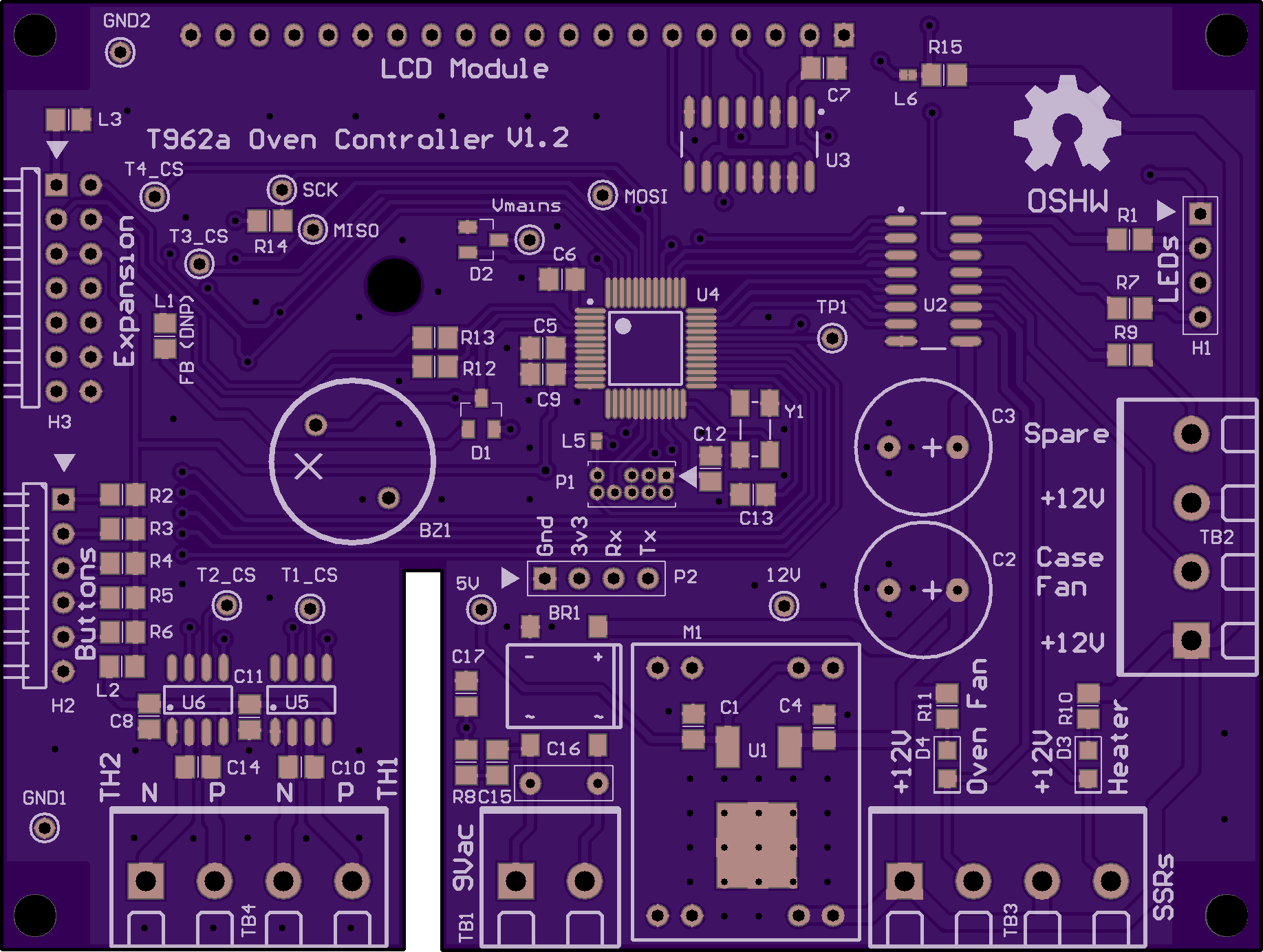

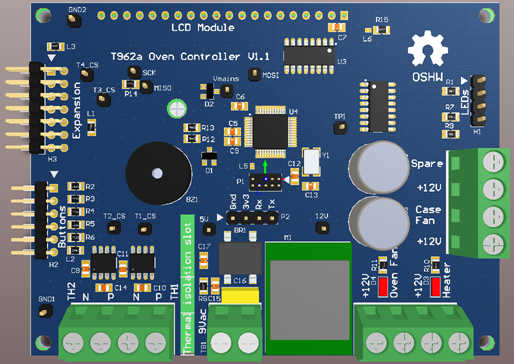

T962a SMT Oven Main_Board V1.2

by pgo.
Top
Bottom

2 layer board of 3.67x2.77 inches (93.27x70.28 mm).
Shared on March 31st, 2017 00:31.

T962a Reflow oven - Main controller

Details available at GitHub.

An image

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

USB Interruptor V1.0

by pgo.
Top
Bottom

2 layer board of 1.12x0.79 inches (28.32x20.12 mm).
Shared on March 4th, 2017 22:54.

USB Interruptor

Design files available at GitHub.

An image

References:
Loosely based on design by Paul Stoffregen but using components that were more convenient for me.
