Shared projects

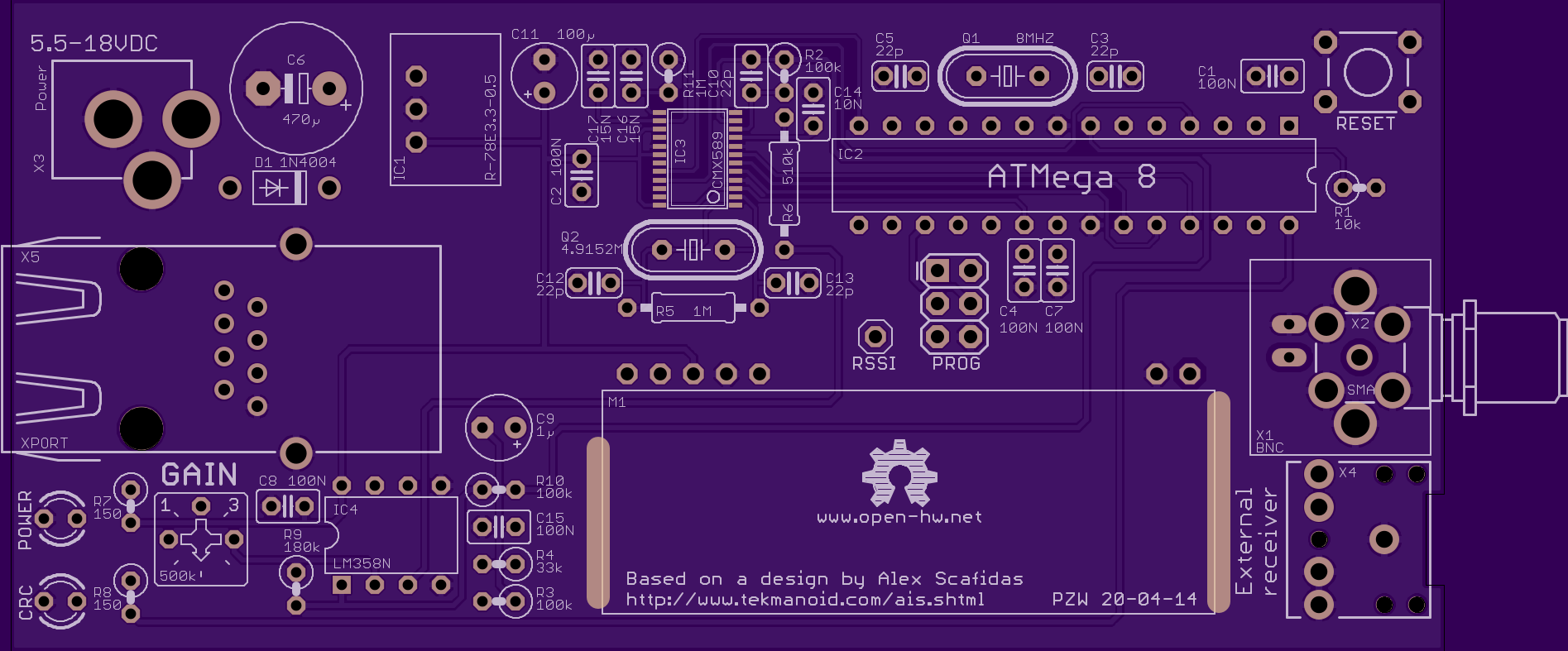

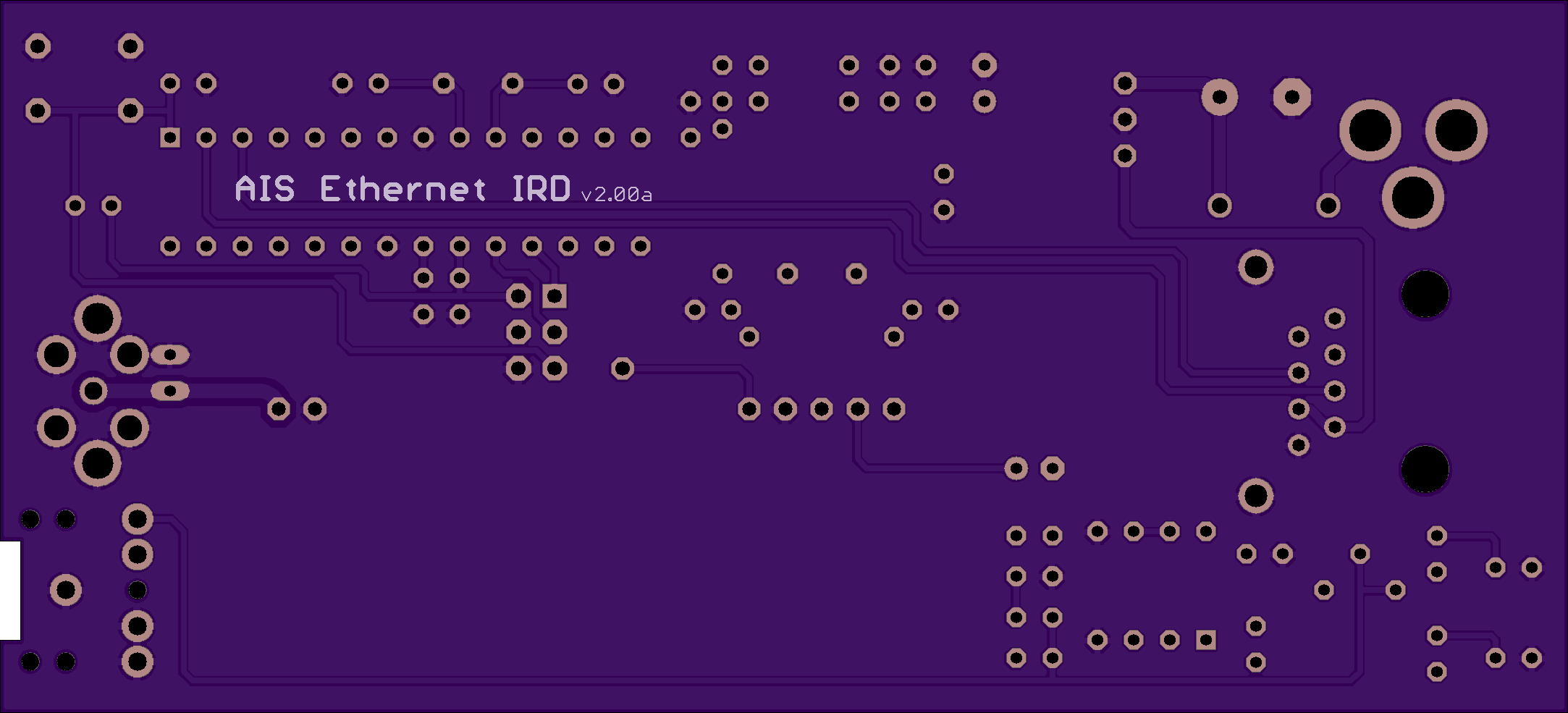

AIS IRD Ethernet - v2.00a

by pzw.
Top
Bottom

2 layer board of 4.33x1.97 inches (110.01x50.01 mm).
Shared on November 10th, 2014 15:00.

AIS decoder with built in receiver and Ethernet connection. Complete standalone system, ready to connect to AIS database servers like marinetraffic.com . The PCB fits in the DIY1111 case.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

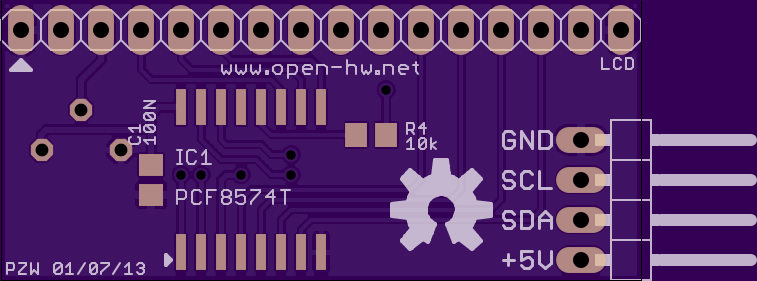

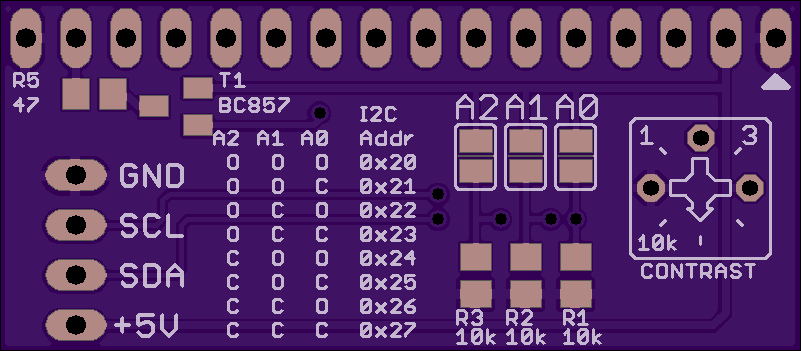

I2C LCD Adapter - v1.00

by pzw.
Top
Bottom

2 layer board of 1.60x0.70 inches (40.64x17.78 mm).
Shared on June 11th, 2014 19:19.

I2C LCD Adapter - 1x16 - v1.00

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

ATMega 128 DIP adapter

by pzw.
Top
Bottom

2 layer board of 3.26x1.16 inches (82.88x29.51 mm).
Shared on August 18th, 2013 02:37.

ATMega 128 DIP adapter with crystal and capacitors

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
