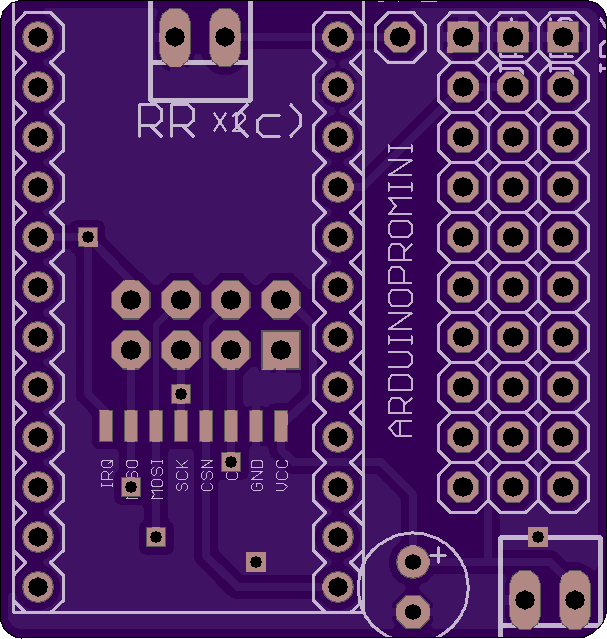

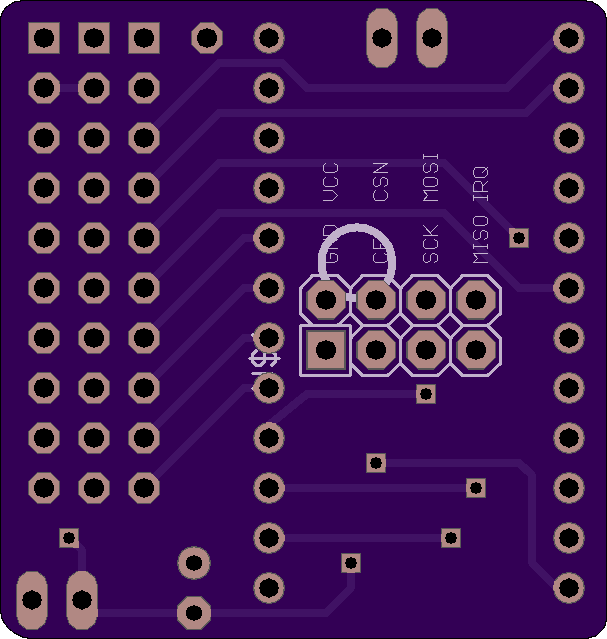

Arduino Pro Mini SMD or standard NRF24L01+, Prototype area for sensors v2

2 layer board of 1.21x1.27 inches (30.81x32.39 mm).
Shared on March 20th, 2017 21:13.

Adapter for Arduino Pro mini and SMD or standard version of NRF24L01+ including prototyping area. For battery based or standard systems.

Copy this HTML into your page to embed a link to order this shared project

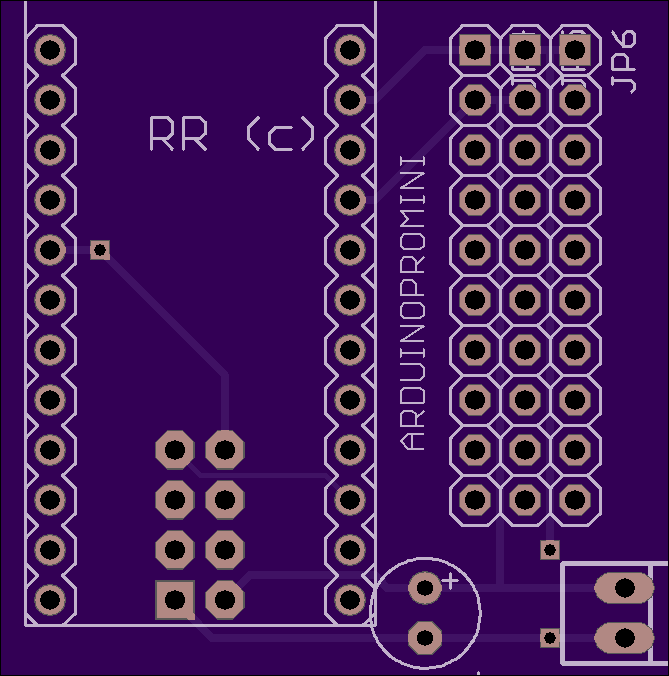

Arduino Pro Mini SMD or standard NRF24L01+, Prototype area for sensors

2 layer board of 1.21x1.27 inches (30.81x32.39 mm).
Shared on March 4th, 2017 21:53.

Adapter for Arduino Pro mini and SMD or standard version of NRF24L01+ including prototyping area. For battery based systems.

Copy this HTML into your page to embed a link to order this shared project

2 layer board of 1.21x1.93 inches (30.68x49.12 mm).
Shared on February 28th, 2017 20:39.

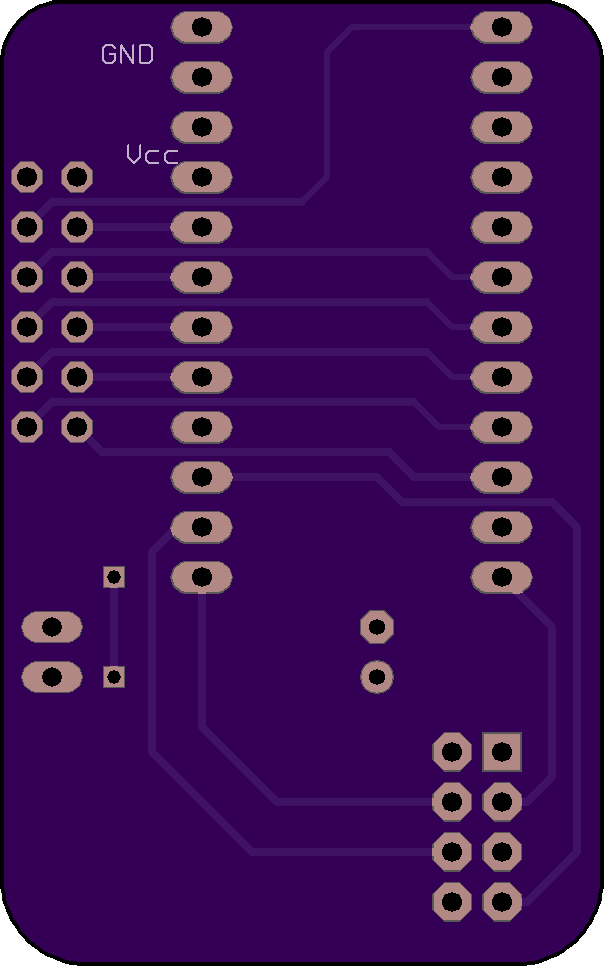

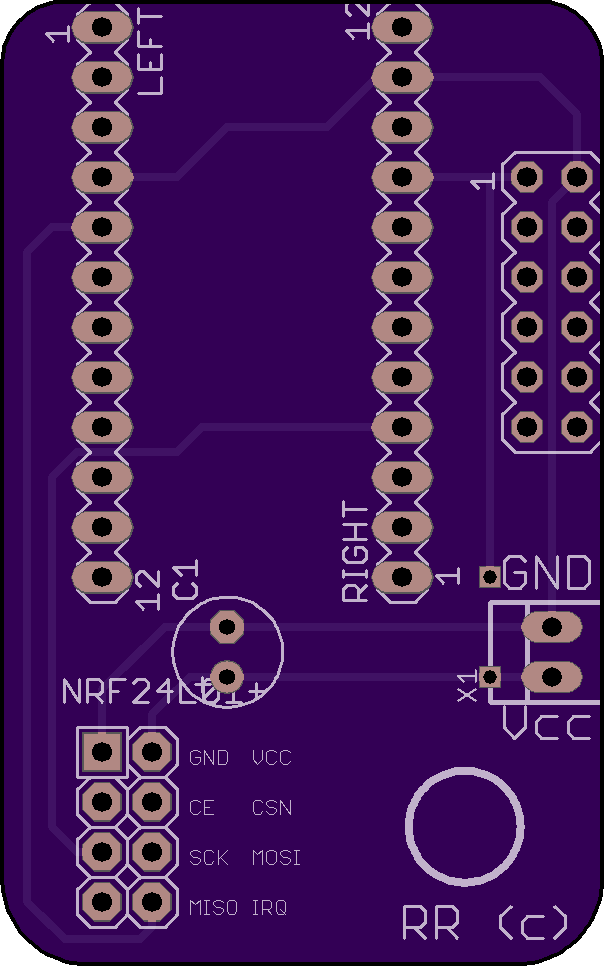

Arduino Pro Mini board with socket for NRF24L01+ and small socket for digital and analog pins.

Copy this HTML into your page to embed a link to order this shared project

2 layer board of 1.34x1.35 inches (33.96x34.29 mm).
Shared on February 27th, 2017 22:00.

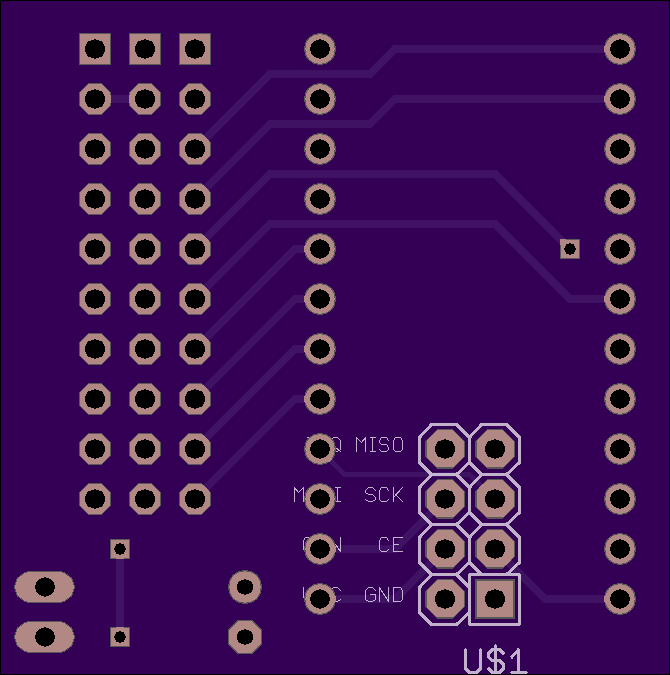

Battery based card to setup connection between Arduino Pro Mini and NRF24L01+, available prototyping area.
