Shared projects

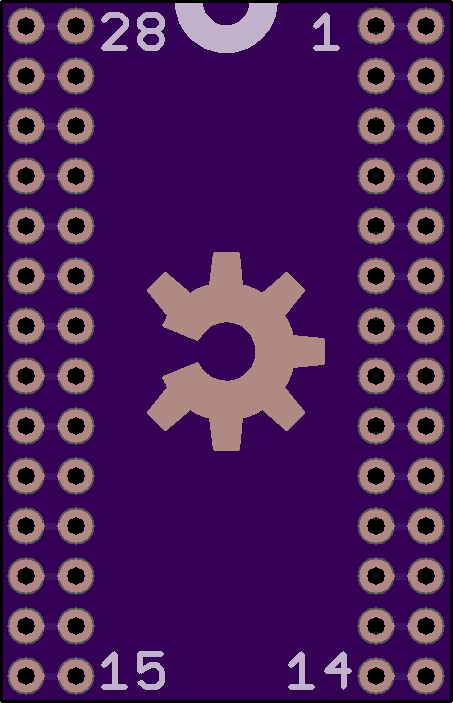

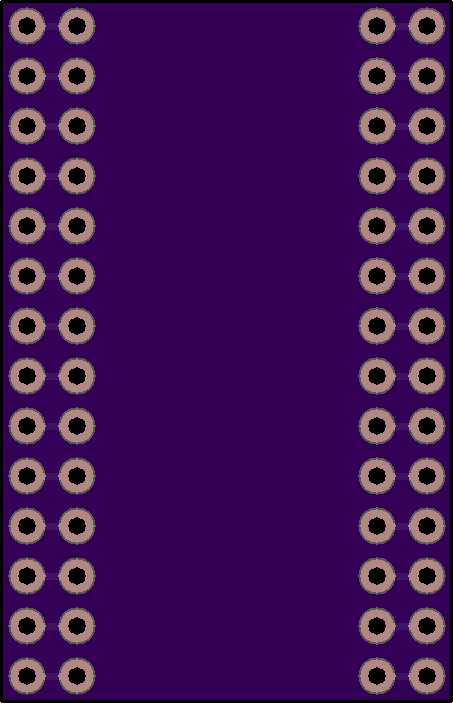

Reduction PCB Model B

by rofa.
Top
Bottom

2 layer board of 0.91x1.41 inches (23.01x35.71 mm).
Shared on August 28th, 2015 19:32.

28pin package reducing PCB

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

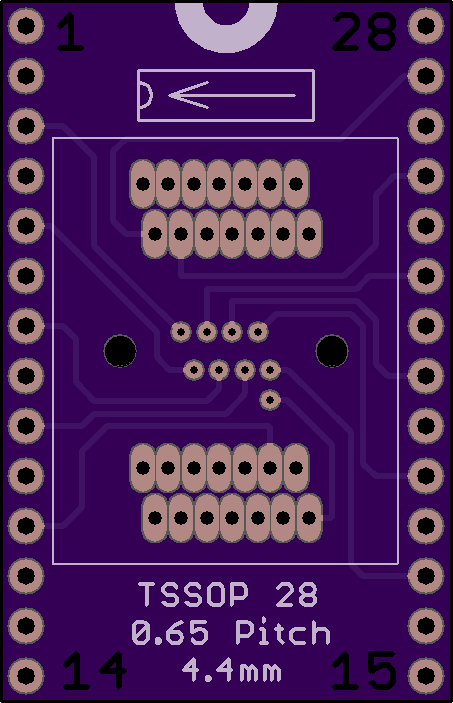

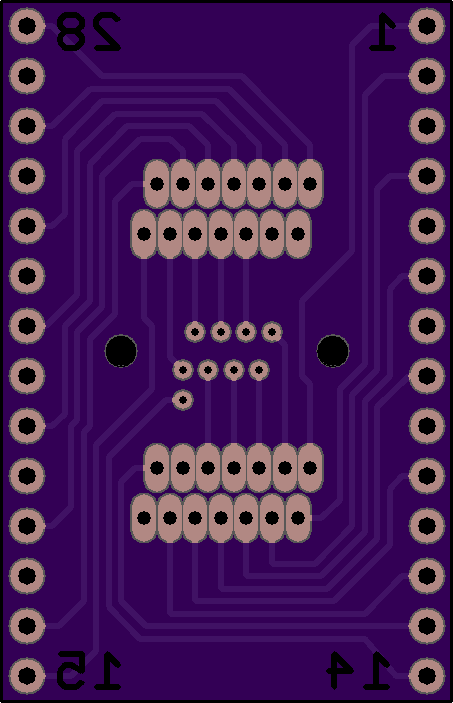

TSSOP28 reducing board

by rofa.
Top
Bottom

2 layer board of 0.91x1.41 inches (23.01x35.71 mm).
Shared on August 28th, 2015 19:32.

TSSOP28 reducing board for test socket

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

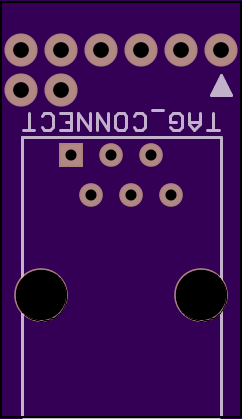

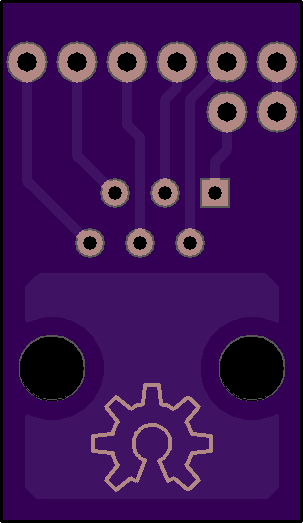

PICKIT to TAGConnect

by rofa.
Top
Bottom

2 layer board of 0.61x1.05 inches (15.39x26.57 mm).
Shared on February 4th, 2014 09:54.

Conversion PCB from PICkit programmer to TAG Connect cable

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

TSSOP32 Test socket board

by rofa.
Top
Bottom

2 layer board of 1.01x1.61 inches (25.55x40.79 mm).
Shared on February 2nd, 2014 20:08.

Reduction board for TSSOP 32 pin test socket to DIL. The socket can be ordered on eBay: http://www.ebay.com/itm/OTS-28-065-01-ENPLAS-TSSOP-28-TEST-AND-BURN-IN-SOCKET-OPEN-TOP-/111188124127?pt=LH_DefaultDomain_0&hash=item19e35421df

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

32pin Reduction PCB 0.6" to 0.9"

by rofa.
Top
Bottom

2 layer board of 1.01x1.61 inches (25.55x40.79 mm).
Shared on February 2nd, 2014 19:36.

Simple 32pin Reduction PCB 0.6" to 0.9"

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
