[Not Tested] LED Minute Repeater Clock - rev 0.2
by
ryo1kato.
2
layer board of
1.17x1.51
inches
(29.62x38.25
mm).
Shared on
May 7th, 2017 20:09.
A clock with blinking LED telling you time. Useful if you’re myopic and don’t have glasses or smartphone within reach of your hand when you’re in the bed (like me, with my two kids blocking my both sides) https://github.com/ryo1kato/arduino-clock/tree/trinket-neopixel Using ATtiny85 micro controller and DS3231 RTC chip with “smart” RGB LED WS2812.
This version has fixes from previous version (rev 0.1) and probably works, but not actually tested.

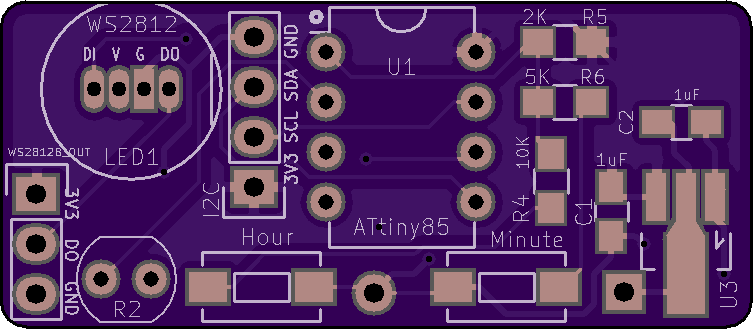

LED Minutes Repeater Clock - rev 0.5.1
by
ryo1kato.
2
layer board of
1.51x0.66
inches
(38.25x16.66
mm).
Shared on
May 1st, 2017 03:34.
See source code and schematic on GitHub

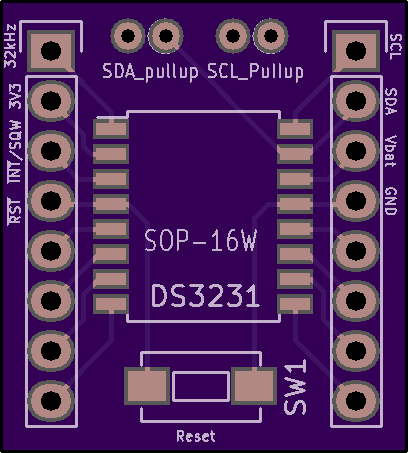

SOP16-W to DIP breakout board w/ DS3231 peripherals
by
ryo1kato.
2
layer board of
0.82x0.91
inches
(20.73x23.01
mm).
Shared on
April 15th, 2017 21:04.

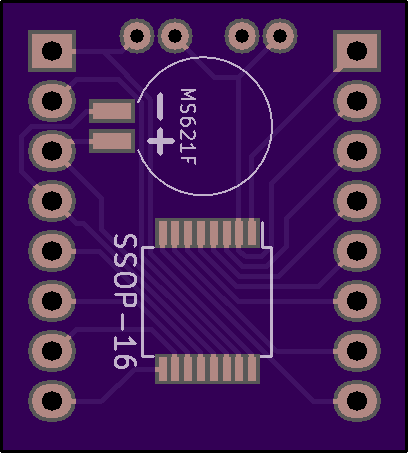

SOP16-W / SSOP-16 to DIP breakout board with additional DS3231 RTC chip peripherals (I2C pull-ups, reset button, and RTC backup battery)
