Adaptive Nodes SMD - v1.00

by saporis.
Top
Bottom

2 layer board of 1.77x0.97 inches (44.86x24.66 mm).
Shared on March 24th, 2017 22:20.

Initial Beta Run

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

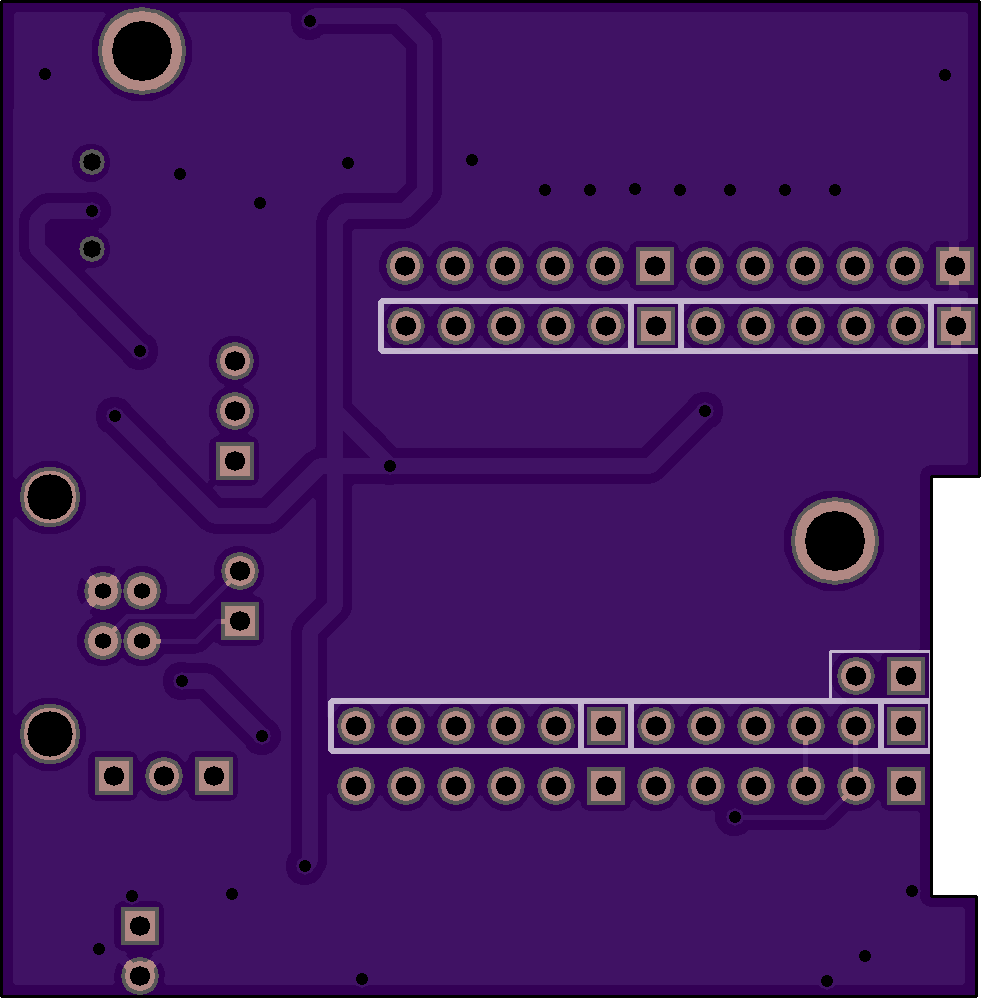

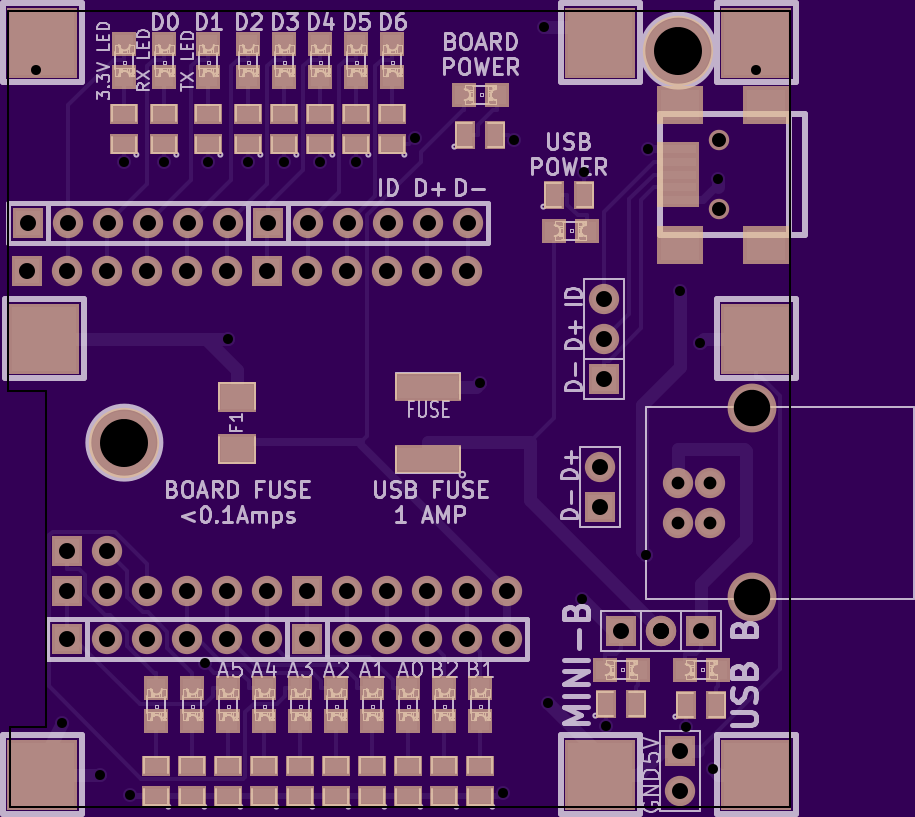

Adaptive Node Development Board

by saporis.
Top
Bottom

2 layer board of 1.96x2.00 inches (49.81x50.70 mm).
Shared on July 19th, 2014 23:43.

When testing multiple Adaptive Nodes before sending to market or by testing against a scope, this is the board you need. This requires an Adaptive Node SMD board to be attached.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

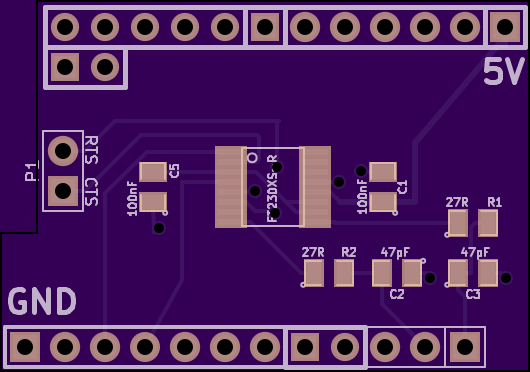

USB Add-On v0.90c

by saporis.
Top
Bottom

2 layer board of 1.33x0.93 inches (33.68x23.65 mm).
Shared on July 12th, 2014 04:27.

Adds USB connectivity to Adaptive Nodes. This version also exposes RTS/CTS pins if you are using the Arduino bootloader to program your Adaptive Nodes.
