Profile for sjm
Shared projects
Fluke IR interface
by
sjm.
2
layer board of
0.54x0.43
inches
(13.61x10.82
mm).
Shared on
April 11th, 2017 22:08.
IR interface for Fluke Scopemeter

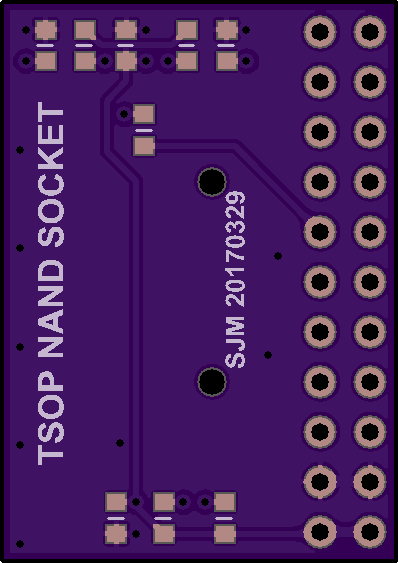

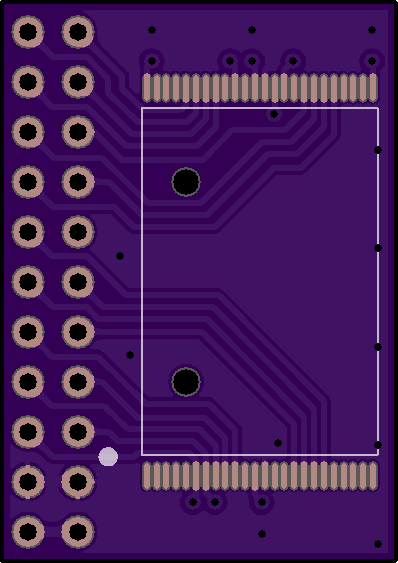

TSOP socket
by
sjm.
2
layer board of
0.80x1.13
inches
(20.22x28.60
mm).
Shared on
March 28th, 2017 23:37.
TSOP socket to mount NAND flash onto Altera FPGA dev board

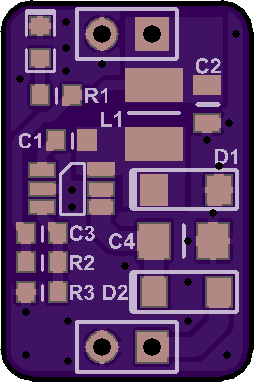

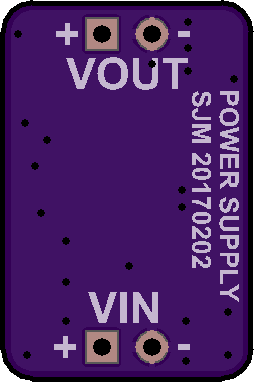

Power supply
by
sjm.
2
layer board of
0.51x0.76
inches
(12.88x19.38
mm).
Shared on
February 2nd, 2017 05:18.
Simple switching power supply using the BD9G101G. Up to 42V in, 500mA out.

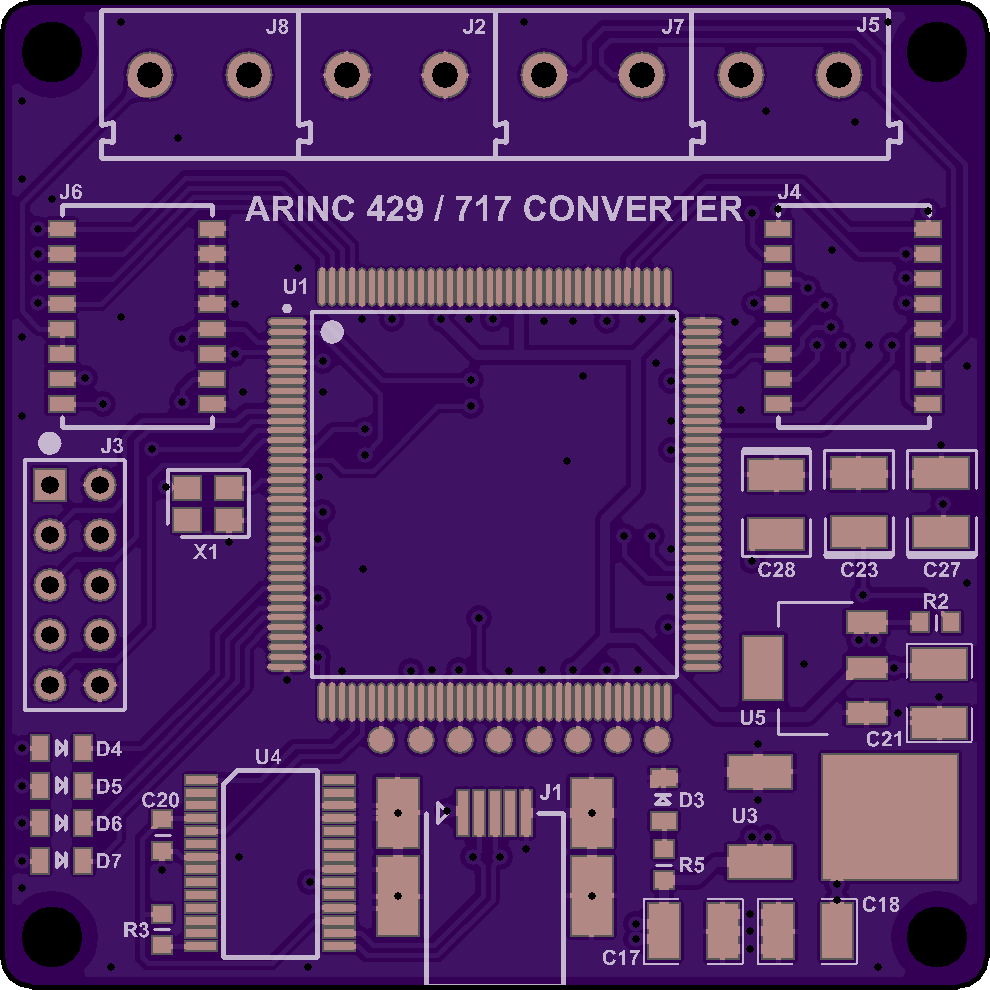

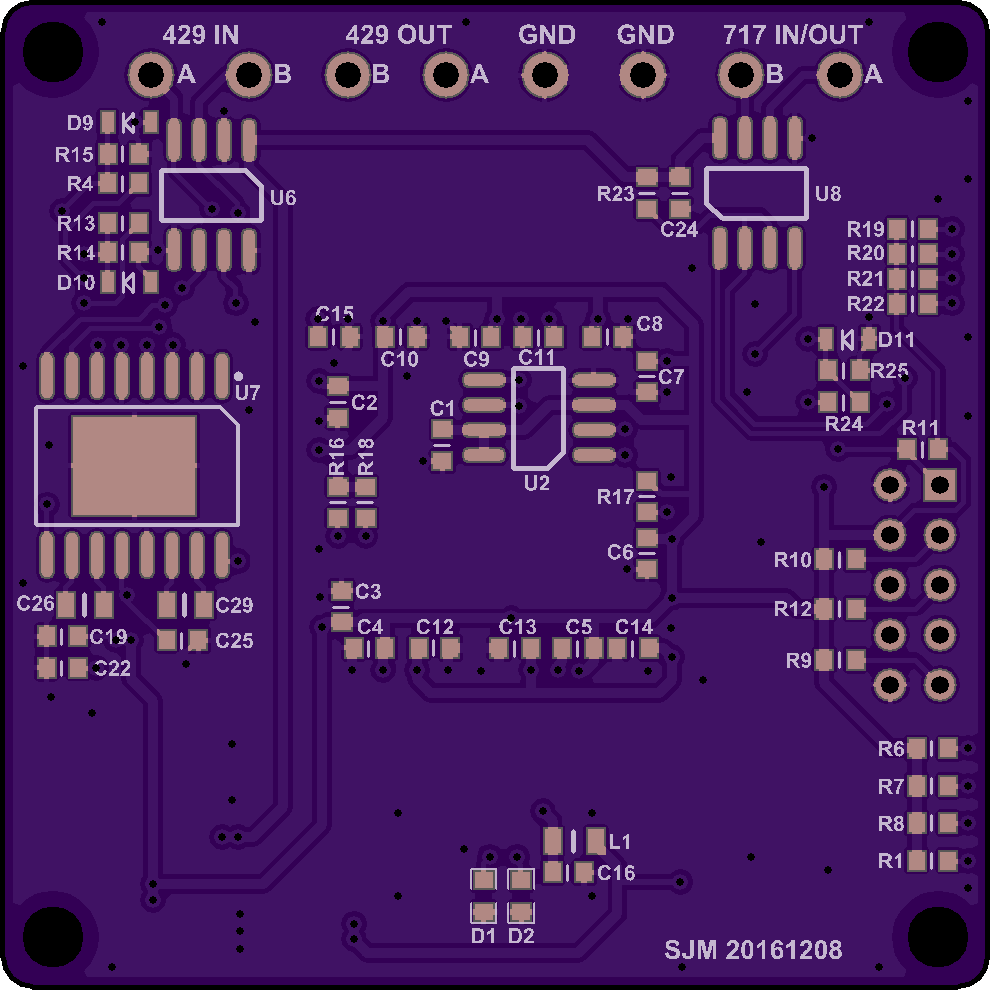

ARINC 429/717 Converter
by
sjm.
2
layer board of
1.98x1.98
inches
(50.27x50.27
mm).
Shared on
January 4th, 2017 01:01.
Cyclone II FPGA encoding and decoding ARINC 429 & 717. FTDI USB interface.
LiPo/LiIon Charger
by
sjm.
2
layer board of
0.56x0.33
inches
(14.27x8.28
mm).
Shared on
January 2nd, 2017 01:20.
Generic MCP73831 charge controller. Boards are 30 cents each.
