Logic Analyser Buffer

by sjm.

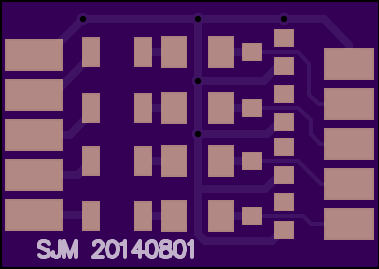

Top

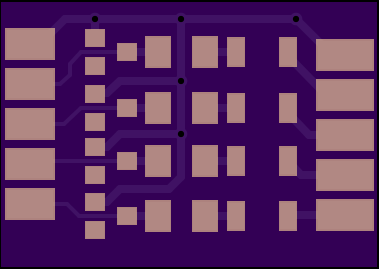

Bottom

2 layer board of 0.95x0.67 inches (24.10x17.12 mm).
Shared on August 25th, 2014 08:42.

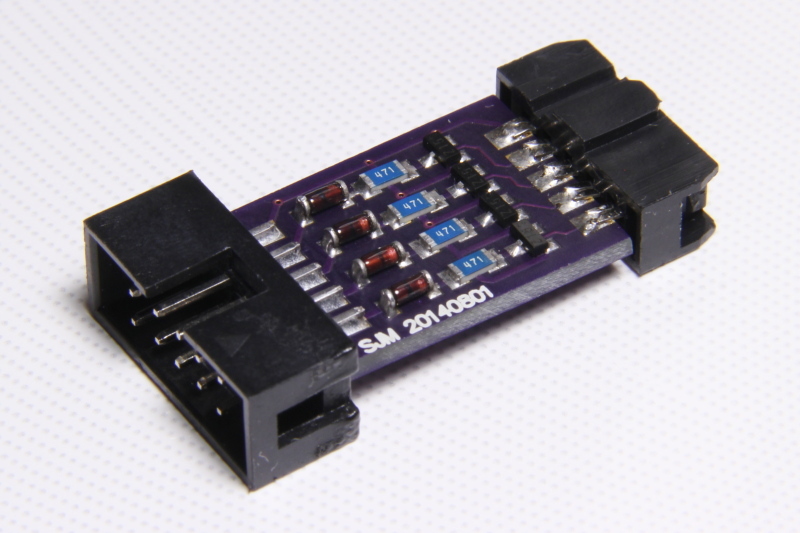

Front end protection for the Saleae logic analyser, allows up to +/-30V bipolar inputs.

Eight channels with series diode and resistor plus zener shunt to ground.
