MiKro-1_0-Rev-A.brd

4 layer board of 2.71x2.15 inches (68.83x54.64 mm).
Shared on April 9th, 2017 05:18.

http://www.mkroll.mobi/?p=1722

Copy this HTML into your page to embed a link to order this shared project

Arduino_MEGA_2560-Rev3.brd

2 layer board of 4.01x2.11 inches (101.88x53.62 mm).
Shared on April 9th, 2017 05:18.

not my design

Copy this HTML into your page to embed a link to order this shared project

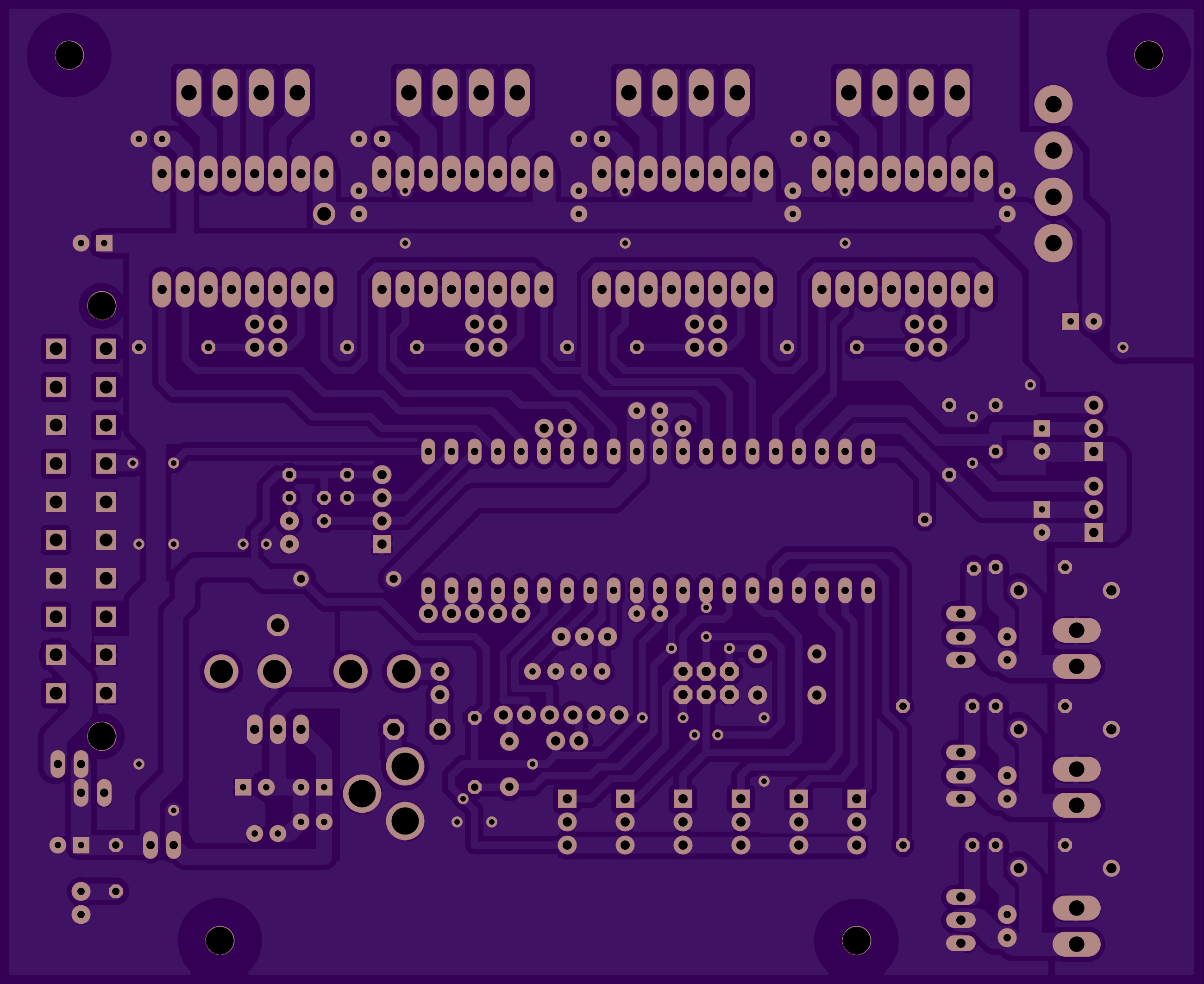

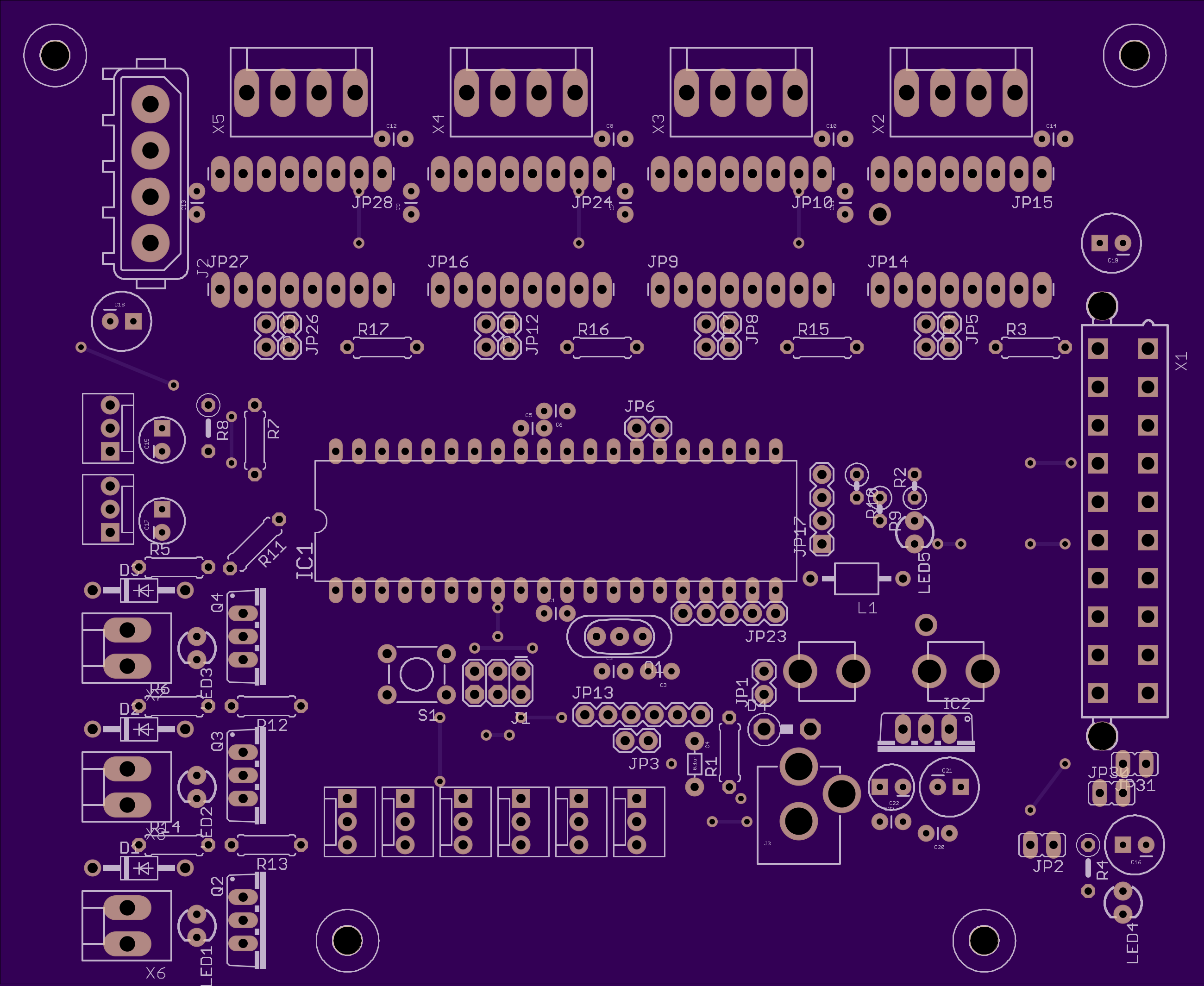

2 layer board of 5.20x4.25 inches (132.11x107.95 mm).
Shared on December 20th, 2015 20:44.

Generation 7 reprap 3d printer pcb from http://reprap.org/wiki/Generation_7_Electronics
